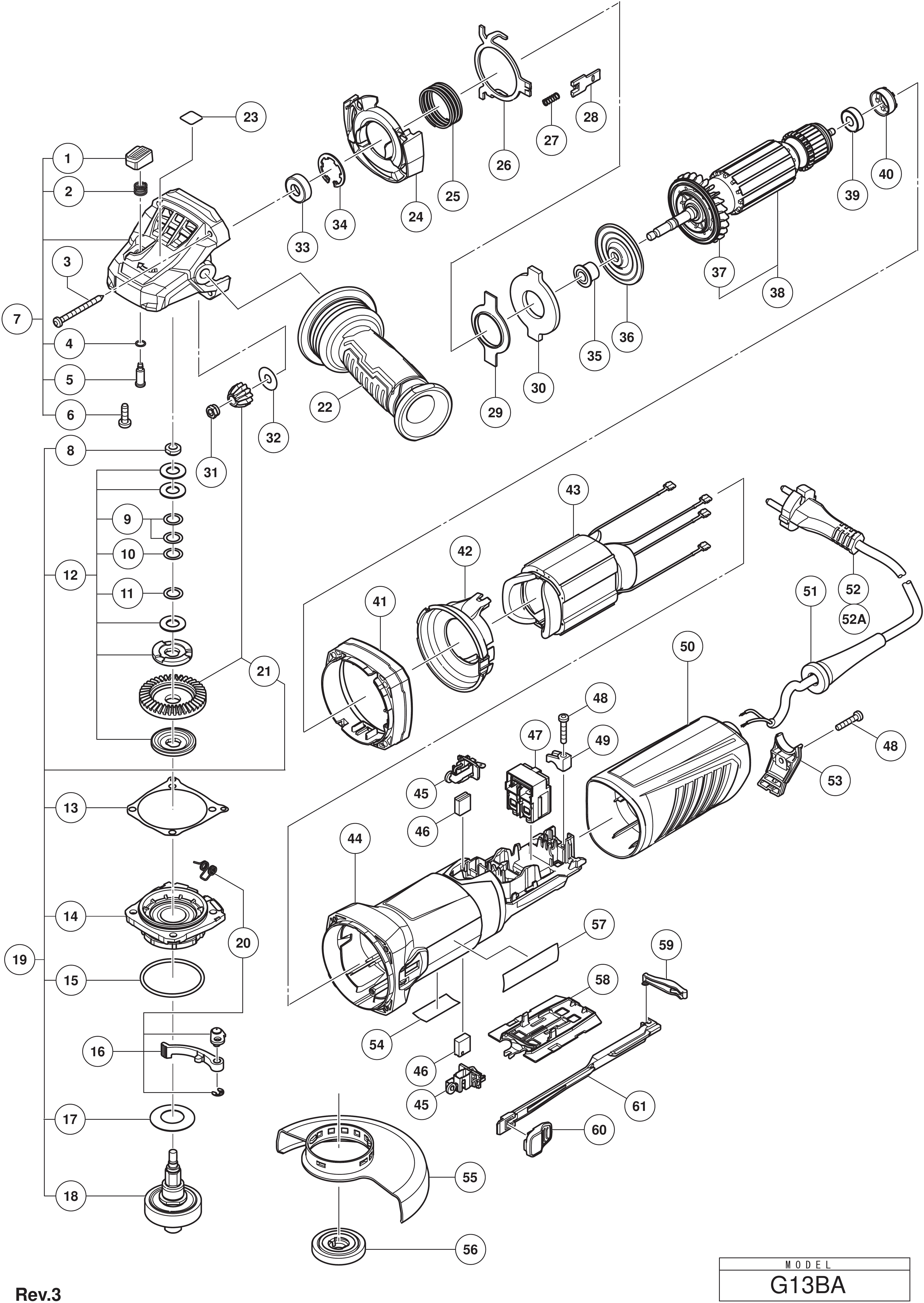

zoom_in View exploded
local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Informazioni sulle spedizioni e consegne saranno disponibili a breve.
Hitachi Spare Parts for Angle Grinder G13BA
Original spare parts and replacement parts for Hitachi Angle Grinder G13BA.In the following table , look for the model of the grinder and the ripettivo spare part.
| Angle Grinder G13BA | ||
| 1 | 372945 | PUSHING BUTTON |
| 2 | 372944 | SPRING (A) |
| 4 | 372943 | O-RING (A) |
| 5 | 372946 | LOCK PIN |
| 7 | 372932 | GEAR COVER ASS'Y |
| 9 | 372924 | WASHER 10.2X14.8X0.2 |
| 10 | 372925 | WASHER 10.2X14.8X0.1 |
| 11 | 372926 | WASHER 10.2X14.8X0.5 |
| 12 | 372931 | FRICTION WASHER ASS'Y |
| 13 | 372918 | GASKET |
| 14 | 372927 | PACKING GLAND |
| 15 | 372959 | O-RING (B) |
| 16 | 372941 | LEVER SET |
| 17 | 372949 | WASHER |
| 18 | 372922 | SPINDLE |
| 19 | 372935 | GEAR AND SPINDLE SET |
| 20 | 372916 | SPRING CLIP |
| 21 | 372930 | BEVEL GEAR.PINION SET |
| 24 | 372901 | BAFFLE |
| 25 | 372956 | SPRING (C) |
| 26 | 372953 | SHIFT LEVER |
| 27 | 372955 | SPRING (B) |
| 28 | 372954 | SHIFT ELEMENT |
| 29 | 372952 | SUPPORT PLATE |
| 30 | 372950 | BUTTING PLATE |
| 31 | 372909 | NUT M6 |
| 32 | 372908 | WASHER 7.05X19.5X0.2 |
| 33 | 372907 | BALL BEARING 8X22X7 |
| 34 | 372942 | RETAINING RING |
| 35 | 372957 | SPACER SLEEVE |
| 36 | 372951 | BRAKE DISC |
| 37 | 372938 | FAN |
| 38 | 372889 | ARMATURE ASS'Y 230V-240V |
| 39 | 372904 | BALL BEARING 6X19X6 |
| 40 | 372905 | RUBBER BUSHING |
| 41 | 372958 | BRAKE FLANGE |
| 42 | 372899 | FAN GUIDE |
| 43 | 372891 | STATOR ASS'Y 230V-240V |
| 44 | 372898 | HOUSING |
| 45 | 372937 | BRUSH HOLDER SET (1 PAIR) |
| 46 | 372940 | CARBON BRUSH SET (1 PAIR) |
| 47 | 372893 | SWITCH |
| 49 | 371271 | CORD CLIP |
| 50 | 372911 | TAIL COVER |
| 51 | 371272 | CORD ARMOR |
| 53 | 372913 | END CAP |
| 58 | 372903 | COVER |
