Hitachi Spare Parts for Cordless Impact Driver Drill DV18DBSL

Hitachi-HIKOKI original spare parts to replace worn components or repair damaged parts of the Cordless Impact Driver Drill DV18DBSL.

Powerful 18 V reversible percussion drill with two 5 Ah high-performance lithium batteries.
Hitachi Spare Parts for Cordless Impact Driver Drill DV18DBSL
  • Hitachi Spare Parts for Cordless Impact Driver Drill DV18DBSL
  • Hitachi Spare Parts for Cordless Impact Driver Drill DV18DBSL
HiKOKI Power Tools Italia S.p.a.

Hitachi Spare Parts for Cordless Impact Driver Drill DV18DBSL

SKU: Hitachi DV18DBSL Condition: New
€2.76
VAT included

Hitachi Spare Parts for Cordless Impact Driver Drill DV18DBSL

Hitachi-HIKOKI original spare parts to replace worn components or repair damaged parts of the Cordless Impact Driver Drill DV18DBSL.

Powerful 18 V reversible percussion drill with two 5 Ah high-performance lithium batteries.
settings 48 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
48 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

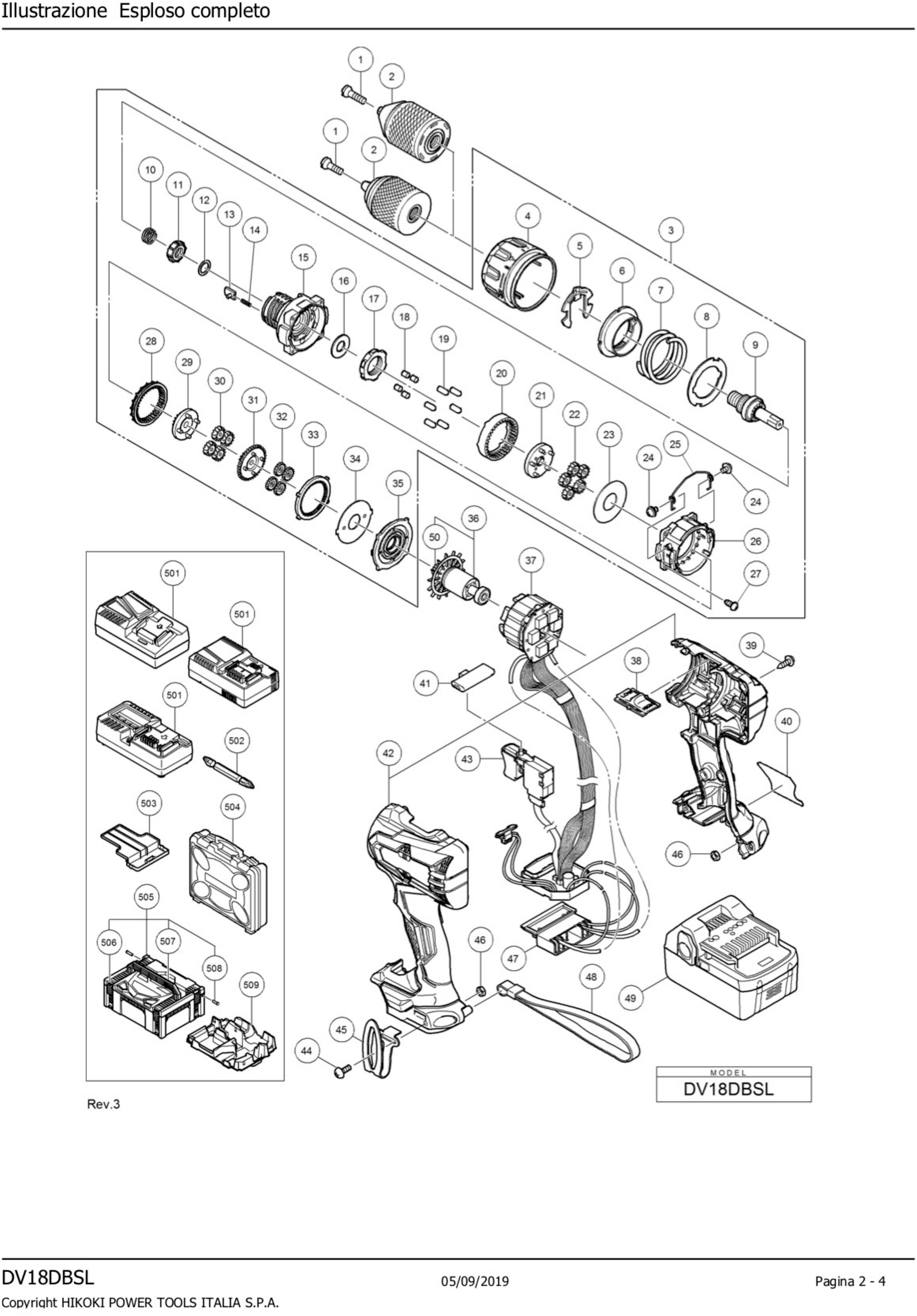

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 Screw M6x25 Left for Cordless Drill Driver Hitachi DV18DBL2 744087 Screw M6x25 Left for Cordless Drill Driver Hitachi DV18DBL2 €2.76
2
 Keyless Chuck for Cordless Drill Driver Hitachi DV18DBEL 335961 Keyless Chuck for Cordless Drill Driver Hitachi DV18DBEL €59.36
3
 photo_cameraImage coming soon 370593 Gear Box Assembly, Includes n.435 €82.71
4
 photo_cameraImage coming soon 370611 Clutch Dial (B) €15.65
5
 photo_cameraImage coming soon 327146 CLICK SPRING €2.70
6
 photo_cameraImage coming soon 370602 SPRING COLLAR €2.62
7
 photo_cameraImage coming soon 370607 SPRING €5.03
8
 photo_cameraImage coming soon 370603 SPRING PLATE €3.11
9
 photo_cameraImage coming soon 370597 Spindle €21.89
10
 photo_cameraImage coming soon 327136 SPRING (C) €2.70
11
 photo_cameraImage coming soon 339772 RATCHET (B) €4.07
12
 photo_cameraImage coming soon 327147 WASHER (A) €2.70
13
 photo_cameraImage coming soon 339773 SLIP BLOCK €2.40
14
 photo_cameraImage coming soon 327133 STOPPER SPRING €2.70
15
 photo_cameraImage coming soon 370595 Front Case €5.31
16
 photo_cameraImage coming soon 328717 WASHER B €2.35
17
 photo_cameraImage coming soon 370609 LOCK RING €7.43
18
 photo_cameraImage coming soon 319744 ROLLER €2.27
19
 Pin Set for Cordless Drill Driver Hitachi DS18DBL2 333539 Pin Set for Cordless Drill Driver Hitachi DS18DBL2 €12.25
20
 Ring Gear for Cordless Driver Drill Hitachi DV18DBSL 370606 Ring Gear for Cordless Driver Drill Hitachi DV18DBSL €3.21
21
 photo_cameraImage coming soon 370600 Carrier €5.48
22
 photo_cameraImage coming soon 370616 Planet Gear (C) Set (5 Pcs.) €4.22
23
 photo_cameraImage coming soon 331892 WASHER (A) €3.37
24
 photo_cameraImage coming soon 331895 2PCS LEVER SCREWS €2.40
25
 photo_cameraImage coming soon 370608 Shift Arm (NEW) €1.63
26
 photo_cameraImage coming soon 370601 REAR GEAR €2.62
28
 photo_cameraImage coming soon 370605 Slide Ring Gear €5.18
29
 photo_cameraImage coming soon 370599 PINION (C) €5.31
30
 photo_cameraImage coming soon 370615 Planet Gear (B) Set (4 Pcs.) €2.70
31
 photo_cameraImage coming soon 370598 PINION (B) €4.22
32
 photo_cameraImage coming soon 370614 BOLTS €2.70
33
 photo_cameraImage coming soon 370604 First Ring Gear €2.62
34
 photo_cameraImage coming soon 339761 PLATE (B) €1.78
35
 photo_cameraImage coming soon 339762 MOTOR SPACER €2.04
36
 photo_cameraImage coming soon 361048 Rotor Pinion Set €61.71
37
 photo_cameraImage coming soon 370619 Wiring Assembly, Includes n.43,47 €152.73
38
 photo_cameraImage coming soon 330583 SHIFT KNOB €1.61
41
 photo_cameraImage coming soon 339768 SELECTOR €1.36
42
 photo_cameraImage coming soon 370618 Housing (A).(B) Set €29.08
43
 Switch for Cordless Drill Driver Hitachi DS18DBL2 370151 Switch for Cordless Drill Driver Hitachi DS18DBL2 €26.38
45
 photo_cameraImage coming soon 332824 DUST HOOD HOLDING HOOK €6.47
47
 photo_cameraImage coming soon 339769 CONNECTOR €4.22
48
 photo_cameraImage coming soon 306952 STRAP (BLACK) €8.78
50
 photo_cameraImage coming soon 373529 PINION DV18DBSL €6.77
504
 photo_cameraImage coming soon 337852 CASE €59.23
505
 photo_cameraImage coming soon 402545 CASE ASS'Y (STACKABLE 2) €64.34
507
 photo_cameraImage coming soon 336473 HANDLE FOR EUROPE.RUS €6.68
509
 Gears Box for Angle Grinder Flex L 3709 336475 Gears Box for Angle Grinder Flex L 3709 €24.49 Not available for order
Page 2 local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
504
 photo_cameraImage coming soon 337852 CASE €59.23
505
 photo_cameraImage coming soon 402545 CASE ASS'Y (STACKABLE 2) €64.34
507
 photo_cameraImage coming soon 336473 HANDLE FOR EUROPE.RUS €6.68
509
 Gears Box for Angle Grinder Flex L 3709 336475 Gears Box for Angle Grinder Flex L 3709 €24.49 Not available for order

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Hitachi Spare Parts for Cordless Impact Driver Drill DV18DBSL

Hitachi-HIKOKI original spare parts to replace worn components or repair damaged parts of the Cordless Impact Driver Drill DV18DBSL.

In the following table, look for the model of the Cordells Impact Drill and their spare part.
Hitachi DV18DBSL

Hitachi Cordless Impact Driver Drill DV18DBSL Pag.1
# Part Num. Description
1 744087 SPECIAL SCREW M6X25 LEFT FOR EUROPE.RUS
2 335961 Drill Chuck 13Vlrun (W/O Chuck Wrench)
3 370593 Gear Box Assembly, Includes #435
4 370611 Clutch Dial (B)
5 327146 Click Spring
6 370602 SPRING COLLAR
7 370607 SPRING
8 370603 SPRING PLATE
9 370597 Spindle
10 327136 SPRING C
11 339772 Ratchet (B)
12 327147 WASHER A
13 339773 Slip Block
14 327133 Stopper Spring
15 370595 Front Case
16 328717 WASHER B
17 370609 LOCK RING
18 319744 ROLLER
19 333539 Pin Set (6 Pcs.)
20 370606 RING GEAR
21 370600 Carrier
22 370616 Planet Gear (C) Set (5 Pcs.)
23 331892 WASHER A
24 331895 Screw Set D2 (2 Pcs.)
25 370608 Shift Arm (NEW)
26 370601 REAR GEAR
28 370605 Slide Ring Gear
29 370599 PINION (C)
30 370615 Planet Gear (B) Set (4 Pcs.)
31 370598 PINION (B)
32 370614 32. Planet Gear (A) Set (4 Pcs.)
33 370604 First Ring Gear
34 339761 Washer (B)
35 339762 MOTOR SPACER
36 361048 Rotor Pinion Set
37 370619 Wiring Assembly, Includes #43,47
38 330583 Shift Knob
41 339768 SELECTOR
42 370618 Housing (A).(B) Set
43 370151 SWITCH
45 332824 HOOK
47 339769 Battery Terminal
48 306952 STRIPPER STRIP.
50 373529 PINION DV18DBSL
STANDARD ACCESSORIES Pag.2
504 337852 CASE X WR / WH14 / 18DBDL
505 402545 BOX HIT-SYSTEM CASE 2 EMPTY INCLUDE.506-508
506 336472 CLIP
507 336473 HANDLE
508 336474 PIN
509 336475
