HiKOKI Power Tools Italia S.p.a.

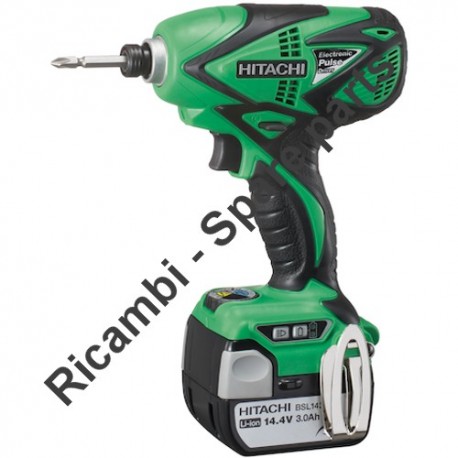

Hitachi Spare Parts for Cordless Impact Driver WM14DBL

SKU: Hitachi WM14DBL
€2.77
VAT included

Hitachi Spare Parts for Cordless Impact Driver WM14DBL

Hitachi original spare parts for to replace broken parts for to fix Cordless Impact Driver WM14DBL.
Hitachi Spare Parts for Cordless Impact Driver WM14DBL
  • Hitachi Spare Parts for Cordless Impact Driver WM14DBL
  • Hitachi Spare Parts for Cordless Impact Driver WM14DBL
HiKOKI Power Tools Italia S.p.a.

Hitachi Spare Parts for Cordless Impact Driver WM14DBL

SKU: Hitachi WM14DBL Condition: New
€2.77
VAT included

Hitachi Spare Parts for Cordless Impact Driver WM14DBL

Hitachi original spare parts for to replace broken parts for to fix Cordless Impact Driver WM14DBL.
settings 43 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
43 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 315984 SEALING RING €2.55
2
 photo_cameraImage coming soon 330856 WASHER D €2.51
3
 photo_cameraImage coming soon 321657 GUIDE SPRING-WH12DM2 €2.04
4
 photo_cameraImage coming soon 322717 GUIDE SLEEVE (D) €4.47
5
 photo_cameraImage coming soon 333278 FRONT COVER €23.16
6
 photo_cameraImage coming soon 319535 BALLS D3.5 (10 PCS.) €2.55
7
 photo_cameraImage coming soon 333270 SPINDLE HOLDER €37.39
8
 photo_cameraImage coming soon 333274 GEAR (B) €2.35
9
 photo_cameraImage coming soon 333271 STRIKER €50.07
10
 photo_cameraImage coming soon 333288 PLUG (A) €2.35
11
 photo_cameraImage coming soon 333283 WASHER (D) €2.35
12
 photo_cameraImage coming soon 333284 WASHER (E) €2.35
13
 photo_cameraImage coming soon 329303 BALL D2.5 (10PZ) €2.35
14
 photo_cameraImage coming soon 333285 WASHER (F) €2.35
15
 photo_cameraImage coming soon 333276 RING GEAR (B) €12.72
16
 photo_cameraImage coming soon 333279 DAMPER €2.35
17
 photo_cameraImage coming soon 333282 WASHER (C) €2.35
18
 photo_cameraImage coming soon 333277 PINION (B) €17.81
19
 photo_cameraImage coming soon 333273 GEAR (A) €2.35
20
 photo_cameraImage coming soon 333287 PIN (B) €2.35
21
 photo_cameraImage coming soon 333275 RING GEAR (A) €4.47
22
 photo_cameraImage coming soon 333281 WASHER (B) €2.35
23
 photo_cameraImage coming soon 333280 WASHER (A) €2.35
24
 photo_cameraImage coming soon 333286 BUSHING €2.35
25
 photo_cameraImage coming soon 333272 REAR COVER GEARS €4.47
26
 photo_cameraImage coming soon 332679 ARMATURE €90.25
27A
 photo_cameraImage coming soon 334284 HOUSING (A + B) €34.68
31
 photo_cameraImage coming soon 330666 HOOK €9.63
33
 photo_cameraImage coming soon 330854 PACKING €12.63
34
 photo_cameraImage coming soon 321661 PUSHING BUTTON (A) €2.04
35A
 photo_cameraImage coming soon 334903 SWITCH €38.48
36
 photo_cameraImage coming soon 332676 STATOR (FIELD) 14V A FET PCB €133.68
38
 photo_cameraImage coming soon 331101 DAMPER €2.35
41
 photo_cameraImage coming soon 333291 GRADUATED LABEL €2.35
42
 photo_cameraImage coming soon 333289 CONTROLLER 14V €96.94
43
 photo_cameraImage coming soon 306952 STRAP (BLACK) €8.78
45
 photo_cameraImage coming soon 332682 GEARS BOX COMPLETE €145.72
46
 photo_cameraImage coming soon 333348 CONTROLLER WHEEL €6.70
47
 photo_cameraImage coming soon 333826 BALL BEARING 625DD €7.39
48
 photo_cameraImage coming soon 959148 STEEL BALL D3.175 €1.35
49
 photo_cameraImage coming soon 333984 SPRING €2.35
502
 photo_cameraImage coming soon 329897 BATTERY PROTECTION €2.20
503
 photo_cameraImage coming soon 331363 SUITCASE COVER €16.65

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Hitachi Spare Parts for Cordless Impact Driver WM14DBL

Hitachi original spare parts for to replace broken parts for to fix Cordless Impact Driver WM14DBL.

In the following table, look for the model of the Cordless and theirs spare part.
Hitachi WM14DBL

Cordless Impact Driver Hitachi WM14DBL
# Part Num. Description
1 315984 SEAL RING
2 330856 WASHER D
3 321657 GUIDE SPRING-WH12DM2
4 322717 GUIDE
5 333278 FRONT COVER
6 319535 BALL D3.5 (10 PCS.)
7 333270 SPINDLE HOLDER
8 333274 GEAR (B)
9 333271 STRIKER
10 333288 PLUG (A)
11 333283 WASHER (D)
12 333284 WASHER (E)
13 329303 BALL D2.5 (10PZ)
14 333285 WASHER (F)
15 333276 RING GEAR (B)
16 333279 DAMPER
17 333282 WASHER (C)
18 333277 PINION (B)
19 333273 GEAR (A)
20 333287 PIN (B)
21 333275 RING GEAR (A)
22 333281 WASHER (B)
23 333280 WASHER (A)
24 333286 BUSHING
25 333272 REAR COVER GEARS
26 332679 ARMATURE
27A 334284 HOUSING (A + B)
29 332680 PANEL SHEET (B) NEW
31 330666 HOOK
33 330854 SPONGE
34 321661 L-R BUTTON (A)
35A 334903 SWITCH
36 332676 STATOR (FIELD) 14V A FET PCB
38 331101 DAMPER
41 333291 GRADUATED LABEL
42 333289 CONTROLLER 14V
43 306952 HANDLE STRIPPER
45 332682 GEARS BOX COMPLETE
46 333348 CONTROLLER WHEEL
47 333826 BALL BEARING 625DD
48 959148 BALL D.3,175 (10PZ)
49 333984 SPRING
STANDARD ACCESSORIES
501 CHARGER (MODEL UC 18YRSL)
502 329897 BATTERY COVER
503 331363 SUITCASE COVER
504 331364 CASE SUB LATCH NEW APR
505 331365 CASE KNOB (C) NEW APR
506A 334233 LATCH (DARK GRAY) (OLD 324093)
507A 334235 KNOB (L) DARK GRAY (OLD 324096)
508A 334232 HANDLE (DARK GRAY) NEW
509A 334234 KNOB (R) DARK GRAY (OLD 324099)
510A 334231 PLASTIC CARRYING CASE NEW
