HiKOKI Power Tools Italia S.p.a.

Hitachi Spare Parts for Cordless Rotary Hammer DH36DBL

SKU: Hitachi DH36DBL
€2.24
VAT included

Hitachi Spare Parts for Cordless Rotary Hammer DH36DBL

Fix Your Cordless Rotary Hammer DH36DBL. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.

Hitachi Spare Parts for Cordless Rotary Hammer DH36DBL
  • Hitachi Spare Parts for Cordless Rotary Hammer DH36DBL
  • Hitachi Spare Parts for Cordless Rotary Hammer DH36DBL
HiKOKI Power Tools Italia S.p.a.

Hitachi Spare Parts for Cordless Rotary Hammer DH36DBL

SKU: Hitachi DH36DBL Condition: New
€2.24
VAT included

Hitachi Spare Parts for Cordless Rotary Hammer DH36DBL

Fix Your Cordless Rotary Hammer DH36DBL. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.

settings 78 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
78 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

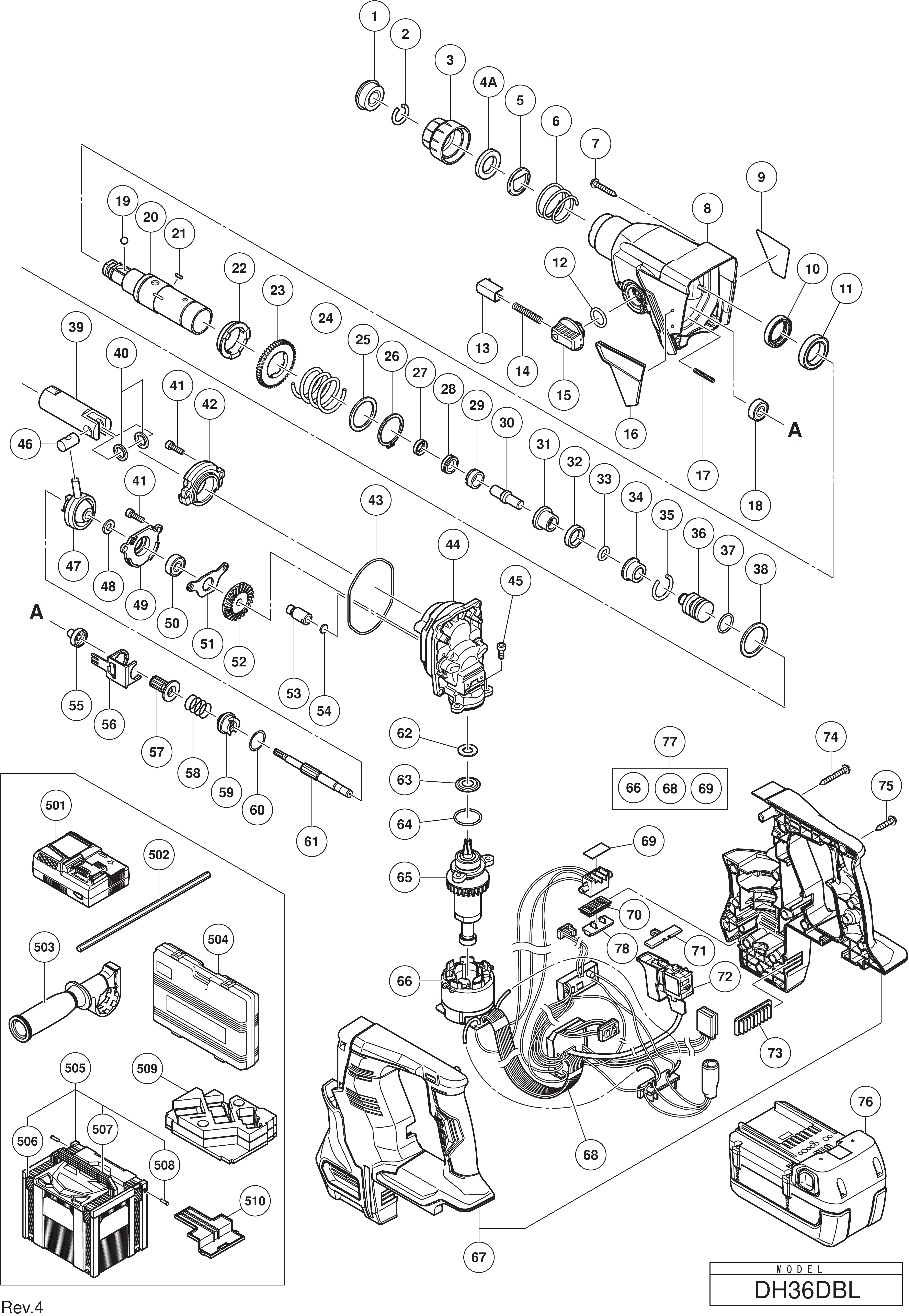

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 Front Cap for Rotary Hammers Hitachi DH22/28 306345 Front Cap for Rotary Hammers Hitachi DH22/28 €4.18
2
 Stopper Ring for Hammers Hitachi 306340 Stopper Ring for Hammers Hitachi €2.08
3
 photo_cameraImage coming soon 324527 GRIP €3.78
4A
 photo_cameraImage coming soon 371326 BALL HOLDER (FW) €13.19
5
 photo_cameraImage coming soon 324526 Support Thrust Dh24dva €1.46
6
 photo_cameraImage coming soon 322812 Spring Gate Punta €2.05
8
 photo_cameraImage coming soon 370306 GEAR COVER ASS'Y €34.52
10
 photo_cameraImage coming soon 335259 OIL SEAL €4.06
11
 photo_cameraImage coming soon 335260 BALL BEARING 6805DD €4.66
12
 O-Ring S-18 for Rotary Hammers Hitachi DH24PC3-PD3 878885 O-Ring S-18 for Rotary Hammers Hitachi DH24PC3-PD3 €1.34
13
 photo_cameraImage coming soon 322789 BACK PANEL €5.86
14
 photo_cameraImage coming soon 317223 PUSHING SPRING €2.22
15
 photo_cameraImage coming soon 334011 CHANGE LEVER €3.12
16
 photo_cameraImage coming soon 370308 BRAND PLATE €3.08
18
 photo_cameraImage coming soon 608VVM BALL BEARING 608VVC2PS2L €7.12
19
 Steel Ball 7 mm for Hammers Hitachi DH24-26-28 335300 Steel Ball 7 mm for Hammers Hitachi DH24-26-28 €3.48
20
 Cylinder for Rotary Hammer Hitachi DH24PG 335261 Cylinder for Rotary Hammer Hitachi DH24PG €30.57
22
 Cylinder Clutch for Rotative Hammer Hitachi DH26PB 335263 Cylinder Clutch for Rotative Hammer Hitachi DH26PB €17.55
23
 photo_cameraImage coming soon 335265 SECOND GEAR €8.91
24
 photo_cameraImage coming soon 335266 PROTECTION L3709-125 HEADSET €11.19
25
 photo_cameraImage coming soon 301679 WASHER (A) €2.18
26
 photo_cameraImage coming soon 948310 RETAINING RING FOR D30 SHAFT €1.71
27
 Oil Seal mm 9,5x16x4 for Rotary Hammer Hitachi DH24PG 335262 Oil Seal mm 9,5x16x4 for Rotary Hammer Hitachi DH24PG €2.63
28
 photo_cameraImage coming soon 335268 HAMMER HOLDER (C) €13.24
29
 photo_cameraImage coming soon 335795 SLEEVE (FW) €5.85
30
 photo_cameraImage coming soon 335269 SECOND HAMMER €5.48
31
 photo_cameraImage coming soon 335267 HAMMER HOLDER (A) €4.17
32
 photo_cameraImage coming soon 322805 DAMPER (A) €2.05
33
 photo_cameraImage coming soon 322808 O-RING (C) €2.02
34
 photo_cameraImage coming soon 324524 DAMPER HOLDER €7.80
35
 photo_cameraImage coming soon 322807 STOPPER RING €2.05
36
 photo_cameraImage coming soon 335246 STRIKER €5.77
37
 photo_cameraImage coming soon 335247 O-Ring D17 €3.63
38
 photo_cameraImage coming soon 301679 WASHER (A) €2.18
39
 Piston for Hammers Hitachi DH24-26-28PC 335255 Piston for Hammers Hitachi DH24-26-28PC €23.72
40
 photo_cameraImage coming soon 335794 PISTON WASHER €1.66
42
 photo_cameraImage coming soon 370309 INNER COVER (B) €7.20
43
 photo_cameraImage coming soon 370310 0-RING €7.63
44
 photo_cameraImage coming soon 370311 INNER COVER (A) €23.38
46
 photo_cameraImage coming soon 335793 PISTON PIN €4.62
47
 photo_cameraImage coming soon 335249 RECIPROCATING BEARING €19.44
49
 photo_cameraImage coming soon 370312 O-Ring DH 5 SDS-max €21.37
50
 photo_cameraImage coming soon 608VVM BALL BEARING 608VVC2PS2L €7.12
51
 photo_cameraImage coming soon 370313 BEARING COVER (A) €2.19
52
 photo_cameraImage coming soon 370314 BEVEL GEAR (A) €27.22
53
 photo_cameraImage coming soon 334008 AIR CAP €1.60
54
 photo_cameraImage coming soon 324543 In Dh24pb3 Felt Gasket-Pc3 €2.05
55
 Pinion Sleeve for Hammers Hitachi DH28PCY 335275 Pinion Sleeve for Hammers Hitachi DH28PCY €9.62
56
 Pinion Lock Plate for Hammers Hitachi DH28PCY 335276 Pinion Lock Plate for Hammers Hitachi DH28PCY €19.40
57
 Second Pinion for Hammers Hitachi DH28PCY 335278 Second Pinion for Hammers Hitachi DH28PCY €16.60
58
 photo_cameraImage coming soon 323182 CLUTCH SPRING €2.05
59
 photo_cameraImage coming soon 335254 CLUTCH €5.44
60
 photo_cameraImage coming soon 331315 WASHER €1.62
61
 photo_cameraImage coming soon 335277 SECOND SHAFT €9.15
62
 photo_cameraImage coming soon 370315 FELT PACKING €1.29
63
 photo_cameraImage coming soon 370316 PACKING WASHER €1.29
64
 photo_cameraImage coming soon 872470 O-RING (S-26) €2.09
65
 photo_cameraImage coming soon 361035 ROTOR (B) €103.97
66
 photo_cameraImage coming soon 340943 STATOR €20.21
67
 photo_cameraImage coming soon 370318 HOUSING (A).(B) SET €39.09
68
 photo_cameraImage coming soon 370549 SWITCH CONTROLLER ASS'Y (B) €157.48
69
 photo_cameraImage coming soon 370327 RUBBER CUSHION €2.77
70
 photo_cameraImage coming soon 370545 TERMINAL RUBBER BASE €1.29
71
 photo_cameraImage coming soon 324225 PUSHING BUTTON (B) €1.63
72
 photo_cameraImage coming soon 370322 DC-SPEED CONTROL SWITCH €31.01
73
 photo_cameraImage coming soon 370328 BATTERY RUBBER (B) €2.65
76
 photo_cameraImage coming soon 339973 BATTERY BSL 3660 (EUROPE) €426.35
77
 photo_cameraImage coming soon 370955 WIRING ASS'Y €200.86
78
 photo_cameraImage coming soon 371715 TERMINAL COVER €1.29
502
 photo_cameraImage coming soon 303709 delimiter Depth €1.75
503
 photo_cameraImage coming soon 335273 SIDE HANDLE €11.47
505
 photo_cameraImage coming soon 337528 CASE ASS'Y (STACKABLE) €101.82
507
 photo_cameraImage coming soon 336473 HANDLE FOR EUROPE.RUS €6.68
509
 photo_cameraImage coming soon 370330 BOTTOM CUSHION €64.43
605
 photo_cameraImage coming soon 303623 CHUCK ADAPTER (G) (SDS PLUS) €14.07
608
 photo_cameraImage coming soon 987576 Chuck Wrench For 13vlb -> HTA100106 €7.99
610
 photo_cameraImage coming soon 971787 DUST CUP €6.85
617
 photo_cameraImage coming soon 306885 DUST COLLECTOR (B) ASS'Y €39.43
621
 photo_cameraImage coming soon 335782 GREASE FOR ROTARY HAMMER (60G) €18.17
622
 photo_cameraImage coming soon 335781 GREASE FOR ROTARY HAMMER (500G) €78.63

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Hitachi Spare Parts for Cordless Rotary Hammer DH36DBL

Fix Your Cordless Rotary Hammer DH36DBL. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following table, look for the model of the Cordless Hammer and the respective parts of the code.
Hitachi DH36DBL

Cordless Rotary Hammer DH36DBL
# Part Num. Description
1 306345 FRONT CAP
2 306340 STOPPER RING
3 324527 GRIP
4A 371326 BALL HOLDER (FW)
5 324526 HOLDER PLATE
6 322812 HOLDER SPRING
8 370306 GEAR COVER ASS'Y
10 335259 OIL SEAL
11 335260 BALL BEARING 6805DD
12 878885 O-RING (S-18)
13 322789 PUSHING BUTTON
14 317223 PUSHING SPRING
15 334011 CHANGE LEVER
16 370308 BRAND PLATE
17 335800 SPRING (E)
18 608VVM BALL BEARING 608VVC2PS2L
19 335300 STEEL BALL D7.0 (10 PCS.)
20 335261 CYLINDER
21 335264 PIN D2.5
22 335263 CYLINDER CLUTCH
23 335265 SECOND GEAR
24 335266 SPRING (A)
25 301679 WASHER (A)
26 948310 RETAINING RING FOR D30 SHAFT
27 335262 OIL SEAL (A)
28 335268 HAMMER HOLDER (C)
29 335795 SLEEVE (FW)
30 335269 SECOND HAMMER
31 335267 HAMMER HOLDER (A)
32 322805 DAMPER (A)
33 322808 O-RING (C)
34 324524 DAMPER HOLDER
35 322807 STOPPER RING
36 335246 STRIKER
37 335247 O-RING D17
38 301679 WASHER (A)
39 335255 PISTON
40 335794 PISTON WASHER
42 370309 INNER COVER (B)
43 370310 O-RING
44 370311 INNER COVER (A)
46 335793 PISTON PIN
47 335249 RECIPROCATING BEARING
48 335250 BEARING WASHER
49 370312 BEARING HOLDER (B)
50 608VVM BALL BEARING 608VVC2PS2L
51 370313 BEARING COVER (A)
52 370314 BEVEL GEAR (A)
53 334008 AIR CAP
54 324543 FELT PACKING (A)
55 335275 PINION SLEEVE
56 335276 LOCK PLATE
57 335278 SECOND PINION
58 323182 CLUTCH SPRING
59 335254 CLUTCH
60 331315 WASHER
61 335277 SECOND SHAFT
62 370315 FELT PACKING
63 370316 PACKING WASHER
64 872470 O-RING (S-26)
65 361035 ROTOR (B)
66 340943 STATOR
67 370318 HOUSING (A).(B) SET
68 370549 SWITCH CONTROLLER ASS'Y (B)
69 370327 RUBBER CUSHION
70 370545 TERMINAL RUBBER BASE
71 324225 PUSHING BUTTON (B)
72 370322 DC-SPEED CONTROL SWITCH
73 370328 BATTERY RUBBER (B)
76 339973 BATTERY BSL 3660 (EUROPE)
77 370955 WIRING ASS'Y
78 371715 TERMINAL COVER
502 303709 DEPTH GAUGE
503 335273 SIDE HANDLE
505 337528 CASE ASS'Y (STACKABLE 4)
506 336472 LATCH
507 336473 HANDLE
508 336474 HINGE
509 370330 BOTTOM CUSHION
605 303623 CHUCK ADAPTER (G) (SDS PLUS)
608 987576 CHUCK WRENCH FOR 13VLB-D,13VLR-D
610 971787 DUST CUP
617 306885 DUST COLLECTOR (B) ASS'Y
621 335782 GREASE FOR ROTARY HAMMER (60G)
622 335781 GREASE FOR ROTARY HAMMER (500G)
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Hitachi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to hitachi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Hitachi DH36DBL
5 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Diagram Hitachi DH36DBL

Diagram Hitachi DH36DBL

Download (308.73KB)

You might also like

Piston for Hammers Hitachi DH24-26-28PC
HiKOKI Power Tools Italia S.p.a. SKU: 335255
Piston for Hammers Hitachi DH24-26-28PC
Piston for Rotary Hammers Hitachi DH24-26-28PC Genuine replacement part Hitachi Koky, Piston for Rotary Hammers model DH24PC-DH26PC-DH28PCY-DH28PC. Part for the following items: - Hammer DH 24PG - Hammer DH 26PC - Hammer DH 28 PCY -...
AVAILABLE €23.72
Details
Steel Ball 7 mm for Hammers Hitachi DH24-26-28
HiKOKI Power Tools Italia S.p.a. SKU: 335300
Steel Ball 7 mm for Hammers Hitachi DH24-26-28
Steel Ball 7 mm for Hammers Hitachi DH24-26-28 Hitachi genuine parts, steel ball diameter MM 7, Box 10 Pcs for Demolition hammers and Drills Hammers, DH 24PG - 26PC DH - DH 28PCY - DH28PC. Suitable for the following items: - Drill...
AVAILABLE €3.48
Details
Second Pinion for Hammers Hitachi DH28PC - Drawing
HiKOKI Power Tools Italia S.p.a. SKU: 335278
Second Pinion for Hammers Hitachi DH28PCY
Second Pinion for Hammers Hitachi DH28PCY Genuine parts Hitachi, Second Pinion for Hammers model Electropneumatic Hammer 3.5 Joule - 3.5Kg DH28PCY. For the following items: - Electropneumatic Hammer DH26PC - Electropneumatic Hammer DH...
AVAILABLE €16.60
Details
Pinion Sleeve for Hammers Hitachi DH28PC
HiKOKI Power Tools Italia S.p.a. SKU: 335275
Pinion Sleeve for Hammers Hitachi DH28PCY
Pinion Sleeve for Hammers Hitachi DH28PCY Genuine parts Hitachi, Pinion Sleeve for Hammers model Electropneumatic Hammer 3.5 Joule - 3.5Kg DH28PCY. Part for the following items: - Electropneumatic Hammer DH26PC - Electropneumatic...
AVAILABLE €9.62
Details
Pinion Lock Plate for Hammers Hitachi DH28PC
HiKOKI Power Tools Italia S.p.a. SKU: 335276
Pinion Lock Plate for Hammers Hitachi DH28PCY
Pinion Lock Plate for Hammers Hitachi DH28PCY Genuine parts Hitachi, Pinion Lock Plate for Hammers model Electropneumatic Hammer 3.5 Joule - 3.5Kg DH28PCY For the following items: - Electropneumatic Hammer DH26PC - Electropneumatic...
Last items in stock €19.40
Details
Stopper Ring for Hammers Hitachi
HiKOKI Power Tools Italia S.p.a. SKU: 306340
Stopper Ring for Hammers Hitachi
Stopper Ring for Hammers Hitachi Genuine parts Hitachi, Stopper Ring for Hammers Hitachi. For the following items: - Hammer DH 28 PCY - Hammer DH 26PC - Hammer DH 24PG
AVAILABLE €2.08
Details
Front Cap for Rotary Hammers Hitachi DH22/28
HiKOKI Power Tools Italia S.p.a. SKU: 306345
Front Cap for Rotary Hammers Hitachi DH22/28
Front Cap for Rotary Hammers Hitachi DH22/28 Genuine part HITACHI, Front Cap for Rotary Hammers DH22PG - DH24PG - DH26PC - DH28PCY - DH14DSL - DH18DSL - DH25DL - DH25DAL - DH36DL - DH36DAL - DH28PD - DH24PB3 - DH28PC - DH28PFY.
Last items in stock €4.18
Details
O-Ring S-18 for Rotary Hammers Hitachi DH24PC3-PD3
HiKOKI Power Tools Italia S.p.a. SKU: 878885
O-Ring S-18 for Rotary Hammers Hitachi DH24PC3-PD3
O-Ring S-18 for Rotary Hammers Hitachi DH24PC3-PD3 Hitachi genuine parts, O-Ring S-18 for Rotary Hammers DH24PC3 - DH24PD3 - DH24PB3 - DH24PG - DH24PH - DH36DAL - DH36DL - DH24DVA Part for the following products: - ROTARY HAMMER...
Last items in stock €1.34
Details
Cylinder Clutch for Rotative Hammer Hitachi DH26PB
HiKOKI Power Tools Italia S.p.a. SKU: 335263
Cylinder Clutch for Rotative Hammer Hitachi DH26PB
Cylinder Clutch for Rotary Hammer Hitachi DH26PB Genuine Spare Part Hitachi, Cylinder Clutch for Rotary Hammers DH26PB - DH18DBL - DH24PG - DH24PH - DH24PB - DH24PC - DH24PBY - DH24PCY - DH24PMY - DH28PMY. Part for the following...
Last items in stock €17.55
Details
Cylinder for Rotary Hammer Hitachi DH24PG
HiKOKI Power Tools Italia S.p.a. SKU: 335261
Cylinder for Rotary Hammer Hitachi DH24PG
Cylinder for Rotary Hammer Hitachi DH24PG Original spare part Hitachi, Cylinder for Rotary Hammers DH24PG - DH24PH - DH26PB - DH26PC - DH28PBY - DH28PCY - DH18DBL - DH36DBL...
Last items in stock €30.57
Details
Oil Seal mm 9,5x16x4 for Rotary Hammer Hitachi DH24PG
HiKOKI Power Tools Italia S.p.a. SKU: 335262
Oil Seal mm 9,5x16x4 for Rotary Hammer Hitachi DH24PG
Oil Seal mm 9,5x16x4 for Rotary Hammer Hitachi DH24PG Original spare part Hitachi, Oil Seal mm 9,5x16x4 for Rotary Hammers DH24PG - DH24PH - DH26PB - DH26PC - DH28PBY...
Last items in stock €2.63
Details
Comments (0)
