HiKOKI Power Tools Italia S.p.a.

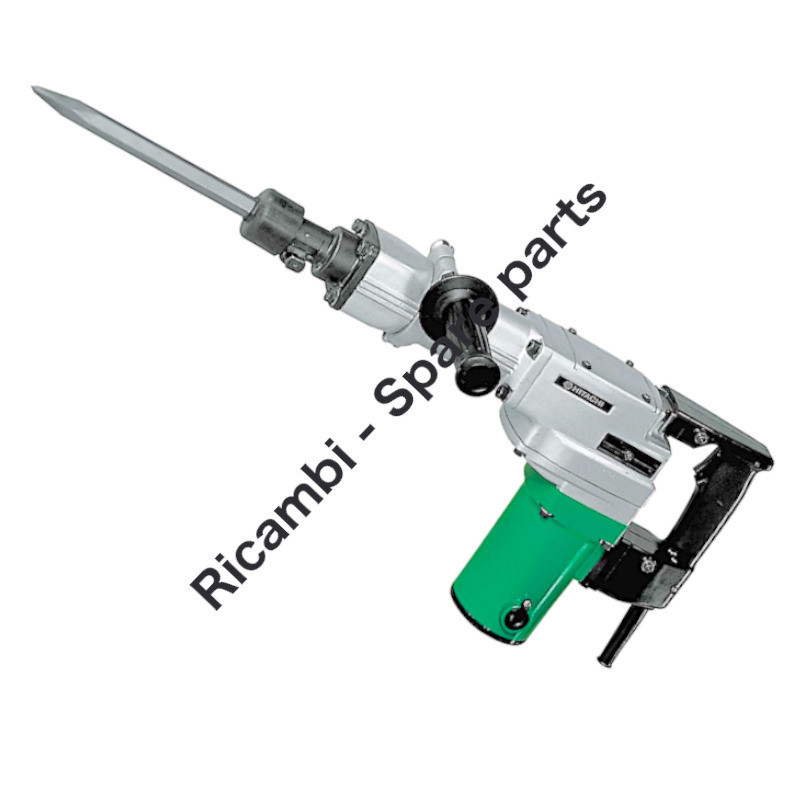

Hitachi Spare Parts for Demolition Hammer H55SA

SKU: Hitachi H55SA
€0.12
VAT included

Hitachi Spare Parts for Demolition Hammer H55SA

We are Hitachi-HIKOKI Tanaka authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair issues for Demolition Hammer H55SA.

Hitachi Spare Parts for Demolition Hammer H55SA
  • New
  • Out-of-Stock
  • Hitachi Spare Parts for Demolition Hammer H55SA
  • Hitachi H55SA Drawing
HiKOKI Power Tools Italia S.p.a.

Hitachi Spare Parts for Demolition Hammer H55SA

SKU: Hitachi H55SA Condition: New
€0.12
VAT included

Hitachi Spare Parts for Demolition Hammer H55SA

We are Hitachi-HIKOKI Tanaka authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair issues for Demolition Hammer H55SA.

settings 64 Spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
Quantity
Out-of-Stock

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
Machine Type: Hammer
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal PayPal Pay in 3 Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
64 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 949747 ROLL PIN D6X25 (10 PCS) €5.27
2
 photo_cameraImage coming soon 985464 COMPLETE HANDLE SUPPORT €26.64
5
 photo_cameraImage coming soon 985454 O-RING (A) (FPM810) €10.38
6A
 photo_cameraImage coming soon 301509 PISTON PIN €7.97
7A
 photo_cameraImage coming soon 317084 PISTON €19.14
10
 O-RING 1AS.60 for Hammer DH40MRY-DH45MR 956996 O-RING 1AS.60 for Hammer DH40MRY-DH45MR €3.76
11
 Retaining Ring 12 mm for Hitachi Power Tools 939542 Retaining Ring 12 mm for Hitachi Power Tools €3.13
11A
 Retaining Ring Type C 14 mm for Hammer Hitachi H60MC 939543 Retaining Ring Type C 14 mm for Hammer Hitachi H60MC €3.56
13A
 photo_cameraImage coming soon 317082 CONNECTING ROD €12.68
16A
 photo_cameraImage coming soon 985449 COVER €35.40
17B
 photo_cameraImage coming soon 877316 O-RING S.90 €3.28
20
 photo_cameraImage coming soon 985443 BEARING COVER €5.27
21A
 photo_cameraImage coming soon 6204DD BALL BEARING 6204DDCMPS2L €10.03
23B
 photo_cameraImage coming soon 993241 SPRING HOUSING €18.67
23A
 photo_cameraImage coming soon 993241 SPRING HOUSING €18.67
24A
 photo_cameraImage coming soon 302096 SPRING €10.70
24
 photo_cameraImage coming soon 981937 STOPPER SPRING €1.27
25
 photo_cameraImage coming soon 985463 WASHER €6.67
25A
 photo_cameraImage coming soon 993243 RING €7.98
26
 photo_cameraImage coming soon 943364 NEEDLE ROLLER D4X20 €1.27
27
 photo_cameraImage coming soon 985477 LATERAL GRIP €12.38
28
 photo_cameraImage coming soon 985464 COMPLETE HANDLE SUPPORT €26.64
30
 photo_cameraImage coming soon 985479 SEAL LOCK HEX. SOCKET HD. BOLT M8X25 €4.06
34
 photo_cameraImage coming soon 986942 SHOCK ABSORBER €7.47
35
 photo_cameraImage coming soon 986946 O-RING (C) €15.38
38
 photo_cameraImage coming soon 991713 GUIDE €1.27
38A
 photo_cameraImage coming soon 991713 GUIDE €1.27
39
 photo_cameraImage coming soon 985436 DUST WASHER €1.27
40
 photo_cameraImage coming soon 6200VV BALL BEARING 6200VVCMPS2L €6.44
41
 photo_cameraImage coming soon 985435 HOUSING COMPL. €124.05
44
 photo_cameraImage coming soon 983362 BRUSH HOLDER €8.27
45A
 Carbon Brushes for Hitachi Hammer DH45MR 999071 Carbon Brushes for Hitachi Hammer DH45MR €17.76
46
 Brushe Cap for Mixers Hitachi D13 - D13SA 961781 Brushe Cap for Mixers Hitachi D13 - D13SA €3.28
47
 photo_cameraImage coming soon 981959 COVER €2.92
50
 photo_cameraImage coming soon 980750 GUIDE PLATE €22.11
51
 photo_cameraImage coming soon 985469 GROMMET €9.57
52
 photo_cameraImage coming soon 980727 HANDLE RUBBER €18.25
54
 photo_cameraImage coming soon 938307 PILLAR TERMINAL (OLD 938307Z / 512-31) €2.60 Not available for order
56
 photo_cameraImage coming soon 981869 SUPPORT €6.53
57A
 Switch 2P Pillar Type W/O Lock for Hammer PR-38E 981533Z Switch 2P Pillar Type W/O Lock for Hammer PR-38E €36.47
57B
 Switch (A) 1 P Screw type) w/o Lock for Hammer DH50SB 992891 Switch (A) 1 P Screw type) w/o Lock for Hammer DH50SB €29.60
59
 photo_cameraImage coming soon 985437 FINAL COVER €24.45
68A
 photo_cameraImage coming soon 991711 DISTANCE PIECE (B) €1.33
70
 photo_cameraImage coming soon 983273 HANDLE (B) €14.64
71
 photo_cameraImage coming soon 980751 HANDLE GASKET €1.65
75
 photo_cameraImage coming soon 960266 CORD CLIP €1.27
76
 photo_cameraImage coming soon 983272 HANDLE (A) €22.14
77
 Noise Suppressor for Angle Grinder Hitachi G12SA2 994273 Noise Suppressor for Angle Grinder Hitachi G12SA2 €7.47
78
 photo_cameraImage coming soon 940778 CORD ARMOR D10.7 €3.28
79
 photo_cameraImage coming soon 714520 POWER CORD 5M 2X1.5 €15.54
82
 photo_cameraImage coming soon 985446 FIRST GEAR €65.15
83
 photo_cameraImage coming soon 932815 WOODRUFF KEY 3X13 €1.39
84
 photo_cameraImage coming soon 985442 NEEDLE BEARING (A) (BK1512) €11.18
85
 Gasket 985447 Gasket €3.28
88A
 photo_cameraImage coming soon 6202VV BALL BEARING 6202VVCMPS2L €7.77
89
 photo_cameraImage coming soon 985439 SEAL €14.10
90
 photo_cameraImage coming soon 985438 SLEEVE €20.76
91
 photo_cameraImage coming soon 985482 FAN €9.52
92
 photo_cameraImage coming soon 985472E ARMATURE 220V DH50SA1 / SB H55SA €184.42
95
 photo_cameraImage coming soon 986277 INTERNAL CABLE €1.30
98
 photo_cameraImage coming soon 937623 BRUSH TERMINAL €1.27
99
 photo_cameraImage coming soon 985464 COMPLETE HANDLE SUPPORT €26.64
103
 photo_cameraImage coming soon 949424 WASHER M5 (10 PCS.) €1.96
104
 photo_cameraImage coming soon 986959 HANDLE A 'D' €68.67
106
 photo_cameraImage coming soon 986961 SUPPORT €14.60
110
 photo_cameraImage coming soon 986963 WASHER (C) €14.60
504
 photo_cameraImage coming soon 981840 GREASE 30 GR €11.42
505
 photo_cameraImage coming soon 985468 DUST COVER €7.61

Shipping and delivery information will be available shortly.

Hitachi Spare Parts for Demolition Hammer H55SA

We are Hitachi-HIKOKI Tanaka authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair issues for Demolition Hammer H55SA.

In the following table, look for the model of the hammer and the respective parts of the code.
Hitachi H55SA

Hitachi Demolition Hammer H55SA
# Part Num. Description
1 949747 ROLL PIN D6X25 (10 PCS)
2 985464 HANDLE SUPPORT ASSEMBLY
3 985465 HANDLE BOLT
4 985455 STRIKER
5 985454 O-RING FAM810
6 985451 PIN H55SA UNTIL 07-2000
6A 301509 PIN
7 985452 PISTON FOR H55SA UNTIL 07-2000
7A 317084 PISTON
10 956996 O-RING 1AS.60
11 939542 C-RING FOR SHAFT D.12 (10 PCS)
11A 939543 C-RING FOR SHAFT D.14 (10 PCS)
12A 985453 WASHER
13 985450 CONNECTING ROD H55SA UNTIL 07-2000
13A 317082 CONNECTING ROD
14 985470 NEEDLE BEARING RNA4901
16A 985449 COVER
16B 986957 COVER
17A 985448 RING (B)
17B 877316 O-RING S.90
18 985467 RING
19 985444 ARMATURE SHAFT H55SA UNTIL 07-2000
19A 319502 ARMATURE SHAFT H55SA AFTER 08-2000
20 985443 BEARING COVER
21A 6204DD BALL BEARING 6204DD
22 986941 CYLINDER FOR H55SA WITH CANNON
23A 993241 SPRING SEAT
23B 993241 SPRING SEAT
24 981937 SPRING
24A 302096 SPRING
25 985463 WASHER
25A 993243 NUT
26 943364 PIN (NEW TYPE)
27 985477 SIDE HANDLE
28 985464 HANDLE SUPPORT ASSEMBLY
29 985462 LOCKING LEVER
29A 302095 LOCKING LEVER
30 985479 BOLT M8X25
31 986945 FRONT COVER FOR H55SA
32 986944 SECOND STRIKER (H55SA)
33 986943 WASHER
34 986942 SHOCK ABSORBER
35 986946 O-RING (C)
36 957561 HITACHI NAMEPLATE
38 991713 GUIDE
38A 991713 GUIDE
39 985436 WASHER
40 6200VV BALL BEARING 6200VVCM1
41 985435 HOUSING ASSEMBLY
44 983362 BRUSH HOLDER
45A 999071 AUTO-STOP CARBON BRUSHES (1 PAIR)
46 961781 BRUSH CAP
47 981959 COVER
50 980750 GUIDE PLATE
51 985469 CORD ARMOR
52 980727 HANDLE SHOCK ABSORBERS
54 938307 PILLAR TERMINAL
55 958308Z TERMINAL
56 981869 SUPPORT
57A 981533Z BIPOLAR SWITCH
57B 992891 MONOPOLAR SWITCH
59 985437 END COVER
62 949510 RIVET D2.5X4.8 (10 PCS)
64 959141 JOINT
65 983276Z INTERNAL WIRE
66 949423 FLAT WASHER M4
68A 991711 SPACER
70 983273 HANDLE (B)
71 980751 HANDLE GASKET
73 985474 WIRE SUPPORT
75 960266 CORD CLIP
76 983272 HANDLE (A)
77 994273 NOISE SUPPRESSOR
78 940778 CORD SLEEVE 10.7
79 714520 CORD 5M 2X1.5 WITH PLUG
80D 986968 MOTOR HOUSING
81 985445 SPACER
82 985446 FIRST GEAR
83 932815 WOODRUFF KEY 3X13
84 985442 NEEDLE BEARING BK1512
85 985447 GASKET
86 985440 GEAR CASE
88A 6202VV BALL BEARING 6202VV
89 985439 OIL SEAL
90 985438 SLEEVE
91 985482 FAN
92 985472E ARMATURE 220V DH50SA1/SB H55SA
95 986277 INTERNAL WIRE
96 985471F STATOR 230V-240V H55SA
97 959140 JOINT
98 937623 TERMINAL
99 985464 HANDLE SUPPORT ASSEMBLY
103 949424 WASHER (10 PCS)
104 986959 D-HANDLE
105 986960 HOLDER (A)
106 986961 SUPPORT
108 944951 GRIP
109 986962 PIN
110 986963 WASHER (C)
111 310891 STOP LEVER ASSEMBLY
112 319842 CRANK SHAFT SET H55SA
501C 319783 CASE (PLASTIC)
502 986947 BULL POINT 300MM
503 872422 ALLEN KEY
504 981840 GREASE (30G TUBE)
505 985468 DUST COVER
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Hitachi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to hitachi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Hitachi H55SA

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
Machine Type
Hammer
MORE INFO:
[email protected]

Specific References

New

Download

Hitachi H55SA Drawing

Hitachi H55SA Drawing

Download (829.59KB)

You might also like

Carbon Brushes for Hitachi Hammer DH45MR
HiKOKI Power Tools Italia S.p.a. SKU: 999071
Carbon Brushes for Hitachi Hammer DH45MR
Carbon Brushes for Hitachi Hammer DH45MR Genuine part Hitachi, Carbon Brushe Set for Rotary Hammer DH45MR. Part for the following products: -  Rotary Hammer DH45MR - Code : 999071
AVAILABLE €17.76
Details
Needle Bearing for Demolition Hammers Hitachi DH 40/50MRY-DH45MR
HiKOKI Power Tools Italia S.p.a. SKU: 939299
Needle Bearing for Demolition Hammers Hitachi DH 40/50MRY-DH45MR
Needle Bearing for Demolition Hammers Hitachi DH 40/50MRY-DH45MR Genuine part HITACHI, Needle Bearing M661 for Demolition Hammers H45MR - H45MRY - H45FRV - H45SR - DH40MRY - DH45MR - H41MB - H25PV - DH30PC2 - DH38MS - DH50MRY - PR-38E....
AVAILABLE €13.81
Details
Steel Ball 6,35 mm for Hammers Hitachi
HiKOKI Power Tools Italia S.p.a. SKU: 959150
Steel Ball 6,35 mm for Hammers Hitachi
Steel Ball 6,35 mm for Hammers Hitachi Hitachi genuine parts, steel ball diameter MM 6,35, Box 10 Pcs for Demolition Hammers and Percussion drills, H45MR - H45MRY - H41MB - H60MC - D13VG - DV16V-20VB2. Suitable for the following...
AVAILABLE €3.48
Details
O-Ring S-36 for Hammer Hitachi H25PV
HiKOKI Power Tools Italia S.p.a. SKU: 984483
O-Ring S-36 for Hammer Hitachi H25PV
O-Ring S-36 for Hammer Hitachi H25PV Genuine parts Hitachi, O-Ring S-36 for Hammer Class 3.5 Kg H25PV - Nailing Hitachi NV50AH - NV90HMC For the following items: - Demolition Hammer Hitachi Class 3.5 Kg H25PV - Nailer Hitachi NV50AH -...
AVAILABLE €2.08
Details
Noise Suppressor for Angle Grinder Hitachi G12SA2
HiKOKI Power Tools Italia S.p.a. SKU: 994273
Noise Suppressor for Angle Grinder Hitachi G12SA2
Noise Suppressor for Angle Grinder Hitachi G12SA2 Genuine replacement part Hitachi, Noise Suppressor for Angle Grinders Hitachi G12SA2 - G12S2 - G12SG - G 13SR3 - G 13SB3 - Polisher Sander SAT180 -  Reciprocating Saw CR13VC. Part for...
AVAILABLE €7.47
Details
Brushe Cap for Mixers Hitachi D13 - D13SA
HiKOKI Power Tools Italia S.p.a. SKU: 961781
Brushe Cap for Mixers Hitachi D13 - D13SA
Brushe Cap for Mixers Hitachi D13 - D13SA Genuine part Hitachi, Brushe Cap for Mixers D13 - D13SA - Circular Saws C9U - C0U2 - C9U3 - Core-Drill DC12V - Rotary Hammers DH50SA1 - DH50SB - Demolition Hammer H55SA Part for the following...
AVAILABLE €3.28
Details
Switch (A) 1 P Screw type) w/o Lock for Hammer DH50SB
HiKOKI Power Tools Italia S.p.a. SKU: 992891
Switch (A) 1 P Screw type) w/o Lock for Hammer DH50SB
Switch (A) 1 P Screw type) w/o Lock for Hammer DH50SB Original replacement part Hitachi, Switch (A) 1 P Screw type) w/o Lock for Demolition Hammers DH28Y - DH38YA - DH38YE - DH50SA...
on 7/10 Business Days Approx €29.60
Details
Bearing Washer (C) for Hammer Hitachi DH40MA
HiKOKI Power Tools Italia S.p.a. SKU: 944525
Bearing Washer (C) for Hammer Hitachi DH40MA
Bearing Washer (C) for Demolition Hammer Hitachi DH40MA Original replacement part Hitachi HIKOKI, Bearing Washer (C) for Demolition Hammer DH40SA - DH40YB - DH40MA. Part for the following items : -  Demolition Hammer DH40SA -...
on 7/10 Business Days Approx €1.26
Details
Comments (0)
No customer reviews for the moment.
