Hitachi Spare Parts for Hammer Drill DH50MB

SKU: Hitachi DH50MB
€4.79
VAT included

Hitachi Spare Parts for Hammer Drill DH50MB

Hitachi-HIKOKI Tanaka authorized repair center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Hammer Drill DH50MB.
Hitachi Spare Parts for Hammer Drill DH50MB
  • Hitachi Spare Parts for Hammer Drill DH50MB
  • Hitachi Spare Parts for Hammer Drill DH50MB
HiKOKI Power Tools Italia S.p.a.

Hitachi Spare Parts for Hammer Drill DH50MB

SKU: Hitachi DH50MB Condition: New
€4.79
VAT included

Hitachi Spare Parts for Hammer Drill DH50MB

Hitachi-HIKOKI Tanaka authorized repair center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Hammer Drill DH50MB.
settings 109 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
109 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

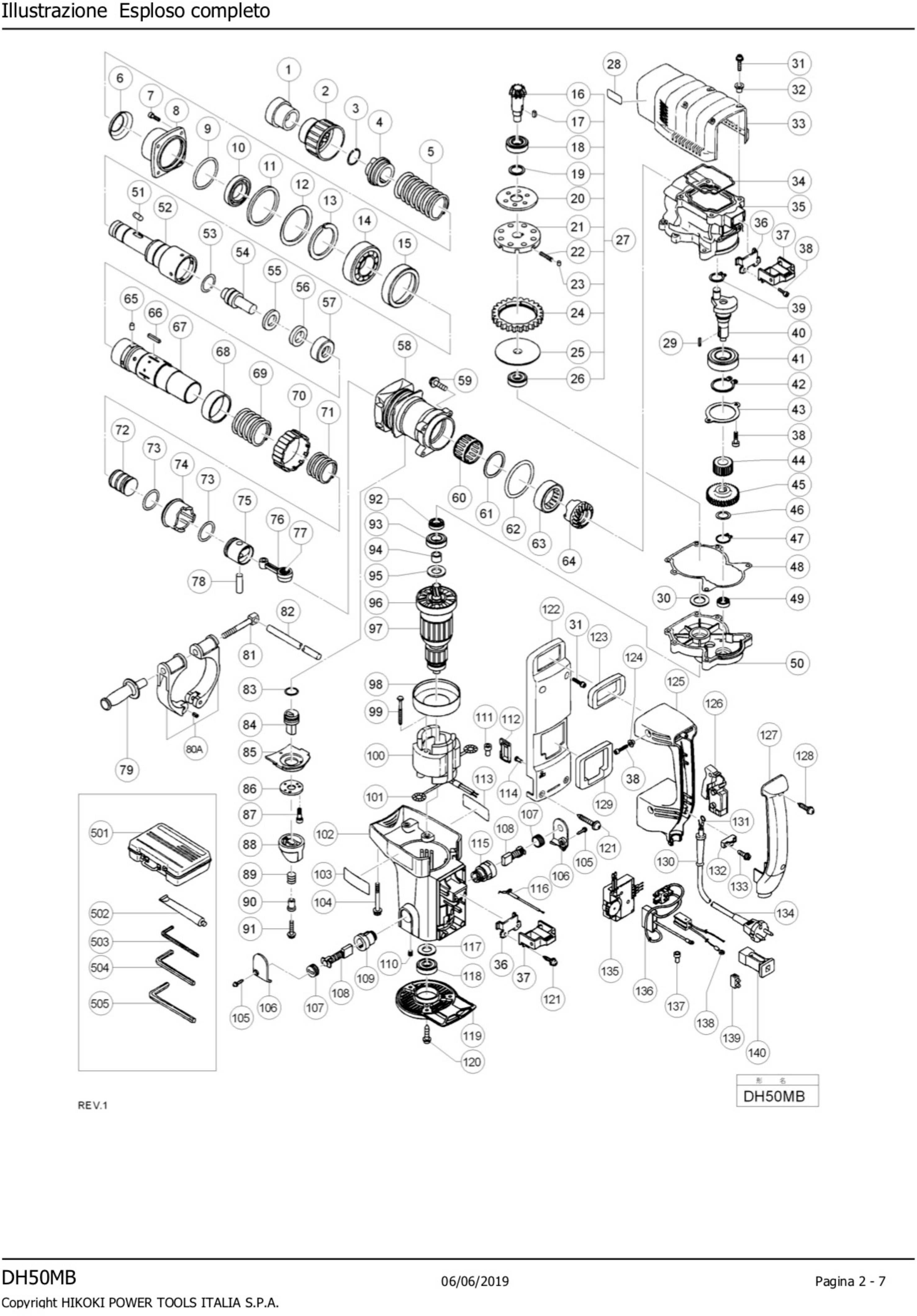

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 313415 FRONT CAP €4.65
3
 photo_cameraImage coming soon 318590 STOPPER RING €2.27
5
 photo_cameraImage coming soon 313419 RETAINER SPRING €3.83
6
 photo_cameraImage coming soon 318589 SPRING HOLDER €5.36
8
 photo_cameraImage coming soon 318587 FRONT COVER €28.58
9
 photo_cameraImage coming soon 878863 O-RING (S-70) €3.02
10
 photo_cameraImage coming soon 318588 OIL SEAL (NBR710) €8.26
11
 photo_cameraImage coming soon 318586 URETHANE RING €8.37
12
 photo_cameraImage coming soon 318585 URETHANE RING HOLDER €3.71
13
 photo_cameraImage coming soon 318582 RETAINING RING D40 €6.24
14
 photo_cameraImage coming soon 6008CM BALL BEARING 6008CM €14.51
15
 photo_cameraImage coming soon 318581 SLEEVE €28.25
16
 photo_cameraImage coming soon 318551 PINION DH50MB €37.92
17
 photo_cameraImage coming soon 944109 FEATHER KEY 3X3X8 €2.99
18
 photo_cameraImage coming soon 6202DD Ball Bearing 6202dd €7.97
19
 photo_cameraImage coming soon 313058 WASHER €1.34
20
 photo_cameraImage coming soon 318552 WASHER (A) €7.08
21
 photo_cameraImage coming soon 318554 GEAR HOLDER €11.58
22
 photo_cameraImage coming soon 318555 CLUTCH SPRING DH50MB €9.79
23
 Needle Pin 6x6 mm for Demolition Hammers Hitachi DH40/50MRY-DH45MR 313057 Needle Pin 6x6 mm for Demolition Hammers Hitachi DH40/50MRY-DH45MR €5.52
24
 photo_cameraImage coming soon 318553 SECOND GEAR DH50MB €40.15
25
 photo_cameraImage coming soon 318556 THICKNESS €18.94
26
 photo_cameraImage coming soon 629VVM BALL BEARING 629VVC2PS2L €7.32
27
 photo_cameraImage coming soon 318550 CLUTCH COMPL. DH50MB €128.68
30
 Bearing Washer (C) for Hammer Hitachi DH40MA 944525 Bearing Washer (C) for Hammer Hitachi DH40MA €1.26
31
 photo_cameraImage coming soon 313082 NYLOCK BOLT (W/FLANGE) M5X16 €1.30
32
 photo_cameraImage coming soon 991711 DISTANCE PIECE (B) €1.33
33
 photo_cameraImage coming soon 318584 CRANKCASE COVER DH50MB €25.23
34
 photo_cameraImage coming soon 313084 SCREW M. DISC CSM 4060 €3.29
35
 photo_cameraImage coming soon 318543 GEAR CASE DH50MB €51.69
36
 photo_cameraImage coming soon 980750 GUIDE PLATE €22.11
37
 photo_cameraImage coming soon 980727 HANDLE RUBBER €17.93
39
 Retaining Ring 12 mm for Hitachi Power Tools 939542 Retaining Ring 12 mm for Hitachi Power Tools €3.13
40
 photo_cameraImage coming soon 318544 CRANKSHAFT DH45SA-DH50MB €40.29
41
 photo_cameraImage coming soon 6205DD BALL BEARING 6205DDCMPS2L €11.80
43
 photo_cameraImage coming soon 318548 BEARING DH50MB COVER €1.79
44
 photo_cameraImage coming soon 318545 SECOND PINION DH50MB €16.74
45
 photo_cameraImage coming soon 318546 FIRST GEAR DH50MB €25.92
47
 photo_cameraImage coming soon 967261 RETAINING RING FOR D17 SHAFT €1.33
48
 photo_cameraImage coming soon 318549 SEAL €2.07
49
 Needle Bearing for Demolition Hammers Hitachi DH 40/50MRY-DH45MR 939299 Needle Bearing for Demolition Hammers Hitachi DH 40/50MRY-DH45MR €13.81
50
 photo_cameraImage coming soon 318595 GEAR COVER €35.55
51
 Needle Roller 8x20 for Rotary Hammer Hitachi DH40MR 313421 Needle Roller 8x20 for Rotary Hammer Hitachi DH40MR €9.76
52
 photo_cameraImage coming soon 318580 TABLE HOLDER €128.68
53
 O-Ring 23X30X3 mm for Demolition Hammers Hitachi DH40MRY-DH38MS 986104 O-Ring 23X30X3 mm for Demolition Hammers Hitachi DH40MRY-DH38MS €2.08
59
 photo_cameraImage coming soon 318451 NYLOCK BOLT (W/FLANGE) M6X35 €2.25
61
 photo_cameraImage coming soon 981973 WASHER €16.65
62
 photo_cameraImage coming soon 985779 O-RING (D) €2.87
63
 photo_cameraImage coming soon 318659 NEEDLE BEARING €41.37
64
 photo_cameraImage coming soon 318559 ROTOR GEAR DH50MB €68.96
65
 Needle Pin 6x6 mm for Demolition Hammers Hitachi DH40/50MRY-DH45MR 313057 Needle Pin 6x6 mm for Demolition Hammers Hitachi DH40/50MRY-DH45MR €5.52
66
 photo_cameraImage coming soon 971750 FEATHER KEY 3X3X20 €3.30
68
 photo_cameraImage coming soon 318583 RING €5.95
69
 photo_cameraImage coming soon 318563 CYLINDER SPRING DH50MB €5.13
70
 photo_cameraImage coming soon 318562 LOCK SLEEVE €8.37
71
 photo_cameraImage coming soon 318631 SPRING DH50MB €3.61
72
 photo_cameraImage coming soon 318630 STRIKER DH50MB €34.49
73
 photo_cameraImage coming soon 318917 O-RING (D) €7.95
74
 photo_cameraImage coming soon 318561 CLUTCH €65.45
75
 photo_cameraImage coming soon 985772 PISTON FOR DH50SA / SA1 / SB €61.23
76
 photo_cameraImage coming soon 318557 ROD DH45SA-DH50MB €51.69
77
 photo_cameraImage coming soon 980756 NEEDLE BEARING (NSK AJ50 1203) €12.95
78
 photo_cameraImage coming soon 955593 PIN €3.44
79
 photo_cameraImage coming soon 318574 SIDE HANDLE €35.86
80A
 photo_cameraImage coming soon 331096 HANDLE HOLDER €17.78
81
 photo_cameraImage coming soon 318576 HANDLE BOLT €11.53
82
 photo_cameraImage coming soon 971786 DEPTH DELIMITER €7.11
83
 photo_cameraImage coming soon 873095 O-RING (P-16) €1.28
85
 photo_cameraImage coming soon 318578 COVER €5.89
86
 photo_cameraImage coming soon 313411 SHAFT COVER €3.02
88
 photo_cameraImage coming soon 313410 LEVER €4.65
89
 photo_cameraImage coming soon 307605 SPRING €1.78
90
 photo_cameraImage coming soon 313424 SLEEVE €3.02
91
 photo_cameraImage coming soon 313077 NYLOCK BOLT (W/FLANGE) M5X25 €5.43
92
 photo_cameraImage coming soon 318596 SEAL €7.79
93
 photo_cameraImage coming soon 6203VV BALL BEARING 6203VVCMPS2L €7.85
94
 photo_cameraImage coming soon 318597 SPACER €18.64
95
 photo_cameraImage coming soon 318594 WASHER €2.07
96
 photo_cameraImage coming soon 318918 FAN €4.21
98
 photo_cameraImage coming soon 318633 FAN COVER DH50MB €6.03
100
 photo_cameraImage coming soon 340463E STATOR FIELD FOR DH50MB 220-230V €93.43
101
 photo_cameraImage coming soon 958032 BRUSH TERMINAL €1.34
102
 photo_cameraImage coming soon 318607 MOTOR BOX DH50MB €71.88
105
 photo_cameraImage coming soon 307811 TAPPING SCREW (W/FLANGE) D4X16 (BLACK) €1.40
106
 photo_cameraImage coming soon 318599 CARBON BRUSH COVER PROTECTION €4.00
107
 Brushe Cap for Routers Hitachi M12SA-M12V G 940540 Brushe Cap for Routers Hitachi M12SA-M12V G €1.78
108
 photo_cameraImage coming soon 999077 SELF-LOCKING CARBON BRUSHE (1 PAIR) €17.42
109
 photo_cameraImage coming soon 980487 BRUSH HOLDER €9.92
112
 photo_cameraImage coming soon 313948 COLLAR €2.44
115
 photo_cameraImage coming soon 318593 CARBON BRUSH HOLDER DX DH50MB €18.98
117
 photo_cameraImage coming soon 944954 BEARING WASHER €1.30
118
 photo_cameraImage coming soon 6201VV BALL BEARING 6201VVCMPS2L €6.76
119
 photo_cameraImage coming soon 318598 LOWER COVER DH50MB €41.37
122
 photo_cameraImage coming soon 318571 HOUSING COVER DH50MB €17.46
123
 photo_cameraImage coming soon 318572 GASKET IMP. (A) €2.15
124
 photo_cameraImage coming soon 991711 DISTANCE PIECE (B) €1.33
125
 photo_cameraImage coming soon 318601 HANDLE GRIP DH50MB €24.81
126
 Switch for Demolition Hammers Hitachi DH38MS-DH40MR 313093 Switch for Demolition Hammers Hitachi DH38MS-DH40MR €23.58 Not available for order
127
 photo_cameraImage coming soon 318602 HANDLE COVER DH50MB €27.25
129
 photo_cameraImage coming soon 318573 HANDLE GASKET DH50MB €1.76
130
 photo_cameraImage coming soon 940778 CORD ARMOR D10.7 €3.43
132
 photo_cameraImage coming soon 960266 CORD CLIP €1.37
134
 photo_cameraImage coming soon 714520 POWER CORD 5M 2X1.5 €15.00
136
 photo_cameraImage coming soon 313142 PLUG (A) €19.83
138
 photo_cameraImage coming soon 318648 CONNECTOR (B) €14.90
139
 photo_cameraImage coming soon 938307 PILLAR TERMINAL (OLD 938307Z / 512-31) €2.60
140
 photo_cameraImage coming soon 318603 CONNECTOR SUPPORT €4.00
501
 photo_cameraImage coming soon 318646 CASE (PLASTIC) €140.70
505
 photo_cameraImage coming soon 981840 GREASE 30 GR €10.98
Page 2 local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
501
 photo_cameraImage coming soon 318646 CASE (PLASTIC) €140.70
505
 photo_cameraImage coming soon 981840 GREASE 30 GR €10.98
506
 photo_cameraImage coming soon 308471 GREASE 70 GR €19.79
507
 photo_cameraImage coming soon 980927 GREASE 500 GR €84.44

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Hitachi Spare Parts for Hammer Drill DH50MB

Hitachi-HIKOKI Tanaka authorized repair center

 and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Hammer Drill DH50MB.

In the following table, look for the model of the hammer and the respective parts of the code.
Hitachi DH50MB

HITACHI HAMMER DRILL DH50MB Pag.1
# Part Num. Description
1 313415 FRONT CAP
2 318608 RING DH50MB
3 318590 RING
4 313413 ROLLER SEAT
5 313419 SPRING
6 318589 SEAL SPRING DH50MB
8 318587 FRONT COVER DH50MB
9 878863 RUBBER RING (S-70)
10 318588 SEAL
11 318586 URETHANE RING
12 318585 RING SUPPORT DH50MB
13 318582 STILL
14 6008CM BALL BEARING 60008CM DH50MB
15 318581 DH50MB SIDE COVER
16 318551 PINION DH50MB
17 944109 KEY 3X3X8
18 6202DD BALL BEARING 6202DD
19 313058 WASHER
20 318552 CLUTCH RING SUPPORT DH50MB
21 318554 GEAR SUPPORT
22 318555 CLUTCH SPRING DH50MB
23 313057 NEEDLE PIN D. 6X6
24 318553 SECOND GEAR DH50MB
25 318556 THICKNESS
26 629VVM BALL BEARING 629VVM
27 318550 CLUTCH COMPL. DH50MB
29 945072 FEATHER KEY 5X5X15
30 944525 BEARING WASHER (C)
31 313082 SCREW C / FLANGE M5X16
32 991711 SPACER
33 318584 CRANKCASE COVER DH50MB
34 313084 SEAL
35 318543 GEAR CASE DH50MB
36 980750 GUIDE PLATE
37 980727 SHOCK ABSORBERS
39 939542 RING TYPE C X SHAFTS D.12 (10 PCS)
40 318544 CRANKSHAFT DH45SA-DH50MB
41 6205DD BALL BEARING 6205DD
42 965469 RING TYPE C X SHAFTS D.25
43 318548 BEARING DH50MB COVER
44 318545 SECOND PINION DH50MB
45 318546 FIRST GEAR DH50MB
46 318547 DISTANCE RING DH50MB
47 967261 SAFETY RING
48 318549 SEAL
49 939299 NEEDLE BEARING M661
50 318595 GEAR COVER
51 313421 OVAL ROLLER
52 318580 TABLE HOLDER
53 986104 O-RING
54 318564 SECOND STRIKER DH50MB
55 318565 SHOCK ABSORBERS
56 318566 SHOCK ABSORBERS
57 318567 SHOCK ABSORBERS
58 318568 CANNON FOR DH50MB
59 318451 SCREW TO BRUGOLA FLANG. M6X35 CR13VA
60 318560 NEEDLE BEARING DH50MB
61 981973 WASHER
62 985779 O-RING (D)
63 318659 NEEDLE BEARING
64 318559 ROTOR GEAR DH50MB
65 313057 NEEDLE D. 6X6
66 971750 KEY 3X3X20
67 318558 CYLINDER DH50MB
68 318583 RING
69 318563 CYLINDER SPRING DH50MB
70 318562 RING
71 318631 SPRING DH50MB
72 318630 STRIKER DH50MB
73 318917 O-RING (D)
74 318561 CLUTCH
75 985772 PISTON FOR DH50SA / SA1 / SB
76 318557 ROD DH45SA-DH50MB
77 980756 NEEDLE BEARING AJ501203
78 955593 PIN
79 318574 SIDE HANDLE
80A 331096 HANDLE GRIP SUPPORT
81 318576 HANDLE BOLT
82 971786 DEPTH ROD
83 873095 O-RING P16
84 318577 ROTO-STOP SPINDLE
85 318578 COVER
86 313411 SHAFT COVER
87 318579 BOLT M4X12
88 313410 ROTO LEVER STOP
89 307605 SPRING
90 313424 SPACER
91 313077 SCREW M5X25
92 318596 SEAL
93 6203VV BALL BEARING 6203VV
94 318597 SPACER
95 318594 WASHER
96 318918 FAN
97 360520E ARMATURE FOR DH50MB
98 318633 FAN COVER DH50MB
100 340463E STATOR FIELD FOR DH50MB 220-230V
101 958032 TERMINAL
102 318607 MOTOR BOX DH50MB
105 307811 SCREW
106 318599 CARBON BRUSH COVER PROTECTION
107 940540 CARBON BRUSH COVER
108 999077 SELF-LOCKING CARBON BRUSHE (1 PAIR)
109 980487 CARBON BRUSH HOLDER
111 959141 JOINT
112 313948 COLLAR
114 318632 PRISM
115 318593 CARBON BRUSH HOLDER DX DH50MB
117 944954 BALL BEARING WASHER
118 6201VV BALL BEARING 6201VV
119 318598 LOWER COVER DH50MB
122 318571 HOUSING COVER DH50MB
123 318572 GASKET IMP. (A)
124 991711 SPACER
125 318601 HANDLE GRIP DH50MB
126 313093 SWITCH
127 318602 HANDLE COVER DH50MB
129 318573 HANDLE GASKET DH50MB
130 940778 SLEEVE 10.7
131 992810 TERMINAL
132 960266 WIRE CLAMP
134 714520 CABLE 5M 2X1.5 WITH PLUG
135 318605 ELECTRONIC CONTROL DH50MB+A129:C129
136 313142 CONNECTOR (A) WITH CABLES AND FILTER
137 959141 JOINT
138 318648 CONNECTOR (B)
139 938307 PILLAR TERMINAL (OLD 938307Z / 512-31
140 318603 CONNECTOR SUPPORT
STANDARD ACCESSORIES Pag.2
501 318646 CASE (PLASTIC)
502 944458 ALLEN KEY
503 944459 KEY
504 872422 ALLEN KEY
505 981840 GREASE 30GR
506 308471 GREASE 70GR
507 980927 GREASE 500GR
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Hitachi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to hitachi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Hitachi DH50MB
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Drawing Hitachi DH50MB

Drawing Hitachi DH50MB

Download (371.95KB)

You might also like

Carbon Brushes for Hitachi Hammer DH45MR
HiKOKI Power Tools Italia S.p.a. SKU: 999071
Carbon Brushes for Hitachi Hammer DH45MR
Carbon Brushes for Hitachi Hammer DH45MR Genuine part Hitachi, Carbon Brushe Set for Rotary Hammer DH45MR. Part for the following products: -  Rotary Hammer DH45MR - Code : 999071
AVAILABLE €20.93
Details
Needle Bearing for Demolition Hammers Hitachi DH 40/50MRY-DH45MR
HiKOKI Power Tools Italia S.p.a. SKU: 939299
Needle Bearing for Demolition Hammers Hitachi DH 40/50MRY-DH45MR
Needle Bearing for Demolition Hammers Hitachi DH 40/50MRY-DH45MR Genuine part HITACHI, Needle Bearing M661 for Demolition Hammers H45MR - H45MRY - H45FRV - H45SR - DH40MRY - DH45MR - H41MB - H25PV - DH30PC2 - DH38MS - DH50MRY - PR-38E....
AVAILABLE €13.81
Details
Steel Ball 6,35 mm for Hammers Hitachi
HiKOKI Power Tools Italia S.p.a. SKU: 959150
Steel Ball 6,35 mm for Hammers Hitachi
Steel Ball 6,35 mm for Hammers Hitachi Hitachi genuine parts, steel ball diameter MM 6,35, Box 10 Pcs for Demolition Hammers and Percussion drills, H45MR - H45MRY - H41MB - H60MC - D13VG - DV16V-20VB2. Suitable for the following...
AVAILABLE €3.48
Details
O-Ring S-36 for Hammer Hitachi H25PV
HiKOKI Power Tools Italia S.p.a. SKU: 984483
O-Ring S-36 for Hammer Hitachi H25PV
O-Ring S-36 for Hammer Hitachi H25PV Genuine parts Hitachi, O-Ring S-36 for Hammer Class 3.5 Kg H25PV - Nailing Hitachi NV50AH - NV90HMC For the following items: - Demolition Hammer Hitachi Class 3.5 Kg H25PV - Nailer Hitachi NV50AH -...
AVAILABLE €2.08
Details
Noise Suppressor for Angle Grinder Hitachi G12SA2
HiKOKI Power Tools Italia S.p.a. SKU: 994273
Noise Suppressor for Angle Grinder Hitachi G12SA2
Noise Suppressor for Angle Grinder Hitachi G12SA2 Genuine replacement part Hitachi, Noise Suppressor for Angle Grinders Hitachi G12SA2 - G12S2 - G12SG - G 13SR3 - G 13SB3 - Polisher Sander SAT180 -  Reciprocating Saw CR13VC. Part for...
AVAILABLE €9.62
Details
Brushe Cap for Mixers Hitachi D13 - D13SA
HiKOKI Power Tools Italia S.p.a. SKU: 961781
Brushe Cap for Mixers Hitachi D13 - D13SA
Brushe Cap for Mixers Hitachi D13 - D13SA Genuine part Hitachi, Brushe Cap for Mixers D13 - D13SA - Circular Saws C9U - C0U2 - C9U3 - Core-Drill DC12V - Rotary Hammers DH50SA1 - DH50SB - Demolition Hammer H55SA Part for the following...
AVAILABLE €4.18
Details
Switch for Demolition Hammers Hitachi DH38MS-DH40MR
HiKOKI Power Tools Italia S.p.a. SKU: 313093
Switch for Demolition Hammers Hitachi DH38MS-DH40MR
Switch for Demolition Hammers Hitachi DH38MS-DH40MR Original replacement part for Hitachi, Switch (2P Screw Type W/O Lock) for Combined Demolition Hammers DH38MS - DH40MR - DH40SR. Part for the following Products: -  Combined Hammer...
Details
Bearing Washer (C) for Hammer Hitachi DH40MA
HiKOKI Power Tools Italia S.p.a. SKU: 944525
Bearing Washer (C) for Hammer Hitachi DH40MA
Bearing Washer (C) for Demolition Hammer Hitachi DH40MA Original replacement part Hitachi HIKOKI, Bearing Washer (C) for Demolition Hammer DH40SA - DH40YB - DH40MA. Part for the following items : -  Demolition Hammer DH40SA -...
on 7/10 Business Days Approx €1.26
Details
Comments (0)
