HiKOKI Power Tools Italia S.p.a.

Hitachi Spare Parts for Angle Grinder G13BY

SKU: G13BY
€1.40
VAT included

Hitachi Spare Parts for Angle Grinder G13BY

Hitachi-HIKOKI Tanaka authorized service center and original spare parts Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Angle Grinder G13BY.
Hitachi Spare Parts for Angle Grinder G13BY
  • Hitachi Spare Parts for Angle Grinder G13BY
  • Hitachi Spare Parts for Angle Grinder G13BY
HiKOKI Power Tools Italia S.p.a.

Hitachi Spare Parts for Angle Grinder G13BY

SKU: G13BY Condition: New
€1.40
VAT included

Hitachi Spare Parts for Angle Grinder G13BY

Hitachi-HIKOKI Tanaka authorized service center and original spare parts Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Angle Grinder G13BY.
settings 37 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 7/10 Business Days Approx

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
37 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

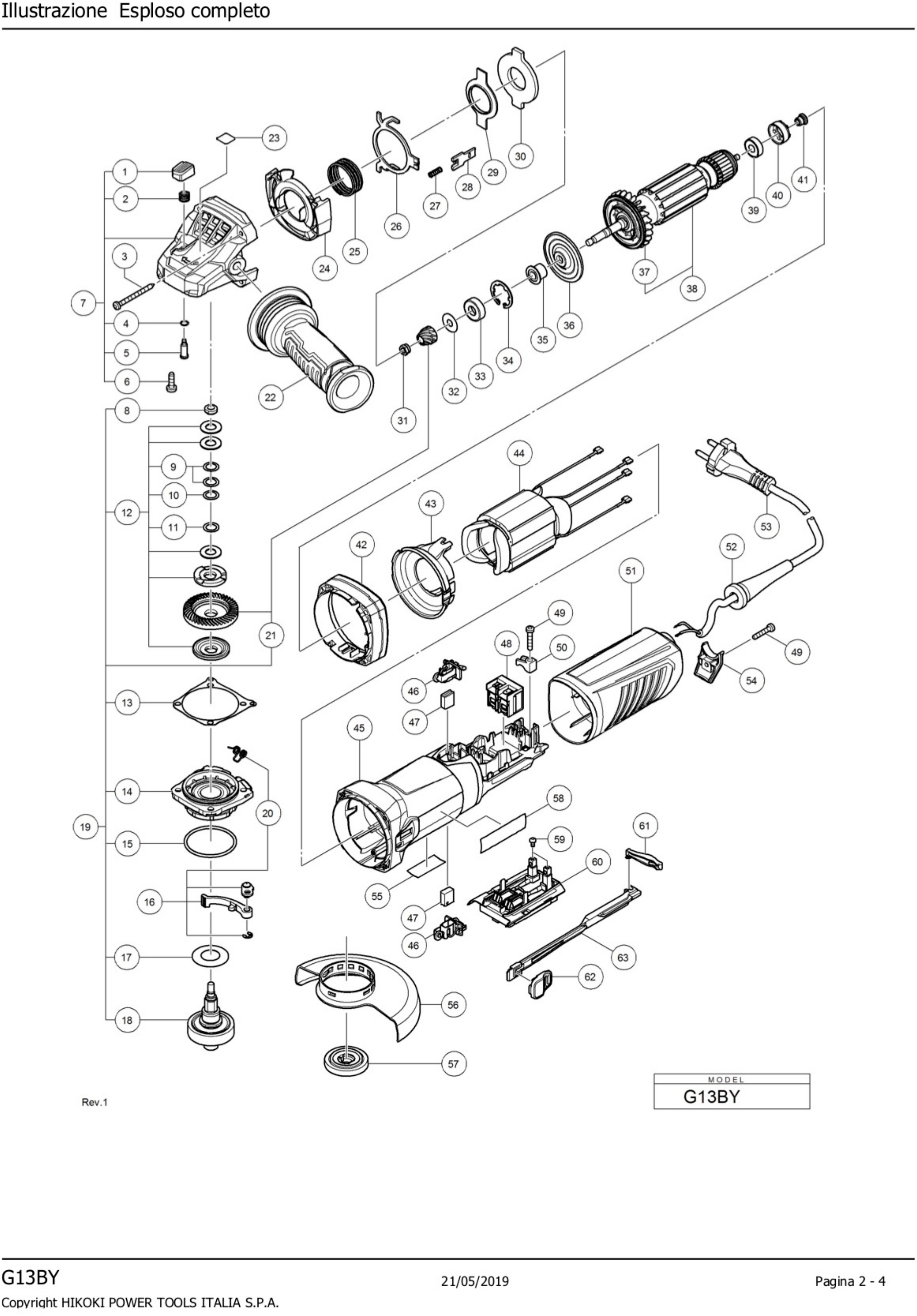

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
2
 photo_cameraImage coming soon 372944 SPRING (A) €1.33
5
 photo_cameraImage coming soon 372946 ROLLER €6.98
7
 photo_cameraImage coming soon 372932 GEARBOX INCLUD.1.2.4-6 €22.95
10
 photo_cameraImage coming soon 372925 WASHER 10.2X14.8X0.1 €1.33
11
 photo_cameraImage coming soon 372926 WASHER 10.2X14.8X0.5 €1.33
12
 photo_cameraImage coming soon 372931 GEAR SET INCLUDE.9-11 €10.76
13
 photo_cameraImage coming soon 372918 SEAL €1.33
14
 photo_cameraImage coming soon 372927 LOWER COVER €5.64
16
 photo_cameraImage coming soon 372941 COMPLETE LEVER INCLUDING.20 €5.87
18
 photo_cameraImage coming soon 372922 SPINDLE €35.04
19
 photo_cameraImage coming soon 372933 SPINDLE KIT INCLUDED.8.12-15.17.18.21 €63.79
21
 photo_cameraImage coming soon 372929 GEAR ASSY €13.42
22
 photo_cameraImage coming soon HTA336865 SIDE HANDLE M10 150 MM €22.95
24
 photo_cameraImage coming soon 372901 INTERNAL CARTER €1.33
26
 photo_cameraImage coming soon 372953 LEVER €1.22
30
 photo_cameraImage coming soon 372950 PLATE (B) €3.83
32
 photo_cameraImage coming soon 372908 WASHER 7.05X19.5X0.2 €1.33
33
 photo_cameraImage coming soon 372907 BEARING 8X22X7 €2.22
34
 photo_cameraImage coming soon 372942 RETAINING RING €1.33
35
 photo_cameraImage coming soon 372957 SPACER €1.71
36
 photo_cameraImage coming soon 372951 DISC BRAKE €7.76
37
 photo_cameraImage coming soon 372938 FAN €2.94
38
 photo_cameraImage coming soon 372887 ARMATURE INCLUDING.37 €47.42
39
 photo_cameraImage coming soon 372904 BEARING 6X19X6 €2.33
40
 photo_cameraImage coming soon 372905 BEARING SEAT €1.33
41
 photo_cameraImage coming soon 372947 MAGNET €2.05
42
 photo_cameraImage coming soon 372958 FLANGE €2.67
44
 photo_cameraImage coming soon 372890 STATOR FIELDS €22.68
45
 photo_cameraImage coming soon 372898 MOTOR HOUSING €12.14
46
 photo_cameraImage coming soon 372936 BRUSH HOLDER (2 PIECES) €4.14
47
 photo_cameraImage coming soon 372939 CARBON BRUSHE (1 PAIR) €9.44
48
 photo_cameraImage coming soon 372892 SWITCH €5.75
50
 photo_cameraImage coming soon 371271 CABLE CLAMP €1.37
51
 photo_cameraImage coming soon 372911 REAR COVER €6.11
52
 photo_cameraImage coming soon 372894 CABLE SLEEVE €1.33
53
 photo_cameraImage coming soon 714500 POWER CABLE €15.65
60
 photo_cameraImage coming soon 372902 ELECTRONIC CARD €26.32

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Hitachi Spare Parts for Angle Grinder G13BY

Hitachi-HIKOKI Tanaka authorized service center and original spare parts Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Angle Grinder G13BY.

In the following table , look for the model of the grinder and the ripettivo spare part.
ANGLE GRINDER HITACHI G13BY
# Part Num. Description
1 372945 BUTTON
2 372944 SPRING (A)
4 372943 O-RING (A)
5 372946 ROLLER
7 372932 GEARBOX INCLUD.1.2.4-6
9 372924 WASHER 10.2X14.8X0.2
10 372925 WASHER 10.2X14.8X0.1
11 372926 WASHER 10.2X14.8X0.5
12 372931 GEAR SET INCLUDE.9-11
13 372918 SEAL
14 372927 LOWER COVER
15 372959 O-RING (B)
16 372941 COMPLETE LEVER INCLUDING.20
17 372949 WASHER
18 372922 SPINDLE
19 372933 SPINDLE KIT INCLUDED.8.12-15.17.18.21
20 372916 SPRING
21 372929 GEAR ASSY
22 HTA336865 SIDE HANDLE M10 150 MM
24 372901 INTERNAL CARTER
25 372956 SPRING (C)
26 372953 LEVER
27 372955 SPRING (B)
28 372954 SUPPORT
29 372952 PLATE
30 372950 PLATE (B)
32 372908 WASHER 7.05X19.5X0.2
33 372907 BEARING 8X22X7
34 372942 SEEGER
35 372957 SPACER
36 372951 DISC BRAKE
37 372938 FAN
38 372887 ARMATURE INCLUDING.37
39 372904 BEARING 6X19X6
40 372905 BEARING SEAT
41 372947 MAGNET
42 372958 FLANGE
43 372899 FAN GUIDE
44 372890 STATOR FIELDS
45 372898 MOTOR HOUSING
46 372936 BRUSH HOLDER (2 PIECES)
47 372939 CARBON BRUSHE (1 PAIR)
48 372892 SWITCH
50 371271 CABLE CLAMP
51 372911 REAR COVER
52 372894 CABLE SLEEVE
53 714500 CABLE 5M 2 X 1.0 WITH PLUG
54 372912 REAR COVER
56 372915 WHEEL GUARD
57 372702 WHEEL NUT
60 372902 ELECTRONIC CARD
61 372948 PIVOTING BAR
62 372914 SLIDE SWITCH KNOB
63 372910 SLIDE BAR
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Hitachi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to hitachi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
