HiKOKI Power Tools Italia S.p.a.

Hitachi Spare Parts for Demolition Hammer DH40MA

SKU: Hitachi DH40MA
€1.82
VAT included

Hitachi Spare Parts for Demolition Hammer DH40MA

Hitachi-HIKOKI Original spare parts at the most competitive prices on the web, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance and repair issues for Demolition Hammer DH40MA.
Hitachi Spare Parts for Demolition Hammer DH40MA
  • Hitachi Spare Parts for Demolition Hammer DH40MA
HiKOKI Power Tools Italia S.p.a.

Hitachi Spare Parts for Demolition Hammer DH40MA

SKU: Hitachi DH40MA Condition: New
€1.82
VAT included

Hitachi Spare Parts for Demolition Hammer DH40MA

Hitachi-HIKOKI Original spare parts at the most competitive prices on the web, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance and repair issues for Demolition Hammer DH40MA.
settings 73 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Shipped on: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
68 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

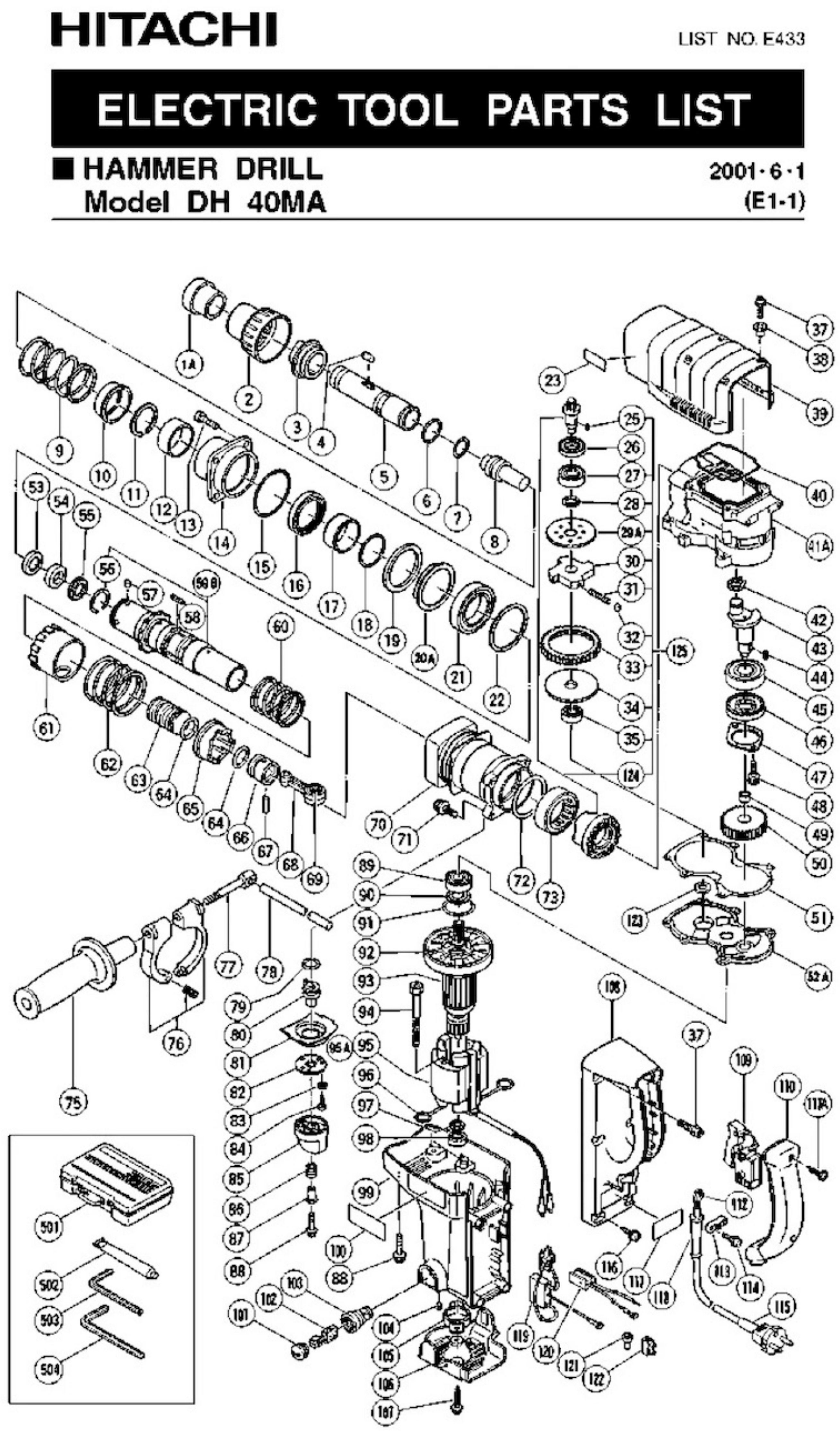

Esploso pagina 1
Pos. Item Price Buy
1A
 photo_cameraImage coming soon 313415 FRONT CAP €4.65
4
 Needle Roller 8x20 for Rotary Hammer Hitachi DH40MR 313421 Needle Roller 8x20 for Rotary Hammer Hitachi DH40MR €9.76
7
 O-Ring 20X26X3 mm for Demolition Hammers Hitachi DH38MS-DH40MRY-H41MB 313396 O-Ring 20X26X3 mm for Demolition Hammers Hitachi DH38MS-DH40MRY-H41MB €7.67
9
 photo_cameraImage coming soon 313419 RETAINER SPRING €3.83
11
 photo_cameraImage coming soon 313420 RETAINING RING D38 €3.94
12
 photo_cameraImage coming soon 313418 SLEEVE (A) €14.97
13
 photo_cameraImage coming soon 993040 NYLOCK HIGH TENSION BOLT M7X25 €2.98
19
 photo_cameraImage coming soon 981859 URETHANE RING €5.43
20A
 photo_cameraImage coming soon 315868 URETHANE RING HOLDER €5.57
22
 photo_cameraImage coming soon 313409 WASHER (A) €3.01
25
 photo_cameraImage coming soon 944109 FEATHER KEY 3X3X8 €2.99
26
 Oil Seal 20x32x5 for Rotary Hammer Hitachi DH45MR-DH40MRY-DH38MS 313050 Oil Seal 20x32x5 for Rotary Hammer Hitachi DH45MR-DH40MRY-DH38MS €5.43
27
 Bearing 6002DD for Hammers-Reciprocatin Saw-Milling Machine Hitachi 6002DD Bearing 6002DD for Hammers-Reciprocatin Saw-Milling Machine Hitachi €9.62
28
 photo_cameraImage coming soon 313058 WASHER €1.34
29A
 photo_cameraImage coming soon 313053 WASHER (A) €4.60
30
 photo_cameraImage coming soon 313055 GEAR HOLDER €17.53
34
 photo_cameraImage coming soon 313059 SPACER €14.75
37
 photo_cameraImage coming soon 313082 NYLOCK BOLT (W/FLANGE) M5X16 €1.30
38
 photo_cameraImage coming soon 991711 DISTANCE PIECE (B) €1.33
40
 photo_cameraImage coming soon 313084 SCREW M. DISC CSM 4060 €3.29
42
 Retaining Ring 12 mm for Hitachi Power Tools 939542 Retaining Ring 12 mm for Hitachi Power Tools €3.13
43
 photo_cameraImage coming soon 313046 CRANK SHAFT €56.08
44
 photo_cameraImage coming soon 940533 FEATHER KEY 3X3X10 €2.20
45
 photo_cameraImage coming soon 6204VV BALL BEARING 6204VVCMPSA2L €9.44
49
 Needle Bearing for Demolition Hammers Hitachi DH 40/50MRY-DH45MR 939299 Needle Bearing for Demolition Hammers Hitachi DH 40/50MRY-DH45MR €13.81
50
 photo_cameraImage coming soon 313047 FIRST GEAR €29.17
57
 Needle Pin 6x6 mm for Demolition Hammers Hitachi DH40/50MRY-DH45MR 313057 Needle Pin 6x6 mm for Demolition Hammers Hitachi DH40/50MRY-DH45MR €5.52
58
 photo_cameraImage coming soon 971750 FEATHER KEY 3X3X20 €3.30
60
 photo_cameraImage coming soon 313121 CLUTCH SPRING €5.02
64
 O-Ring 23X30X3 mm for Demolition Hammers Hitachi DH40MRY-DH38MS 986104 O-Ring 23X30X3 mm for Demolition Hammers Hitachi DH40MRY-DH38MS €2.08
65
 photo_cameraImage coming soon 981956 CLUTCH €81.68
66
 photo_cameraImage coming soon 981885 PISTON €22.20
67
 Piston Pin for Hammers Hitachi DH40MRY-H41M 980708 Piston Pin for Hammers Hitachi DH40MRY-H41M €3.48
68
 photo_cameraImage coming soon 980707 CONNECTING ROD €32.52
69
 photo_cameraImage coming soon 980756 NEEDLE BEARING (NSK AJ50 1203) €12.95
71
 photo_cameraImage coming soon 993041 NYLOCK BOLT (W/FLANGE) M6X25 €2.85
72
 O-RING 1AS.60 for Hammer DH40MRY-DH45MR 956996 O-RING 1AS.60 for Hammer DH40MRY-DH45MR €3.83
73
 photo_cameraImage coming soon 993069 NEEDLE BEARING (8) (NTN HMK4520) €24.68
75
 Side Handle for Rotary Hammer Hitachi DH40MRY 313078 Side Handle for Rotary Hammer Hitachi DH40MRY €25.35
76
 photo_cameraImage coming soon 313079 HANDLE HOLDER €19.94
77
 photo_cameraImage coming soon 313080 HANDLE BOLT €15.19
81
 photo_cameraImage coming soon 313412 UNDER COVER €3.01
82
 photo_cameraImage coming soon 313411 SHAFT COVER €3.02
85
 photo_cameraImage coming soon 313410 LEVER €4.65
86
 photo_cameraImage coming soon 307605 SPRING €1.78
87
 photo_cameraImage coming soon 313424 SLEEVE €3.02
88
 photo_cameraImage coming soon 313077 NYLOCK BOLT (W/FLANGE) M5X25 €5.43
89
 photo_cameraImage coming soon 6202VV BALL BEARING 6202VVCMPS2L €7.42
90
 photo_cameraImage coming soon 980700 DUST WASHER (B) €1.24
92
 photo_cameraImage coming soon 971097 FAN €9.08
93
 Armature 220-230V for Demolition Hammer Hikoki - Hitachi DH40MA 360410E Armature 220-230V for Demolition Hammer Hikoki - Hitachi DH40MA €111.55 Not available for order
95
 photo_cameraImage coming soon 340361G STATOR ASS’Y 220V230V €88.29
96
 photo_cameraImage coming soon 930703 BRUSH TERMINAL €3.04
97
 Dust Washer for Demolition Hammer Hitachi DH40MA 313086 Dust Washer for Demolition Hammer Hitachi DH40MA €1.33
98
 photo_cameraImage coming soon 629VVM BALL BEARING 629VVC2PS2L €7.32
101
 Brush Holder Cap for Angle Grinders Hitachi G23SS-G23SW-G23SWU 945161 Brush Holder Cap for Angle Grinders Hitachi G23SS-G23SW-G23SWU €2.78
102
 Carbon Brushes for Demolition Hammer Hitachi DH30PC2 999073 Carbon Brushes for Demolition Hammer Hitachi DH30PC2 €16.60
103
 photo_cameraImage coming soon 958900 BRUSH HOLDER €7.81
109
 Switch for Demolition Hammers Hitachi DH38MS-DH40MR 313093 Switch for Demolition Hammers Hitachi DH38MS-DH40MR €23.58
113
 photo_cameraImage coming soon 960266 CORD CLIP €1.37
118
 photo_cameraImage coming soon 940778 CORD ARMOR D10.7 €3.43
118
 photo_cameraImage coming soon 958049 CORD ARMOR D8.2 €1.34
119
 photo_cameraImage coming soon 313092 SCREW CSM 4060 €4.82
119
 photo_cameraImage coming soon 313142 PLUG (A) €19.83
120
 photo_cameraImage coming soon 313143 PLUG (B) €14.75
123
 Bearing Washer (C) for Hammer Hitachi DH40MA 944525 Bearing Washer (C) for Hammer Hitachi DH40MA €1.26
502
 photo_cameraImage coming soon 981840 GREASE 30 GR €10.98
719
 photo_cameraImage coming soon 873095 O-RING (P-16) €1.28

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Hitachi Spare Parts for Demolition Hammer DH40MA

Hitachi-HIKOKI

 Original spare parts at the most competitive prices on the web, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance and repair issues for Demolition Hammer DH40MA.

In the following table, look for the model of the hammer and the respective parts of the code.
Hitachi DH40MA

Demolition Hammer DH40MA
# Part Num. Description
1A 313415 FRONT CAP
3 313413 NEEDLE HOLDER
4 313421 NEEDLE ROLLER D8X20
7 313396 O-RING (C)
9 313419 RETAINER SPRING
11 313420 RETAINING RING D38
12 313418 SLEEVE (A)
13 993040 NYLOCK HIGH TENSION BOLT M7X25
19 981859 URETHANE RING
20A 315868 URETHANE RING HOLDER
22 313409 WASHER (A)
25 944109 FEATHER KEY 3X3X8
26 313050 OIL SEAL (A)
27 6002DD BALL BEARING 6002DDCMPSZL
28 313058 WASHER
29A 313053 WASHER (A)
30 313055 GEAR HOLDER
34 313059 SPACER
37 313082 NYLOCK BOLT (W/FLANGE) M5X16
38 991711 DISTANCE PIECE (B)
39 313083 CRANK CASE COVER ASS’Y
40 313084 RUBBER SEAL
42 939542 RETAINING RING FOR D12 SHAFT (10 PCS.)
43 313046 CRANK SHAFT
44 940533 FEATHER KEY 3X3X10
45 6204VV BALL BEARING 6204VVCMPSA2L
49 939299 NEEDLE BEARING (M661)
50 313047 FIRST GEAR
57 313057 NEEDLE PIN D6ÉX6
58 971750 FEATHER KEY 3X3X20
60 313121 CLUTCH SPRING
64 986104 O-RING
65 981956 CLUTCH
66 981885 PISTON
67 980708 PISTON PIN
68 980707 CONNECTING ROD ASS’Y
69 980756 NEEDLE BEARING (NSK AJ50 1203)
71 993041 NYLOCK BOLT (W/FLANGE) M6X25
72 956996 O-RING (1AS60)
73 993069 NEEDLE BEARING (B) (NTN HMK4520)
75 313078 SIDE HANDLE
76 313079 HANDLE HOLDER
77 313080 HANDLE BOLT
719 873095 O-RING (P16)
81 313412 UNDER COVER
82 313411 SHAFT COVER
85 313410 LEVER
86 307605 SPRING
87 313424 SLEEVE
88 313077 NYLOCK BOLT (W/FLANGE) M5X25
89 6202VV BALL BEARING 6202VVCMPSZ2L
90 980700 DUST WASHER (B)
92 971097 FAN
93 360410E ARMATURE ASS’Y 220V230V
95 340361G STATOR ASS’Y 220V230V
96 930703 BRUSH TERMINAL
97 313086 DUST WASHER (A)
98 629VVM BALL BEARING 629VVC2PS2I
101 945161 BRUSH CAP
102 999073 CARBON BRUSH (AUTO STOP TYPE) (1 PAIR)
103 958900 BRUSH HOLDER
105 313091 BEARING HOLDER
106 313090 TAIL COVER
109 313093 SWITCH (C) (2P SCREW TYPE W/O LOCK)
113 960266 CORD CLIP
118 958049 CORD ARMOR D8.2
118 940778 CORD ARMOR D10.7
119 313142 PLUG (A)
119 313092 PLUG (A)
120 313143 PLUG (B)
123 944525 BEARING WASHER (C)
124 316425 BEVEL GEAR.PINION SET - DISCONTINUED
502 981840 GREASE (A) FOR HAMMER.HAMMER DRILL (30G)
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Hitachi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to hitachi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
