HiKOKI Power Tools Italia S.p.a.

Hitachi Spare Parts for High Pressure Coil Nailer NV90HMC

SKU: Hitachi NV90HMC
€7.26
VAT included

Hitachi Spare Parts for High Pressure Coil Nailer NV90HMC

Hitachi-Koky original spare parts for to replace broken parts for to fix High Pressure Coil Nailer NV90HMC.

Fix Your High Pressure Coil Nailer NV90HMC. All Spares are Ready For Delivery. Our Spares are Genuine Parts and Come with a Full Guarantee.
Hitachi Spare Parts for High Pressure Coil Nailer NV90HMC
  • On sale!
  • Hitachi Spare Parts for High Pressure Coil Nailer NV90HMC
  • Hitachi Spare Parts for High Pressure Coil Nailer NV90HMC
HiKOKI Power Tools Italia S.p.a.

Hitachi Spare Parts for High Pressure Coil Nailer NV90HMC

SKU: Hitachi NV90HMC Condition: New
€7.26
VAT included

Hitachi Spare Parts for High Pressure Coil Nailer NV90HMC

Hitachi-Koky original spare parts for to replace broken parts for to fix High Pressure Coil Nailer NV90HMC.

Fix Your High Pressure Coil Nailer NV90HMC. All Spares are Ready For Delivery. Our Spares are Genuine Parts and Come with a Full Guarantee.
settings 46 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
AVAILABLE

verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
46 spare parts

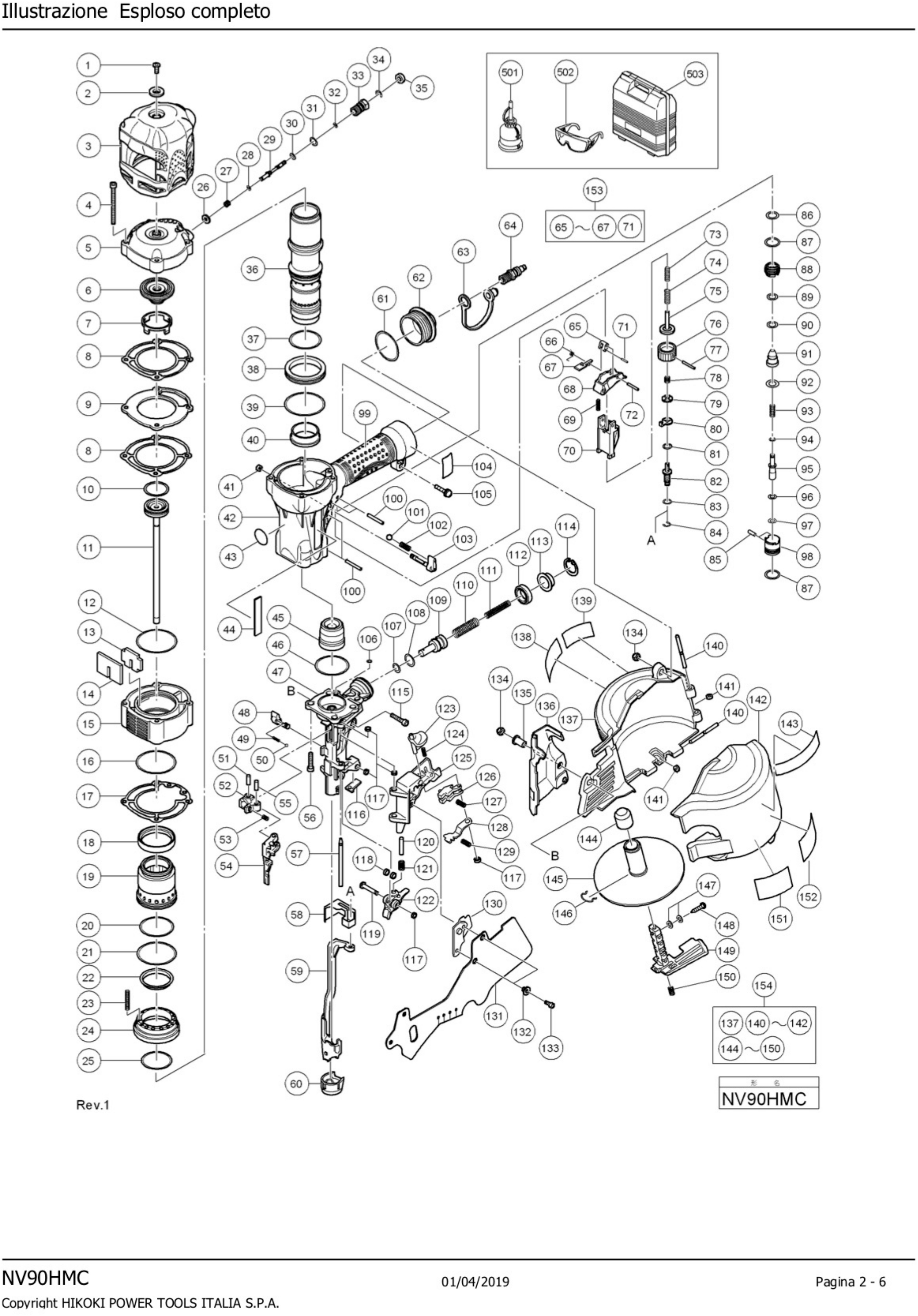

Page 1 zoom_in View exploded
Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
2
 photo_cameraImage coming soon 885264 WASHER €5.23
25
 O-Ring S-32 for Hammers Hitachi H25PV-DH30PC2-DH40MRY-H60MC 872767 O-Ring S-32 for Hammers Hitachi H25PV-DH30PC2-DH40MRY-H60MC €2.78
31
 photo_cameraImage coming soon 987105 O-RING (S-10) €1.24
34
 photo_cameraImage coming soon 968643 RETAINING RING (E-TYPE) FOR D4 SHAFT €2.40
37
 O-Ring S-36 for Hammer Hitachi H25PV 984483 O-Ring S-36 for Hammer Hitachi H25PV €2.08
39
 photo_cameraImage coming soon 985765 O-RING (B) €2.44
46
 O-Ring S-34 for Demolition Hammers Hitachi H45 MR-MRY-FTV-SR 980879 O-Ring S-34 for Demolition Hammers Hitachi H45 MR-MRY-FTV-SR €2.08
49
 photo_cameraImage coming soon 882923 LOCK SPRING €1.71
50
 photo_cameraImage coming soon 959148 STEEL BALL D3.175 €1.35
52
 photo_cameraImage coming soon 883144 FEEDER ARM (B) €38.75
53
 photo_cameraImage coming soon 883143 FEEDER SPRING €1.49
55
 photo_cameraImage coming soon 883093 PLUNGER (B) €7.47
56
 photo_cameraImage coming soon 993040 NYLOCK HIGH TENSION BOLT M7X25 €2.98
69
 photo_cameraImage coming soon 883759 TRIGGER SPRING €2.86
72
 photo_cameraImage coming soon 881951 ROLL PIN D2.5X16 €2.21
73
 photo_cameraImage coming soon 883302 PUSHING LEVER SPRING (B) €1.76
74
 photo_cameraImage coming soon 883305 PUSHING LEVER SPRING (A) €1.61
75
 photo_cameraImage coming soon 882891 PUSHING LEVER (C) €19.93
76
 photo_cameraImage coming soon 882889 ADJUSTER €3.32
78
 photo_cameraImage coming soon 882890 ADJUSTER SPRING €1.49
79
 photo_cameraImage coming soon 884973 ADJUSTER PLATE (C) €1.65
80
 photo_cameraImage coming soon 882886 ADJUSTER PLATE (A) €2.86
81
 photo_cameraImage coming soon 981317 O-RING (S-4) €1.16
83
 photo_cameraImage coming soon 872822 O-RING (S-5) €2.96
84
 photo_cameraImage coming soon 872971 RETAINING RING (E-TYPE) FOR D3 SHAFT €1.33
86
 photo_cameraImage coming soon 876319 O-RING (S-14) €1.57
87
 photo_cameraImage coming soon 876031 O-RING (S-16) €1.57
97
 photo_cameraImage coming soon 997218 O-RING (S-6) €2.38
100
 photo_cameraImage coming soon 949865 ROLL PIN D3X28 (10 PCS.) €2.13
101
 photo_cameraImage coming soon 959148 STEEL BALL D3.175 €1.35
102
 photo_cameraImage coming soon 882923 LOCK SPRING €1.71
107
 photo_cameraImage coming soon 872645 O-RING (P-9) €2.12
108
 photo_cameraImage coming soon 877763 FEED PISTON O-RING (I.D. 14) €1.33
110
 photo_cameraImage coming soon 883095 FEED SPRING (A) €1.85
111
 photo_cameraImage coming soon 883096 CUSCINETTO.X SK 2902 VV €18.36
117
 photo_cameraImage coming soon 880319 SHAFT RING €2.26
124
 photo_cameraImage coming soon 880446 SPRING €1.60
127
 photo_cameraImage coming soon 883088 STOPPER SPRING (A) €1.49
128
 photo_cameraImage coming soon 883086 NAIL STOPPER (B) €2.86
129
 photo_cameraImage coming soon 883087 STOPPER SPRING (B) €1.49
134
 photo_cameraImage coming soon 877371 NYLON NUT M5 €1.23
135
 photo_cameraImage coming soon 882907 SLEEVE €4.33
140
 photo_cameraImage coming soon 883111 PIN €13.69
141
 photo_cameraImage coming soon 877826 FEEDER SHAFT RING €3.24
144
 photo_cameraImage coming soon 881003 HOLDER CAP (A) €2.15
145
 photo_cameraImage coming soon 880503 NAIL HOLDER €8.48
146
 photo_cameraImage coming soon 880398 RATCHET SPRING €8.11
601
 photo_cameraImage coming soon 881768 GRIP TAPE (A) €6.53

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Hitachi Spare Parts for High Pressure Coil Nailer NV90HMC

Hitachi-Koky original spare parts for to replace broken parts for to fix High Pressure Coil Nailer NV90HMC.

In the following table, look for the model of the High Pressure Coil Nailer and their spare part.
High Pressure Coil Nailer NV90HMC

Coil Nailer NV90HMC
# Part Num. Description
2 885264 WASHER
3 886890 PROTECTOR
25 872767 O-RING (S-32)
28 878607 PLUNGER O-RING
30 873093 O-RING (1AP-3)
31 987105 O-RING (S-10)
34 968643 RETAINING RING (E-TYPE) FOR D4 SHAFT
37 984483 O-RING (S-36)
39 985765 O-RING (B)
46 980879 O-RING (S-34)
49 882923 LOCK SPRING
50 959148 STEEL BALL D3.175 (10 PCS.)
52 883144 FEEDER ARM (B)
53 883143 FEEDER SPRING
55 883093 PLUNGER (B)
56 993040 NYLOCK HIGH TENSION BOLT M7X25
61 880183 O-RING (I.D 37.2)
69 883759 TRIGGER SPRING
72 881951 ROLL PIN D2.5X16
73 883302 PUSHING LEVER SPRING (B)
74 883305 PUSHING LEVER SPRING (A)
75 882891 PUSHING LEVER (C)
76 882889 ADJUSTER
77 880093 ROLL PIN D2X16
78 882890 ADJUSTER SPRING
79 884973 ADJUSTER PLATE (C)
80 882886 ADJUSTER PLATE (A)
81 981317 O-RING (S-4)
83 872822 O-RING (S-5)
84 872971 RETAINING RING (E-TYPE) FOR D3 SHAFT
86 876319 O-RING (S-14)
87 876031 O-RING (S-16)
97 997218 O-RING (S-6)
100 949865 ROLL PIN D3X28 (10 PCS.)
101 959148 STEEL BALL D3.175 (10 PCS.)
102 882923 LOCK SPRING
106 873093 O-RING (1AP-3)
107 872645 O-RING (P-9)
108 877763 FEED PISTON O-RING (I.D. 14)
110 883095 FEED SPRING (A)
111 883096 FEED SPRING (B)
117 880319 SHAFT RING
124 880446 SPRING
127 883088 STOPPER SPRING (A)
128 883086 NAIL STOPPER (B)
129 883087 STOPPER SPRING (B)
134 877371 NYLON NUT M5
135 882907 SLEEVE
140 883111 PIN
141 877826 FEEDER SHAFT RING
144 881003 HOLDER CAP (A)
145 880503 NAIL HOLDER
146 880398 RATCHET SPRING
150 881826 SPRING
601 881768 GRIP TAPE (A)

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Hitachi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to hitachi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Hitachi NV90HMC
12 Items

Specific References

New

Download

Drawing Hitachi NV90HMC

Drawing Hitachi NV90HMC

Download (413.7KB)
