HiKOKI Power Tools Italia S.p.a.

Spare Parts for Cordless Driver Drill DS14DCL

SKU: Hitachi DS14DCL
€1.41
VAT included

Spare Parts for Cordless Driver Drill DS14DCL

Hitachi-Koky Original spare parts or replacement parts for to repair Cordless Driver Drill DS14DCL.
Spare Parts for Cordless Driver Drill DS14DCL
  • Spare Parts for Cordless Driver Drill DS14DCL
  • Spare Parts for Cordless Driver Drill DS14DCL
HiKOKI Power Tools Italia S.p.a.

Spare Parts for Cordless Driver Drill DS14DCL

SKU: Hitachi DS14DCL Condition: New
€1.41
VAT included

Spare Parts for Cordless Driver Drill DS14DCL

Hitachi-Koky Original spare parts or replacement parts for to repair Cordless Driver Drill DS14DCL.
settings 29 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
29 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

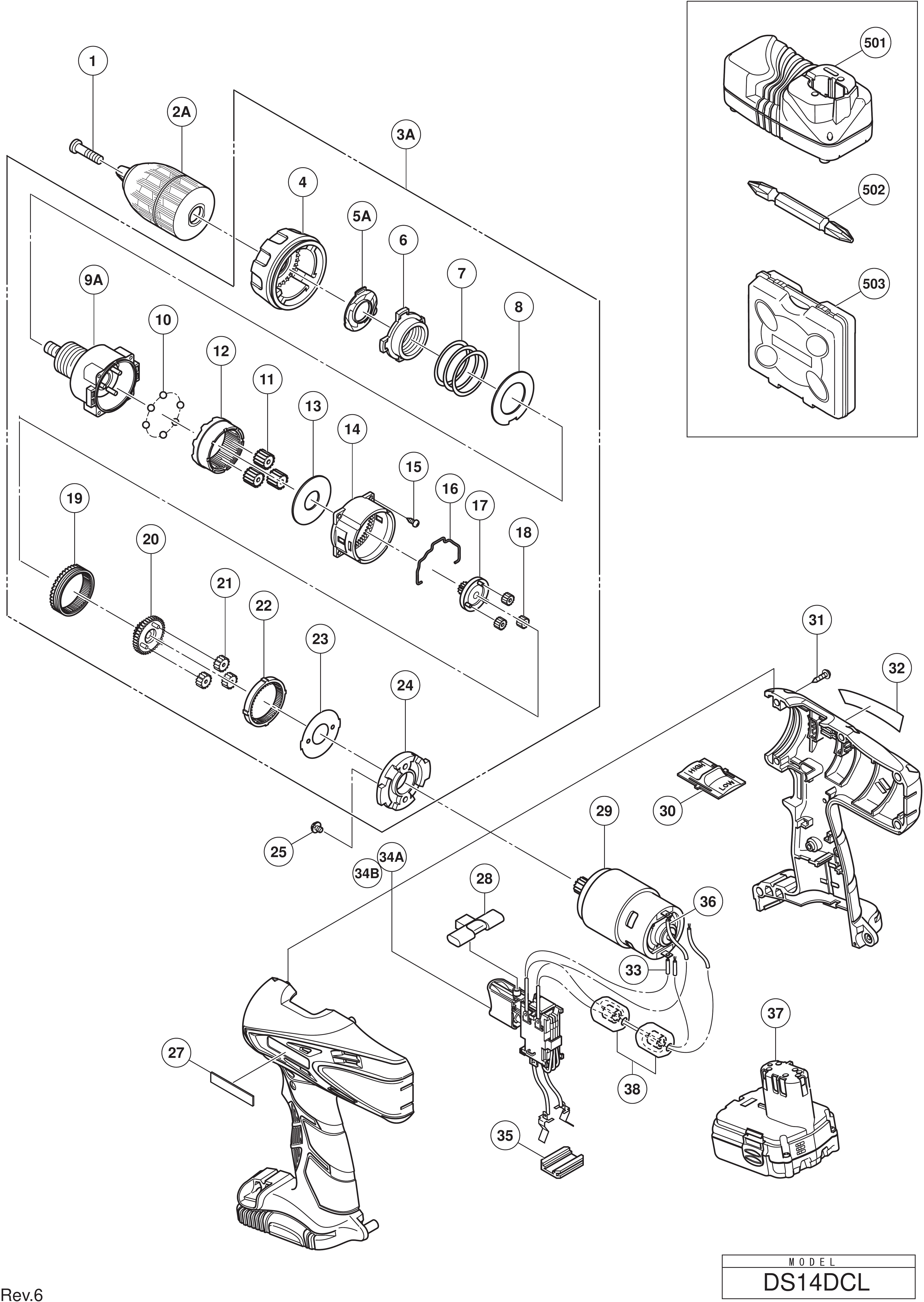

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 311959 Sp.Screw (Left Hand) M6x23 €2.10
3A
 photo_cameraImage coming soon 333315 GEAR BOX ASS'Y €72.93
4
 photo_cameraImage coming soon 332025 CLUTCH DIAL €7.03
5A
 photo_cameraImage coming soon 332741 CLICK SPRING €10.02
6
 photo_cameraImage coming soon 324109 NUT €3.53
7
 photo_cameraImage coming soon 324110 SPRING €3.53
8
 photo_cameraImage coming soon 324347 WASHER (D) €3.53
9A
 photo_cameraImage coming soon 333314 FRONT CASE €18.89
10
 photo_cameraImage coming soon 306936 STEEL BALL D5 €1.40
11
 photo_cameraImage coming soon 332028 PLANET GEAR (C) - 3PCS. €3.99
12
 photo_cameraImage coming soon 332027 RING GEAR €5.90
13
 photo_cameraImage coming soon 324349 WASHER (A) €3.53 Not available for order
14
 photo_cameraImage coming soon 324501 REAR CASE €4.78
16
 photo_cameraImage coming soon 324115 SHIFT ARM €3.26
17
 photo_cameraImage coming soon 332029 PINION (C) €3.99
18
 photo_cameraImage coming soon 332031 PLANET GEAR (B) - 3PCS. €2.04
19
 photo_cameraImage coming soon 332030 SLIDE RING GEAR B €7.84
20
 photo_cameraImage coming soon 332032 PINION (B) €3.99
21
 photo_cameraImage coming soon 332034 PLANET GEAR (A) - 3PCS. €4.03
22
 photo_cameraImage coming soon 332033 FIRST RING GEAR €3.99
23
 photo_cameraImage coming soon 324355 WASHER (B) €3.53
24
 photo_cameraImage coming soon 324495 MOTOR SPACER €4.20
28
 photo_cameraImage coming soon 332836 PUSHING BUTTON €25.91
29
 photo_cameraImage coming soon 332559 MOTOR DC 14.4V €44.90
30
 photo_cameraImage coming soon 332036 SHIFT KNOB €1.36
33
 photo_cameraImage coming soon 332843 INTERNAL WIRE (BLACK) 130L €1.36
34A
 Housing + Switch Set for Cordless Drill HITACHI DV14DCL2 336806 Housing + Switch Set for Cordless Drill HITACHI DV14DCL2 €45.92 €39.04 -15%
35
 photo_cameraImage coming soon 315141 TERMINAL SUPPORT (A) €2.27
36
 photo_cameraImage coming soon 324499 INTERNAL WIRE RED €1.59

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Spare Parts for Cordless Driver Drill DS14DCL

Hitachi-Koky Original spare parts or replacement parts for to repair Cordless Driver Drill DS14DCL.

In the following table, look for the model of the Cordells Drill and their spare part.
Hitachi DS14DCL

Cordless Driver Drill DS14DCL
# Part Num. Description
1 311959 SCREW M6X23
3A 333315 GEAR BOX ASS'Y
4 332025 CLUTCH DIAL
5A 332741 CLICK SPRING
6 324109 NUT
7 324110 SPRING
8 324347 WASHER (D)
9A 333314 FRONT CASE
10 306936 STEEL BALL D5
11 332028 PLANET GEAR (C) SET (3 PCS.)
12 332027 RING GEAR
13 324349 WASHER (A)
14 324501 REAR CASE
16 324115 SHIFT ARM
17 332029 PINION (C)
18 332031 PLANET GEAR (B) SET (3 PCS.)
19 332030 SLIDE RING GEAR (B)
20 332032 PINION (B)
21 332034 PLANET GEAR (A) SET (3 PCS.)
22 332033 FIRST RING GEAR
23 324355 WASHER (B)
24 324495 MOTOR SPACER
28 332836 PUSHING BUTTON
29 332559 MOTOR DC 14.4V
30 332036 SHIFT KNOB
33 332843 INTERNAL WIRE (BLACK) 130L
34A 336806 HOUSING. SWITCH SET (GREEN)
35 315141 TERMINAL SUPPORT (A)
36 324499 INTERNAL WIRE (RED) 140L

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s HITACHI websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to HITACHI brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Hitachi DS14DCL
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Diagram Hitachi DS14DCL

Diagram Hitachi DS14DCL

Download (165.5KB)
