Hitachi Spare Parts for Hammer Drill DH 24PC

Name: Hitachi Spare Parts for Hammer Drill DH 24PC
Brand: HiKOKI Power Tools Italia S.p.a.
SKU: Hitachi DH24PC
Availability: InStock

SKU: Hitachi DH24PC

€1.16

VAT included

Hitachi Spare Parts for Hammer Drill DH 24PC

We have the original Spares Hitachi-HIKOKI for Hammer Drill DH 24PC, the Repair information, Exploded Diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your Hammer Drill DH 24PC. All Spares are original and can be supplied at Cheap and discounted prices. Our Spares are Genuine Parts Guaranteed.

168 spare parts

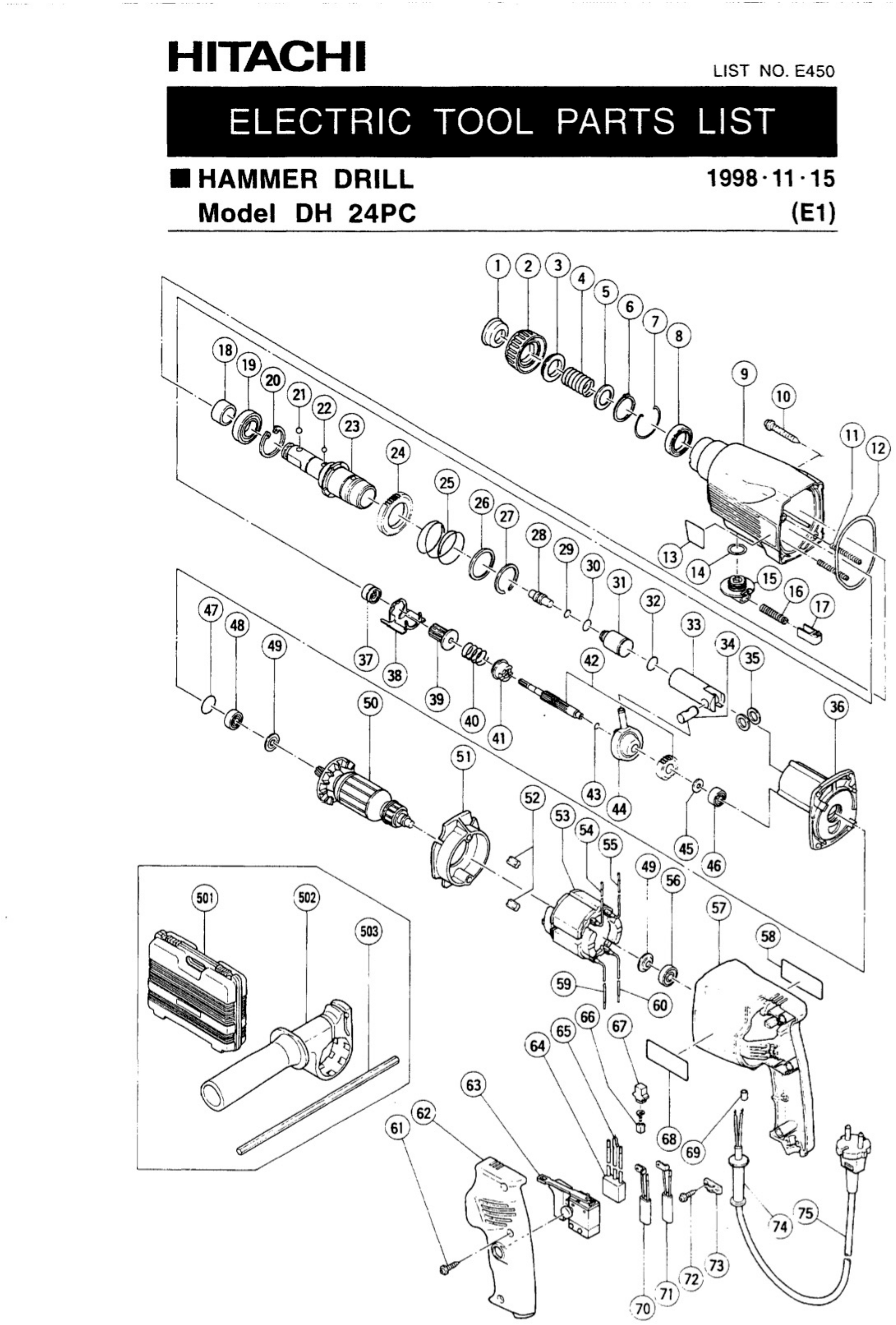

Page 1 View exploded Usually Ships in 7/10 BUSINESS DAYS

Click on the exploded view to buy spare parts

Pos.		Item	Price	Buy
1		306345 Front Cap for Rotary Hammers Hitachi DH22/28	€3.60
2	Image coming soon	317229 GRIP	€0.00	Not available for order
3	Image coming soon	317230 BALL HOLDER	€0.00	Not available for order
4	Image coming soon	306342 HOLDER SPRING (CORD ARMOR D8.8)	€2.38
5	Image coming soon	984118 WASHER (B)	€1.16
6	Image coming soon	939547 RETAINING RING FOR D20 SHAFT	€6.04
7	Image coming soon	317236 RETAINING RING	€1.16
8	Image coming soon	307688 OIL SEAL	€4.82
9	Image coming soon	317221 GEAR COVER	€54.84
10	Image coming soon	301654 Tap. Screw (W / Flange) D5x35	€0.00	Not available for order
11	Image coming soon	317238 SPRING (B)	€1.16
12	Image coming soon	314881 0-RING	€3.60
14		878885 O-Ring S-18 for Rotary Hammers Hitachi DH24PC3-PD3	€1.16
15	Image coming soon	317222 CHANGE LEVER	€0.00	Not available for order
16		317223 PUSHING SPRING	€2.38
17	Image coming soon	317224 PUSHING BUTTON	€0.00	Not available for order
18	Image coming soon	307690 SLEEVE	€9.70
19	Image coming soon	6904CM BALL BEARING 6904CM	€14.58
20	Image coming soon	986147 RETAINING RING FOR D37 HOLE	€0.00	Not available for order
21		959156 Steel Ball 7 mm for Hammers Hitachi	€3.60
22		959154 Steel Ball D5.556 for Impact Driver Hitachi WH10DFL	€2.38
23	Image coming soon	317231 CYLINDER	€0.00	Not available for order
24	Image coming soon	317232 SECOND GEAR	€0.00	Not available for order
25	Image coming soon	317233 SPRING (A)	€12.14
26	Image coming soon	317234 WASHER (A)	€3.60
27	Image coming soon	317235 RETAINING RING D30	€2.38
28	Image coming soon	317384 SECOND HAMMER!	€0.00	Not available for order
29		301672 O-RING (B) for Rotary Hammer Hitachi DH20PB	€1.16
30	Image coming soon	301680 O-RING (I.D. 10.5)	€2.38
31	Image coming soon	315148 STRIKER	€12.14
32	Image coming soon	301670 O-RING (A)	€2.38
33	Image coming soon	301668 PISTON	€9.70
34	Image coming soon	301666 PISTON PIN	€4.82
35	Image coming soon	301667 WASHER (C)	€8.48
36	Image coming soon	314880 INNER COVER	€20.68
37	Image coming soon	317240 PINION SLEEVE	€37.76
38	Image coming soon	317237 LOCK PLATE	€20.68
39	Image coming soon	317239 SECOND PINION	€0.00	Not available for order
40	Image coming soon	317227 CLUTCH SPRING	€1.16
41	Image coming soon	317228 CLUTCH	€15.80
42	Image coming soon	317226 GEAR.SHAFT SET	€46.30
43	Image coming soon	992912 O-RING (S-8)	€0.00	Not available for order
44	Image coming soon	317225 RECIPROCATING BEARING	€86.56
45	Image coming soon	301663 SPACER	€1.16
46	Image coming soon	626VVM BALL BEARING 626VVC2PS2L	€4.82
47	Image coming soon	876796 O-RING (P-22)	€1.16
48		608DDM BALL BEARING 608DDC2PS2L	€7.26
49		982631 Dust Washer for Demolition Hammer Hitachi H45MRY	€1.16
50	Image coming soon	360446E ARMATURE 220V-230V	€0.00	Not available for order
50	Image coming soon	360446F ARMATURE 240V	€0.00	Not available for order
50	Image coming soon	360446U ARMATURE ASS’Y 110V-115V	€0.00	Not available for order
51	Image coming soon	314879 FAN GUIDE ASS’Y	€4.82
52	Image coming soon	994343 RUBBER BUSHING	€0.00	Not available for order
53	Image coming soon	340398C STATOR 110V-115V	€0.00	Not available for order
53	Image coming soon	340398F STATOR 230V-240V	€0.00	Not available for order
54	Image coming soon	314914 INTERNAL WIRE (A) (BLACK)	€3.60
55	Image coming soon	314913 INTERNAL WIRE (A) (GRAY)	€3.60
56		608VVM BALL BEARING 608VVC2PS2L	€7.26
57	Image coming soon	314889 HOUSING	€18.24
59	Image coming soon	314912 NAME PLATE	€3.60
60	Image coming soon	314915 INTERNAL WIRE (A) (RED)	€3.60
60S	Image coming soon	944461 Taper Shank Drill Bit D12.3x110	€0.00	Not available for order
61	Image coming soon	301653 Tapp.Screw (W / Flange) D4x20	€6.04
62	Image coming soon	314891 TAPPING SCREW (W/FLANGE) D4X20 (BLACK)	€12.14
63	Image coming soon	314916 HANDLE COVER	€0.00	Not available for order
63		314921 Switch for Hammer Drill Hitachi DH 20PB-DH 24PB-DH 24PC	€46.30
64		994273 Noise Suppressor for Angle Grinder Hitachi G12SA2	€7.26
65	Image coming soon	302488 NOISE SUPPRESSOR	€0.00	Not available for order
66		999041 Carbon Brushes for Sanders Hitachi SV12-13	€9.70
66		999072 Carbon Brushes for Rotary Hammer Hitachi DH24PB3	€18.24
67		955203 Brush Holder for Demolition Hammer Hitachi DH28PCY	€4.82
68	Image coming soon	HITACHI LABEL	€0.00	Not available for order
69	Image coming soon	981373 TUBE (D)	€1.16
70	Image coming soon	314917 INTERNAL WIRE (B) (BLUE) FOR TPE,INA,SYR,SIN,HKG,KUW,USA	€2.38
70	Image coming soon	314922 TUBE (D)	€0.00	Not available for order
71	Image coming soon	314918 INTERNAL WIRE (B) (BROWN)FOR TPE,INA,SYR,SIN,HKG,KUW,USA	€2.38
71	Image coming soon	314923 DUST PACKING	€0.00	Not available for order
72	Image coming soon	984750 Tapp. Screw (W / Flange) D4x16	€0.00	Not available for order
73	Image coming soon	937631 CORD CLIP	€1.16
74		938051 Cord Armor D.10.1 for Hitachi Power Tools	€1.16
74		953327 Cord Armor D.8.8 for Hitachi Power Tools	€1.16
75	Image coming soon	500201Z CORD	€0.00	Not available for order
75	Image coming soon	500245Z CORD (CORD ARMOR D10.1) FOR SYR	€0.00	Not available for order
75	Image coming soon	500249Z CORD (CORD ARMOR D8.8) FOR USA	€0.00	Not available for order
75	Image coming soon	500391Z CORD (CORD ARMOR D10.7) FOR SUI	€0.00	Not available for order
75	Image coming soon	500409Z Cord	€13.36
75	Image coming soon	500429Z CORD (CORD ARMOR 8.8) FOR SIN,KUW -	€0.00	Not available for order
75	Image coming soon	500435Z CORD	€0.00	Not available for order
75	Image coming soon	500439Z CORD (CORD ARMOR D8.8) FOR AUS,NZL	€0.00	Not available for order
75	Image coming soon	500440Z CORD ARMOR D8.8	€0.00	Not available for order
75	Image coming soon	500454Z CORD (CORD ARMOR D8.8) FOR GBR (110V),SAF	€0.00	Not available for order
75	Image coming soon	500456Z CORD (CORD ARMOR D8.8) FOR CHN	€0.00	Not available for order
75	Image coming soon	800390Z CORD (CORD ARMOR 010.1)	€0.00	Not available for order
501	Image coming soon	307786 CASE	€86.56
502	Image coming soon	303659 Side grip	€13.36
503	Image coming soon	303709 delimiter Depth	€1.16
503	Image coming soon	910331 DEPTH GAUGE FOR USA	€0.00	Not available for order
601	Image coming soon	306369 DRILL BIT (SLENDER SHAFT) D3.4Xx90	€0.00	Not available for order
602	Image coming soon	306368 DRILL BIT (SLENDER SHAFT) D3.5x90	€0.00	Not available for order
603	Image coming soon	306370 ADAPTER FOR SLENDER SHAFT (SDS PLUS)	€0.00	Not available for order
604	Image coming soon	944460 TAPER SHANK DRILL BIT D11X100	€0.00	Not available for order
606	Image coming soon	993038 Taper Shank Drill Bit D12.7x110	€0.00	Not available for order
607	Image coming soon	944462 Taper Shank Drill Bit D14.3x110	€0.00	Not available for order
608	Image coming soon	944500 Taper Shank Drill Bit D14.5x110	€0.00	Not available for order
609	Image coming soon	944463 Taper Shank Drill Bit D17.5x120	€0.00	Not available for order
610	Image coming soon	944464 Taper Shank Drill Bit D21.5x140	€0.00	Not available for order
611	Image coming soon	303617 TAPER SHANK ADAPTER (SDS PLUS) NO. 1	€0.00	Not available for order
612	Image coming soon	303618 TAPER SHANK ADAPTER (SDS PLUS) NO. 2	€0.00	Not available for order
613	Image coming soon	303619 A-TAPER SHANK ADAPTER (SDS PLUS)	€0.00	Not available for order
614	Image coming soon	303620 B-TAPER SHANK ADAPTER (SDS PLUS)	€0.00	Not available for order
615	Image coming soon	944477 COTTER FOR AUS	€0.00	Not available for order
616	Image coming soon	303332 HAMMER DRILL CHUCK SET 13MM	€108.52
617	Image coming soon	303334 CHUCK HANDLE	€6.04
618	Image coming soon	303335 RUBBER CAP	€0.00	Not available for order
619	Image coming soon	302976 ANCHOR SETTING ADAPTER A (SDS+) W1/4X260L	€0.00	Not available for order
620	Image coming soon	302975 ANCHOR SETTING ADAPTER A(SDS+)W5/16X260L	€0.00	Not available for order
621	Image coming soon	303621 ANCHOR SETTING ADAPTER A (SDS+) W3/8X160L	€0.00	Not available for order
622	Image coming soon	302974 ANCHOR SETTING ADAPTER A (SDS+) W3/8X260L	€0.00	Not available for order
623	Image coming soon	302979 ANCHOR SETTING ADAPTER B (SDS+) W1/4X260L	€0.00	Not available for order
624	Image coming soon	302978 ANCHOR SETTING ADAPTER B(SDS+)W5/16X260L	€0.00	Not available for order
625	Image coming soon	303622 ANCHOR SETTING ADAPTER B (SDS+) W3/8X160L	€0.00	Not available for order
626	Image coming soon	302977 ANCHOR SETTING ADAPTER B (SDS+) W3/8X260L	€0.00	Not available for order
627	Image coming soon	971794 ANCHOR SETTING ADAPTER A W1/4” (MANUAL)	€0.00	Not available for order
628	Image coming soon	971795 ANCHOR SETTING ADAPTER A W5/16" (MANUAL)	€0.00	Not available for order
629	Image coming soon	971796 ANCHOR SETTING ADAPTER A W3/8" (MANUAL)	€0.00	Not available for order
630	Image coming soon	971797 ANCHOR SETTING ADAPTER A W1/2" (MANUAL)	€0.00	Not available for order
631	Image coming soon	971798 ANCHOR SETTING ADAPTER A W5/8" (MANUAL)	€0.00	Not available for order
632	Image coming soon	971799 ANCHOR SETTING ADAPTER B W1/4" (MANUAL)	€0.00	Not available for order
633	Image coming soon	971800 ANCHOR SETTING ADAPTER B W5/16” (MANUAL)	€0.00	Not available for order
634	Image coming soon	971801 ANCHOR SETTING ADAPTER B W3/8" (MANUAL)	€0.00	Not available for order
635	Image coming soon	971802 ANCHOR SETTING ADAPTER B W1/2" (MANUAL)	€0.00	Not available for order
636	Image coming soon	971803 ANCHOR SETTING ADAPTER B W5/8” (MANUAL)	€0.00	Not available for order
637	Image coming soon	982684 CENTER PIN (A)09L FOR CORE BIT 032-38	€0.00	Not available for order
638	Image coming soon	982685 CENTER PIN (B) 104L FOR CORE BIT D45-90	€0.00	Not available for order
639	Image coming soon	982672 CORE BIT (A) 25MM	€0.00	Not available for order
640	Image coming soon	982673 CORE BIT (A) 29MM	€0.00	Not available for order
641	Image coming soon	982674 CORE BIT (A) 32MM	€0.00	Not available for order
642	Image coming soon	982686 GUIDE PLATE (FOR CORE BIT 32MM)	€0.00	Not available for order
643	Image coming soon	982675 CORE BIT (A) 35MM	€0.00	Not available for order
644	Image coming soon	982687 GUIDE PLATE (FOR CORE BIT 35MM)	€0.00	Not available for order
645	Image coming soon	982676 CORE BIT (A) 38MM	€0.00	Not available for order
646	Image coming soon	982688 GUIDE PLATE (FOR CORE BIT 38MM)	€0.00	Not available for order
647	Image coming soon	982677 CORE BIT (B) 45MM	€0.00	Not available for order
648	Image coming soon	982678 CORE BIT (B) 50MM	€0.00	Not available for order
648	Image coming soon	982689 GUIDE PLATE (FOR CORE BIT 45MM)	€0.00	Not available for order
650	Image coming soon	982690 GUIDE PLATE (FOR CORE BIT 50MM)	€0.00	Not available for order
651	Image coming soon	303625 CORE BIT SHANK (SDS PLUS) 25-38MM 105L	€0.00	Not available for order
652	Image coming soon	303626 CORE BIT SHANK (SDS PLUS) 25-38MM 300L	€0.00	Not available for order
653	Image coming soon	303627 CORE BIT SHANK (SDS PLUS) 45-90MM 300L	€0.00	Not available for order
654	Image coming soon	303046 BULL POINT (SDS+) 250MM (ROUND SHANK TYPE)	€0.00	Not available for order
655	Image coming soon	303044 CHEMICAL ANCHOR ADAPTER (SDS+)12.7MMX90L	€0.00	Not available for order
656	Image coming soon	303045 CHEMICAL ANCHOR ADAPTER (SDS+) 19.0MMX100L	€0.00	Not available for order
657	Image coming soon	303820 DRILL CHUCK AND ADAPTER SET (SDS PLUS)	€0.00	Not available for order
658	Image coming soon	950275 DRILL CHUCK 13VLR	€0.00	Not available for order
659	Image coming soon	930515 CHUCK WRENCH 10G	€12.14
660	Image coming soon	981122 SPECIAL SCREW M6X22	€1.16
661	Image coming soon	303623 CHUCK ADAPTER (G) (SDS PLUS)	€14.58
662	Image coming soon	950272 DRILL CHUCK3VLA 1 INCLUD.659	€0.00	Not available for order
663	Image coming soon	303624 CHUCK ADAPTER (D) (SDS PLUS)	€0.00	Not available for order
664	Image coming soon	971511Z DRIVER BIT (A) NO.2 25L	€0.00	Not available for order
665	Image coming soon	971512Z DRIVER BIT (A) NO.3 25L	€7.26
666	Image coming soon	306885 DUST COLLECTOR (B) ASS'Y	€40.20
667	Image coming soon	306910 SOCKET ADAPTER (B)	€0.00	Not available for order
668	Image coming soon	971787 DUST CUP	€7.26
669	Image coming soon	931844 STOPPER	€0.00	Not available for order
670	Image coming soon	981840 GREASE 30 GR	€10.92
671	Image coming soon	308471 GREASE 70 GR	€19.46
672		980927 GREASE 500 GR	€85.34

Shipping and delivery information will be available shortly.

Hitachi Spare Parts for Hammer Drill DH 24PC

HAMMER DRILL DH 24PC
#	Part Num.	Description
1	306345	FRONT CAP
2	317229	GRIP
3	317230	BALL HOLDER
4	306342	HOLDER SPRING
5	984118	WASHER (B)
6	939547	RETAINING RING FOR D20 SHAFT
7	317236	RETAINING RING
8	307688	OIL SEAL
9	317221	GEAR COVER
10	301654	TAPPING SCREW (W/FLANGE) D5X35
11	317238	SPRING (B)
12	314881	O-RING
13		THREE MODE LABEL
14	878885	O-RING (S-18)
15	317222	CHANGE LEVER
16	317223	PUSHING SPRING
17	317224	PUSHING BUTTON
18	307690	SLEEVE
19	6904CM	BALL BEARING 6904CM
20	986147	RETAINING RING FOR D37 HOLE
21	959156
22	959154	STEEL BALL D5.556
23	317231	CYLINDER
24	317232	SECOND GEAR
25	317233	SPRING (A)
26	317234	WASHER (A)
27	317235	RETAINING RING D30
28	317384	SECOND HAMMER!
29	301672	O-RING (B)
30	301680	O-RING (FPM 810)
31	315148	STRIKER
32	301670	O-RING (A)
33	301668	PISTON
34	301666	PISTON PIN
35	301667	WASHER (C)
36	314880	INNER COVER
37	317240	PINION SLEEVE
38	317237	LOCK PLATE
39	317239	SECOND PINION
40	317227	CLUTCH SPRING
41	317228	CLUTCH
42	317226	GEAR.SHAFT SET
43	992912	O-RING (S-8)
44	317225	RECIPROCATING BEARING
45	301663	SPACER
46	626VVM	BALL BEARING 626VVMC2ERPS2S
47	876796	O-RING (P-22)
48	608DDM	BALL BEARING 608DDMC2EPS2S
49	982631	WASHER (A)
50	360446E	ARMATURE 220V-230V
50	360446F	ARMATURE 240V
50	360446U	ARMATURE ASS’Y10V-115V INCLUD.48,49,56
51	314879	FAN GUIDE ASS'Y INCLUD.52
52	994343	RUBBER BUSHING 2
53	340398C	STATOR 110V-115V
53	340398F	STATOR 240V
54	314914	INTERNAL WIRE (A) (BLACK)
55	314913	INTERNAL WIRE (A) (GRAY)
56	608VVM	BALL BEARING 608VVMC2EPS2L
57	314889	HOUSING
58		NAME PLATE
59	314912	INTERNAL WIRE (A) (RED)
60	314915	INTERNAL WIRE (A) (WHITE)
61	301653	TAPPING SCREW (W/FLANGE) D4X20 (BLACK)
62	314891	HANDLE COVER
63	314916	SPEED CONTROL SWITCH (2P)00V-115V FOR TPE,GBR (110V),USA
63	314921	SPEED CONTROL SWITCH (2P) 220V-240V.
64	994273	NOISE SUPPRESSOR FOR NZL,AUS,GBR,SAF,ITA,FRGFRAHOL FIN,AUT,NOR,ESP,SUI,CHN,KOR:
65	302488	EARTH TERMINAL FOR NOISE SUPPRESSOR
66	999041	CARBON BRUSH (1 PAIR)
66	999072	CARBON BRUSH (AUTO STOP TYPE) (1 PAIR)
67	955203	BRUSH HOLDER
68	HITACHI	LABEL
69	981373	TUBE (D) FOR CORD
70	314917	INTERNAL WIRE (B) (BLUE) FOR TPE,INA,SYR,SIN,HKG,KUW,USA
70	314922	CHOKE COIL (A) BLUE FOR NZLAUS,GBR,SAF,TA,FRG.FRA,HOLFIN,AUT,NOR,ESP,SUI,CHN,KOR
71	314918	INTERNAL WIRE (B) (BROWN)FOR TPE,INA,SYR,SIN,HKG,KUW,USA
71	314923	CHOKE COIL (A) BROWN FORNZLAUS,GBR,SAF,ITAFRGFRAHOLFIN,AUT,NOR,ESP,SUI,CHN,KOR
72	984750	TAPPING SCREW (W/FLANGE) D4x16
73	937631	CORD CLIP
74	938051	CORD ARMOR D10.1
74	953327	CORD ARMOR 08.8
75	500201Z	CORD (CORD ARMOR 01.1) FOR TPE
75	500409Z	CORD (CORD ARMOR 08.8) FOR INA,KOR
75	500245Z	CORD (CORD ARMOR D10.1) FOR SYR
75	500429Z	CORD (CORD ARMOR 8.8) FOR SIN,KUW -
75	500439Z	CORD (CORD ARMOR D8.8) FOR AUS,NZL
75	500435Z	CORD (CORD ARMOR D8.8) FOR HKG
75	500454Z	CORD (CORD ARMOR D8.8) FOR GBR (110V),SAF
75	800390Z	CORD (CORD ARMOR 010.1)
75	500440Z	CORD (CORD ARMOR D8.8) FOR GBR (230V)
75	500391Z	CORD (CORD ARMOR D10.1) FOR SUI
75	500249Z	CORD (CORD ARMOR D8.8) FOR USA
75	500456Z	CORD (CORD ARMOR D8.8) FOR CHN
STANDARD ACCESSORIES
501	307786	CASE
502	303659	SIDE HANDLE
503	303709	DEPTH GAUGE
503	910331	DEPTH GAUGE FOR USA
OPTIONAL ACCESSORIES
601	306369	DRILL BIT (SLENDER SHAFT) D3.4Xx90
602	306368	DRILL BIT (SLENDER SHAFT) D3.5x90]
603	306370	ADAPTER FOR SLENDER SHAFT (SDS PLUS)
604	944460	TAPER SHANK DRILL BIT D11X100 41
60S	944461	TAPER SHANK DRILL BIT D12.3X110
606	993038	TAPER SHANK DRILL BIT D12.7X110
607	944462	TAPER SHANK DRILL BIT D14.3X110
608	944500	TAPER SHANK DRILL BIT D14.5X110
609	944463	TAPER SHANK DRILL BIT D17.5X120
610	944464	TAPER SHANK DRILL BIT D21.5X140
611	303617	TAPER SHANK ADAPTER (SDS PLUS) NO.1
612	303618	TAPER SHANK ADAPTER (SDS PLUS) NO.2
613	303619	A-TAPER SHANK ADAPTER (SDS PLUS)
614	303620	B-TAPER SHANK ADAPTER (SDS PLUS)
615	944477	COTTER
616	303332	HAMMER DRILL CHUCK SET3MM INCLUD.617,618
617	303334	CHUCK HANDLE
618	303335	RUBBER CAP
619	302976	ANCHOR SETTING ADAPTER A (SDS+)W1/4X260L
620	302975	ANCHOR SETTING ADAPTER A(SDS+)WS/16X260L
621	303621	ANCHOR SETTING ADAPTER A (SDS+)W3/8X160L
622	302974	ANCHOR SETTING ADAPTER A (SDS+)W3/8X260L
623	302979	ANCHOR SETTING ADAPTER B (SDS+)W1/4X260L
624	302978	ANCHOR SETTING ADAPTER B(SDS+)WSN6X260L
625	303622	ANCHOR SETTING ADAPTER B (SDS+)W3/8X160L
626	302977	ANCHOR SETTING ADAPTER B (SDS+)W3/8X260L
627	971794	ANCHOR SETTING ADAPTER A W1/4" (MANUAL)
628	971795	ANCHOR SETTING ADAPTER A WS/16" (MANUAL)
629	971796	ANCHOR SETTING ADAPTER A W3/8 ~ (MANUAL)
630	971797	ANCHOR SETTING ADAPTER A W1/2~ (MANUAL)
631	971798	ANCHOR SETTING ADAPTER A W5/8~ (MANUAL)
632	971799	ANCHOR SETTING ADAPTER B Wi/4" (MANUAL)
633	971800	ANCHOR SETTING ADAPTER B W5/16" (MANUAL)
634	971801	ANCHOR SETTING ADAPTER B W3/8 (MANUAL)
635	971802	ANCHOR SETTING ADAPTER B W1/2” (MANUAL)
636	971803	ANCHOR SETTING ADAPTER B W5/8" (MANUAL)
OPTIONAL ACCESSORIES
637	982684	CENTER PIN (A)09L FOR CORE BIT 032-38
638	982685	CENTER PIN (B)04L FOR CORE BIT 045-90
639	982672	CORE BIT (A) 25MM
640	982673	CORE BIT (A) 29MM
641	982674	CORE BIT (A) 32MM INCLUD.642
642	982686	GUIDE PLATE (FOR CORE BIT 32MM)
643	982675	CORE BIT (A) 35MM INCLUD.644
644	982687	GUIDE PLATE (FOR CORE BIT 35MM)}
645	982676	CORE BIT (A) 38MM INCLUD.646
646	982688	GUIDE PLATE (FOR CORE BIT 38MM)
647	982677	CORE BIT (B) 45MM INCLUD.648
648	982689	GUIDE PLATE (FOR CORE BIT 45MM) i
648	982678	CORE BIT (B) 50MM. INCLUD.650 Hl
650	982690	GUIDE PLATE (FOR CORE BIT 50MM)
651	303625	CORE BIT SHANK (SDS PLUS) 25-38MM05L1
652	303626	CORE BIT SHANK (SDS PLUS) 25-38MM 300L}
653	303627	CORE BIT SHANK (SDS PLUS) 45-90MM 300L1
654	303046	BULL POINT (SDS+) 250MM(ROUND SHANK TYPE)
655	303044	CHEMICAL ANCHOR ADAPTER (SDS+)127MMX90L
656	303045	CHEMICAL ANCHOR ADAPTER(SDS+)19.0MMX100L
657	303820	ORILL CHUCK AND ADAPTER SET (SDS PLUS) INCLUD.658
658	950275	DRILL CHUCK3VLR INCLUD.659,660
659	930515	CHUCK WRENCH0G
660	981122	SPECIAL SCREW M6X22
661	303623	CHUCK ADAPTER (G) (SDS PLUS)
662	950272	DRILL CHUCK3VLA {1 INCLUD.659
663	303624	CHUCK ADAPTER (D) (SDS PLUS)
664	971511Z	DRIVER BIT (A) NO.2 25L
665	971512Z	DRIVER BIT (A) NO.3 25L
666	306885	DUST COLLECTOR (B) ASS'Y {1 INCLUD.667
667	306910	SOCKET ADAPTER (B)
668	971787	DUST CUP
669	931844	STOPPER
670	981840	GREASE (A) FOR HAMMER.HAMMER DRILL (30G)
671	308471	GREASE FOR HAMMER.HAMMER DRILL (70G) {
672	980927	GREASE FOR HAMMER.HAMMER DRILL (500G)

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Hitachi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to hitachi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.

Reference Hitachi DH24PC

Available 6 Items

Data sheet

SHIPPING IN: Usually Ships in 7/10 BUSINESS DAYS
Machine Type: Rotary Hammer
MORE INFO:: [email protected]

Specific References

Condition New

Download

Drawing Hitachi DH 24PC

Download (343.47KB)

HiKOKI Power Tools Italia S.p.a. SKU: 314921

Switch for Hammer Drill Hitachi DH 20PB-DH 24PB-DH 24PC

Switch for Hammer Drill Hitachi DH 20PB-DH 24PB-DH 24PC Original spare part HITACHI, Speed Control Switch 2P 220/240V Model FDV 20VB for Hammer Drill DH 20PB - DH 24PB - DH 24PC. Part for the following products: - Hammer Drill DH...

on 7/10 Business Days Approx €46.30

Details

HiKOKI Power Tools Italia S.p.a. SKU: 301672

O-RING (B) for Rotary Hammer Hitachi DH20PB

O-RING (B) for Rotary Hammer Hitachi DH20PB Genuine parts Hitachi, O-RING (B) for Rotary Hammers DH20PB - DH22PG - DH24PB - DH24PC - DH24PG - DH26PC - DH28PCY. For the following items: - Rotary Hammer DH20PB - Rotary Hammer DH22PG...

AVAILABLE €1.16

Details

HiKOKI Power Tools Italia S.p.a. SKU: 959154

Steel Ball D5.556 for Impact Driver Hitachi WH10DFL

Steel Ball D5.556 for Impact Driver Hitachi WH10DFL Genuine spare Hitachi, Steel Ball D5.556 (10 Pcs) for Cordless Impact Driver WH10DFL - WR14VE . Part for the following products: - Impact Wrench WR14VE - Impact Driver WH10DFL -...

on 7/10 Business Days Approx €2.38

Details

Comments (0)

No customer reviews for the moment.

Cart (0)

Subcategories

Subcategories

Subcategories

Power Tools Spare Parts

Garden Spare Parts

Air Compressor Spare Parts

Protezione & Edilizia

Impianti & Utensili

Casa & Giardino

Hitachi Spare Parts for Hammer Drill DH 24PC

Hitachi Spare Parts for Hammer Drill DH 24PC

Hitachi Spare Parts for Hammer Drill DH 24PC

Hitachi Spare Parts for Hammer Drill DH 24PC

Hitachi Spare Parts for Hammer Drill DH 24PC

Data sheet

Specific References

Download

Drawing Hitachi DH 24PC

You might also like

News

Notes

Products

Our company
