HiKOKI Power Tools Italia S.p.a.

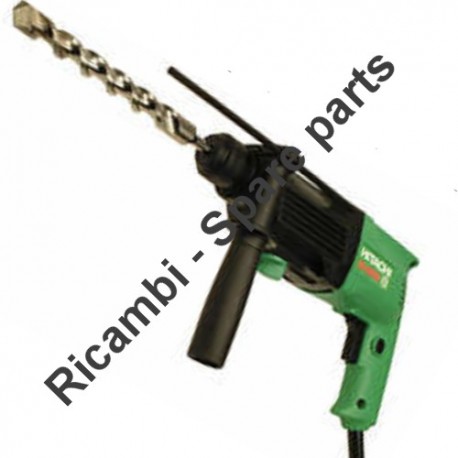

Hitachi Spare Parts for Hammer Drill DH 20PB

SKU: Hitachi DH20PB
€1.33
VAT included

Hitachi Spare Parts for Hammer Drill DH 20PB

Hitachi-HIKOKI Tanaka authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair issues for Hammer Drill DH 20PB.

Hitachi Spare Parts for Hammer Drill DH 20PB
  • Hitachi Spare Parts for Hammer Drill DH 20PB
  • Hitachi Spare Parts for Hammer Drill DH 20PB
HiKOKI Power Tools Italia S.p.a.

Hitachi Spare Parts for Hammer Drill DH 20PB

SKU: Hitachi DH20PB Condition: New
€1.33
VAT included

Hitachi Spare Parts for Hammer Drill DH 20PB

Hitachi-HIKOKI Tanaka authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair issues for Hammer Drill DH 20PB.

settings 61 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 7/10 Business Days Approx

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
61 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

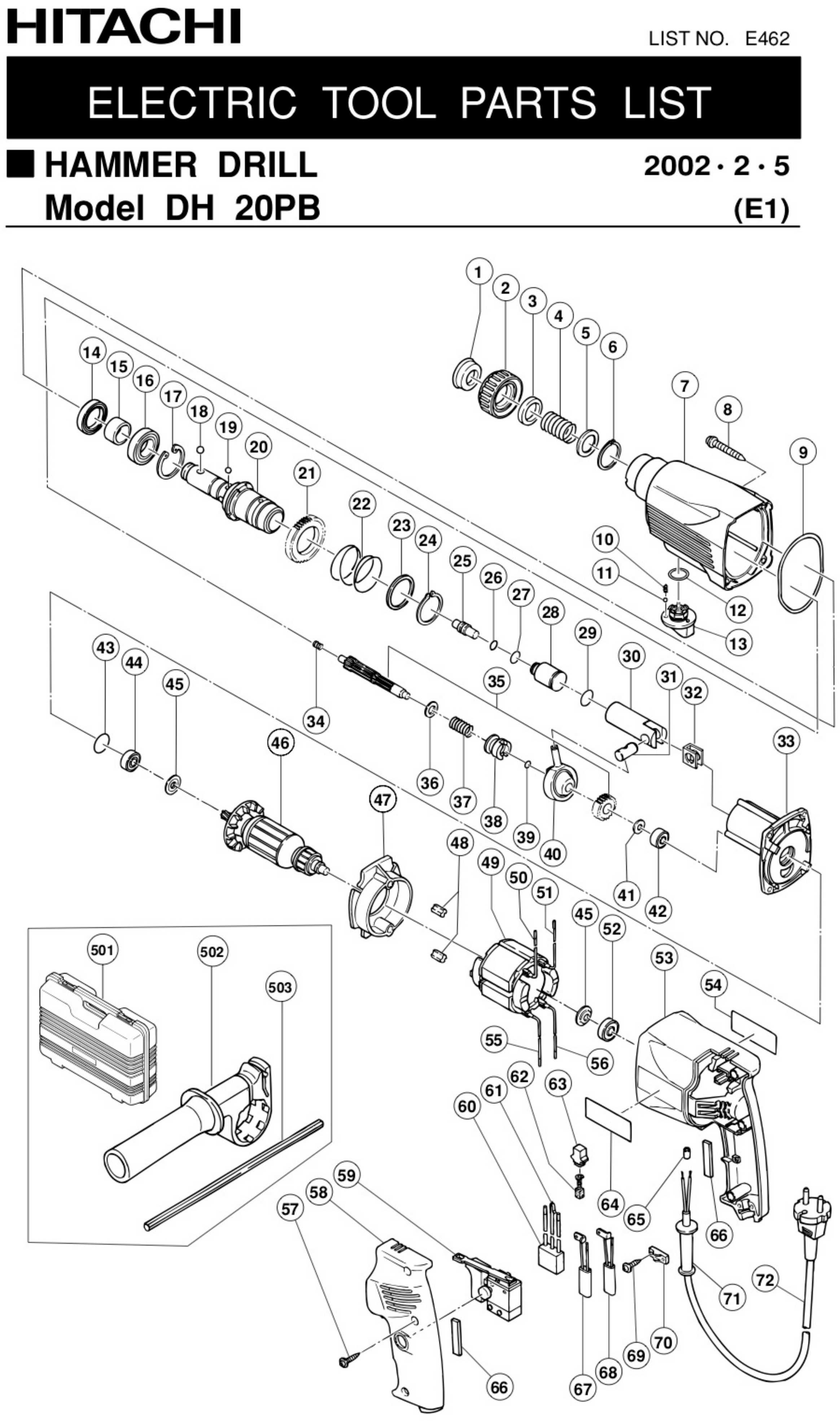

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 Front Cap for Rotary Hammers Hitachi DH22/28 306345 Front Cap for Rotary Hammers Hitachi DH22/28 €4.18
2
 photo_cameraImage coming soon 306992 GRIP INCLUD.48 €1.83
3
 photo_cameraImage coming soon 306343 BALL HOLDER FOR CORD €7.88
4
 photo_cameraImage coming soon 306342 HOLDER SPRING (CORD ARMOR D8.8) €2.72
5
 photo_cameraImage coming soon 984118 WASHER (B) €1.30
6
 photo_cameraImage coming soon 939547 RETAINING RING FOR D20 SHAFT €5.65
7
 photo_cameraImage coming soon 314876 GEAR COVER €45.86
9
 photo_cameraImage coming soon 314881 0-RING €3.13
10
 photo_cameraImage coming soon 981328 Spring H Dh24dva €1.91
11
 photo_cameraImage coming soon 959155 STEEL BALL D3.97 €1.35
12
 photo_cameraImage coming soon 314878 0-RING €1.64
13
 photo_cameraImage coming soon 314877 CHANGE LEVER €4.64
14
 photo_cameraImage coming soon 307688 OIL SEAL €5.10
15
 photo_cameraImage coming soon 307690 SLEEVE €9.86
16
 photo_cameraImage coming soon 6904DD BALL BEARING 6904DDPS2L €23.92
18
 Steel Ball 7 mm for Hammers Hitachi 959156 Steel Ball 7 mm for Hammers Hitachi €3.48
19
 Steel Ball D5.556 for Impact Driver Hitachi WH10DFL 959154 Steel Ball D5.556 for Impact Driver Hitachi WH10DFL €1.84
20
 photo_cameraImage coming soon 314882 CYLINDER €79.67
21
 photo_cameraImage coming soon 301677 SECOND GEAR €29.15
22
 photo_cameraImage coming soon 301678 SPRING (A) €4.12
23
 photo_cameraImage coming soon 301679 WASHER (A) €2.18
24
 photo_cameraImage coming soon 948310 RETAINING RING FOR D30 SHAFT €1.71
25
 photo_cameraImage coming soon 301671 SECOND HAMMER €7.32
26
 O-RING (B) for Rotary Hammer Hitachi DH20PB 301672 O-RING (B) for Rotary Hammer Hitachi DH20PB €1.13
27
 photo_cameraImage coming soon 301680 O-RING (I.D. 10.5) €2.15
28
 photo_cameraImage coming soon 315148 STRIKER €11.58
29
 photo_cameraImage coming soon 301670 O-RING (A) €2.39
30
 photo_cameraImage coming soon 301666 PISTON PIN €4.75
32
 photo_cameraImage coming soon 303977 WASHER (C) €7.88
33
 photo_cameraImage coming soon 314880 INNER COVER €20.31
35
 photo_cameraImage coming soon 315161 GEAR SHAFT SET €23.27
36
 photo_cameraImage coming soon 301659 WASHER (B) €1.30
37
 Clutch Spring for Rotative Hammer Hitachi DH24PB3 301660 Clutch Spring for Rotative Hammer Hitachi DH24PB3 €2.08
38
 photo_cameraImage coming soon 301661 CLUTCH €12.72
40
 photo_cameraImage coming soon 306990 RECIPROCATING BEARING €58.22
41
 photo_cameraImage coming soon 301663 SPACER €1.23
42
 photo_cameraImage coming soon 626VVM BALL BEARING 626VVC2PS2L €5.14
43
 photo_cameraImage coming soon 876796 O-RING (P-22) €1.33
44
 photo_cameraImage coming soon 608DDM BALL BEARING 608DDC2PS2L €7.07
45
 Dust Washer for Demolition Hammer Hitachi H45MRY 982631 Dust Washer for Demolition Hammer Hitachi H45MRY €1.34
47
 photo_cameraImage coming soon 314879 FAN GUIDE ASS’Y €4.64
50
 photo_cameraImage coming soon 314914 INTERNAL WIRE (A) (BLACK) €3.13
51
 photo_cameraImage coming soon 314913 INTERNAL WIRE (A) (GRAY) €3.13
52
 photo_cameraImage coming soon 608VVM BALL BEARING 608VVC2PS2L €7.12
53
 photo_cameraImage coming soon 314889 HOUSING €18.43
54
 photo_cameraImage coming soon 314912 NAME PLATE €3.13
55
 photo_cameraImage coming soon 314915 INTERNAL WIRE (A) (RED) €3.13
56
 photo_cameraImage coming soon 301653 Tapp.Screw (W / Flange) D4x20 €5.63
57
 photo_cameraImage coming soon 314891 TAPPING SCREW (W/FLANGE) D4X20 (BLACK) €12.47
59
 Switch for Hammer Drill Hitachi DH 20PB-DH 24PB-DH 24PC 314921 Switch for Hammer Drill Hitachi DH 20PB-DH 24PB-DH 24PC €46.05
59
 Noise Suppressor for Angle Grinder Hitachi G12SA2 994273 Noise Suppressor for Angle Grinder Hitachi G12SA2 €9.62
61
 Carbon Brushes for Sanders Hitachi SV12-13 999041 Carbon Brushes for Sanders Hitachi SV12-13 €9.62
62
 Brush Holder for Demolition Hammer Hitachi DH28PCY 955203 Brush Holder for Demolition Hammer Hitachi DH28PCY €4.39
62
 Carbon Brushes for Rotary Hammer Hitachi DH24PB3 999072 Carbon Brushes for Rotary Hammer Hitachi DH24PB3 €18.01
63
 photo_cameraImage coming soon 981373 TUBE (D) €1.37
68
 photo_cameraImage coming soon 937631 CORD CLIP €1.37
69
 Cord Armor D.8.8 for Hitachi Power Tools 953327 Cord Armor D.8.8 for Hitachi Power Tools €1.37
70
 photo_cameraImage coming soon 500390Z Cord €14.12
72
 photo_cameraImage coming soon 303659 Side grip €13.84
72
 photo_cameraImage coming soon 307786 CASE €85.57
501
 photo_cameraImage coming soon 303709 delimiter Depth €1.75

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Hitachi Spare Parts for Hammer Drill DH 20PB

Hitachi-HIKOKI Tanaka authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair issues for Hammer Drill DH 20PB.

In the following table, look for the model of the Hammer and the respective parts of the code.

HAMMER DRILL Model DH 20PB
1 306345 FRONT CAP INCLUD.44,45,52
2 306992 GRIP INCLUD.48
3 306343 BALL HOLDER FOR CORD
4 306342 HOLDER SPRING (CORD ARMOR D8.8)
5 984118 WASHER (B) (CORD ARMOR D8.8) FOR GBR (230V)
6 939547 RETAINING RING FOR D20 SHAFT (CORD ARMOR D8.8) FOR SUI
7 314876 GEAR COVER
8 301654 TAPPING SCREW (W/FLANGE) D5X35
9 314881 O-RING
10 981328 SPRING (H)
11 959155 STEEL BALL D3.97
12 314878 O-RING
13 314877 CHANGE LEVER
14 307688 OIL SEAL
15 307690 SLEEVE
16 6904DD BALL BEARING 6904DDPS2L
17 986147 RETAINING RING FOR D37 HOLE
18 959156 STEEL BALL D7.0
19 959154 STEEL BALL D5.556
20 314882 CYLINDER
21 301677 SECOND GEAR
22 301678 SPRING (A)
23 301679 WASHER (A)
24 948310 RETAINING RING FOR D30 SHAFT
25 301671 SECOND HAMMER
26 301672 O-RING (B)
27 301680 O-RING (I.D. 10.5)
28 315148 STRIKER
29 301670 O-RING (A)
30 301668 PISTON
31 301666 PISTON PIN
32 303977 WASHER (C)
33 314880 INNER COVER
34 301664 SPRING (B)
35 315161 GEAR SHAFT SET
36 301659 WASHER (B)
37 301660 CLUTCH SPRING
38 301661 CLUTCH
39 992912 O-RING (S-8)
40 306990 RECIPROCATING BEARING
41 301663 SPACER
42 626VVM BALL BEARING 626VVC2PS2L
43 876796 O-RING (P-22)
44 608DDM BALL BEARING 608DDC2PS2L
45 982631 WASHER (A)
46 360446U ARMATURE ASS’Y 110V-115V
46 360446E ARMATURE 220V-230V
47 314879 FAN GUIDE ASS’Y
48 994343 RUBBER BUSHING
49 340398C STATOR 110V-115V
49 340398F STATOR 230V-240V
50 314914 INTERNAL WIRE (A) (BLACK)
51 314913 INTERNAL WIRE (A) (GRAY)
52 608VVM BALL BEARING 608VVC2PS2L
53 314889 HOUSING
54 314912 NAME PLATE
55 314915 INTERNAL WIRE (A) (RED)
56 301653 INTERNAL WIRE (A) (WHITE)
57 314891 TAPPING SCREW (W/FLANGE) D4X20 (BLACK)
58 314916 HANDLE COVER
59 314921 SPEED CONTROL SWITCH (2P) 100V-115V
59 994273 SPEED CONTROL SWITCH (2P) 220V-240V
60 302488 NOISE SUPPRESSOR
61 999041 EARTH TERMINAL
62 999072 CARBON BRUSH (1 PAIR)
62 955203 CARBON BRUSH (AUTO STOP TYPE) (1 PAIR)
63 981373 BRUSH HOLDER
64 315147 HITACHI LABEL
65 314922 TUBE (D)
66 314923 DUST PACKING
67 984750 CHOKE COIL (A) BLUE
68 937631 CHOKE COIL (A) BROWN
69 953327 TAPPING SCREW (W/FLANGE) D4X16
70 500390Z CORD CLIP
71 500440Z CORD ARMOR D8.8
72 500391Z CORD
72 307786 CORD
72 303659 CORD
501 303709 CASE
502 SIDE HANDLE
503 DEPTH GAUGE

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Hitachi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to hitachi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.

Hitachi DH20PB
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Drawing Hitachi DH 20PB

Drawing Hitachi DH 20PB

Download (320.74KB)
