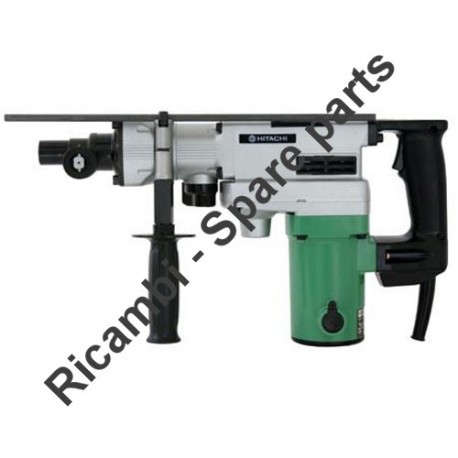

Hitachi Spare Parts for Chipping Hammer DH38YB1

SKU: Hitachi DH38YB1
€41.11
VAT included

Hitachi Spare Parts for Chipping Hammer DH38YB1

Hitachi-HIKOKI Original spare parts, at the lowest price on the web to make maintenance operations to replace broken parts or to repair Chipping Hammer DH38YB1, fast delivery and after-sales service.
Hitachi Spare Parts for Chipping Hammer DH38YB1
  • Hitachi Spare Parts for Chipping Hammer DH38YB1
  • Hitachi Spare Parts for Chipping Hammer DH38YB1
HiKOKI Power Tools Italia S.p.a.

Hitachi Spare Parts for Chipping Hammer DH38YB1

SKU: Hitachi DH38YB1 Condition: New
€41.11
VAT included

Hitachi Spare Parts for Chipping Hammer DH38YB1

Hitachi-HIKOKI Original spare parts, at the lowest price on the web to make maintenance operations to replace broken parts or to repair Chipping Hammer DH38YB1, fast delivery and after-sales service.
settings 139 Spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 7/10 Business Days Approx

SHIPPING IN: Usually Ships in 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
Machine Type: Hammer
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal PayPal Pay in 3 Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
139 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in 7/10 BUSINESS DAYS

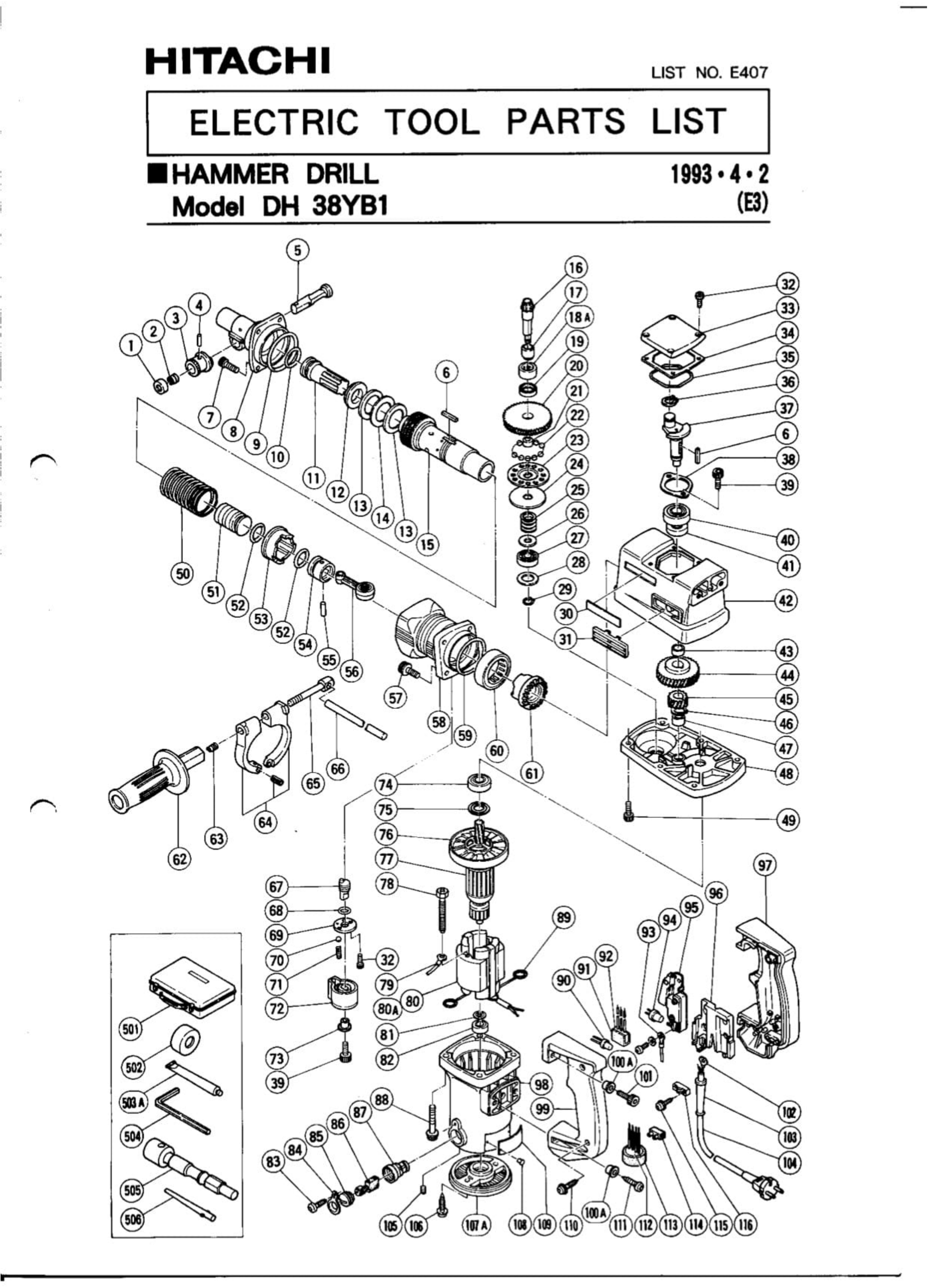

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 986824 STOPPER WASHER €0.00 Not available for order
2
 photo_cameraImage coming soon 981937 STOPPER SPRING €1.16
3
 photo_cameraImage coming soon 983241 KNOB (A) €43.86
4
 photo_cameraImage coming soon 943364 NEEDLE ROLLER D4X20 €1.16
5
 photo_cameraImage coming soon 983240 STOP LEVER €0.00 Not available for order
6
 photo_cameraImage coming soon 971750 FEATHER KEY 3X3X20 €3.60
7
 photo_cameraImage coming soon 991696 SEAL LOCK BOLT M7X25 €3.60
8
 photo_cameraImage coming soon 300040 Val bearing 6201 €0.00 Not available for order
9
 photo_cameraImage coming soon 985780 O — RING (E) €0.00 Not available for order
10
 photo_cameraImage coming soon 981857 O — RING (C) €7.26
11
 photo_cameraImage coming soon 300010 SECOND HAMMER €0.00 Not available for order
12
 photo_cameraImage coming soon 981862 DAMPER WASHER €12.14
13
 photo_cameraImage coming soon 992799 DAMPER €7.26
14
 photo_cameraImage coming soon 992798 WASHER €0.00 Not available for order
15
 photo_cameraImage coming soon 300009 CYLINDER €126.82
16
 photo_cameraImage coming soon 992796 THIRD PINION €51.18
17
 photo_cameraImage coming soon 981850 SLEEVE €19.46
18A
 photo_cameraImage coming soon 981852 BOTTOM KIT €17.02
19
 Oil Seal 20x28x4,5 mm for Hammers Hitachi H25PV-DH28PD-DH30PC2 981851 Oil Seal 20x28x4,5 mm for Hammers Hitachi H25PV-DH28PD-DH30PC2 €3.60
20
 photo_cameraImage coming soon 992795 SECOND GEAR €65.82
21
 photo_cameraImage coming soon 992806 METAL €9.70
22
 Steel Ball 6,35 mm for Hammers Hitachi 959150 Steel Ball 6,35 mm for Hammers Hitachi €3.60
23
 photo_cameraImage coming soon 992792 HOLDER €9.70
24
 photo_cameraImage coming soon 992793 PLATE €6.04
25
 photo_cameraImage coming soon 992794 SPRING €9.70
26
 photo_cameraImage coming soon 992791 WASHER €8.48
27
 photo_cameraImage coming soon 629VVM BALL BEARING 629VVC2PS2L €7.26
28
 Bearing Washer (C) for Hammer Hitachi DH40MA 944525 Bearing Washer (C) for Hammer Hitachi DH40MA €1.16
29
 photo_cameraImage coming soon 992805 RETAINING RING FOR D9 SHAFT €1.16
30
 photo_cameraImage coming soon 957561 HITACHI LABEL €0.00 Not available for order
31
 photo_cameraImage coming soon 991713 GUIDE €1.16
32
 photo_cameraImage coming soon 983162 BOLT M4X12 €0.00 Not available for order
33
 photo_cameraImage coming soon 991716 COVER €9.70
34
 photo_cameraImage coming soon 980749 GASKET €1.16
35
 photo_cameraImage coming soon 980744 O-RING (S-55) €3.60
36
 Retaining Ring 12 mm for Hitachi Power Tools 939542 Retaining Ring 12 mm for Hitachi Power Tools €3.60
37
 photo_cameraImage coming soon 300006 CRANK SHAFT €0.00 Not available for order
38
 Wire Drive Motor for Wire Welding Telwin MAXIMA 190 Synergic 981847 Wire Drive Motor for Wire Welding Telwin MAXIMA 190 Synergic €46.30
39
 photo_cameraImage coming soon 984509 SEAL LOCK HEX. SOCKET HD. BOLT MSX14 €0.00 Not available for order
40
 photo_cameraImage coming soon 6203DD BALL BEARING 6203DDCMPS2L €8.48
41
 photo_cameraImage coming soon 971745 OIL SEAL (A) €8.48
42
 photo_cameraImage coming soon 991768 CRANK CASE €96.32
43
 Piston Pin for Hammers Hitachi DH40MRY-H41M 980708 Piston Pin for Hammers Hitachi DH40MRY-H41M €3.60
44
 photo_cameraImage coming soon 300007 FIRST GEAR €38.98
45
 photo_cameraImage coming soon 300008 SECOND PINION €18.24
46
 photo_cameraImage coming soon 967261 RETAINING RING FOR D17 SHAFT €1.16
47
 Needle Bearing for Demolition Hammers Hitachi DH 40/50MRY-DH45MR 939299 Needle Bearing for Demolition Hammers Hitachi DH 40/50MRY-DH45MR €13.36
48
 photo_cameraImage coming soon 991953 GEAR COVER €62.16
49
 photo_cameraImage coming soon 992803 SEAL LOCK HEX. SOCKET HD. BOLT M6X20 €0.00 Not available for order
50
 photo_cameraImage coming soon 981957 SPRING (A) €7.26
51
 photo_cameraImage coming soon 300039 STRIKER €0.00 Not available for order
52
 O-Ring 23X30X3 mm for Demolition Hammers Hitachi DH40MRY-DH38MS 986104 O-Ring 23X30X3 mm for Demolition Hammers Hitachi DH40MRY-DH38MS €2.38
53
 photo_cameraImage coming soon 981956 CLUTCH €82.90
54
 PISTON 981885 PISTON €21.90
55
 Piston Pin for Hammers Hitachi DH40MRY-H41M 980708 Piston Pin for Hammers Hitachi DH40MRY-H41M €3.60
56
 CONNECTING ROD 980707 CONNECTING ROD €32.88
57
 photo_cameraImage coming soon 991712 HEX. SOCKET HD. BOLT (W/FLANGE) M6X25 €0.00 Not available for order
58
 photo_cameraImage coming soon 300011 CYLINDER CASE €0.00 Not available for order
59
 photo_cameraImage coming soon 956998 O — RING (1AS — 60) €0.00 Not available for order
60
 photo_cameraImage coming soon 993069 NEEDLE BEARING (8) (NTN HMK4520) €24.34
61
 photo_cameraImage coming soon 981954 THIRD GEAR €96.32
62
 photo_cameraImage coming soon 981870 SIDE HANDLE €15.80
63
 photo_cameraImage coming soon 672612 SPRING €1.16
64
 photo_cameraImage coming soon 981960 HANDLE HOLDER €25.56
65
 photo_cameraImage coming soon 971785 HANDLE BOLT €4.82
67
 photo_cameraImage coming soon 981964 LEVER SHAFT €0.00 Not available for order
68
 photo_cameraImage coming soon 971786 DEPTH DELIMITER €7.26
68
 photo_cameraImage coming soon 981967 KIT THERMOSTAT €10.92
69
 photo_cameraImage coming soon 981965 SHAFT COVER €4.82
70
 STEEL BALL D3.97 959155 STEEL BALL D3.97 €1.16
71
 photo_cameraImage coming soon 981968 THERMOSTAT KIT €0.00 Not available for order
72
 photo_cameraImage coming soon 981963 LEVER €6.04
73
 photo_cameraImage coming soon 991711 DISTANCE PIECE (B) €1.16
74
 photo_cameraImage coming soon 6202VV BALL BEARING 6202VVCMPS2L €7.26
75
 photo_cameraImage coming soon 980700 DUST WASHER (B) €1.16
76
 photo_cameraImage coming soon 980740 BACK PANEL KIT €46.30
77
 photo_cameraImage coming soon 360122 ARMATURE ASS'Y 110V INCLUD.76 €0.00 Not available for order
77
 photo_cameraImage coming soon 360122E ARMATURE ASS'Y 220V — 230VNINCLUD.76 €0.00 Not available for order
77
 photo_cameraImage coming soon 360122F ARMATURE ASS'Y 240V INCLUD.76 €0.00 Not available for order
78
 photo_cameraImage coming soon 960251 HEX. HD. TAPPING SCREW D5X65 €0.00 Not available for order
79
 photo_cameraImage coming soon 986277 INTERNAL CABLE €1.16
80A
 230V 240V Stator (Field) for Chipping Hammer Hitachi DH38YB1 340220F 230V 240V Stator (Field) for Chipping Hammer Hitachi DH38YB1 €79.24
80
 photo_cameraImage coming soon 981970C STATOR ASS'Y 110V — 115V INCLUD.89 €0.00 Not available for order
80
 photo_cameraImage coming soon 981970E STATOR ASS’Y 220V — 230V INCLUD.89 €0.00 Not available for order
80
 photo_cameraImage coming soon 981970F STATOR ASS'Y 240V INCLUD.89 FOR GBR €0.00 Not available for order
80
 photo_cameraImage coming soon 981970J STATOR ASS'Y 110V INCLUD.89 FOR GBR €0.00 Not available for order
80
 photo_cameraImage coming soon 981970K STATOR ASS'Y 220V — 230V NCLUD.89 FOR NZL,ITA,FRA,HOL,DEN,SWE,AUT,NOR,SUI €0.00 Not available for order
80
 photo_cameraImage coming soon 981970L STATOR ASS'Y 240V INCLUD.89 FOR AUS €0.00 Not available for order
81
 photo_cameraImage coming soon 980698 DUST WASHER (A) €1.16
82
 BALL BEARING 608VVC2PS2L 608VVM BALL BEARING 608VVC2PS2L €7.26
83
 photo_cameraImage coming soon 958715 TAPPING SCREW D4X10 €0.00 Not available for order
84
 photo_cameraImage coming soon 981959 COVER €2.38
85
 Brushe Cap for Mixers Hitachi D13 - D13SA 961781 Brushe Cap for Mixers Hitachi D13 - D13SA €3.60
86
 photo_cameraImage coming soon 981612Z CARBON BRUSH (AUTO STOP TYPE) (1 PAIR) €15.80
87
 photo_cameraImage coming soon 981586 BRUSH HOLDER €7.26
88
 photo_cameraImage coming soon 982411 HEX. SOCKET HD. BOLT (W/FLANGE) M6X50 €0.00 Not available for order
89
 photo_cameraImage coming soon 930703 BRUSH TERMINAL €3.60
90
 photo_cameraImage coming soon 959140 CONNECTOR 50091 €0.00 Not available for order
91
 photo_cameraImage coming soon 930153 SUPPORT (B) €0.00 Not available for order
91
 photo_cameraImage coming soon 963243 SUPPORT FOR NOISE SUPPRESSOR €0.00 Not available for order
92
 Noise Suppressor for Angle Grinder Hitachi G12SA2 994273 Noise Suppressor for Angle Grinder Hitachi G12SA2 €7.26
93
 photo_cameraImage coming soon 9819742 INTERNAL WIRE FOR GBR,ITA,FRG,FRA,HOL,DEN,FIN,SWE,AUT,NOR,SUI €0.00 Not available for order
94
 photo_cameraImage coming soon 959141 CONNECTOR 50092 €0.00 Not available for order
95
 photo_cameraImage coming soon 980941 KIT HF TRANSFORMER €148.78
96
 photo_cameraImage coming soon 990082 * SEE 312408 * €9.70
97
 photo_cameraImage coming soon 992808 HANDLE (A) €0.00 Not available for order
98
 photo_cameraImage coming soon 992790 HOUSING ASS’Y INCLUD.87,105 €69.48
99
 photo_cameraImage coming soon 992809 HANDLE (B) €15.80
100A
 photo_cameraImage coming soon 990940 DISTANCE PIECE (C) €0.00 Not available for order
101
 photo_cameraImage coming soon 987707 SEAL LOCK HEX. SOCKET HD. BOLT M6X25 €0.00 Not available for order
102
 photo_cameraImage coming soon 992810 TERMINAL FOR CORD €0.00 Not available for order
103
 photo_cameraImage coming soon 958049Z CORD ARMOR D8.2 €3.60
104
 photo_cameraImage coming soon 500224Z CORD (CORD ARMOR D10.7) FOR SIN €0.00 Not available for order
104
 photo_cameraImage coming soon 500226Z CORD (CORD ARMOR D10.7) FOR AUS €0.00 Not available for order
104
 photo_cameraImage coming soon 500227Z CORD (CORD ARMOR D8.2) FOR NZL €0.00 Not available for order
104
 photo_cameraImage coming soon 500235Z CORD (CORD ARMOR D8.2) FOR INA €12.14
104
 photo_cameraImage coming soon 500239Z CORD (CORD ARMOR D10.7) €0.00 Not available for order
104
 photo_cameraImage coming soon 500390Z Cord €14.58
104
 photo_cameraImage coming soon 500391Z CORD (CORD ARMOR D10.7) FOR SUI €0.00 Not available for order
104
 photo_cameraImage coming soon 500406Z CORD (CORD ARMOR 08.2) FOR GBR €0.00 Not available for order
104
 photo_cameraImage coming soon 940778 CORD ARMOR D10.7 €3.60
105
 photo_cameraImage coming soon 938477 HEX. SOCKET SET SCREW MSX8 €0.00 Not available for order
106
 photo_cameraImage coming soon 985480 TAPPING SCREW (W/WASHER) D5X20 €0.00 Not available for order
107A
 photo_cameraImage coming soon 302323 TAIL COVER (B) €25.56
108
 photo_cameraImage coming soon 949510 RIVET D2.5X4.8 (10 PCS.) €0.00 Not available for order
110
 photo_cameraImage coming soon 956636 TAPPING SCREW (W/WASHER) D4X25 €0.00 Not available for order
111
 photo_cameraImage coming soon 992802 TAPPING SCREW D6X25 €0.00 Not available for order
112
 photo_cameraImage coming soon 992807 CHOKE COIL INCLUD.113 FOR NZL €0.00 Not available for order
113
 photo_cameraImage coming soon 953330 SUPPORT (B) FOR CHOKE COIL €0.00 Not available for order
114
 photo_cameraImage coming soon 938307Z PILLAR TERMINAL FOR GBR,ITA,FRG,FRA,HOL,DEN,FIN,SWE,AUT,NOR,SUI €0.00 Not available for order
115
 photo_cameraImage coming soon 984750 Tapp. Screw (W / Flange) D4x16 €0.00 Not available for order
116
 photo_cameraImage coming soon 960266 CORD CLIP €1.16
116
 photo_cameraImage coming soon 981987Z CORD CLIP FOR SUI €0.00 Not available for order
501
 photo_cameraImage coming soon 300012 STEEL CASE €0.00 Not available for order
501
 photo_cameraImage coming soon 300041 STEEL CASE FOR NOR €0.00 Not available for order
502
 photo_cameraImage coming soon 985785 DUST COVER €0.00 Not available for order
503A
 photo_cameraImage coming soon 981840 GREASE 30 GR €10.92
504
 photo_cameraImage coming soon 944459 HEX. BAR WRENCH SMM €0.00 Not available for order
505
 photo_cameraImage coming soon 992813 K — TAPER SHANK ADAPTER INCLUD.506 FOR AUS €0.00 Not available for order
506
 photo_cameraImage coming soon 944477 COTTER FOR AUS €0.00 Not available for order

Shipping and delivery information will be available shortly.

Hitachi Spare Parts for Chipping Hammer DH38YB1

Hitachi-HIKOKI Original spare parts, at the lowest price on the web to make maintenance operations to replace broken parts or to repair Chipping Hammer DH38YB1, fast delivery and after-sales service.1.

In the following table, look for the model of the Hammer and the respective parts of the code.
Hitachi DH38YB1

CHIPPING HAMMER DH38YB1
# Part Num. Description
1 986824 STOPPER WASHER
2 981937 STOPPER SPRING
3 983241 KNOB (A)
4 943364 NEEDLE ROLLER D4X20
5 983240 STOP LEVER
6 971750 FEATHER KEY 3X3X20
7 991696 SEAL LOCK BOLT M7X25
8 300040 FRONT COVER
9 985780 O — RING (E)
10 981857 O — RING (C)
11 300010 SECOND HAMMER
12 981862 DAMPER WASHER
13 992799 DAMPER
14 992798 WASHER
15 300009 CYLINDER
16 992796 THIRD PINION
17 981850 SLEEVE
18A 981852 NEEDLE BEARING (A) HK2012
19 981851 OIL SEAL (B)
20 992795 SECOND GEAR
21 992 806 METAL
22 959150 STEEL BALL D6.35 (10 PCS.)
23 992792 HOLDER
24 992793 PLATE
25 992794 SPRING
26 992791 WASHER
27 629VVM BALL BEARING 620VVMC2EPS2L
28 944525 BEARING WASHER (C)
29 992805 RETAINING RING FOR D9 SHAFT
30 957561 HITACHI LABEL
31 991713 WIND GUIDE (8)
32 983162 SEAL LOCK HEX. SOCKET HD. BOLT M4X12
33 991716 CRANK COVER
34 980749 SEAL PACKING
35 980744 O — RING (S — 55)
36 939542 RETAINING RING FOR D12 SHAFT (10 PCS.)
37 300006 CRANK SHAFT
38 981847 BEARING COVER
39 984509 SEAL LOCK HEX. SOCKET HD. BOLT MSX14
40 6203DD BALL BEARING 6203DDUCMAV2S
41 971745 OIL SEAL (A)
42 991768 CRANK CASE
43 980708 COLLAR
44 300007 FIRST GEAR
45 300008 SECOND PINION
46 967261 RETAINING RING FOR D17 SHAFT
47 939299 NEEDLE BEARING (M661)
48 991953 GEAR COVER
49 992803 SEAL LOCK HEX. SOCKET HD. BOLT M6X20
50 981957 SPRING (A)
51 300039 STRIKER
52 986104 O-RING 23X30X3
53 981956 CLUTCH
54 981885 PISTON
55 980708 PISTON PIN
56 980707 CONNECTING ROD
57 991712 HEX. SOCKET HD. BOLT (W/FLANGE) M6X25
58 300011 CYLINDER CASE
59 956998 O — RING (1AS — 60)
60 993069 NEEDLE BEARING (8) (NTN HMK4520)
61 981954 THIRD GEAR
62 981870 SIDE HANDLE
63 672612 SPRING
64 981960 HANDLE HOLDER
65 971785 HANDLE BOLT
68 971786 STOPPER ROD
67 981964 LEVER SHAFT
68 981967 O — RING (A)
69 981965 SHAFT COVER
70 959155 STEEL BALL D3.97 (10 PCS.)
71 981968 SPRING (B)
72 981963 LEVER
73 991711 DISTANCE PIECE (B)
74 6202VV BALL BEARING 6202VVCMPS2S
75 980700 DUST WASHER (B)
76 980740 FAN
77 360122 ARMATURE ASS'Y 110V INCLUD.76
77 360122E ARMATURE ASS'Y 220V — 230VNINCLUD.76
77 360122F ARMATURE ASS'Y 240V INCLUD.76
78 960251 HEX. HD. TAPPING SCREW D5X65
79 986277 INTERNAL WIRE FOR NZL,GBR,ITA,FRG,FRA,HOL,DEN,FIN,SWE,AUT,NOR,SUI
80 981970C STATOR ASS'Y 110V — 115V INCLUD.89
80 981970E STATOR ASS’Y 220V — 230V INCLUD.89
80 981970K STATOR ASS'Y 220V — 230V {NCLUD.89 FOR NZL,ITA,FRA,HOL,DEN,SWE,AUT,NOR,SUI
80 981970L STATOR ASS'Y 240V INCLUD.89 FOR AUS
80 981970F STATOR ASS'Y 240V INCLUD.89 FOR GBR
80 981970J STATOR ASS'Y 110V INCLUD.89 FOR GBR
80A 340220F STATOR ASS’Y 230V — 240V INCLUD.89 FOR_FRG,FIN
81 980698 DUST WASHER (A)
82 608VVM BALL BEARING 608VVMC2EPS2L
83 958715 TAPPING SCREW D4X10
84 981959 CAP COVER
85 961781 BRUSH CAP
86 981612Z CARBON BRUSH (AUTO STOP TYPE) (1 PAIR)
87 981586 BRUSH HOLDER
88 982411 HEX. SOCKET HD. BOLT (W/FLANGE) M6X50
89 930703 BRUSH TERMINAL
90 959140 CONNECTOR 50091 (10 PCS.)
91 963243 SUPPORT FOR NOISE SUPPRESSOR
91 930153 SUPPORT (B) FOR NOISE SUPPRESSOR, FOR SUI
92 994273 NOISE SUPPRESSOR
93 9819742 INTERNAL WIRE FOR GBR,ITA,FRG,FRA,HOL,DEN,FIN,SWE,AUT,NOR,SUI
94 959141 CONNECTOR 50092 (10 PCS.) FOR NZL,GBR,ITA,FRG,FRA,HOL,DEN,FIN,SWE,AUT,NOR
95 980941 SWITCH (B) (1P SCREW TYPE) W/O LOCK
96 990082 SUPPORT (E)
97 992808 HANDLE (A)
98 992790 HOUSING ASS’Y INCLUD.87,105
99 992809 HANDLE (B)
100A 990940 DISTANCE PIECE (C)
101 987707 SEAL LOCK HEX. SOCKET HD. BOLT M6X25
102 992810 TERMINAL FOR CORD
103 958049Z CORD ARMOR D8.2
104 940778 CORD ARMOR D10.7
104 500239Z CORD (CORD ARMOR D10.7)
104 500224Z CORD (CORD ARMOR D10.7) FOR SIN
104 500227Z CORD (CORD ARMOR D8.2) FOR NZL
104 500235Z CORD (CORD ARMOR D8.2) FOR INA
104 500390Z CORD (CORD ARMOR D10.7) FOR ITA,FRG,FRA,HOL,DEN,FIN,SWE,AUT,NOR
104 500226Z CORD (CORD ARMOR D10.7) FOR AUS
104 500391Z CORD (CORD ARMOR D10.7) FOR SUI
104 500406Z CORD (CORD ARMOR 08.2) FOR GBR
105 938477 HEX. SOCKET SET SCREW M5X8
106 985480 TAPPING SCREW (W/WASHER) D5X20
107A 302323 TAIL COVER (B)
108 949510 RIVET D2.5X4.8 (10 PCS.)
109 NAME PLATE
110 956636 TAPPING SCREW (W/WASHER) D4X25
111 992802 TAPPING SCREW D6X25
112 992807 CHOKE COIL INCLUD.113 FOR NZL
113 953330 SUPPORT (B) FOR CHOKE COIL
114 938307Z PILLAR TERMINAL FOR GBR,ITA,FRG,FRA,HOL,DEN,FIN,SWE,AUT,NOR,SUI
115 984750 TAPPING SCREW (W/FLANGE) D4X16
116 960266 CORD CLIP
116 981987Z CORD CLIP FOR SUI
501 300012 STEEL CASE
501 300041 STEEL CASE FOR NOR
502 985785 DUST COVER
503A 981840 GREASE (A) FOR HAMMER.HAMMER DRILL (30G)
504 944459 HEX. BAR WRENCH SMM
505 992813 K — TAPER SHANK ADAPTER INCLUD.506 FOR AUS
506 944477 COTTER FOR AUS
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Hitachi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to hitachi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Hitachi DH38YB1
12 Items

Data sheet

SHIPPING IN
Usually Ships in 7/10 BUSINESS DAYS
Machine Type
Hammer
MORE INFO:
[email protected]

Specific References

New

Download

Drawing Hitachi DH38YB1

Drawing Hitachi DH38YB1

Download (219.79KB)

You might also like

Carbon Brushes for Hitachi Hammer Hitachi DH38MS
HiKOKI Power Tools Italia S.p.a. SKU: 999043
Carbon Brushes for Hitachi Hammer Hitachi DH38MS
Carbon Brushes for Hitachi Hammer Hitachi DH38MS Genuine spare part Hitachi-HIKOKI, Carbon Brushe Set for Combined Hammer DH38MS - Demolition Hammer H41MB Part for the following products: -  Combined Hammer 9 Joule - 6.4Kg DH38MS -...
AVAILABLE €6.04
Details
Noise Suppressor for Hammers Hitachi DH38MS-H41MB
HiKOKI Power Tools Italia S.p.a. SKU: 331203
Noise Suppressor for Hammers Hitachi DH38MS-H41MB
Noise Suppressor for Hammers Hitachi DH38MS-H41MB Original spare parts for Demolition Hammers Hitachi, DH38MS - H41MB. For the follows items: -  Demolition Hammer 9 Joule - 6.4Kg DH38MS -  Demolition Hammer Class 5 Kg H41MB -...
AVAILABLE €8.48
Details
Piston for Hammers Hitachi DH24-26-28PC
HiKOKI Power Tools Italia S.p.a. SKU: 335255
Piston for Hammers Hitachi DH24-26-28PC
Piston for Rotary Hammers Hitachi DH24-26-28PC Genuine replacement part Hitachi Koky, Piston for Rotary Hammers model DH24PC-DH26PC-DH28PCY-DH28PC. Part for the following items: - Hammer DH 24PG - Hammer DH 26PC - Hammer DH 28 PCY -...
AVAILABLE €24.34
Details
Carbon Brushes for Sanders Hitachi SV12-13
HiKOKI Power Tools Italia S.p.a. SKU: 999041
Carbon Brushes for Sanders Hitachi SV12-13
Carbon Brushes for Sanders Hitachi SV12-13 Genuine spare Hitachi, Carbon Brushes for Sanders SV12SD - SV12SG - SV12SH - SV12V, for Drills, D 13VG - DV 18V - DV 20VB2, for Jig Saws FCJ65V3 - CJ90VST - CJ110MVA - CJ110MV, for Hammers DH...
AVAILABLE €9.70
Details
Connecting Rod for Demolition Hammers Hitachi DH38MS-DH40MR
HiKOKI Power Tools Italia S.p.a. SKU: 321285
Connecting Rod for Demolition Hammers Hitachi DH38MS-DH40MR
Connecting Rod for Demolition Hammers Hitachi DH38MS-DH40MR Original parts for Hitachi, Conrod for Combined Demolition Hammers DH38MS - DH40MR - DH40SR. Part for the following Products: -  Combined Hammer Hitachi DH38MS -  Combined...
AVAILABLE €9.70
Details
Piston for Hammers Hitachi DH38MS-DH40MRY-H41MB
HiKOKI Power Tools Italia S.p.a. SKU: 326369
Piston for Hammers Hitachi DH38MS-DH40MRY-H41MB
Piston for Hammers Hitachi DH38MS-DH40MRY-H41MB Genuine parts Hitachi, Piston for Hitachi Hammers model DH38MS - DH40MRY - H41MB. Part for the following items: - Combined Hammer 9 Joule - 6.4kg DH38MS - Hammer Comb.10.5 Joule - 6.8Kg...
AVAILABLE €4.82
Details
Grease for Hammers Hitachi
HiKOKI Power Tools Italia S.p.a. SKU: Grasso Hitachi
Grease for Hammers Hitachi
Grease for Hammers Hitachi Genuine spare parts Hitachi, Grease for all Demolition Hammers Hitachi Grease should be replaced for reasons of maintenance in the replacement of parts as: Piston, Rod, Tree, Barrel, first or second gear and...
build View Spare Parts
Second Hammer for Hammers Hitachi DH28PC/PD
HiKOKI Power Tools Italia S.p.a. SKU: 330181
Second Hammer for Hammers Hitachi DH28PC/PD
Second Hammer for Hammers Hitachi DH28PC/PD Genuine parts Hitachi, Second Hammer for Hammers model DH28PC/PD. For the following items: - Hammer Perf. Joule 3.5 - 3.5Kg DH28PC/PD - Code: 330181
AVAILABLE €13.36
Details
Armature for Hitachi Hammer DH38MS
HiKOKI Power Tools Italia S.p.a. SKU: 360875E
Armature for Hitachi Hammer DH38MS
Armature for Hitachi Hammer DH38MS Genuine part Hitachi, Armature 220V-230V for Combined Hammer 9 Joule - 6.4Kg DH38MS Part for the following products: -  Combined Hammer 9 Joule - 6.4Kg DH38MS - Code : 360875E
Last items in stock €67.04
Details
Second Pinion for Hammers Hitachi DH28PC - Drawing
HiKOKI Power Tools Italia S.p.a. SKU: 335278
Second Pinion for Hammers Hitachi DH28PCY
Second Pinion for Hammers Hitachi DH28PCY Genuine parts Hitachi, Second Pinion for Hammers model Electropneumatic Hammer 3.5 Joule - 3.5Kg DH28PCY. For the following items: - Electropneumatic Hammer DH26PC - Electropneumatic Hammer DH...
AVAILABLE €17.02
Details
Pinion Sleeve for Hammers Hitachi DH28PC
HiKOKI Power Tools Italia S.p.a. SKU: 335275
Pinion Sleeve for Hammers Hitachi DH28PCY
Pinion Sleeve for Hammers Hitachi DH28PCY Genuine parts Hitachi, Pinion Sleeve for Hammers model Electropneumatic Hammer 3.5 Joule - 3.5Kg DH28PCY. Part for the following items: - Electropneumatic Hammer DH26PC - Electropneumatic...
AVAILABLE €9.70
Details
Pinion Lock Plate for Hammers Hitachi DH28PC
HiKOKI Power Tools Italia S.p.a. SKU: 335276
Pinion Lock Plate for Hammers Hitachi DH28PCY
Pinion Lock Plate for Hammers Hitachi DH28PCY Genuine parts Hitachi, Pinion Lock Plate for Hammers model Electropneumatic Hammer 3.5 Joule - 3.5Kg DH28PCY For the following items: - Electropneumatic Hammer DH26PC - Electropneumatic...
AVAILABLE €19.46
Details
Needle Bearing for Demolition Hammers Hitachi DH 40/50MRY-DH45MR
HiKOKI Power Tools Italia S.p.a. SKU: 939299
Needle Bearing for Demolition Hammers Hitachi DH 40/50MRY-DH45MR
Needle Bearing for Demolition Hammers Hitachi DH 40/50MRY-DH45MR Genuine part HITACHI, Needle Bearing M661 for Demolition Hammers H45MR - H45MRY - H45FRV - H45SR - DH40MRY - DH45MR - H41MB - H25PV - DH30PC2 - DH38MS - DH50MRY - PR-38E....
AVAILABLE €13.36
Details
O-Ring 23X30X3 mm for Demolition Hammers Hitachi DH40MRY-DH38MS
HiKOKI Power Tools Italia S.p.a. SKU: 986104
O-Ring 23X30X3 mm for Demolition Hammers Hitachi DH40MRY-DH38MS
O-Ring 23X30X3 mm for Demolition Hammers Hitachi DH40MRY-DH38MS Genuine part HITACHI, O-Ring 23X30X3 mm for Demolition Hammers Hitachi DH40MRY-DH38MS-DH50MRY-H41MB. Part for the following products: - Demolition Hammer Hitachi...
AVAILABLE €2.38
Details
Oil Seal mm 17x35x7 for Rotary Hammer Hitachi DH38MS-DH40MRY
HiKOKI Power Tools Italia S.p.a. SKU: 321274
Oil Seal mm 17x35x7 for Rotary Hammer Hitachi DH38MS-DH40MRY
Oil Seal mm 17x35x7 for Rotary Hammer Hitachi DH38MS-DH40MRY Original Spare Parts Hitachi, Oil Seal mm 17x35x7 for Rotary Hammer Hitachi DH38MS-DH40MRY. Part for the following article : - Hammer DH38MS - Hammer DH40MRY - Codice :...
AVAILABLE €8.48
Details
Oil Seal 20x32x5 for Rotary Hammer Hitachi DH45MR-DH40MRY-DH38MS
HiKOKI Power Tools Italia S.p.a. SKU: 313050
Oil Seal 20x32x5 for Rotary Hammer Hitachi DH45MR-DH40MRY-DH38MS
Oil Seal 20x32x5 for Rotary Hammer Hitachi DH45MR-DH40MRY-DH38MS Original Spare Part Hitachi, Oil Seal 20x32x5 for Rotary Hammers Hitachi DH45MR-DH40MRY-DH38MS. Part for the following products: - Rotary Hammer DH45MR - Rotary Hammer...
AVAILABLE €4.82
Details
Stopper Ring for Hammers Hitachi
HiKOKI Power Tools Italia S.p.a. SKU: 306340
Stopper Ring for Hammers Hitachi
Stopper Ring for Hammers Hitachi Genuine parts Hitachi, Stopper Ring for Hammers Hitachi. For the following items: - Hammer DH 28 PCY - Hammer DH 26PC - Hammer DH 24PG
AVAILABLE €2.38
Details
Backing Pad for Rotoorbital Sander Bosch PEX 420 AE
Bosch SKU: 2608601902
Backing Pad for Rotoorbital Sander Bosch PEX 420 AE
Backing Pad for Random Orbital Sander Bosch PEX 420 AE Original replacement Part Bosch, Backing Pad for Random Orbital Sander Bosch PEX 420 AE. Part for the following products : -  Sander PEX 400...
Usually Ships in: 7/10 Business Days Approx. €37.76
Details
Damper for Hammers Hitachi DH38MS-H41MB
HiKOKI Power Tools Italia S.p.a. SKU: 321835
Damper for Hammers Hitachi DH38MS-H41MB
Damper for Hammers Hitachi DH38MS-H41MB Original spare parts Hitachi, Damper for Demolition Hammers 9 Joule - 6.4Kg DH38MS - Class 5 Kg H41MB Part For the following items: - Hammer Hitachi 9 Joule - 6.4Kg DH38MS -...
AVAILABLE €10.92
Details
Brush Holder for Demolition Hammer Hitachi DH28PCY
HiKOKI Power Tools Italia S.p.a. SKU: 955203
Brush Holder for Demolition Hammer Hitachi DH28PCY
Brush Holder for Demolition Hammer Hitachi DH28PCY Genuine Spare Part HITACHI, Brush Holder for Demolition Hammer Hitachi DH22PG - DH22PH - DH24PB3 - DH24PC3 - DH24PD3 - DH24PG - DH24PH - DH24PM - DH26PB - DH26PC - DH28PBY - DH28PCY -...
Usually Ships in: 7/10 Business Days Approx. €4.82
Details
Carbon Brushes for Rotary Hammer Hitachi DH24PB3
HiKOKI Power Tools Italia S.p.a. SKU: 999072
Carbon Brushes for Rotary Hammer Hitachi DH24PB3
Carbon Brushes for Rotary Hammer Hitachi DH24PB3 Genuine Spare Part Hitachi, Self-Locking Carbon Brushes for Rotary Hammers DH24PB3 - DH24PC3 - DH24PD3 - DH24PG - DH24PH - DH24PM...
on 7/10 Business Days Approx €18.24
Details
O-RING 1AS.60 for Hammer DH40MRY-DH45MR
HiKOKI Power Tools Italia S.p.a. SKU: 956996
O-RING 1AS.60 for Hammer DH40MRY-DH45MR
O-RING 1AS.60 for Hammer DH40MRY-DH45MR Genuine spare part Hitachi, O-RING 1AS.60 for Rotary Hammer DH40MRY - DH45MR - DH38MS. For the follows items: - Rotary Hammer DH40MRY - Rotary Hammer DH45MR - Rotary Hammer...
AVAILABLE €3.60
Details
Stator for Hammer Hitachi DH38MS
HiKOKI Power Tools Italia S.p.a. SKU: 340753E
Stator for Hammer Hitachi DH38MS
Stator for Hammer Hitachi DH38MS Genuine part Hitachi, Stator (FIELD) 220V-230V for Combined Hammer 9 Joule - 6.4Kg DH38MS Part for the following products: -  Combined Hammer 9 Joule - 6.4Kg DH38MS - Code : 340753E
AVAILABLE €43.86
Details
Cylinder for Rotary Hammer Hitachi DH24PG
HiKOKI Power Tools Italia S.p.a. SKU: 335261
Cylinder for Rotary Hammer Hitachi DH24PG
Cylinder for Rotary Hammer Hitachi DH24PG Original spare part Hitachi, Cylinder for Rotary Hammers DH24PG - DH24PH - DH26PB - DH26PC - DH28PBY - DH28PCY - DH18DBL - DH36DBL Part for the follows products: - Rotary Hammer Hitachi...
Usually Ships in: 7/10 Business Days Approx. €30.44
Details
Dust Washer for Demolition Hammer Hitachi H45MRY
HiKOKI Power Tools Italia S.p.a. SKU: 982631
Dust Washer for Demolition Hammer Hitachi H45MRY
Dust Washer for Demolition Hammer Hitachi H45MRY Genuine Spare Part Hitachi, Dust Washer for Demolition Hammers H45MR - H45FRV - H45MRY - H45SR - DH40MRY - H41MB. Part for the following items: - Rotary Hammer Hitachi DH24PG - Rotary...
AVAILABLE €1.16
Details
230V 240V Stator (Field) for Chipping Hammer Hitachi DH38YB1
HiKOKI Power Tools Italia S.p.a. SKU: 340220F
230V 240V Stator (Field) for Chipping Hammer Hitachi DH38YB1
230V 240V Stator (Field) for Chipping Hammer Hitachi DH38YB1 Genuine part Hitachi KOKY, 230V 240V Stator (Field) for Chipping Hammer Hitachi DH38YB1. Part for the following products : - Chipping Hammer Hitachi DH38YB1 - Code: 340220F
AVAILABLE €79.24
Details
Bearing Washer (C) for Hammer Hitachi DH40MA
HiKOKI Power Tools Italia S.p.a. SKU: 944525
Bearing Washer (C) for Hammer Hitachi DH40MA
Bearing Washer (C) for Demolition Hammer Hitachi DH40MA Original replacement part Hitachi HIKOKI, Bearing Washer (C) for Demolition Hammer DH40SA - DH40YB - DH40MA. Part for the following items : -  Demolition Hammer DH40SA -...
on 7/10 Business Days Approx €1.16
Details
Comments (0)
No customer reviews for the moment.
