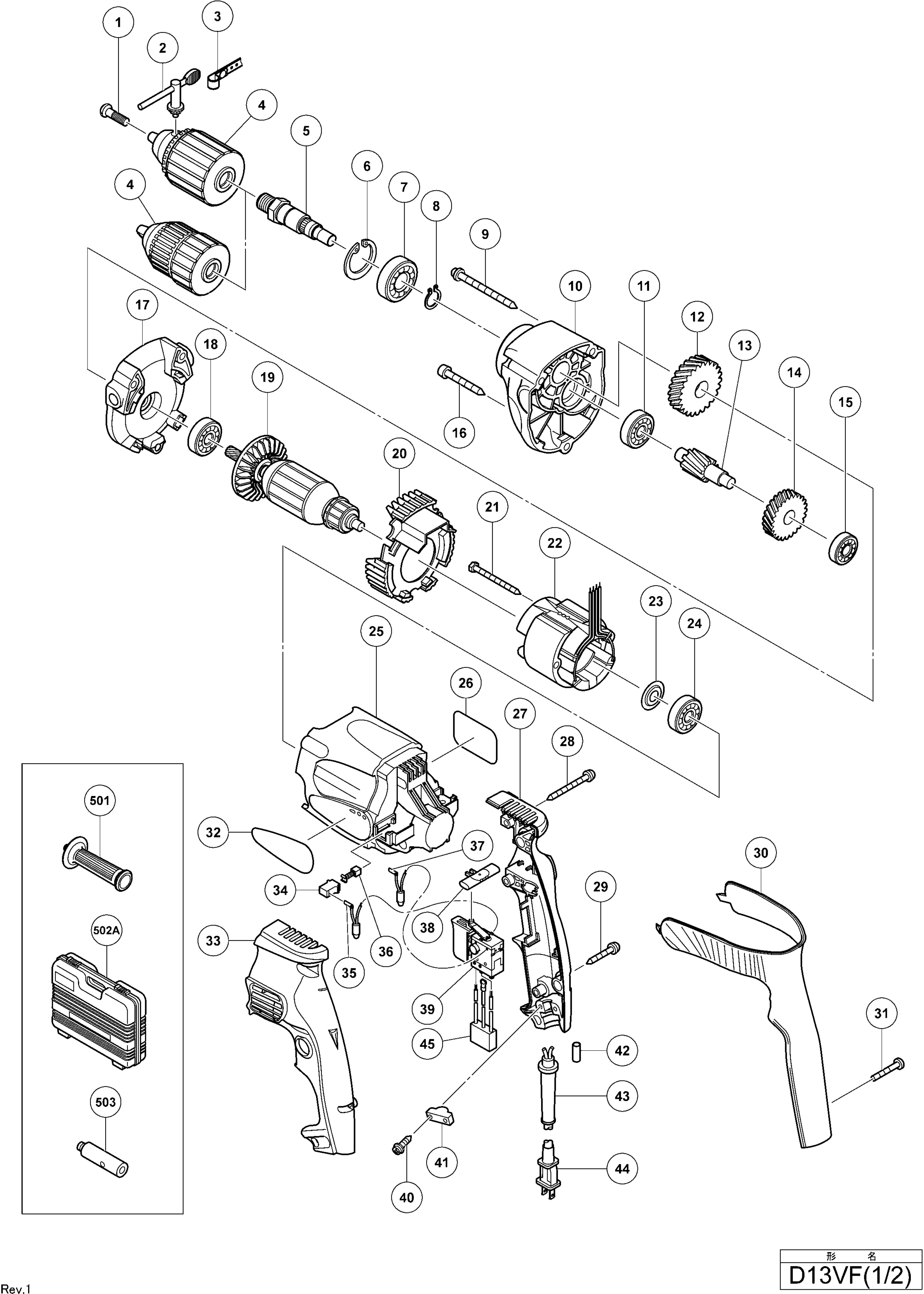

Impact Drill D13VF
1	311959	SPECIAL SCREW (LEFT HAND) M6X23
5	319346	SPINDLE (A)
6	948001	RETAINING RING FOR D32 HOLE
7	6002VV	BALL BEARING 6002VVCMPS2L
8	939544	RETAINING RING FOR D15 SHAFT
10	319345	GEAR COVER (A)
11	627VVM	BALL BEARING 627VVC2PS2L
14	319544	FIRST GEAR
15	606ZZM	BALL BEARING 606VV
17	319344	INNER COVER
18	608DDM	BALL BEARING 608DD
20	319329	FAN GUIDE
23	982631	WASHER (A)
24	608VVM	BALL BEARING 608VVC2PS2L
25	319328	HOUSING
27	319331	HANDLE (B)
30	319332	GRIP COVER
33	319330	HANDLE (A)
34	955203	BRUSH HOLDER
36	999041	CARBON BRUSH (1 PAIR)
38	316166	PUSHING BUTTON
40	984750	TAPPING SCREW (W/FLANGE) D4X16
42	981373	TUBE (D)
43	953327	CORD ARMOR D8.8
501	981205	SIDE HANDLE FOR M10
502A	319543	CASE
602	670714	NEEDLE BEARING (HK0810)
604	6301VV	BALL BEARING 6301VVCMPS2L
605	986147	RETAINING RING FOR D37 HOLE
606	932819	WOODRUFF KEY 3X10
615	317676	HOOK (A)
