HiKOKI Power Tools Italia S.p.a.

Hitachi Spare Parts for Cordless Screwdriver DB3DL2 3.6-Volt

SKU: Hitachi DB3DL2 3.6-Volt
€2.77
VAT included

Hitachi Spare Parts for Cordless Screwdriver DB3DL2 3.6-Volt

Hitachi-Koky original spare parts for to replace broken parts for to fix DB3DL2 3.6-Volt Lithium-Ion Cordless Screwdriver.

Fix Your Power Tool. All Spares are Ready For Quick Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
Hitachi Spare Parts for Cordless Screwdriver DB3DL2 3.6-Volt
  • On sale!
  • Hitachi Spare Parts for Cordless Screwdriver DB3DL2 3.6-Volt
  • Hitachi Spare Parts for Cordless Screwdriver DB3DL2 3.6-Volt
HiKOKI Power Tools Italia S.p.a.

Hitachi Spare Parts for Cordless Screwdriver DB3DL2 3.6-Volt

SKU: Hitachi DB3DL2 3.6-Volt Condition: New
€2.77
VAT included

Hitachi Spare Parts for Cordless Screwdriver DB3DL2 3.6-Volt

Hitachi-Koky original spare parts for to replace broken parts for to fix DB3DL2 3.6-Volt Lithium-Ion Cordless Screwdriver.

Fix Your Power Tool. All Spares are Ready For Quick Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
settings 23 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
23 spare parts

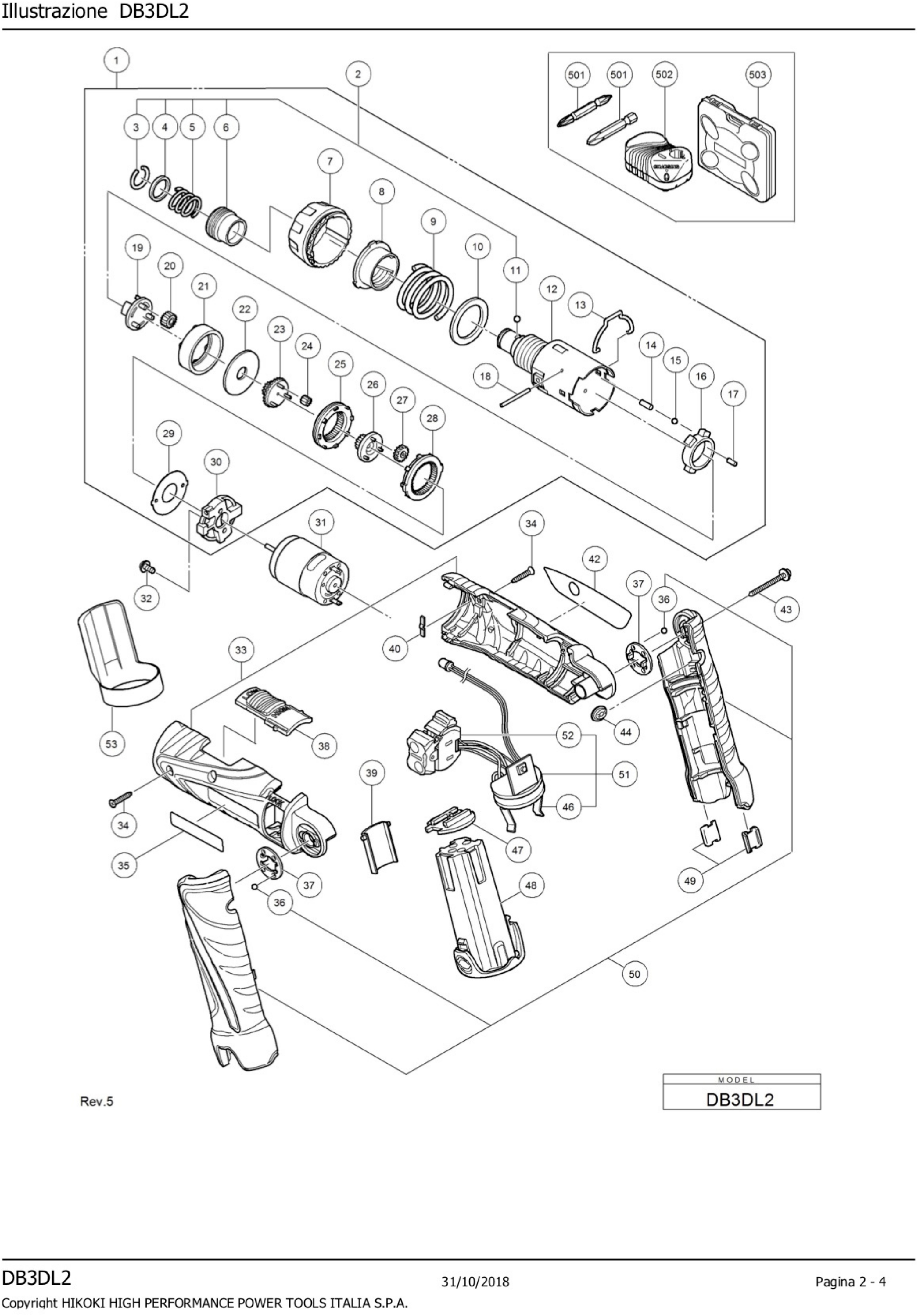

Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
2
 photo_cameraImage coming soon 320085 COMPLETE COMPASS GUIDE €13.63
3
 photo_cameraImage coming soon 315984 SEALING RING €2.55
4
 photo_cameraImage coming soon 315983 WASHER (D) €2.02
5
 photo_cameraImage coming soon 320409 SPRING GUIDE €2.02
6
 photo_cameraImage coming soon 319921 WH12DM COMPASS GUIDE €9.91
8
 photo_cameraImage coming soon 326341 FRONT COVER SUPPORT DB3DL €2.02
9
 photo_cameraImage coming soon 326340 SPRING DB3DL €2.02
10
 photo_cameraImage coming soon 326339 DB3DL WASHER €2.02
11
 photo_cameraImage coming soon 319535 BALLS D3.5 (10 PCS.) €2.55
13
 photo_cameraImage coming soon 326345 LEVER DB3DL €2.02
15
 photo_cameraImage coming soon 317788 BALLS D3 DB3DL €2.02
16
 photo_cameraImage coming soon 326323 LOCK RING DB3DL €3.52
19
 photo_cameraImage coming soon 326325 SATELLITE SUPPORT C DB3DL €1.49
20
 Planet Gear for Cordless Screwdriver Hitachi DB3DL 326327 Planet Gear for Cordless Screwdriver Hitachi DB3DL €4.04
21
 photo_cameraImage coming soon 326326 RING GEAR DB3DL €3.52
22
 photo_cameraImage coming soon 326328 WASHER B DB3DL €2.02
27
 photo_cameraImage coming soon 326335 SATELLITES IN DB3DL (3 PCS.) €2.02
28
 photo_cameraImage coming soon 326334 FIRST RING GEAR DB3DL €2.02
31
 photo_cameraImage coming soon 332755 MS1706FR COVER €12.02
37
 photo_cameraImage coming soon 326315 POSITION PLATE DB3DL €2.02
40
 photo_cameraImage coming soon 326309 SPRING STOP D3 DB3DL €2.02
46
 Terminal for Cordless Screwdriver Hitachi DB3DL 332771 Terminal for Cordless Screwdriver Hitachi DB3DL €3.06
47
 photo_cameraImage coming soon 326316 BATTERY TERMINAL SUPPORT €1.52

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Hitachi Spare Parts for Cordless Screwdriver DB3DL2 3.6-Volt

Hitachi-Koky original spare parts for to replace broken parts for to fix DB3DL2 3.6-Volt Lithium-Ion Cordless Screwdriver.

Fix Your Power Tool. All Spares are Ready For Quick Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following table, look for the model of the Cordless and theirs spare part.
Hitachi DB3DL2 3.6-Volt

DB3DL2 3.6-Volt Lithium-Ion Cordless Screwdriver
1 332759 GEAR BOX COMPLETE INCLUD.3-30
2 320085 COMPLETE BUSH GUIDE INCLUD.3-6.11
3 315984 SEAL RING
4 315983 WASHER (D)
5 320409 DRIVE SPRING
6 319921 BUSH GUIDE WH12DM
7 332762 CLUTCH NUT
8 326341 FRONT COVER SUPPORT. DB3DL
9 326340 SPRING DB3DL
10 326339 WASHER DB3DL
11 319535 BALLS D3.5 (10 PCS)
12 332761 GEAR CASE
13 326345 LEVER DB3DL
14 326338 PIN SET (3 PCS)
15 317788 BALLS D3 DB3DL
16 326323 BLOCK RING DB3DL
17 326324 NEEDLE ROLLER SET (6 PCS)
18 326329 NEEDLE
19 326325 SUPPORT SATELLITES C DB3DL
20 326327 SATELLITES C DB3DL (3PZ.)
21 326326 GEAR RING DB3DL
22 326328 WASHER B DB3DL
23 332768 PINION (C)
24 332766 PLANET GEAR (B) SET (3 PCS)
25 332767 SLIDE RING GEAR
26 332765 PINION (B)
27 326335 SATELLITES A DB3DL (3 PCS)
28 326334 FIRST GEAR RING DB3DL
29 332764 WASHER (A)
30 332763 MOTOR SPACER
31 332755 DC MOTOR 3.6 VOLT
32 330755 MACHINE SCREW M2.6X8 (W / SP WASHER)
33 332754 HOUSING SET (A + B)
34 984319 SCREW D3X8 (+)
36 317788 BALLS D3 DB3DL
37 326315 POSITION PLATE DB3DL
38 332757 SHIFT KNOB
39 332975 HANDLE COVER
40 326309 SPRING STOPS D3 DB3DL
43 302086 SCREW. BLACK D4X20
44 332756 BUTTON
46 332771 TERMINAL
47 326316 SUPPORT TERMINAL BATT.
49 326318 CLIP DB3DL
50 332752 HOUSING (A + B)
51 333316 SWITCH + CABLE BAND INCLUD.46
503 HTA332844 CASE DB3DL2

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Hitachi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to hitachi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.

Hitachi DB3DL2 3.6-Volt
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Drawing Hitachi DB3DL2

Drawing Hitachi DB3DL2

Download (321.24KB)
