HiKOKI Power Tools Italia S.p.a.

Hitachi Spare Parts for Cordless Driver Drill DS18DJL

SKU: Hitachi DS18DJL
€1.41
VAT included

Hitachi Spare Parts for Cordless Driver Drill DS18DJL

Hitachi-HIKOKI Tanaka Authorized Technical Assistance and original spare parts Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Cordless Driver Drill DS18DJL.
Hitachi Spare Parts for Cordless Driver Drill DS18DJL
  • Hitachi Spare Parts for Cordless Driver Drill DS18DJL
  • Hitachi Spare Parts for Cordless Driver Drill DS18DJL
HiKOKI Power Tools Italia S.p.a.

Hitachi Spare Parts for Cordless Driver Drill DS18DJL

SKU: Hitachi DS18DJL Condition: New
€1.41
VAT included

Hitachi Spare Parts for Cordless Driver Drill DS18DJL

Hitachi-HIKOKI Tanaka Authorized Technical Assistance and original spare parts Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Cordless Driver Drill DS18DJL.
settings 29 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
29 spare parts

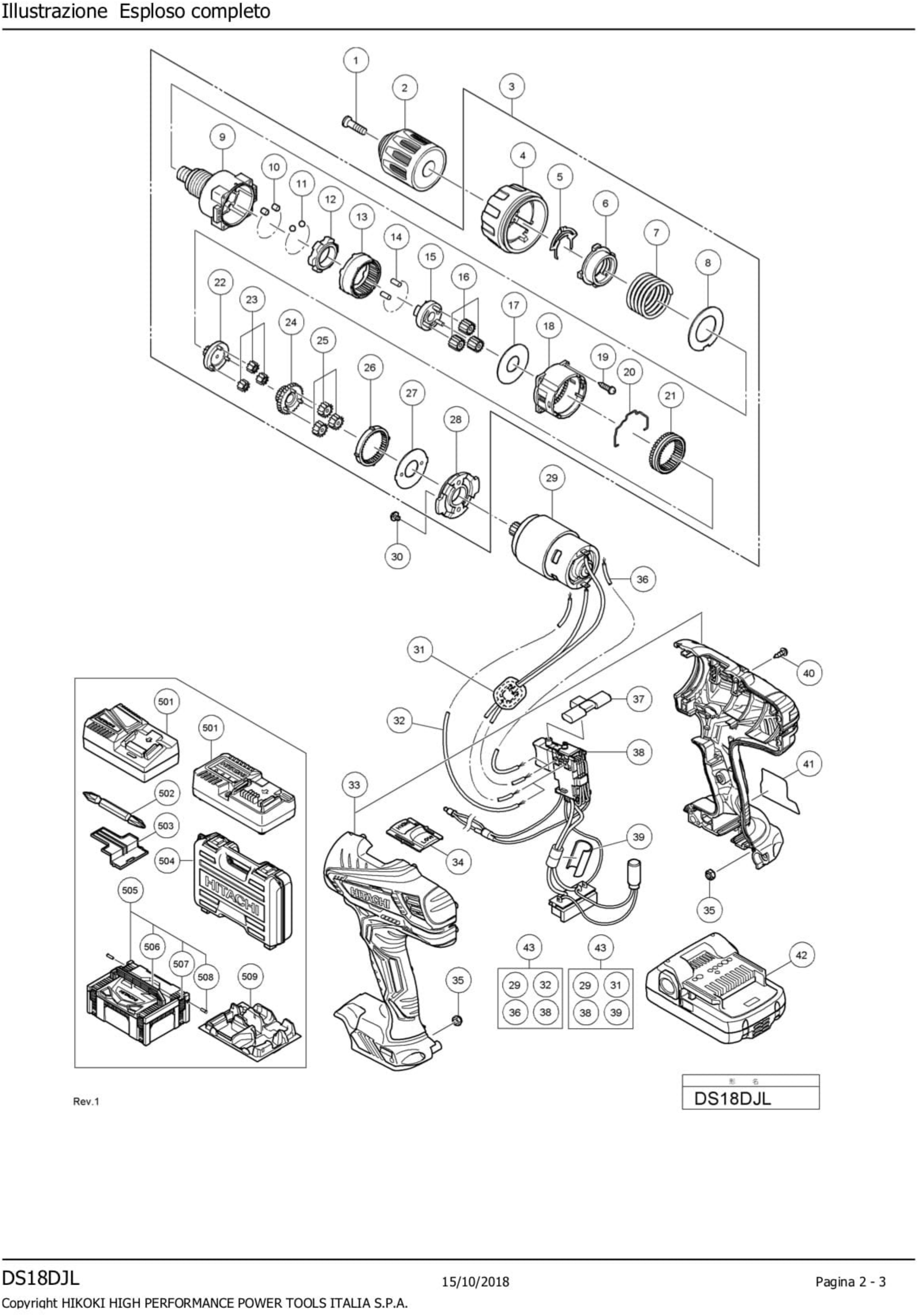

Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 311959 Sp.Screw (Left Hand) M6x23 €2.10
3
 photo_cameraImage coming soon 337120 COMPLETE GEAR CASE €55.77
4
 photo_cameraImage coming soon 337130 RING €6.21
5
 photo_cameraImage coming soon 337129 SPRING €2.22
7
 photo_cameraImage coming soon 337124 SPRING (A) €2.22
8
 photo_cameraImage coming soon 312714 WASHER (D) €2.12
9
 photo_cameraImage coming soon 337121 FRONT COVER €21.36
10
 photo_cameraImage coming soon 337123 ROLL PIN 6 €2.22
11
 photo_cameraImage coming soon 306936 STEEL BALL D5 €1.40
12
 photo_cameraImage coming soon 337125 RETAINER RING €4.51
13
 photo_cameraImage coming soon 312715 GEAR €3.78
15
 photo_cameraImage coming soon 337126 SUPPORT €4.65
16
 photo_cameraImage coming soon 312705 PLANET GEAR (C) SET (3 PCS.) €3.40
17
 photo_cameraImage coming soon 312704 WASHER (A) €2.84
18
 photo_cameraImage coming soon 335959 GEAR CASE CARTER €1.85
20
 photo_cameraImage coming soon 332017 SHIFT ARM €2.83
21
 photo_cameraImage coming soon 332013 SLIDE RING GEAR €4.84
22
 photo_cameraImage coming soon 337127 PINION (C) €3.91
23
 photo_cameraImage coming soon 315816 GEARS (SET 3 PCS) €5.06
24
 photo_cameraImage coming soon 337128 PINION (B) €3.91
25
 photo_cameraImage coming soon 337122 GEAR SET (A) (3PZ) €2.45
26
 photo_cameraImage coming soon 332023 FIRST RING GEAR €9.11
27
 Washer (B) for Cordless Drill DV14DCL2 312716 Washer (B) for Cordless Drill DV14DCL2 €3.46
28
 photo_cameraImage coming soon 312698 MOTOR SPACER €4.53
29
 photo_cameraImage coming soon 337115 18V MOTOR €36.18
33
 photo_cameraImage coming soon 336851 HOUSING (A).(B) SET €19.60
34
 photo_cameraImage coming soon 336855 SHIFT KNOB €1.29
37
 photo_cameraImage coming soon 336856 PUSHING BUTTON €1.29
38
 photo_cameraImage coming soon 336632 SWITCH ASSY €30.55

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Hitachi Spare Parts for Cordless Driver Drill DS18DJL

Hitachi-HIKOKI Tanaka Authorized Technical Assistance and original spare parts Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Cordless Driver Drill DS18DJL.

In the following table, look for the model of the CORDLESS DRILL and theirs spare part.
Hitachi DS18DJL
DS18DJL 18V CORDLESS DRIVER DRILL Pag.1
# Part Num. Description
1 311959 SEE HTA311959
3 337120 COMPLETE GEAR CASE
4 337130 RING
5 337129 SPRING
6 337222 NUT
7 337124 SPRING (A)
8 312714 WASHER (D)
9 337121 FRONT COVER
10 337123 ROLL PIN 6
11 306936 STEEL BALL
12 337125 RETAINER RING
13 312715 GEAR
14 330806 NEEDLE ROLLER (A) SET NEW
15 337126 SUPPORT
16 312705 GEARS (SET 3 PCS)
17 312704 WASHER (A)
18 335959 GEAR CASE CARTER
20 332017 LEVER
21 332013 SLIDING RING GEARS
22 337127 PINION (C)
23 315816 GEARS (SET 3 PCS)
24 337128 PIGNONE (B)
25 337122 GEAR SET (A) (3PZ)
26 332023 FIRST GEAR RING
27 312716 WASHER (B)
28 312698 MOTOR SUPPORT
29 337115 18V MOTOR
33 336851 CASE (A + B)
34 336855 SELECTOR
37 336856 LEVER
38 336632 SWITCH
39 337137 SUPPORT (D) EUROPE, AUT, RUS, NOR, SW
43 337135 ELECTRONIC KIT INCLUD.29,31,38,39
STANDARD ACCESSORIES Pag.2
504 HTA336642 DS10DAL-DS-DV18DJL CASE
504 HTA336471 SEE HTA402545
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Hitachi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to hitachi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Hitachi DS18DJL
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Drawing Hitachi DS18DJL

Drawing Hitachi DS18DJL

Download (172.23KB)
