Hitachi Spare Parts for Jigsaw CJ160VA

SKU: Hitachi CJ160VA
€1.09
VAT included

Hitachi Spare Parts for Jigsaw CJ160VA

Hitachi-HIKOKI original spare parts, at discounted prices, we are a licensed service center with after-sales service able to quickly solve the maintenance and repair any issues for Jigsaw CJ160VA.
Hitachi Spare Parts for Jigsaw CJ160VA
  • Hitachi Spare Parts for Jigsaw CJ160VA
  • Hitachi Spare Parts for Jigsaw CJ160VA
HiKOKI Power Tools Italia S.p.a.

Hitachi Spare Parts for Jigsaw CJ160VA

SKU: Hitachi CJ160VA Condition: New
€1.09
VAT included

Hitachi Spare Parts for Jigsaw CJ160VA

Hitachi-HIKOKI original spare parts, at discounted prices, we are a licensed service center with after-sales service able to quickly solve the maintenance and repair any issues for Jigsaw CJ160VA.
settings 55 Spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN: Usually Ships in 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
Machine Type: Jigsaw
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal PayPal Pay in 3 Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
55 spare parts

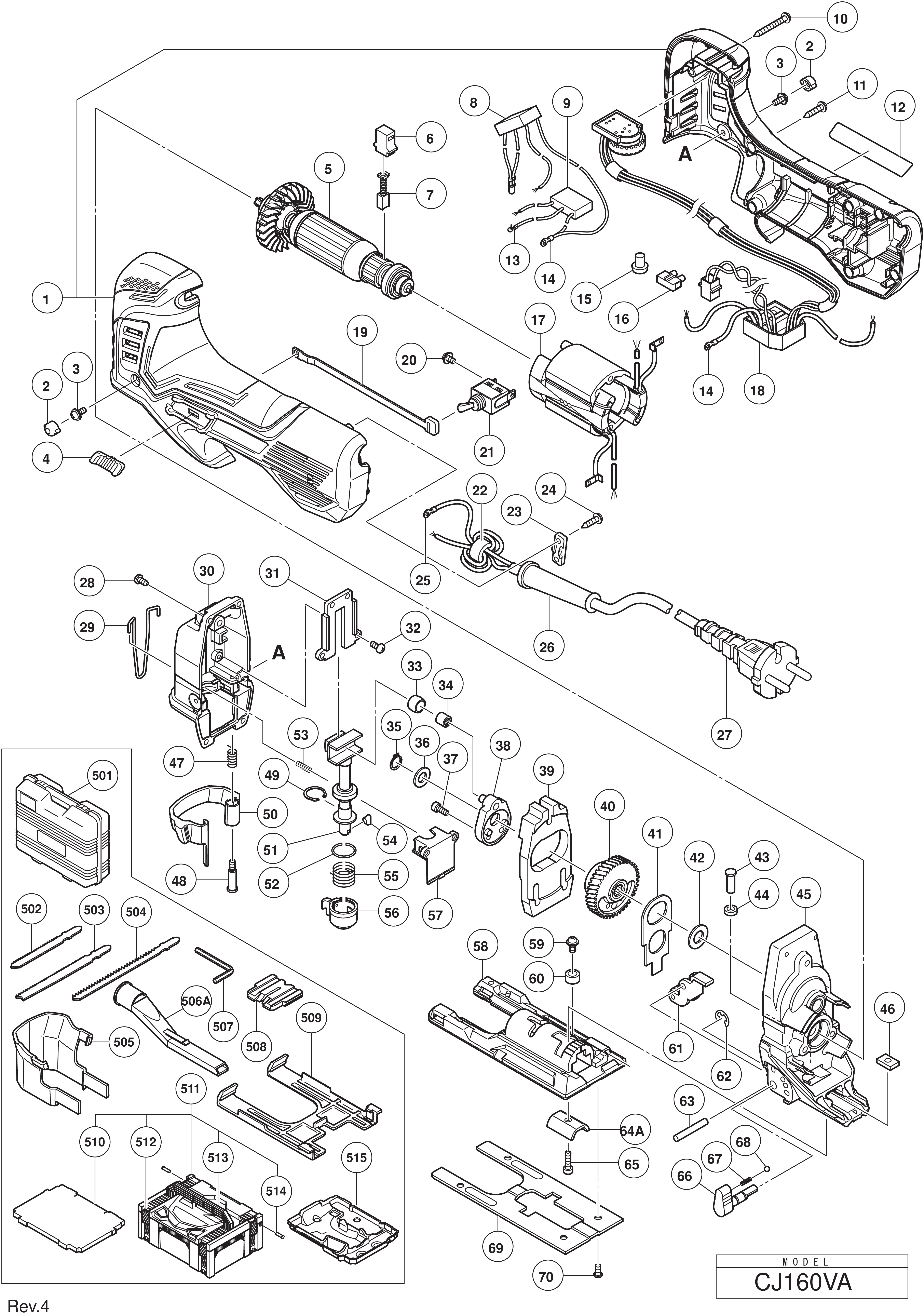

Page 1 zoom_in View exploded local_shipping Usually Ships in 7/10 BUSINESS DAYS
Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 339022 HOUSING SET €15.80
2
 photo_cameraImage coming soon 339294 RUBBER COVER €0.00 Not available for order
4
 photo_cameraImage coming soon 339024 SLIDE KNOB €0.00 Not available for order
5
 photo_cameraImage coming soon 361014E ARMATURE SET 220V-240V €35.32
6
 Brush Holder for Demolition Hammer Hitachi DH28PCY 955203 Brush Holder for Demolition Hammer Hitachi DH28PCY €4.82
7
 Carbon Brushes for Sanders Hitachi SV12-13 999041 Carbon Brushes for Sanders Hitachi SV12-13 €9.70
8
 photo_cameraImage coming soon 339031 LED (A) 220V-240V €17.02
9
 Noise Suppressor for Angle Grinder Hitachi G12SA2 994273 Noise Suppressor for Angle Grinder Hitachi G12SA2 €7.26
17
 photo_cameraImage coming soon 340915E STATOR 220V-240V €21.90
18
 photo_cameraImage coming soon 339029 CONTROLLER 220V-240V €45.08
19
 photo_cameraImage coming soon 339023 SLIDE BAR €0.00 Not available for order
21
 photo_cameraImage coming soon 330698 SNAP SWITCH (W/SCREW) €7.26
22
 photo_cameraImage coming soon 334379 FERRITE CORE €6.04
23
 photo_cameraImage coming soon 960266 CORD CLIP €1.16
26
 Cord Armor D.8.8 for Hitachi Power Tools 953327 Cord Armor D.8.8 for Hitachi Power Tools €1.16
29
 photo_cameraImage coming soon 339016 DISCO 3906 C €0.00 Not available for order
30
 photo_cameraImage coming soon 339010 UPPER COVER €13.36
31
 photo_cameraImage coming soon 339009 GUIDE PLATE €2.38
33
 photo_cameraImage coming soon 339007 CONNECTING PIECE €2.38
34
 photo_cameraImage coming soon 940917 NEEDLE BEARING €8.48
35
 photo_cameraImage coming soon 940079 RETAINING RING FOR D8 SHAFT €0.00 Not available for order
36
 photo_cameraImage coming soon 963351 WASHER (B) €0.00 Not available for order
38
 photo_cameraImage coming soon 339285 WEIGHT HOLDER €7.26
39
 photo_cameraImage coming soon 339000 BALANCE WEIGHT €12.14
40
 photo_cameraImage coming soon 338993 GEAR €15.80
41
 photo_cameraImage coming soon 338999 ORBITAL CAM €0.00 Not available for order
42
 photo_cameraImage coming soon 957540 WASHER (A) €0.00 Not available for order
43
 photo_cameraImage coming soon 339019 ORBITAL PIN €2.38
44
 photo_cameraImage coming soon 305740 FELT €0.00 Not available for order
45
 photo_cameraImage coming soon 338989 GEAR COVER €17.02
46
 Plate Nut for Jigsaw Hitachi CJ90VST 332425 Plate Nut for Jigsaw Hitachi CJ90VST €2.38
47
 photo_cameraImage coming soon 339015 LEVER SPRING €0.00 Not available for order
48
 photo_cameraImage coming soon 339014 LEVER BOLT €0.00 Not available for order
49
 photo_cameraImage coming soon 339296 RETAINING RING D18 €1.16
50
 photo_cameraImage coming soon 339013 LEVER €2.38
51
 photo_cameraImage coming soon 339002 PLUNGER (B) €26.78
52
 photo_cameraImage coming soon 311814 O-Ring Dh14/18dl €2.38
53
 photo_cameraImage coming soon 339001 SPRING €0.00 Not available for order
54
 photo_cameraImage coming soon 339004 HOLDER PIN €0.00 Not available for order
55
 Holder Cover Spring for Jigsaw Hitachi CJ160V 339005 Holder Cover Spring for Jigsaw Hitachi CJ160V €2.38
56
 Holder Cover for Jigsaw Hitachi CJ160V 339282 Holder Cover for Jigsaw Hitachi CJ160V €14.58
57
 photo_cameraImage coming soon 339006 PLUNGER COVER €4.82
58
 Base for Jigsaw Hitachi CJ160V 339011 Base for Jigsaw Hitachi CJ160V €12.14
60
 Rubber Bushing for Jigsaw Hitachi CJ110MVA 321576 Rubber Bushing for Jigsaw Hitachi CJ110MVA €2.38
61
 Roller Holder for Jigsaw Hitachi CJ160V 339297 Roller Holder for Jigsaw Hitachi CJ160V €14.58
62
 photo_cameraImage coming soon 673489 RETAINING RING (E-TYPE) FOR D5 SHAFT €0.00 Not available for order
63
 photo_cameraImage coming soon 338990 SEAL L 3906 C €2.06
64A
 Base Locker for Jigsaw Hitachi CJ120V 339663 Base Locker for Jigsaw Hitachi CJ120V €2.38
66
 photo_cameraImage coming soon 338992 CHANGE KNOB €2.38
67
 photo_cameraImage coming soon 982454 SPRING (C) €0.00 Not available for order
68
 photo_cameraImage coming soon 335297 STEEL BALL 5/32 (10 PCS.) €0.00 Not available for order
69
 Base Plate for Jigsaw Hitachi CJ160V 339012 Base Plate for Jigsaw Hitachi CJ160V €12.14
70
 Base Special Bolt for Jigsaw Hitachi CJ160V 321996 Base Special Bolt for Jigsaw Hitachi CJ160V €2.38
513
 photo_cameraImage coming soon 336473 HANDLE FOR EUROPE.RUS €7.26
514
 photo_cameraImage coming soon 336474 PIN €0.00 Not available for order

Shipping and delivery information will be available shortly.

Hitachi Spare Parts for Jigsaw CJ160VA

Hitachi-HIKOKI original spare parts, at discounted prices, we are a licensed service center with after-sales service able to quickly solve the maintenance and repair any issues for Jigsaw CJ160VA.

In the following table, look for the model of the Jigsaw and theirs spare part.
Hitachi CJ160VA

Jigsaw CJ160VA
# Part Num. Description
1 339022 HOUSING SET
2 339294 RUBBER COVER
4 339024 SLIDE KNOB
5 361014E ARMATURE SET 220V-240V
6 955203 BRUSH HOLDER
7 999041 CARBON BRUSH (1 PAIR)
8 339031 LED (A) 220V-240V
9 994273 NOISE SUPPRESSOR
17 340915E STATOR 220V-240V
18 339029 CONTROLLER 220V-240V
19 339023 SLIDE BAR
21 330698 SNAP SWITCH (W/SCREW)
22 334379 FERRITE CORE
23 960266 CORD CLIP
26 953327 CORD ARMOR D8.8
29 339016 GUARD BAR
30 339010 UPPER COVER
31 339009 GUIDE PLATE
33 339007 CONNECTING PIECE
34 940917 NEEDLE BEARING
35 940079 RETAINING RING FOR D8 SHAFT
36 963351 WASHER (B)
38 339285 WEIGHT HOLDER
39 339000 BALANCE WEIGHT
40 338993 GEAR
41 338999 ORBITAL CAM
42 957540 WASHER (A)
43 339019 ORBITAL PIN
44 305740 FELT
45 338989 GEAR COVER
46 332425 PLATE NUT
47 339015 LEVER SPRING
48 339014 LEVER BOLT
49 339296 RETAINING RING D18
50 339013 LEVER
51 339002 PLUNGER (B)
52 311814 O-RING (P-15)
53 339001 SPRING
54 339004 HOLDER PIN
55 339005 HOLDER SPRING
56 339282 HOLDER COVER
57 339006 PLUNGER COVER
58 339011 BASE
60 321576 RUBBER BUSHING
61 339297 ROLLER HOLDER
62 673489 RETAINING RING (E-TYPE) FOR D5 SHAFT
63 338990 NEEDLE ROLLER
64A 339663 BASE LOCKER
66 338992 CHANGE KNOB
67 982454 SPRING (C)
68 335297 STEEL BALL 5/32
69 339012 BASE PLATE
70 321996 SPECIAL BOLT
513 336473 HANDLE
514 336474 HINGE
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Hitachi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to hitachi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Hitachi CJ160VA
12 Items

Data sheet

SHIPPING IN
Usually Ships in 7/10 BUSINESS DAYS
Machine Type
Jigsaw
MORE INFO:
[email protected]

Specific References

New

Download

Diagram Hitachi CJ160VA

Diagram Hitachi CJ160VA

Download (292.86KB)
