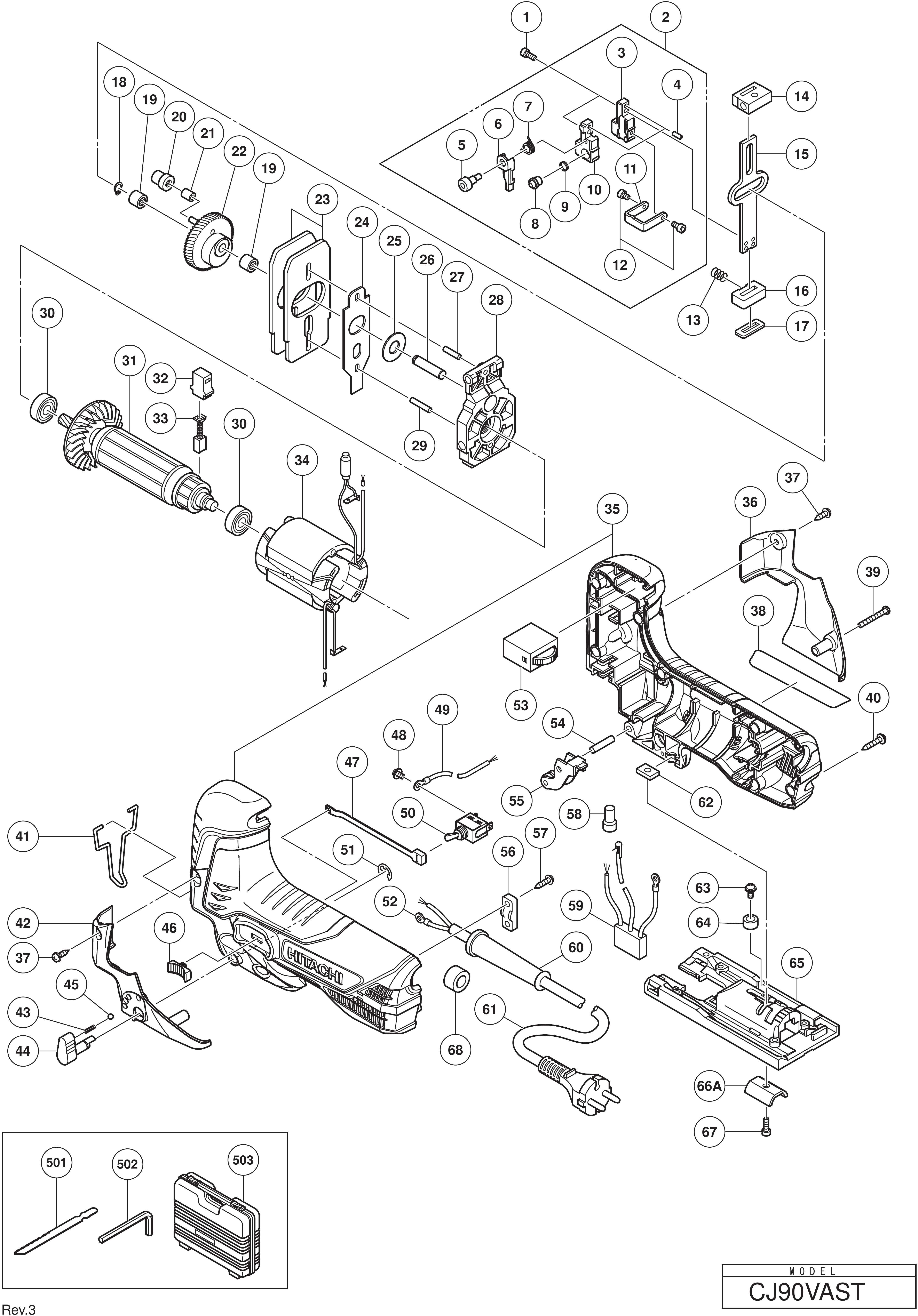

Jigsaw CJ90VAST
#	Part Num.	Description
2	332443	BLADE HOLDER ASS'Y
3	332429	BLADE HOLDER (A)
4	332436	PIN D3
5	332434	SPECIAL BOLT M4
6	332432	LEVER (A)
7	332438	SPRING (D)
8	332435	HOLDER PIN (B)
9	332439	SPRING (B)
10	332430	BLADE HOLDER (B)
11	332426	HOLDER PLATE
12	325077	SEAL LOCK HEX. SOCKET HD. BOLT M3X6
13	332437	SPRING
14	332427	PLUNGER HOLDER (A)
15	332422	PLUNGER
16	332428	PLUNGER HOLDER (B)
17	332441	PACKING
18	994251	RETAINING RING FOR D7 SHAFT
19	332983	NEEDLE BEARING
20	332829	CONNECTING PIECE (A)
21	325242	NEEDLE BEARING
22	337759	GEAR
23	332424	BALANCE WEIGHT
24	332423	ORBITAL CAM
25	957540	WASHER (A)
26	332828	SPINDLE
27	998426	NEEDLE ROLLER
28	332444	GEAR HOLDER ASS'Y
29	943364	NEEDLE ROLLER D4X20
30	608VVM	BALL BEARING 608VVC2PS2L
31	360893E	ARMATURE 220V-240V
32	955203	BRUSH HOLDER
33	999041	CARBON BRUSH (1 PAIR)
34	340774G	STATOR WIRING 230V
35	337756	HOUSING (A).(B) SET
36	337758	SIDE COVER (B)
41	338039	GUARD BAR
42	337757	SIDE COVER (A)
43	982454	SPRING (C)
44	332421	CHANGE KNOB
45	335297	STEEL BALL 5/32
46	321595	SLIDE KNOB
47	321594	SLIDE BAR
50	330698	SNAP SWITCH (W/SCREW)
51	673489	RETAINING RING (E-TYPE) FOR D5 SHAFT
53	337760	CONTROLLER
54	332433	NEEDLE ROLLER
55	332448	ROLLER HOLDER
56	937631	CORD CLIP
60	953327	CORD ARMOR D8.8
62	332425	PLATE NUT
64	321576	RUBBER BUSHING
65	321573	BASE
66A	339663	BASE LOCKER
68	334379	FERRITE CORE
611	321996	SPECIAL BOLT
614	321590	SPLINTER GUARD
