HiKOKI Power Tools Italia S.p.a.

Hitachi Spare Parts for Impact Drill DV22V

SKU: Hitachi DV22V
€1.79
VAT included

Hitachi Spare Parts for Impact Drill DV22V

We have the original Spares for Hitachi-HIKOKI Impact Drill DV22V, the diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your Impact Drill DV22V. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

Hitachi Spare Parts for Impact Drill DV22V
  • Hitachi Spare Parts for Impact Drill DV22V
  • Hitachi Spare Parts for Impact Drill DV22V
HiKOKI Power Tools Italia S.p.a.

Hitachi Spare Parts for Impact Drill DV22V

SKU: Hitachi DV22V Condition: New
€1.79
VAT included

Hitachi Spare Parts for Impact Drill DV22V

We have the original Spares for Hitachi-HIKOKI Impact Drill DV22V, the diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your Impact Drill DV22V. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

settings 48 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
48 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

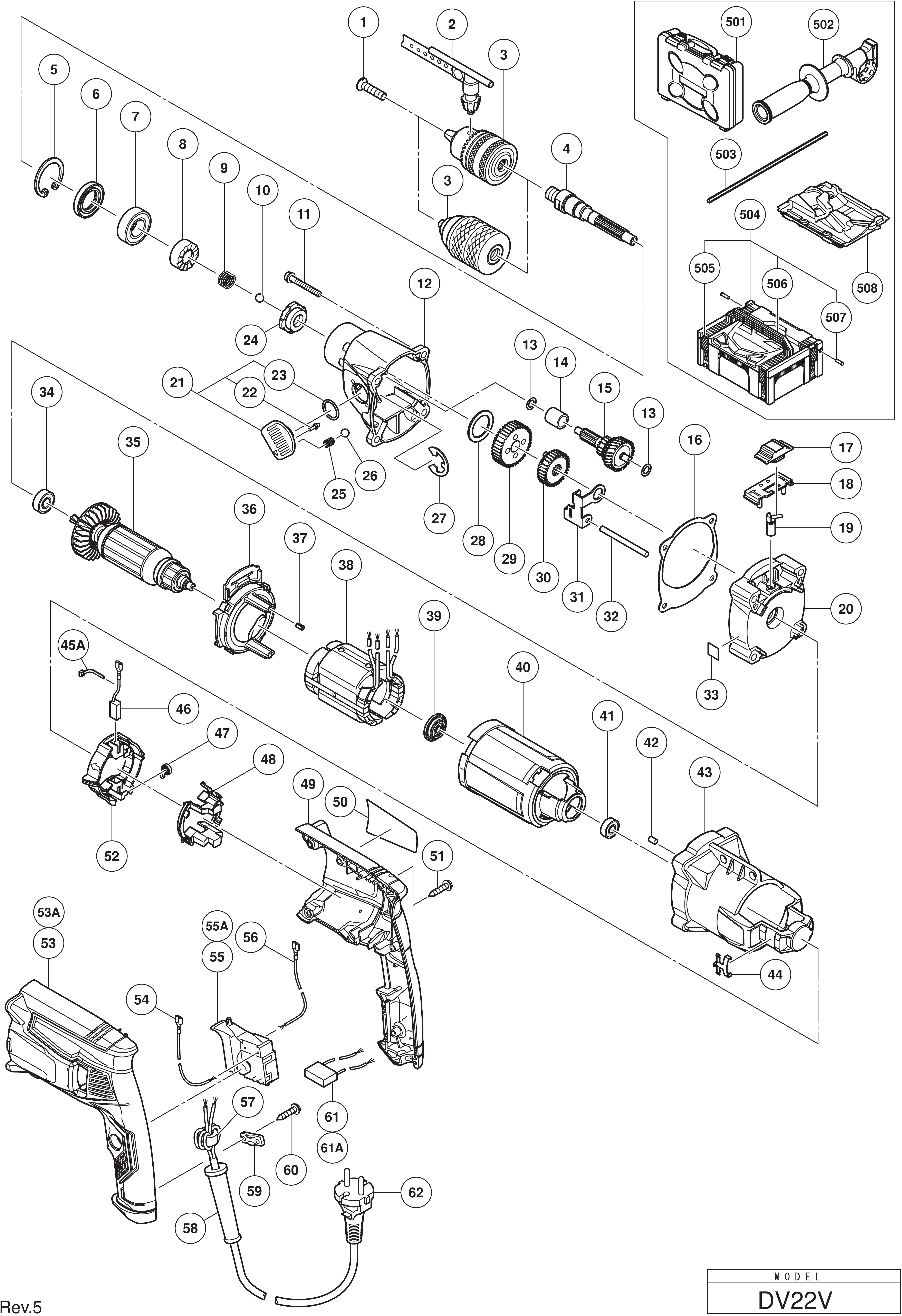

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
4
 photo_cameraImage coming soon 338738 SPINDLE (A) €13.59
5
 photo_cameraImage coming soon 939556 Ring Type C X D.35 Holes €13.80
6
 photo_cameraImage coming soon 971745 OIL SEAL (A) €8.62
7
 photo_cameraImage coming soon 6003DD BALL BEARING 6003DDCMPS2S €8.11
8
 photo_cameraImage coming soon 338771 RATCHET (D) €8.89
9
 photo_cameraImage coming soon 984101 spring €1.87
10
 Steel Ball 6,35 mm for Hammers Hitachi 959150 Steel Ball 6,35 mm for Hammers Hitachi €3.48
12
 photo_cameraImage coming soon 338769 GEAR COVER (A) ASS'Y €19.53
13
 photo_cameraImage coming soon 322852 washer Dm20v €2.20
14
 photo_cameraImage coming soon 338744 DISTANCE PIECE €2.57
15
 photo_cameraImage coming soon 338743 SECOND PINION (A) €31.26
19
 photo_cameraImage coming soon 338748 CHANGE SHAFT €3.45
20
 photo_cameraImage coming soon 338745 INNER COVER (A) €15.41
21
 photo_cameraImage coming soon 338737 SHIFT LEVER ASS'Y €2.22
22
 photo_cameraImage coming soon 322848 roll €3.13
23
 O-Ring S-18 for Rotary Hammers Hitachi DH24PC3-PD3 878885 O-Ring S-18 for Rotary Hammers Hitachi DH24PC3-PD3 €1.34
24
 photo_cameraImage coming soon 338770 RATCHET (C) €10.30
25
 photo_cameraImage coming soon 981328 Spring H Dh24dva €1.91
27
 photo_cameraImage coming soon 323048 Ring Seal (E-Type) €2.52
29
 photo_cameraImage coming soon 338740 LOW SPEED GEAR €8.53
30
 photo_cameraImage coming soon 338741 HIGH SPEED GEAR €15.80
31
 photo_cameraImage coming soon 338742 SHIFT ARM €1.33
32
 photo_cameraImage coming soon 984104 pin D.5 €2.20
34
 photo_cameraImage coming soon 608DDM BALL BEARING 608DDC2PS2L €7.07
35
 photo_cameraImage coming soon 361002E ARMATURE 230V €25.05
36
 photo_cameraImage coming soon 338754 FAN GUIDE (B) €1.78
37
 photo_cameraImage coming soon 338755 RUBBER BUSH €1.29
38
 photo_cameraImage coming soon 340905E STATOR 230V-240V €16.71
39
 photo_cameraImage coming soon 338751 DUST SEAL €1.29
40
 photo_cameraImage coming soon 338750 STATOR HOLDER €4.74
41
 photo_cameraImage coming soon 607VVC BALL BEARING 607VV €6.51
42
 photo_cameraImage coming soon 931701 BEARING LOCK €1.33
43
 Housing (B) for Impact Drill Hitachi D13VL 338749 Housing (B) for Impact Drill Hitachi D13VL €20.65
44
 photo_cameraImage coming soon 338761 CLICK PLATE €1.29
46
 Carbon Brushes for Grinder Hitachi 999088 Carbon Brushes for Grinder Hitachi €9.62
47
 photo_cameraImage coming soon 339292 SPRING €2.34
48
 photo_cameraImage coming soon 338760 BRUSH COVER €1.29
49
 photo_cameraImage coming soon 338753 RING L 3906 C €9.91
52
 Brushe Holder for Impact Drill Hitachi D13VL 338759 Brushe Holder for Impact Drill Hitachi D13VL €8.93
53
 photo_cameraImage coming soon 338752 HANDLE COVER (A) €7.90
55
 photo_cameraImage coming soon 338756 SWITCH €32.04
57
 photo_cameraImage coming soon 334379 FERRITE CORE €6.61
58
 Cord Armor D.8.8 for Hitachi Power Tools 953327 Cord Armor D.8.8 for Hitachi Power Tools €1.37
59
 photo_cameraImage coming soon 937631 CORD CLIP €1.37
61A
 Noise Suppressor Hitachi GP 10 930039 Noise Suppressor Hitachi GP 10 €4.04
502
 photo_cameraImage coming soon 338768 SIDE HANDLE €18.01
503
 photo_cameraImage coming soon 303709 delimiter Depth €1.75
506
 photo_cameraImage coming soon 336473 HANDLE FOR EUROPE.RUS €6.68

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Hitachi Spare Parts for Impact Drill DV22V

Fix Your Impact Drill DV22V. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following table , look for the model of the Impact Drill and the respective parts of the code .
Hitachi DV22V

Impact Drill DV22V
# Part Num. Description
4 338738 SPINDLE (A)
5 939556 RETAINING RING FOR D35 HOLE
6 971745 OIL SEAL (A)
7 6003DD BALL BEARING 6003DD
8 338771 RATCHET (D)
9 984101 SPRING (A)
10 959150 STEEL BALL D6.35
12 338769 GEAR COVER (A) ASS'Y
13 322852 WASHER (B)
14 338744 DISTANCE PIECE
15 338743 SECOND PINION (A)
16 339222 PACKING
17 338746 CHANGE LEVER
18 338747 CHANGE COVER
19 338748 CHANGE SHAFT
20 338745 INNER COVER (A)
21 338737 SHIFT LEVER ASS'Y
22 322848 SHIFT PIN
23 878885 O-RING (S-18)
24 338770 RATCHET (C)
25 981328 SPRING (H)
26 335299 STEEL BALL D3.5
27 323048 RETAINING RING (E-TYPE) FOR D15 SHAFT
28 339223 WASHER
29 338740 LOW SPEED GEAR
30 338741 HIGH SPEED GEAR
31 338742 SHIFT ARM
32 984104 PIN D5
34 608DDM BALL BEARING 608DD
35 361002E ARMATURE 230V
36 338754 FAN GUIDE (B)
37 338755 RUBBER BUSH
38 340905E STATOR 230V-240V
39 338751 DUST SEAL
40 338750 STATOR HOLDER
41 607VVC BALL BEARING 607VV
42 931701 BEARING LOCK
43 338749 HOUSING (B)
44 338761 CLICK PLATE
46 999088 CARBON BRUSH (1 PAIR)
47 339292 SPRING
48 338760 BRUSH COVER
49 338753 HANDLE COVER (B)
52 338759 BRUSH HOLDER
53 338752 HANDLE COVER (A)
55 338756 SWITCH
57 334379 FERRITE CORE
58 953327 CORD ARMOR D8.8
59 937631 CORD CLIP
61A 930039 NOISE SUPPRESSOR
502 338768 SIDE HANDLE
503 303709 DEPTH GAUGE
506 336473 HANDLE
507 336474 HINGE
