HiKOKI Power Tools Italia S.p.a.

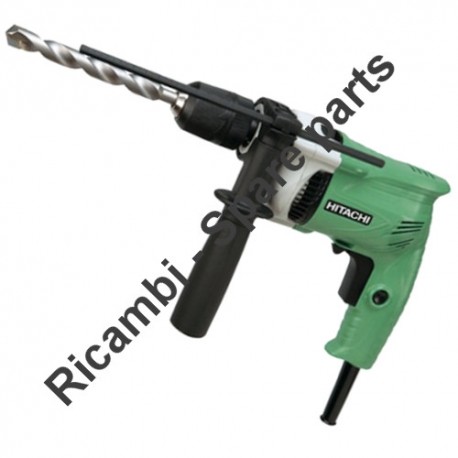

Hitachi Spare Parts for Impact Drill DV16VSS

SKU: Hitachi DV16VSS
€1.79
VAT included

Hitachi Spare Parts for Impact Drill DV16VSS

We have the original Spares for Impact Drill DV16VSS Hitachi-HIKOKI, the diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your Impact Drill DV16VSS. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
Hitachi Spare Parts for Impact Drill DV16VSS
  • Hitachi Spare Parts for Impact Drill DV16VSS
  • Hitachi Spare Parts for Impact Drill DV16VSS
HiKOKI Power Tools Italia S.p.a.

Hitachi Spare Parts for Impact Drill DV16VSS

SKU: Hitachi DV16VSS Condition: New
€1.79
VAT included

Hitachi Spare Parts for Impact Drill DV16VSS

We have the original Spares for Impact Drill DV16VSS Hitachi-HIKOKI, the diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your Impact Drill DV16VSS. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
settings 31 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 7/10 Business Days Approx

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
31 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

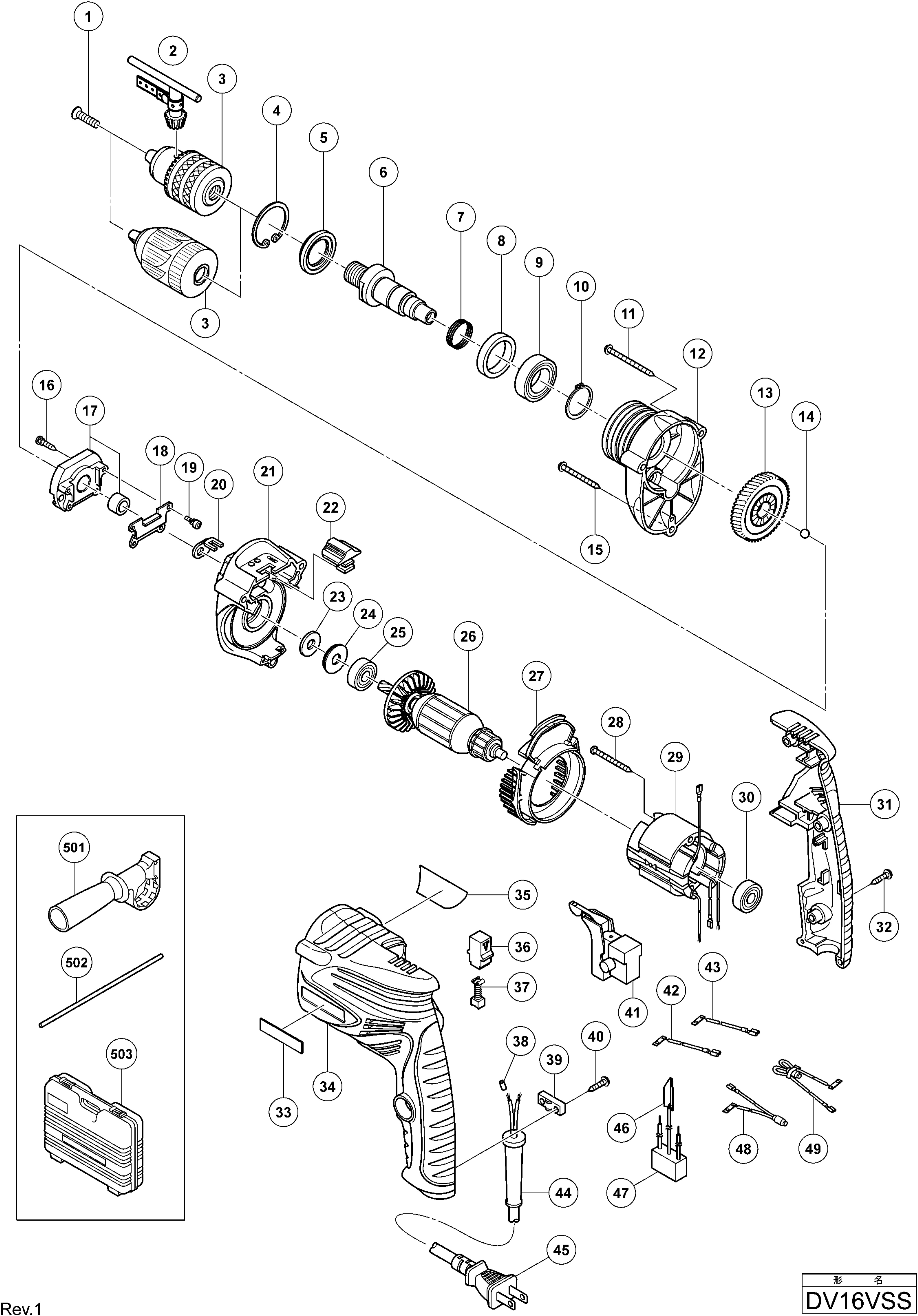

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 995344 Flat Hd. Screw (A) M6x25 €3.09
4
 photo_cameraImage coming soon 948001 RETAINING RING FOR D32 HOLE €2.93
5
 photo_cameraImage coming soon 971654 Oil Seals €3.83
6
 photo_cameraImage coming soon 331522 SPINDLE €9.10
7
 photo_cameraImage coming soon 322514 spring €2.55
9
 photo_cameraImage coming soon 6002VV BALL BEARING 6002VVCMPS2L €9.49
10
 Retaining Ring Type C 15 mm for Drills Hitachi D13VG-DV16V 939544 Retaining Ring Type C 15 mm for Drills Hitachi D13VG-DV16V €0.55
12
 photo_cameraImage coming soon 330726 GEAR COVER €4.78
13
 photo_cameraImage coming soon 330683 GEAR €13.57
14
 Steel Ball 6,35 mm for Hammers Hitachi 959150 Steel Ball 6,35 mm for Hammers Hitachi €3.48
17
 photo_cameraImage coming soon 330677 RATCHET €8.95
19
 photo_cameraImage coming soon 330679 BOLT M3 €1.98
20
 photo_cameraImage coming soon 330676 CHANGE PLATE €1.22
21
 photo_cameraImage coming soon 330675 INNER COVER €8.00
22
 photo_cameraImage coming soon 322510 Clutch Lever Dv16v €9.12
23
 photo_cameraImage coming soon 323096 FELT PACKING €1.98
25
 photo_cameraImage coming soon 608DDM BALL BEARING 608DDC2PS2L €7.07
27
 photo_cameraImage coming soon 330673 FAN GUIDE €4.11
28
 photo_cameraImage coming soon 950515 Self-tapping Screw D4x50 €1.91
29
 photo_cameraImage coming soon 340742F STATOR 220V-240V €20.58
30
 photo_cameraImage coming soon 608VVM BALL BEARING 608VVC2PS2L €7.12
31
 photo_cameraImage coming soon 330715 HANDLE COVER €4.35
34
 photo_cameraImage coming soon 330714 HOUSING €14.31
36
 Brush Holder for Demolition Hammer Hitachi DH28PCY 955203 Brush Holder for Demolition Hammer Hitachi DH28PCY €4.39
37
 Carbon Brushes for Sanders Hitachi SV12-13 999041 Carbon Brushes for Sanders Hitachi SV12-13 €9.62
38
 photo_cameraImage coming soon 981373 TUBE (D) €1.37
39
 photo_cameraImage coming soon 937631 CORD CLIP €1.37
41
 photo_cameraImage coming soon 330716 SWITCH AC250V €19.83
44
 Cord Armor D.10.1 for Hitachi Power Tools 938051 Cord Armor D.10.1 for Hitachi Power Tools €1.34
47
 Noise Suppressor for Angle Grinder Hitachi G12SA2 994273 Noise Suppressor for Angle Grinder Hitachi G12SA2 €9.62
502
 photo_cameraImage coming soon 303709 delimiter Depth €1.75

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Hitachi Spare Parts for Impact Drill DV16VSS

We have the original Spares for Impact Drill DV16VSS Hitachi-HIKOKI, the diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your Impact Drill DV16VSS. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following table , look for the model of the Impact Drill and the respective parts of the code .
Hitachi DV16VSS

Impact Drill DV16VSS
# Part Num. Description
1 995344 SCREW M6X25 SX
4 948001 RETAINING RING FOR D32 HOLE
5 971654 DUST SEAL
6 331522 SPINDLE
7 322514 SPRING
8 330682 DISTANCE RING
9 6002VV BALL BEARING 6002VVCMPS2L
10 939544 RETAINING RING FOR D15 SHAFT
12 330726 GEAR COVER
13 330683 GEAR
14 959150 STEEL BALL D6.35
17 330677 RATCHET
18 330678 BUSHING
19 330679 BOLT M3
20 330676 CHANGE PLATE
21 330675 INNER COVER
22 322510 CHANGE LEVER
23 323096 FELT PACKING
24 330674 WASHER (A)
25 608DDM BALL BEARING 608DD
27 330673 FAN GUIDE
28 950515 TAPPING SCREW D4X50
29 340742F STATOR 220V-240V
30 608VVM BALL BEARING 608VVC2PS2L
31 330715 HANDLE COVER
34 330714 HOUSING
36 955203 BRUSH HOLDER
37 999041 CARBON BRUSH (1 PAIR)
38 981373 TUBE (D)
39 937631 CORD CLIP
41 330716 SWITCH AC250V
44 938051 CORD ARMOR D10.1
47 994273 NOISE SUPPRESSOR
502 303709 DEPTH GAUGE

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Hitachi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to hitachi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Hitachi DV16VSS
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Diagram Hitachi DV16VSS

Diagram Hitachi DV16VSS

Download (147.89KB)
