HiKOKI Power Tools Italia S.p.a.

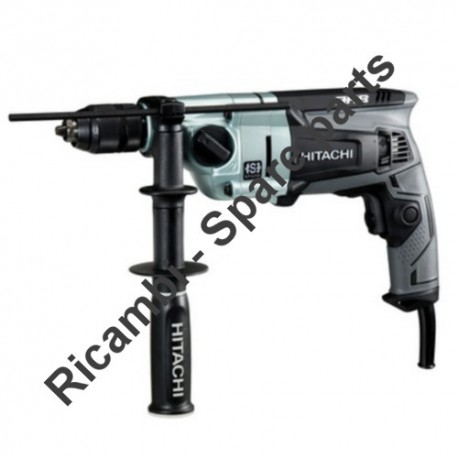

Hitachi Spare Parts for Drill D13VL

SKU: Hitachi D13VL
€1.79
VAT included

Hitachi Spare Parts for Drill D13VL

Hitachi-HIKOKI Tanaka Authorized Technical Assistance and original spare parts Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Drill D13VL.

Hitachi Spare Parts for Drill D13VL
  • Hitachi Spare Parts for Drill D13VL
  • Hitachi Spare Parts for Drill D13VL
HiKOKI Power Tools Italia S.p.a.

Hitachi Spare Parts for Drill D13VL

SKU: Hitachi D13VL Condition: New
€1.79
VAT included

Hitachi Spare Parts for Drill D13VL

Hitachi-HIKOKI Tanaka Authorized Technical Assistance and original spare parts Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Drill D13VL.

settings 42 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 7/10 Business Days Approx

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
42 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

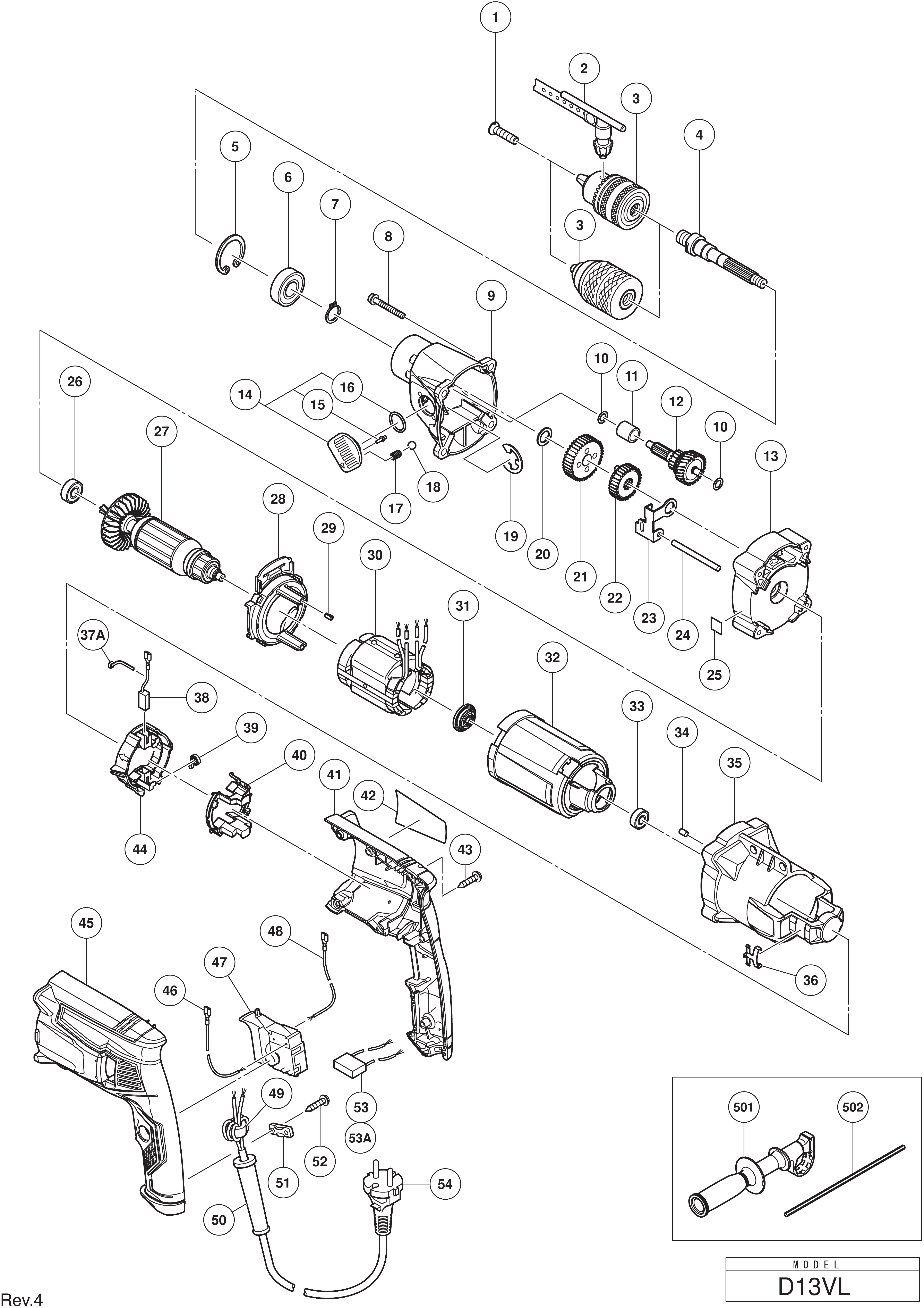

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
4
 photo_cameraImage coming soon 339139 SPINDLE (D) €15.87
5
 photo_cameraImage coming soon 939556 Ring Type C X D.35 Holes €13.80
6
 photo_cameraImage coming soon 6202DD Ball Bearing 6202dd €7.97
7
 Retaining Ring Type C 15 mm for Drills Hitachi D13VG-DV16V 939544 Retaining Ring Type C 15 mm for Drills Hitachi D13VG-DV16V €0.55
9
 photo_cameraImage coming soon 339137 GEAR COVER (A) €16.69
10
 photo_cameraImage coming soon 322852 washer Dm20v €2.20
11
 photo_cameraImage coming soon 338744 DISTANCE PIECE €2.57
12
 photo_cameraImage coming soon 338743 SECOND PINION (A) €31.26
14
 photo_cameraImage coming soon 338737 SHIFT LEVER ASS'Y €2.22
15
 photo_cameraImage coming soon 322848 roll €3.13
16
 O-Ring S-18 for Rotary Hammers Hitachi DH24PC3-PD3 878885 O-Ring S-18 for Rotary Hammers Hitachi DH24PC3-PD3 €1.34
17
 photo_cameraImage coming soon 981328 Spring H Dh24dva €1.91
19
 photo_cameraImage coming soon 323048 Ring Seal (E-Type) €2.52
20
 photo_cameraImage coming soon 322799 WASHER (C) €7.66
21
 photo_cameraImage coming soon 338740 LOW SPEED GEAR €8.53
22
 photo_cameraImage coming soon 338741 HIGH SPEED GEAR €15.80
23
 photo_cameraImage coming soon 338742 SHIFT ARM €1.33
24
 photo_cameraImage coming soon 984104 pin D.5 €2.20
26
 photo_cameraImage coming soon 608DDM BALL BEARING 608DDC2PS2L €7.07
27
 photo_cameraImage coming soon 361003E ARMATURE 230V €29.49
28
 photo_cameraImage coming soon 338766 FAN GUIDE (B) €1.72
29
 photo_cameraImage coming soon 338755 RUBBER BUSH €1.29
30
 photo_cameraImage coming soon 340906E STATOR 230V €19.11
31
 photo_cameraImage coming soon 338751 DUST SEAL €1.29
32
 photo_cameraImage coming soon 338750 STATOR HOLDER €4.74
33
 photo_cameraImage coming soon 607VVC BALL BEARING 607VV €6.51
34
 photo_cameraImage coming soon 931701 BEARING LOCK €1.33
35
 Housing (B) for Impact Drill Hitachi D13VL 338749 Housing (B) for Impact Drill Hitachi D13VL €20.65
36
 photo_cameraImage coming soon 338761 CLICK PLATE €1.29
38
 Carbon Brushes for Grinder Hitachi 999088 Carbon Brushes for Grinder Hitachi €9.62
39
 photo_cameraImage coming soon 339292 SPRING €2.34
40
 photo_cameraImage coming soon 338760 BRUSH COVER €1.29
41
 photo_cameraImage coming soon 338753 RING L 3906 C €9.91
44
 Brushe Holder for Impact Drill Hitachi D13VL 338759 Brushe Holder for Impact Drill Hitachi D13VL €8.93
45
 photo_cameraImage coming soon 338752 HANDLE COVER (A) €7.90
47
 photo_cameraImage coming soon 338756 SWITCH €32.04
49
 photo_cameraImage coming soon 334379 FERRITE CORE €6.61
50
 Cord Armor D.8.8 for Hitachi Power Tools 953327 Cord Armor D.8.8 for Hitachi Power Tools €1.37
51
 photo_cameraImage coming soon 937631 CORD CLIP €1.37
53A
 Noise Suppressor Hitachi GP 10 930039 Noise Suppressor Hitachi GP 10 €4.04
501
 photo_cameraImage coming soon 338768 SIDE HANDLE €18.01
502
 photo_cameraImage coming soon 303709 delimiter Depth €1.75

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Hitachi Spare Parts for Drill D13VL

Hitachi-HIKOKI Tanaka Authorized Technical Assistance

 and original spare parts Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Drill D13VL.

In the following table , look for the model of the Drill and the respective parts of the code .
Hitachi D13VL

Drill D13VL
# Part NUm. Description
4 339139 SPINDLE (D)
5 939556 RETAINING RING FOR D35 HOLE
6 6202DD BALL BEARING 6202DD
7 939544 RETAINING RING FOR D15 SHAFT
9 339137 GEAR COVER (A)
10 322852 WASHER (B)
11 338744 DISTANCE PIECE
12 338743 SECOND PINION (A)
13 339276 INNER COVER (A)
14 338737 SHIFT LEVER ASS'Y
15 322848 SHIFT PIN
16 878885 O-RING (S-18)
17 981328 SPRING (H)
18 335299 STEEL BALL D3.5
19 323048 RETAINING RING (E-TYPE) FOR D15 SHAFT
20 322799 WASHER (C)
21 338740 LOW SPEED GEAR
22 338741 HIGH SPEED GEAR
23 338742 SHIFT ARM
24 984104 PIN D5
26 608DDM BALL BEARING 608DD
27 361003E ARMATURE 230V
28 338766 FAN GUIDE (B)
29 338755 RUBBER BUSH
30 340906E STATOR 230V
31 338751 DUST SEAL
32 338750 STATOR HOLDER
33 607VVC BALL BEARING 607VV
34 931701 BEARING LOCK
35 338749 HOUSING (B)
36 338761 CLICK PLATE
38 999088 CARBON BRUSH (1 PAIR)
39 339292 SPRING
40 338760 BRUSH COVER
41 338753 HANDLE COVER (B)
44 338759 BRUSH HOLDER
45 338752 HANDLE COVER (A)
47 338756 SWITCH
49 334379 FERRITE CORE
50 953327 CORD ARMOR D8.8
51 937631 CORD CLIP
53A 930039 NOISE SUPPRESSOR
501 338768 SIDE HANDLE
502 303709 DEPTH GAUGE

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Hitachi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to hitachi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
