Hitachi Spare Parts for Demolition Hammer H65SB3

SKU: Hitachi H65SB3
€101.30
VAT included

Hitachi Spare Parts for Demolition Hammer H65SB3

Hitachi HIKOKI authorized service center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair issues for Demolition Hammer H65SB3.
Hitachi Spare Parts for Demolition Hammer H65SB3
  • Hitachi Spare Parts for Demolition Hammer H65SB3
  • Hitachi Spare Parts for Demolition Hammer H65SB3

Hitachi Spare Parts for Demolition Hammer H65SB3

SKU: Hitachi H65SB3 Condition: New
€101.30
VAT included

Hitachi Spare Parts for Demolition Hammer H65SB3

Hitachi HIKOKI authorized service center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair issues for Demolition Hammer H65SB3.
settings 96 spare parts

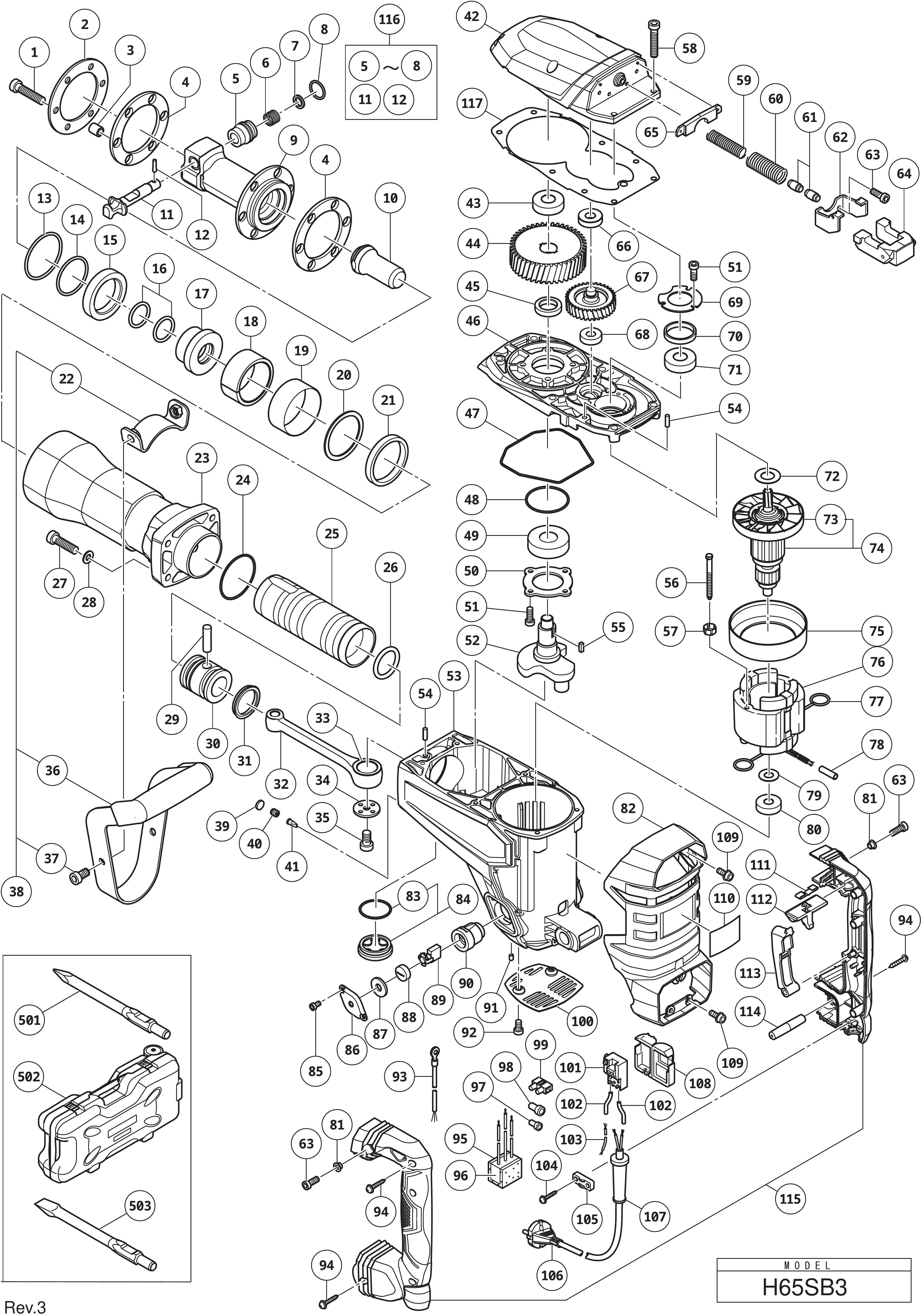

description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

93 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
2
photo_cameraImage coming soon 339686 DAMPER PLATE €5.13
3
Collar for Demolition Hammer Hitachi H65SB2 323737 Collar for Demolition Hammer Hitachi H65SB2 €5.83
4
photo_cameraImage coming soon 339685 FRONT DAMPER €7.20
5
photo_cameraImage coming soon 339688 SPRING CASE €8.92
6
photo_cameraImage coming soon 956975 LEVER SPRING €2.07
7
photo_cameraImage coming soon 998425 DAMPER (B) €5.51
8
photo_cameraImage coming soon 339689 RING €1.29
9
Hitachi H65SB3 Front Cover Assy 339683 Hitachi H65SB3 Front Cover Assy €141.48
10
photo_cameraImage coming soon 339682 SECOND HAMMER €43.30
11
photo_cameraImage coming soon 339687 STOP LEVER €20.49
12
photo_cameraImage coming soon 998426 NEEDLE ROLLER €1.28
13
photo_cameraImage coming soon 998428 O-RING (C) €2.88
14
photo_cameraImage coming soon 339684 O-RING (B) €1.29
15
photo_cameraImage coming soon 998433 DAMPER (A) €18.24
16
photo_cameraImage coming soon 339681 0-RING €1.29
17
photo_cameraImage coming soon 339680 SHANK SLEEVE €17.47
18
photo_cameraImage coming soon 339679 MOUTH €10.77
19
photo_cameraImage coming soon 956962 MOUTH COVER €2.88
20
photo_cameraImage coming soon 370894 GREASE X DH 5 SDS MAX €12.83
21
photo_cameraImage coming soon 370893 URETHANE RING (A) €11.20
22
photo_cameraImage coming soon 320374 HANDLE STAY (W/NUT) €25.76
23
Hitachi H65SB3 Demolition Hammer Cylinder Case 339678 Hitachi H65SB3 Demolition Hammer Cylinder Case €124.46
24
O-RING 1AS.60 for Hammer DH40MRY-DH45MR 956996 O-RING 1AS.60 for Hammer DH40MRY-DH45MR €3.83
25
photo_cameraImage coming soon 339677 STRIKER €106.19
26
photo_cameraImage coming soon 998414 O-RING (A) €14.70
29
photo_cameraImage coming soon 944928 PISTON PIN €17.01
30
photo_cameraImage coming soon 339676 PISTON €19.65
31
photo_cameraImage coming soon 998415 OIL SEAL (A) €9.15
32
photo_cameraImage coming soon 998434 CONNECTING ROD ASS'Y €58.21
33
photo_cameraImage coming soon 944921 NEEDLE BEARING (NTN 8E-NK 18/20 RDO) €24.09
34
photo_cameraImage coming soon 956955 CRANK WASHER €4.14
36
photo_cameraImage coming soon 306166 GRIP €89.68
38
photo_cameraImage coming soon 306165 SIDE HANDLE ASS'Y €95.49
39
photo_cameraImage coming soon 324544 Felt Dh24pb3-Pc3-Pd3 €1.87
40
photo_cameraImage coming soon 338313 CAP SCREW €6.03
41
photo_cameraImage coming soon 995396 BREATHER VALVE €2.99
42
photo_cameraImage coming soon 339674 GEAR COVER €32.56
43
Ball Bearing Hitachi 6302VV 6302VV Ball Bearing Hitachi 6302VV €9.62
44
photo_cameraImage coming soon 339672 FINAL GEAR €22.48
45
photo_cameraImage coming soon 944915 DISTANCE RING (B) €4.46
46
photo_cameraImage coming soon 339669 INNER COVER €37.14
47
photo_cameraImage coming soon 323725 SEAL RING €4.98
48
photo_cameraImage coming soon 331244 0-RING €1.60
49
photo_cameraImage coming soon 6205DD BALL BEARING 6205DDCMPS2L €11.80
50
photo_cameraImage coming soon 956949 BEARING COVER €2.12
52
photo_cameraImage coming soon 339671 CRANK SHAFT €43.09
53
photo_cameraImage coming soon 339665 HOUSING ASS'Y €152.64
54
photo_cameraImage coming soon 944918 PIN D5X15.8 €1.30
55
photo_cameraImage coming soon 931008 FEATHER KEY 4X4X12 €1.28
59
photo_cameraImage coming soon 339697 HANDLE SPRING (B) €2.34
60
photo_cameraImage coming soon 339696 HANDLE SPRING (A) €2.34
61
Damper for Demolition Hammers H60MRV-H45MR-H45MRY 310124 Damper for Demolition Hammers H60MRV-H45MR-H45MRY €5.77
62
photo_cameraImage coming soon 339695 HANDLE GUIDE €5.81
64
photo_cameraImage coming soon 339698 HANDLE WEIGHT €64.37
65
photo_cameraImage coming soon 339694 HANDLE STOPPER €1.29
66
photo_cameraImage coming soon 6201VV BALL BEARING 6201VVCMPS2L €6.76
67
photo_cameraImage coming soon 339673 COUNTER GEAR €52.99
68
photo_cameraImage coming soon 6001VV BALL BEARING 6001VVCMPS2L €8.22
69
photo_cameraImage coming soon 944911 BEARING COVER (A) €1.30
70
photo_cameraImage coming soon 339670 DISTANCE RING (A) €3.35
71
photo_cameraImage coming soon 6203DD BALL BEARING 6203DDCMPS2L €8.89
72
photo_cameraImage coming soon 333222 BEARING WASHER €1.41
73
photo_cameraImage coming soon 333196 FAN €11.18
74
photo_cameraImage coming soon 361024E ARMATURE ASS'Y 220V-230V €142.65
75
photo_cameraImage coming soon 339668 FAN GUIDE €2.53
76
photo_cameraImage coming soon 340928E STATOR ASS'Y 220V-230V €77.83
77
Brush Terminal for Demolition Hammer H60MRV 945932 Brush Terminal for Demolition Hammer H60MRV €1.36
79
photo_cameraImage coming soon 944954 BEARING WASHER €1.30
80
photo_cameraImage coming soon 6201DD BALL BEARING 6201DDCMPS2L €7.04
81
photo_cameraImage coming soon 991711 DISTANCE PIECE (B) €1.33
82
photo_cameraImage coming soon 339692 BACK COVER €8.83
83
photo_cameraImage coming soon 980717 O-RING (S-38) €1.70
84
photo_cameraImage coming soon 990945 OIL CAP ASS'Y €4.86
85
photo_cameraImage coming soon 877838 SEAL LOCK HEX. SOCKET HD. BOLT M4X8 €1.30
86
photo_cameraImage coming soon 323727 CAP COVER €1.87
87
photo_cameraImage coming soon 944960 CAP RUBBER €1.30
88
Brushe Cap for Routers Hitachi M12SA-M12V G 940540 Brushe Cap for Routers Hitachi M12SA-M12V G €1.78
90
photo_cameraImage coming soon 956984 BRUSH HOLDER €11.95
93
photo_cameraImage coming soon 994190 INTERNAL WIRE EXCEPT FOR USA,CAN €1.58
100
photo_cameraImage coming soon 339675 TAIL COVER €3.47
101
photo_cameraImage coming soon 337051 SWITCH €18.64
105
photo_cameraImage coming soon 960266 CORD CLIP €1.37
107
photo_cameraImage coming soon 940778 CORD ARMOR D10.7 €3.43
108
photo_cameraImage coming soon 337052 SUPPORT €4.44
111
photo_cameraImage coming soon 339691 LEAF SPRING €1.29
112
photo_cameraImage coming soon 339690 PUSHING BUTTON €1.29
113
photo_cameraImage coming soon 337058 SWITCH LEVER €1.83
115
photo_cameraImage coming soon 339699 HANDLE (A).(B) SET €15.41
116
photo_cameraImage coming soon 339700 STOP LEVER ASS'Y €31.35
117
photo_cameraImage coming soon 370913 SEAL PACKING €3.89
610
photo_cameraImage coming soon 981840 GREASE 30 GR €10.98
611
photo_cameraImage coming soon 308471 GREASE 70 GR €19.79
613
photo_cameraImage coming soon 980927 GREASE 500 GR €84.44

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Hitachi Spare Parts for Demolition Hammer H65SB3

Hitachi HIKOKI authorized service center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair issues for Demolition Hammer H65SB3.

In the following table, look for the model of the Demolition Hammer and the respective parts of the code.
Hitachi H65SB3

Demolition Hammer H65SB3
# Part Num. Description
2 339686 DAMPER PLATE
3 323737 COLLAR
4 339685 FRONT DAMPER
5 339688 SPRING CASE
6 956975 LEVER SPRING
7 998425 DAMPER (B)
8 339689 RING
9 339683 FRONT COVER
10 339682 SECOND HAMMER
11 339687 STOP LEVER
12 998426 NEEDLE ROLLER
13 998428 O-RING (C)
14 339684 O-RING (B)
15 998433 DAMPER (A)
16 339681 O-RING
17 339680 SHANK SLEEVE
18 339679 MOUTH
19 956962 MOUTH COVER
20 370894 MOUTH WASHER (A)
21 370893 URETHANE RING (A)
22 320374 HANDLE STAY (W/NUT)
23 339678 CYLINDER CASE
24 956996 O-RING (1AS-60)
25 339677 STRIKER
26 998414 O-RING (A)
29 944928 PISTON PIN
30 339676 PISTON
31 998415 OIL SEAL (A)
32 998434 CONNECTING ROD ASS'Y
33 944921 NEEDLE BEARING (NTN 8E-NK 18/20 RDO)
34 956955 CRANK WASHER
36 306166 GRIP
38 306165 SIDE HANDLE ASS'Y
39 324544 FELT PACKING (B)
40 338313 CAP SCREW
41 995396 VALVE
42 339674 GEAR COVER
43 6302VV BALL BEARING 6302VVCMPS2L
44 339672 FINAL GEAR
45 944915 DISTANCE RING (B)
46 339669 INNER COVER
47 323725 SEAL RING
48 331244 O-RING
49 6205DD BALL BEARING 6205DDCMPS2L
50 956949 BEARING COVER
52 339671 CRANK SHAFT
53 339665 HOUSING ASS'Y
54 944918 PIN D5X15.8
55 931008 FEATHER KEY 4X4X12
57 956764 SPECIAL WASHER
59 339697 HANDLE SPRING (B)
60 339696 HANDLE SPRING (A)
61 310124 HANDLE DAMPER
62 339695 HANDLE GUIDE
64 339698 HANDLE WEIGHT
65 339694 HANDLE STOPPER
66 6201VV BALL BEARING 6201VV
67 339673 COUNTER GEAR
68 6001VV BALL BEARING 6001VV
69 944911 BEARING COVER (A)
70 339670 DISTANCE RING (A)
71 6203DD BALL BEARING 6203DDCMPS2L
72 333222 BEARING WASHER
73 333196 FAN
74 361024E ARMATURE ASS'Y 220V-230V
75 339668 FAN GUIDE
76 340928E STATOR ASS'Y 220V-230V
77 945932 BRUSH TERMINAL
79 944954 BEARING WASHER
80 6201DD BALL BEARING 6201DDCMPS2L
81 991711 DISTANCE PIECE (B)
82 339692 BACK COVER
83 980717 O-RING (S-38)
84 990945 OIL CAP ASS'Y
85 877838 SEAL LOCK HEX. SOCKET HD. BOLT M4X8
86 323727 CAP COVER
87 944960 CAP RUBBER
88 940540 BRUSH CAP
90 956984 BRUSH HOLDER
93 994190 INTERNAL WIRE
95 930153 SUPPORT (B)
100 339675 TAIL COVER
101 337051 SWITCH
105 960266 CORD CLIP
107 940778 CORD ARMOR D10.7
108 337052 SUPPORT
111 339691 LEAF SPRING
112 339690 PUSHING BUTTON
113 337058 SWITCH LEVER
114 338175 HANDLE SHAFT
115 339699 HANDLE (A).(B) SET
116 339700 STOP LEVER ASS'Y
117 370913 SEAL PACKING
610 981840 GREASE (A) FOR HAMMER.HAMMER DRILL (30G)
611 308471 GREASE FOR HAMMER.HAMMER DRILL (70G)
613 980927 GREASE FOR HAMMER.HAMMER DRILL (500G)
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Hitachi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Hitachi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Hitachi H65SB3
5 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Diagram Hitachi H65SB3

Diagram Hitachi H65SB3

Download (313.67KB)

You might also like

HiKOKI Power Tools Italia S.p.a. SKU: 6302VV
Ball Bearing Hitachi 6302VV Genuine parts Hitachi, Ball Bearing 6302VV CMPS2S for Angle Grinders S 23UBY - G 23SR - G 23SS - G 23SW. Parts for the following products: - Angle Grinder Hitachi 230 mm S 23UBY - Angle Grinder Hitachi 230...
AVAILABLE €9.62
HiKOKI Power Tools Italia S.p.a. SKU: 940540
Brushe Cap for Routers Hitachi M12SA-M12V G Genuine part Hitachi, Brushes Cap for  Router M 12V2 - Mitre Saw CM12Y - Wall Chaser CM7MR - Angle Grinder G23SF - Angle Grinder G23SR Part for the...
AVAILABLE €1.78
HiKOKI Power Tools Italia S.p.a. SKU: 945932
Brush Terminal for Demolition Hammer H60MRV Hitachi genuine parts, Brush Terminal for Demolition Hammers H60KA - H60MC - H60MR - H60MRV - H65B2 - H70SA - H90SC - H90SE...
AVAILABLE €1.36
HiKOKI Power Tools Italia S.p.a. SKU: 956996
O-RING 1AS.60 for Hammer DH40MRY-DH45MR Genuine spare part Hitachi, O-RING 1AS.60 for Rotary Hammer DH40MRY - DH45MR - DH38MS. For the follows items: - Rotary Hammer DH40MRY - Rotary Hammer DH45MR - Rotary Hammer...
AVAILABLE €3.83
HiKOKI Power Tools Italia S.p.a. SKU: 310124
Damper for Demolition Hammers H60MRV-H45MR-H45MRY Hitachi genuine part, Damper for Demolition Hammers H60MRV - H45MR - H45MRY - DH40MRY - DH45MR - H45FRV - H45SR - DH45ME -H60MC. Part for the following items:...
Last items in stock €5.77
HiKOKI Power Tools Italia S.p.a. SKU: 323737
Collar for Demolition Hammer Hitachi H65SB2 Original replacement part Hitachi, Collar for Demolition Hammer Hitachi H65SB2. Part for the following items: - Demolition Hammer Hitachi H65SB2 - Demolition Hammer...
AVAILABLE €5.83
HiKOKI Power Tools Italia S.p.a. SKU: 339678
Hitachi H65SB3 Demolition Hammer Cylinder Case Original replacement part Hitachi HIKOKI, Cylinder Case - Barrel for Demolition Hammer H65SB3. Part for the following products . - Demolition Hammer H65SB3 - Codice :...
Last items in stock €124.46
HiKOKI Power Tools Italia S.p.a. SKU: 339683
Hitachi H65SB3 Front Cover Assy Original replacement part Hitachi HIKOKI, Front Cover Assy for Demolition Hammer H65SB3. Part for the following products . - Demolition Hammer H65SB3 - Codice : 339683
Last items in stock €141.48
Comments (0)
