Hitachi Spare Parts for Rotary Hammer DH40MC
Hitachi-HIKOKI Tanaka authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair issues for Rotary Hammer DH40MC.
In the following table, look for the model of the Rotary Hammer and their spare part.

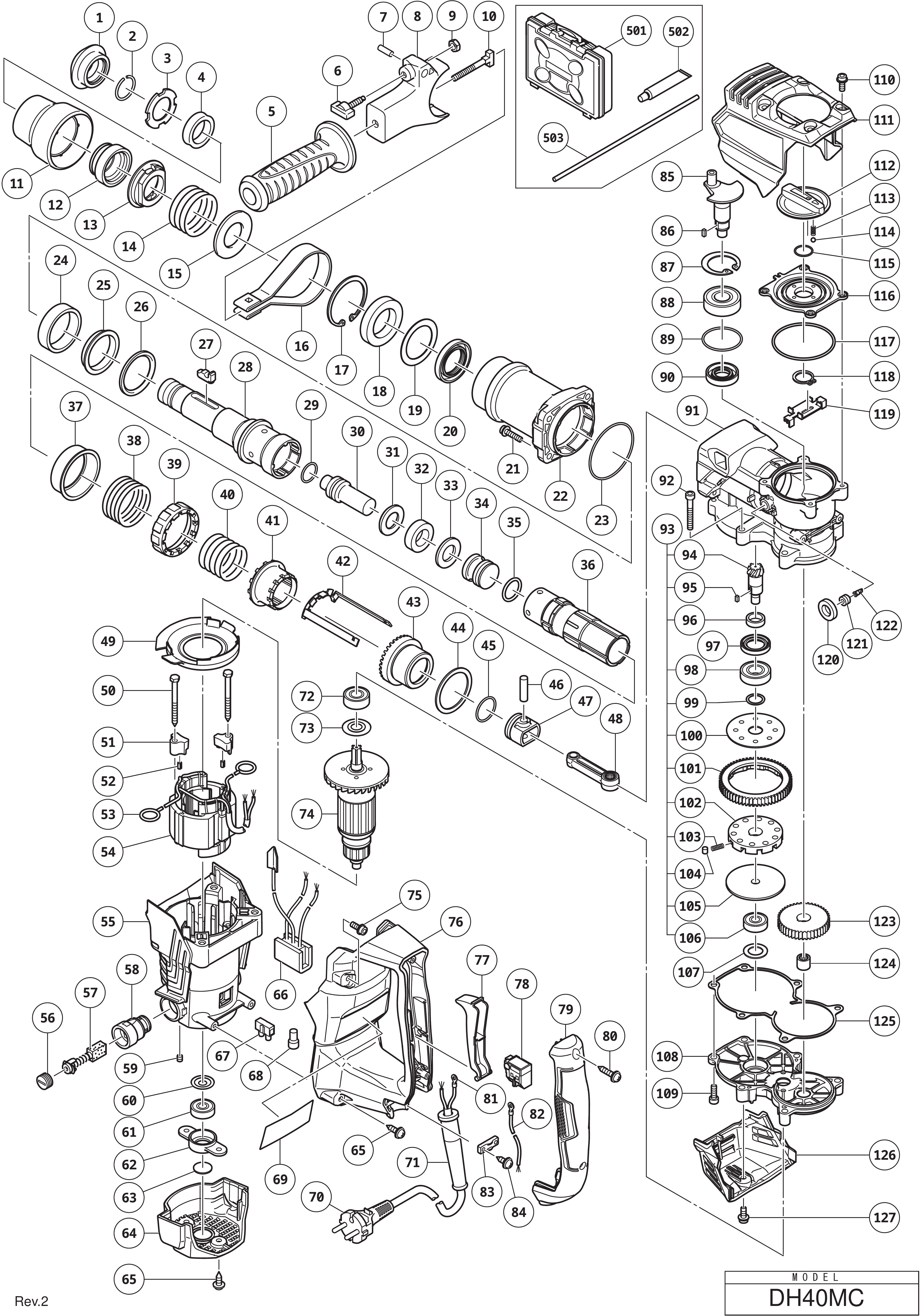

| Rotary Hammer DH40MC |
| # |
Part Num. |
Description |
| 1 |
371151 |
FRONT CAP |
| 2 |
331540 |
STOPPER RING |
| 3 |
371138 |
RETAINER WASHER |
| 4 |
371152 |
RETAINER DAMPER (A) |
| 5 |
330209 |
SIDE HANDLE |
| 6 |
337577 |
WING BOLT |
| 7 |
949859 |
ROLL PIN D2X8 |
| 8 |
371135 |
MOUNT |
| 9 |
949556 |
NUT M6 |
| 10 |
331247 |
HANDLE BOLT |
| 11 |
371133 |
GRIP |
| 12 |
371157 |
BIT LOCK HOLDER |
| 13 |
371159 |
THRUST PLATE |
| 14 |
371167 |
RETAINER SPRING |
| 15 |
371145 |
SPRING HOLDER (A) |
| 16 |
331246 |
BAND |
| 17 |
371141 |
RETAINING RING D55 |
| 18 |
6907DD |
BALL BEARING 6907DDU |
| 19 |
371142 |
BEARING WASHER |
| 20 |
371148 |
OIL SEAL |
| 22 |
371125 |
CYLINDER CASE |
| 23 |
956996 |
O-RING (1AS-60) |
| 24 |
371153 |
RETAINER DAMPER (B) |
| 25 |
371144 |
DAMPER SLEEVE |
| 26 |
371161 |
RETAINER DAMPER WASHER |
| 27 |
370654 |
BIT LOCK |
| 28 |
371155 |
RETAINER SLEEVE |
| 29 |
313396 |
O-RING (C) |
| 30 |
371160 |
SECOND HAMMER |
| 31 |
371163 |
DAMPER WASHER |
| 32 |
371316 |
DAMPER |
| 33 |
371164 |
DAMPER HOLDER |
| 34 |
371165 |
STRIKER |
| 35 |
986104 |
O-RING |
| 36 |
371156 |
CYLINDER |
| 37 |
331533 |
SPRING HOLDER (B) |
| 38 |
331534 |
LOCK SPRING |
| 39 |
331535 |
LOCK SLEEVE |
| 40 |
371166 |
CLUTCH SPRING |
| 41 |
371137 |
CLUTCH |
| 42 |
371147 |
SLIDER |
| 43 |
371158 |
BEVEL GEAR |
| 44 |
331234 |
THRUST WASHER |
| 45 |
986104 |
O-RING |
| 46 |
331221 |
PISTON PIN |
| 47 |
326369 |
PISTON |
| 48 |
371175 |
CONNECTING ROD |
| 49 |
371172 |
FAN GUIDE |
| 51 |
371123 |
STATOR HOLDER |
| 52 |
338755 |
RUBBER BUSH |
| 53 |
930703 |
BRUSH TERMINAL |
| *54 |
340963E |
STATOR ASS'Y 230V |
| 55 |
371174 |
HOUSING ASS'Y |
| 56 |
945161 |
BRUSH CAP |
| 57 |
999043 |
CARBON BRUSH (1 PAIR) |
| 57 |
999073 |
CARBON BRUSH (AUTO STOP TYPE) (1 PAIR) |
| 58 |
958900 |
BRUSH HOLDER |
| 60 |
958915 |
WASHER (A) |
| 61 |
629VVM |
BALL BEARING 629VV |
| 62 |
371139 |
BEARING HOLDER |
| 63 |
331547 |
DUST SEAL |
| 64 |
371127 |
TAIL COVER |
| 71 |
940778 |
CORD ARMOR D10.7 |
| 71 |
958049 |
CORD ARMOR D8.2 |
| 72 |
6201DD |
BALL BEARING 6201DDCMPS2L |
| 73 |
325003 |
DUST WASHER (B) |
| 74 |
361058E |
ARMATURE 230V |
| 75 |
994192 |
HEX. SOCKET HD. BOLT (W/FLANGE) M5X16 |
| 76 |
371129 |
HANDLE |
| 77 |
371128 |
TRIGGER |
| 78 |
371171 |
SWITCH |
| 79 |
371130 |
HANDLE COVER |
| 83 |
960266 |
CORD CLIP |
| 85 |
371136 |
CRANK SHAFT |
| 86 |
944109 |
FEATHER KEY 3X3X8 |
| 87 |
948391 |
RETAINING RING FOR D40 HOLE |
| 88 |
6203DD |
BALL BEARING 6203DDCMPS2L |
| 89 |
996363 |
O-RING (S-40) |
| 90 |
321274 |
OIL SEAL (B) |
| 91 |
371173 |
CRANK CASE |
| 93 |
371176 |
SLIP CLUTCH ASS'Y |
| 94 |
331211 |
BEVEL PINION |
| 95 |
944109 |
FEATHER KEY 3X3X8 |
| 96 |
321279 |
COLLAR |
| 97 |
313050 |
OIL SEAL (A) |
| 98 |
6002DD |
BALL BEARING 6002DDCMPS2L |
| 99 |
331213 |
WASHER |
| 100 |
331214 |
WASHER (A) |
| 101 |
331215 |
SECOND GEAR |
| 102 |
321281 |
GEAR HOLDER |
| 103 |
321282 |
SPRING (C) |
| 104 |
331217 |
NEEDLE |
| 105 |
331219 |
SPACER |
| 106 |
629VVM |
BALL BEARING 629VV |
| 107 |
331220 |
BEARING WASHER (C) |
| 108 |
371124 |
GEAR COVER |
| 111 |
371131 |
CRANK COVER |
| 112 |
371134 |
CHANGE LEVER |
| 113 |
371168 |
LEVER SPRING |
| 114 |
959149 |
STEEL BALL D4.76 |
| 115 |
878885 |
O-RING (S-18) |
| 116 |
371126 |
LEVER SHAFT HOLDER |
| 117 |
877315 |
CYLINDER O-RING (I.D 63.9) |
| 118 |
939547 |
RETAINING RING FOR D20 SHAFT |
| 119 |
371146 |
CHANGE PLATE |
| 120 |
371178 |
FELT PACKING (A) |
| 121 |
371179 |
CAP SCREW |
| 122 |
995396 |
VALVE |
| 123 |
371162 |
FIRST GEAR |
| 124 |
371169 |
NEEDLE BEARING |
| 125 |
371143 |
SEAL PACKING |
| 126 |
371132 |
HOOD |
| 502 |
981840 |
GREASE (A) FOR HAMMER.HAMMER DRILL (30G) |
| 503 |
335782 |
GREASE (A) FOR HAMMER.HAMMER DRILL (60G) |
| 504 |
308471 |
GREASE (A) FOR HAMMER.HAMMER DRILL (70G) |
| 505 |
980927 |
GREASE (A) FOR HAMMER.HAMMER DRILL (500G) |
