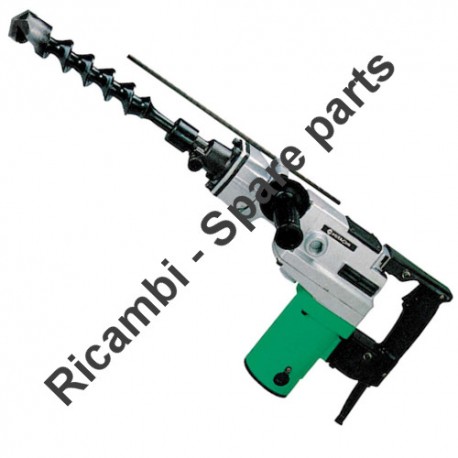

Hitachi Spare Parts for Rotary Hammer DH50SB

SKU: Hitachi DH50SB
€20.22
VAT included

Hitachi Spare Parts for Rotary Hammer DH50SB

We are Hitachi-HIKOKI Tanaka authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair issues for Rotary Hammer DH50SB.
Hitachi Spare Parts for Rotary Hammer DH50SB
  • Hitachi Spare Parts for Rotary Hammer DH50SB
  • Hitachi Spare Parts for Rotary Hammer DH50SB
HiKOKI Power Tools Italia S.p.a.

Hitachi Spare Parts for Rotary Hammer DH50SB

SKU: Hitachi DH50SB Condition: New
€20.22
VAT included

Hitachi Spare Parts for Rotary Hammer DH50SB

We are Hitachi-HIKOKI Tanaka authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair issues for Rotary Hammer DH50SB.
settings 93 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
93 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 993231 CYLINDER X DH50SA1-DH50SB €208.32
2
 photo_cameraImage coming soon 971750 FEATHER KEY 3X3X20 €3.30
3
 photo_cameraImage coming soon 993252 STANDARD HAMMER €46.54
4
 photo_cameraImage coming soon 985773 RING €7.98
5
 photo_cameraImage coming soon 955593 PIN €3.44
6
 photo_cameraImage coming soon 985772 PISTON FOR DH50SA / SA1 / SB €61.23
7
 photo_cameraImage coming soon 993247 CYLINDER CASE X DH50SA1 / SB €144.86
11
 photo_cameraImage coming soon 985779 O-RING (D) €2.87
12A
 photo_cameraImage coming soon 327733 NEEDLE BEARING TLA5520Z €26.50
13A
 photo_cameraImage coming soon 327736 THIRD GEAR €73.34
13
 photo_cameraImage coming soon 985775 * SUPPLY 327737 * €102.62
14
 Retaining Ring 12 mm for Hitachi Power Tools 939542 Retaining Ring 12 mm for Hitachi Power Tools €3.13
15
 photo_cameraImage coming soon 980756 NEEDLE BEARING (NSK AJ50 1203) €12.95
16
 photo_cameraImage coming soon 985771 CONROD W / BEARING DH50SA1 €43.65
20B
 photo_cameraImage coming soon 990146 SPACER €1.30
21A
 photo_cameraImage coming soon 991716 COVER €9.59
22
 photo_cameraImage coming soon 980749 GASKET €1.30
23
 photo_cameraImage coming soon 980744 O-RING (S-55) €3.20
24
 photo_cameraImage coming soon 985763 CRANKSHAFT €58.98
25
 photo_cameraImage coming soon 932815 WOODRUFF KEY 3X13 €1.39
26
 photo_cameraImage coming soon 948227 RETAINING RING FOR D47 HOLE €1.65
27
 photo_cameraImage coming soon 985765 O-RING (B) €2.44
28
 photo_cameraImage coming soon 6204DD BALL BEARING 6204DDCMPS2L €11.52
29
 photo_cameraImage coming soon 980750 GUIDE PLATE €22.11
30
 photo_cameraImage coming soon 980727 HANDLE RUBBER €17.93
33
 photo_cameraImage coming soon 986963 WASHER (C) €14.60
35
 photo_cameraImage coming soon 986961 SUPPORT €14.60
39
 photo_cameraImage coming soon 986277 INTERNAL CABLE €1.30
41
 photo_cameraImage coming soon 937623 BRUSH TERMINAL €1.33
42
 photo_cameraImage coming soon 985435 HOUSING COMPL. €94.09
44
 photo_cameraImage coming soon 983362 BRUSH HOLDER €7.45
45A
 Carbon Brushes for Hitachi Hammer DH45MR 999071 Carbon Brushes for Hitachi Hammer DH45MR €20.93
46
 Brushe Cap for Mixers Hitachi D13 - D13SA 961781 Brushe Cap for Mixers Hitachi D13 - D13SA €4.18
47
 photo_cameraImage coming soon 981959 COVER €2.87
52
 photo_cameraImage coming soon 985437 FINAL COVER €24.45
54
 photo_cameraImage coming soon 986892 RING €5.17
55
 photo_cameraImage coming soon 993241 SPRING HOUSING €18.67
56
 photo_cameraImage coming soon 943364 NEEDLE ROLLER D4X20 €1.30
57
 photo_cameraImage coming soon 993242 SPRING €1.71
58
 photo_cameraImage coming soon 993243 RING €7.98
63
 photo_cameraImage coming soon 993240 LOCK LEVER FOR DH50SB €58.20
64
 photo_cameraImage coming soon 993236 FRONT COVER X DH50SB €221.01
65
 photo_cameraImage coming soon 986896 O-RING (F) €1.71
66
 photo_cameraImage coming soon 986882 0-RING €10.18
68
 photo_cameraImage coming soon 993235 WASHER €12.38
69
 photo_cameraImage coming soon 993234 DAMPER €5.17
70
 photo_cameraImage coming soon 993233 WASHER €1.99
72
 photo_cameraImage coming soon 993244 SPECIAL SCREW €1.29
73
 photo_cameraImage coming soon 980735 * SEE 991713 * €1.30
73A
 photo_cameraImage coming soon 991713 GUIDE €1.30
74
 photo_cameraImage coming soon 980751 HANDLE GASKET €1.39
75
 photo_cameraImage coming soon 985469 GROMMET €9.57
78A
 Switch (A) 1 P Screw type) w/o Lock for Hammer DH50SB 992891 Switch (A) 1 P Screw type) w/o Lock for Hammer DH50SB €29.60
80
 photo_cameraImage coming soon 981869 SUPPORT €6.53
80A
 photo_cameraImage coming soon 990082 * SEE 312408 * €9.20
81A
 photo_cameraImage coming soon 993254 COMPLETE HANDLE (A) (B) €43.65
84
 Noise Suppressor for Angle Grinder Hitachi G12SA2 994273 Noise Suppressor for Angle Grinder Hitachi G12SA2 €9.62
88A
 photo_cameraImage coming soon 991711 DISTANCE PIECE (B) €1.33
92
 photo_cameraImage coming soon 960266 CORD CLIP €1.37
93
 photo_cameraImage coming soon 938307 PILLAR TERMINAL (OLD 938307Z / 512-31) €2.60
95
 photo_cameraImage coming soon 940778 CORD ARMOR D10.7 €3.43
96
 photo_cameraImage coming soon 714520 POWER CORD 5M 2X1.5 €15.00
98A
 photo_cameraImage coming soon 987020 MOTOR CARTER €63.61
100
 Needle Bearing for Demolition Hammers Hitachi DH 40/50MRY-DH45MR 939299 Needle Bearing for Demolition Hammers Hitachi DH 40/50MRY-DH45MR €13.81
101
 photo_cameraImage coming soon 985770 THIRD PINION €56.28
102
 O-Ring S-36 for Hammer Hitachi H25PV 984483 O-Ring S-36 for Hammer Hitachi H25PV €2.08
103
 photo_cameraImage coming soon 6202DD Ball Bearing 6202dd €7.97
104
 photo_cameraImage coming soon 985766 SECOND GEAR €68.67
105
 Steel Ball 6,35 mm for Hammers Hitachi 959150 Steel Ball 6,35 mm for Hammers Hitachi €3.48
106
 photo_cameraImage coming soon 985767 CLUTCH PLATE €37.84
107
 photo_cameraImage coming soon 985768 SPRING €2.60
108A
 photo_cameraImage coming soon 300042 NUT €15.85
108
 photo_cameraImage coming soon 985783 SPECIAL NUT €7.98
110
 photo_cameraImage coming soon 944516 BEARING WASHER (B) €1.23
111
 photo_cameraImage coming soon 629MC2 BALL BEARING 629MC2 €4.58
112
 Bearing Washer (C) for Hammer Hitachi DH40MA 944525 Bearing Washer (C) for Hammer Hitachi DH40MA €1.26
114
 photo_cameraImage coming soon 993248 GEAR COVER €55.26
115
 photo_cameraImage coming soon 6202VV BALL BEARING 6202VVCMPS2L €7.42
116
 photo_cameraImage coming soon 985439 SEAL €10.80
117
 photo_cameraImage coming soon 985438 SLEEVE €20.76
118
 photo_cameraImage coming soon 985482 FAN €7.33
119
 photo_cameraImage coming soon 985472E ARMATURE 220V DH50SA1 / SB H55SA €139.79
121
 photo_cameraImage coming soon 6200VV BALL BEARING 6200VVCMPS2L €6.22
122
 photo_cameraImage coming soon 986959 HANDLE A 'D' €68.67
123
 photo_cameraImage coming soon 985477 LATERAL GRIP €12.38
124
 photo_cameraImage coming soon 985464 COMPLETE HANDLE SUPPORT €20.76
125
 photo_cameraImage coming soon 985475 * SEE 985464 * €20.76
126
 photo_cameraImage coming soon 985476 * SEE 985464 * €20.76
127
 photo_cameraImage coming soon 949747 ROLL PIN D6X25 (10 PCS) €5.27
129
 photo_cameraImage coming soon 327737 SET THIRD GEAR DH50SA1 €102.62
501B
 photo_cameraImage coming soon 319784 CASE (PLASTIC) €119.07
505
 photo_cameraImage coming soon 981840 GREASE 30 GR €10.98
506A
 photo_cameraImage coming soon 971786 DEPTH DELIMITER €7.11
Page 2 local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
501B
 photo_cameraImage coming soon 319784 CASE (PLASTIC) €119.07
505
 photo_cameraImage coming soon 981840 GREASE 30 GR €10.98
506A
 photo_cameraImage coming soon 971786 DEPTH DELIMITER €7.11

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Hitachi Spare Parts for Rotary Hammer DH50SB

We are Hitachi-HIKOKI Tanaka authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair issues for Rotary Hammer DH50SB.

In the following table, look for the model of the hammer and the respective parts of the code.
Hitachi DH50SB

Spline Shank Rotary Hammer Hitachi DH50SB Pag.1
# Part Num. Description
1 993231 CYLINDER X DH50SA1-DH50SB
2 971750 WOODRUFF 3X3X20
3 993252 STANDARD HAMMER
4 985773 RING
5 955593 PIN
6 985772 PISTON FOR DH50SA / SA1 / SB
7 993247 CYLINDER CASE X DH50SA1 / SB
11 985779 O-RING (D)
12A 327733 NEEDLE BEARING TLA5520Z
13 985775 * SUPPLY 327737 *
13A 327736 THIRD GEAR
14 939542 RING TYPE C X SHAFTS D.12
15 980756 NEEDLES BEARING AJ501203
16 985771 CONROD W / BEARING DH50SA1
17 986960 HOLDER (A)
20B 990146 SPACER
21A 991716 COVER
22 980749 GASKET
23 980744 O-RING S.55
24 985763 CRANKSHAFT
25 932815 WOODRUFF 3X13
26 948227 RING TYPE C X HOLES D.47
27 985765 RING
28 6204DD BALL BEARING 6204DD
29 980750 GUIDE PLATE
30 980727 HANDLE DAMPER
33 986963 WASHER (C)
34 986962 SHAFT
35 986961 SUPPORT
36 944951 GRIP
39 986277 INTERNAL CABLE
40A 985471F STATOR - FIELDS 230V-240V H55SA
41 937623 TERMINAL
42 985435 HOUSING COMPL.
44 983362 BRUSH HOLDER
45A 999071 BRUSHE SET SELFLOCK (1 PAIR)
46 961781 BRUSH COVER
47 981959 COVER
52 985437 FINAL COVER
54 986892 RING
55 993241 SPRING HOUSING
56 943364 PLUG (NEW TYPE)
57 993242 SPRING
58 993243 RING
60 986894 BOLT M8X30 T.E.I.
61 986891 PLATE
62 986890 FRONT DAMPER(A)
63 993240 LOCK LEVER FOR DH50SB
64 993236 FRONT COVER X DH50SB
65 986896 O-RING
66 986882 O-RING
67 993232 SECOND HAMMER (DH50SB)
68 993235 WASHER
69 993234 DAMPER
70 993233 WASHER
71 957561 HITACHI LABEL
72 993244 SPECIAL SCREW
73 980735 * SEE 991713 *
73A 991713 GUIDE
74 980751 HANDLE GASKET
75 985469 GROMMET
77 983276Z INTERNAL CABLE
78A 992891 SWITCH
79 959141 JOINT
80 981869 SUPPORT
80A 990082 * SEE 312408 *
81A 993254 COMPLETE HANDLE (A) (B)
83 985474 WIRE SUPPORT
84 994273 NOISE SUPPRESSOR
85 959140 JOINT
88A 991711 SPACER
92 960266 CABLE CLAMP
93 938307 PILLAR TERMINAL (OLD 938307Z / 512-31)
95 940778 CABLE ARMOR 10.7
96 714520 CABLE 5M 2X1.5 WITH PLUG
98A 987020 MOTOR CARTER
99 985764 FIRST GEAR - DISCONTINUED
100 939299 NEEDLE BEARING M661
101 985770 THIRD PINION
102 984483 RING
103 6202DD BALL BEARING 6202DD
104 985766 SECOND GEAR
105 959150 STEEL BALL D.6,35
106 985767 CLUTCH PLATE
107 985768 SPRING
108 985783 SPECIAL NUT
108A 300042 NUT
109A 985033 SPECIAL SCREW M6X6 T.E.I.
110 944516 BEARING WASHER
111 629MC2 BALL BEARING 629MC2
112 944525 BEARING WASHER (C)
113 985769 SEAL
114 993248 GEAR COVER
115 6202VV BALL BEARING 6202VV
116 985439 SEAL
117 985438 SLEEVE
118 985482 FAN
119 985472E ARMATURE 220V DH50SA1 / SB H55SA
120 985436 WASHER
121 6200VV BALL BEARING 6200VVCM
122 986959 HANDLE A 'D'
123 985477 LATERAL GRIP
124 985464 COMPLETE HANDLE SUPPORT
125 985475 * SEE 985464 *
126 985476 * SEE 985464 *
127 949747 ROLL PIN D6X25
128 985465 HANDLE BOLT
129 327737 SET THIRD GEAR DH50SA1
STANDARD ACCESSORIES Pag.2
501B 319784 CASE (PLASTIC)
502 956259 HANDLE L
503 872422 HEX KEY
504 993245 DUST COVER
505 981840 GREASE PACK OF 30G
506A 971786 DEPTH DELIMITER
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Hitachi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to hitachi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Hitachi DH50SB
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Diagram Hitachi DH50SB

Diagram Hitachi DH50SB

Download (415.38KB)

You might also like

Carbon Brushes for Hitachi Hammer DH45MR
HiKOKI Power Tools Italia S.p.a. SKU: 999071
Carbon Brushes for Hitachi Hammer DH45MR
Carbon Brushes for Hitachi Hammer DH45MR Genuine part Hitachi, Carbon Brushe Set for Rotary Hammer DH45MR. Part for the following products: -  Rotary Hammer DH45MR - Code : 999071
AVAILABLE €20.93
Details
Needle Bearing for Demolition Hammers Hitachi DH 40/50MRY-DH45MR
HiKOKI Power Tools Italia S.p.a. SKU: 939299
Needle Bearing for Demolition Hammers Hitachi DH 40/50MRY-DH45MR
Needle Bearing for Demolition Hammers Hitachi DH 40/50MRY-DH45MR Genuine part HITACHI, Needle Bearing M661 for Demolition Hammers H45MR - H45MRY - H45FRV - H45SR - DH40MRY - DH45MR - H41MB - H25PV - DH30PC2 - DH38MS - DH50MRY - PR-38E....
AVAILABLE €13.81
Details
Steel Ball 6,35 mm for Hammers Hitachi
HiKOKI Power Tools Italia S.p.a. SKU: 959150
Steel Ball 6,35 mm for Hammers Hitachi
Steel Ball 6,35 mm for Hammers Hitachi Hitachi genuine parts, steel ball diameter MM 6,35, Box 10 Pcs for Demolition Hammers and Percussion drills, H45MR - H45MRY - H41MB - H60MC - D13VG - DV16V-20VB2. Suitable for the following...
AVAILABLE €3.48
Details
O-Ring S-36 for Hammer Hitachi H25PV
HiKOKI Power Tools Italia S.p.a. SKU: 984483
O-Ring S-36 for Hammer Hitachi H25PV
O-Ring S-36 for Hammer Hitachi H25PV Genuine parts Hitachi, O-Ring S-36 for Hammer Class 3.5 Kg H25PV - Nailing Hitachi NV50AH - NV90HMC For the following items: - Demolition Hammer Hitachi Class 3.5 Kg H25PV - Nailer Hitachi NV50AH -...
AVAILABLE €2.08
Details
Noise Suppressor for Angle Grinder Hitachi G12SA2
HiKOKI Power Tools Italia S.p.a. SKU: 994273
Noise Suppressor for Angle Grinder Hitachi G12SA2
Noise Suppressor for Angle Grinder Hitachi G12SA2 Genuine replacement part Hitachi, Noise Suppressor for Angle Grinders Hitachi G12SA2 - G12S2 - G12SG - G 13SR3 - G 13SB3 - Polisher Sander SAT180 -  Reciprocating Saw CR13VC. Part for...
AVAILABLE €9.62
Details
Brushe Cap for Mixers Hitachi D13 - D13SA
HiKOKI Power Tools Italia S.p.a. SKU: 961781
Brushe Cap for Mixers Hitachi D13 - D13SA
Brushe Cap for Mixers Hitachi D13 - D13SA Genuine part Hitachi, Brushe Cap for Mixers D13 - D13SA - Circular Saws C9U - C0U2 - C9U3 - Core-Drill DC12V - Rotary Hammers DH50SA1 - DH50SB - Demolition Hammer H55SA Part for the following...
AVAILABLE €4.18
Details
Switch (A) 1 P Screw type) w/o Lock for Hammer DH50SB
HiKOKI Power Tools Italia S.p.a. SKU: 992891
Switch (A) 1 P Screw type) w/o Lock for Hammer DH50SB
Switch (A) 1 P Screw type) w/o Lock for Hammer DH50SB Original replacement part Hitachi, Switch (A) 1 P Screw type) w/o Lock for Demolition Hammers DH28Y - DH38YA - DH38YE - DH50SA...
on 7/10 Business Days Approx €29.60
Details
Bearing Washer (C) for Hammer Hitachi DH40MA
HiKOKI Power Tools Italia S.p.a. SKU: 944525
Bearing Washer (C) for Hammer Hitachi DH40MA
Bearing Washer (C) for Demolition Hammer Hitachi DH40MA Original replacement part Hitachi HIKOKI, Bearing Washer (C) for Demolition Hammer DH40SA - DH40YB - DH40MA. Part for the following items : -  Demolition Hammer DH40SA -...
on 7/10 Business Days Approx €1.26
Details
Comments (0)
