Hitachi Spare Parts for Demolition Hammer H90SG

SKU: Hitachi H90SG
€8.96
VAT included

Hitachi Spare Parts for Demolition Hammer H90SG

Hitachi-HIKOKI Tanaka authorized service center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Demolition Hammer H90SG.
Hitachi Spare Parts for Demolition Hammer H90SG
  • Hitachi Spare Parts for Demolition Hammer H90SG
  • Hitachi Spare Parts for Demolition Hammer H90SG

Hitachi Spare Parts for Demolition Hammer H90SG

SKU: Hitachi H90SG Condition: New
€8.96
VAT included

Hitachi Spare Parts for Demolition Hammer H90SG

Hitachi-HIKOKI Tanaka authorized service center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Demolition Hammer H90SG.
settings 90 spare parts

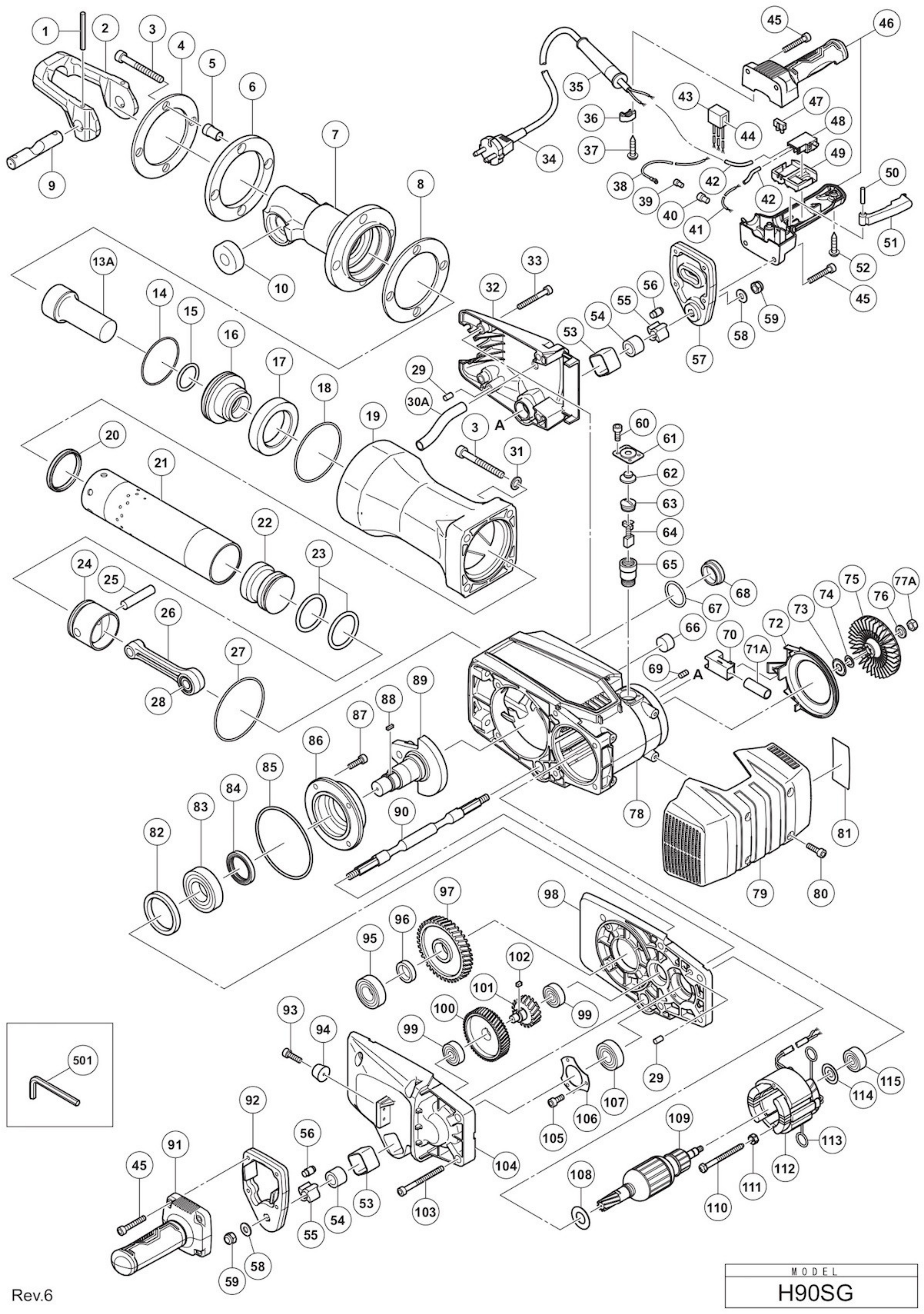

description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

79 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 994416 ROLL PIN D6X55 €1.40
2
photo_cameraImage coming soon 337040 RETAINER €64.05
4
photo_cameraImage coming soon 337037 DAMPER PLATE €16.84
5
photo_cameraImage coming soon 337036 COLLAR €4.32
6
photo_cameraImage coming soon 337035 FRONT DAMPER (A) €8.01
7
photo_cameraImage coming soon 337030 FRONT COVER €171.74
8
photo_cameraImage coming soon 337034 FRONT DAMPER (B) €5.14
9
photo_cameraImage coming soon 337041 LEVER PIN €23.30
10
photo_cameraImage coming soon 337039 RETAINER DAMPER (A) €2.29
13A
photo_cameraImage coming soon 370004 SECOND HAMMER €98.42
14
photo_cameraImage coming soon 992865 RING €10.52
15
photo_cameraImage coming soon 337032 O-RING (A) €7.76
16
photo_cameraImage coming soon 337031 HAMMER HOLDER €37.00
17
photo_cameraImage coming soon 992859 SHOCK ABSORBER RING €31.80
18
photo_cameraImage coming soon 337029 O-RING (C) €2.04
19
photo_cameraImage coming soon 337026 CYLINDER CASE €177.70
20
photo_cameraImage coming soon 337025 CYLINDER DAMPER €1.37
21
photo_cameraImage coming soon 337023 CYLINDER €154.72
22
photo_cameraImage coming soon 337024 STRIKER €21.14
23
photo_cameraImage coming soon 337021 0-RING €14.28
24
photo_cameraImage coming soon 337020 PISTON €26.83
25
photo_cameraImage coming soon 337022 PISTON PIN €7.37
26
photo_cameraImage coming soon 337019 CONNECTING ROD ASS'Y €39.26
27
photo_cameraImage coming soon 319685 O-RING €8.94
28
photo_cameraImage coming soon 956485 ROLLER BEARING RLM2220 €20.34
29
photo_cameraImage coming soon 949480 PIN D8X14 (10 PCS) €4.65
32
photo_cameraImage coming soon 337012 FAN COVER ASS'Y €24.43
34
photo_cameraImage coming soon 714520 POWER CORD 5M 2X1.5 €15.00
35
photo_cameraImage coming soon 940778 CORD ARMOR D10.7 €3.43
36
photo_cameraImage coming soon 960266 CORD CLIP €1.37
44
Noise Suppressor for Angle Grinders Hitachi G12SS - G12SN 317491 Noise Suppressor for Angle Grinders Hitachi G12SS - G12SN €10.74
46
photo_cameraImage coming soon 337057 HANDLE (A).(B) SET €15.84
48
photo_cameraImage coming soon 337051 SWITCH €18.64
49
photo_cameraImage coming soon 337052 SUPPORT €4.44
50
photo_cameraImage coming soon 337363 PIN D6X28 €5.24
51
photo_cameraImage coming soon 337058 SWITCH LEVER €1.83
53
photo_cameraImage coming soon 337013 HOLDER (B) €2.10
55
photo_cameraImage coming soon 337044 HOLDER (A) €12.90
56
photo_cameraImage coming soon 337045 HANDLE DAMPER (A) €3.56
57
photo_cameraImage coming soon 337046 HANDLE HOLDER (B) €26.23
62
photo_cameraImage coming soon 992894 RUBBER CAP €5.17
63
photo_cameraImage coming soon 937949 BRUSH CAP €1.68
64
photo_cameraImage coming soon 999086 CARBON BRUSH (AUTO STOP TYPE) (1 PAIR) €10.92
65
photo_cameraImage coming soon 305597 BRUSH HOLDER €8.61
67
photo_cameraImage coming soon 980717 O-RING (S-38) €1.70
68
photo_cameraImage coming soon 990945 OIL CAP ASS'Y €4.86
70
photo_cameraImage coming soon 336999 SLEEVE €1.46
72
photo_cameraImage coming soon 337010 FAN GUIDE €2.46
73
photo_cameraImage coming soon 337387 DUST WASHER (FW) €1.84
74
photo_cameraImage coming soon 337386 RUBBER WASHER (FW) €1.85
75
photo_cameraImage coming soon 337011 FAN €5.03
78
photo_cameraImage coming soon 336996 HOUSING ASS'Y €135.83
79
photo_cameraImage coming soon 337018 HOUSING COVER €14.93
82
photo_cameraImage coming soon 337003 DISTANCE RING (C) €18.26
83
photo_cameraImage coming soon 6207VV BALL BEARING 6207VVCMPS2S €14.47
84
photo_cameraImage coming soon 337364 OIL SEAL €12.96
85
photo_cameraImage coming soon 337004 0-RING €2.74
86
photo_cameraImage coming soon 337002 BEARING BOSS €13.96
88
photo_cameraImage coming soon 931008 FEATHER KEY 4X4X12 €1.28
89
photo_cameraImage coming soon 337005 CRANK SHAFT €37.79
90
photo_cameraImage coming soon 337043 HANDLE SHAFT €23.21
91
photo_cameraImage coming soon 337059 SIDE HANDLE €14.73
92
photo_cameraImage coming soon 337047 HANDLE HOLDER (A) €22.49
94
photo_cameraImage coming soon 305629 LOCK €9.36
95
photo_cameraImage coming soon 6205VV Bearing A SFERE 6205VV €8.58
96
photo_cameraImage coming soon 337007 DISTANCE RING (A) €2.77
97
photo_cameraImage coming soon 337006 FINAL GEAR €30.30
98
photo_cameraImage coming soon 337000 INNER COVER €29.41
99
photo_cameraImage coming soon 6301VV BALL BEARING 6301VVCMPS2L €12.55
100
photo_cameraImage coming soon 337015 FIRST GEAR €22.38
101
photo_cameraImage coming soon 337014 SECOND GEAR €33.15
103
photo_cameraImage coming soon 992851 BOLT M10X60 €2.83
104
photo_cameraImage coming soon 337016 GEAR COVER ASS'Y €36.09
107
photo_cameraImage coming soon 6204DD BALL BEARING 6204DDCMPS2L €11.52
109
photo_cameraImage coming soon 360974E ARMATURE 220V-230V €97.48
112
photo_cameraImage coming soon 340876E STATOR ASS'Y 220V-230V €58.22
113
Brush Terminal for Demolition Hammer H60MRV 945932 Brush Terminal for Demolition Hammer H60MRV €1.36
115
Ball Bearing Hitachi 6301DD 6301DD Ball Bearing Hitachi 6301DD €11.16
601
photo_cameraImage coming soon 980927 GREASE 500 GR €84.44

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Hitachi Spare Parts for Demolition Hammer H90SG

Hitachi-HIKOKI Tanaka authorized service center

 and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Demolition Hammer H90SG.

In the following table, look for the model of the Demolition Hammer and the respective parts of the code.
Hitachi H90SG

Demolition Hammer Hitachi H90SG
# Part Num. Description
1 994416 ROLL PIN D6X55
2 337040 RETAINER
4 337037 DAMPER PLATE
5 337036 COLLAR
6 337035 FRONT DAMPER (A)
7 337030 FRONT COVER
8 337034 FRONT DAMPER (B)
9 337041 LEVER PIN
10 337039 RETAINER DAMPER (A)
13A 370004 SECOND HAMMER
14 992865 ANELLO
15 337032 O-RING (A)
16 337031 HAMMER HOLDER
17 992859 ANELLO AMMORTIZZATORE
18 337029 O-RING (C)
19 337026 CYLINDER CASE
20 337025 CYLINDER DAMPER
21 337023 CYLINDER
22 337024 STRIKER
23 337021 O-RING
24 337020 PISTON
25 337022 PISTON PIN
26 337019 CONNECTING ROD ASS'Y
27 319685 O-RING VB16Y
28 956485 CUSCINETTO A RULLI RLM2220
29 949480 PIN D8X14
31 337027 WASHER D12
32 337012 FAN COVER ASS'Y
34 714520 CORD 5M 2X1.5 WITH PLUG
35 940778 CORD ARMOR D10.7
36 960266 MORSETTO SERRAFILI
43 930153 SPUGNETTA
44 317491 NOISE SUPPRESSOR
46 337057 HANDLE (A).(B) SET
48 337051 SWITCH
49 337052 SUPPORT
50 337363 PIN D6X28
51 337058 SWITCH LEVER
53 337013 HOLDER (B)
54 337042 HANDLE DAMPER (B)
55 337044 HOLDER (A)
56 337045 HANDLE DAMPER (A)
57 337046 HANDLE HOLDER (B)
61 337017 CAP COVER
62 992894 RUBBER CAP
63 937949 BRUSH CAP
64 999086 CARBON BRUSH (AUTO STOP TYPE) (1 PAIR)
65 305597 PORTASPAZZOLA
66 336997 FELT PACKING
67 980717 O-RING S.38
68 990945 OIL CAP
70 336999 SLEEVE
72 337010 FAN GUIDE
73 337387 DUST WASHER (FW)
74 337386 RUBBER WASHER (FW)
75 337011 FAN
78 336996 HOUSING ASS'Y
79 337018 HOUSING COVER
82 337003 DISTANCE RING (C)
83 6207VV BALL BEARING 6207VVCMPS2S
84 337364 OIL SEAL
85 337004 O-RING
86 337002 BEARING BOSS
88 931008 CHIAVETTA 4X4X12
89 337005 CRANK SHAFT
90 337043 HANDLE SHAFT
91 337059 SIDE HANDLE
92 337047 HANDLE HOLDER (A)
94 305629 FERMO
95 6205VV CUSCINETTO A SFERE 6205VV
96 337007 DISTANCE RING (A)
97 337006 FINAL GEAR
98 337000 INNER COVER
99 6301VV BALL BEARING 6301VV
100 337015 FIRST GEAR
101 337014 SECOND GEAR
102 984487 WUDROOF 5X5X8
103 992851 BULLONE M10X60
104 337016 GEAR COVER ASS'Y
106 337001 BEARING COVER (A)
107 6204DD CUSCINETTO A SFERE 6204DD
108 337008 BEARING WASHER (A)
109 360974E ARMATURE 220V-230V
111 956764 RONDELLA SPECIALE
112 340876E STATOR ASS'Y 220V-230V
113 945932 TERMINALE SPAZZOLA
114 337009 BEARING WASHER (B)
115 6301DD CUSCINETTO A SFERE 6301DD
STANDARD ACCESSORIES
501 944459 HEX. BAR WRENCH 5MM
OPTIONAL ACCESSORIES
601 980927 GREASE FOR HAMMER.HAMMER DRILL (500G)
