Hitachi Spare Parts for Cordless Jig Saw CJ18DSL

SKU: Hitachi CJ18DSL
€2.77
VAT included

Hitachi Spare Parts for Cordless Jig Saw CJ18DSL

Hitachi-Koky genuine spare parts or replacement parts for to repair Cordless JIG Saw CJ18DSL.
Cordless Jigsaw with two 4.0Ah lithium batteries with a range increased by 33% with slide attack. Presents an innovative cutting system orbital geometry optimized (such as the CJ110MV) and cybernetic design.
Hitachi Spare Parts for Cordless Jig Saw CJ18DSL
  • Hitachi Spare Parts for Cordless Jig Saw CJ18DSL
  • Hitachi Spare Parts for Cordless Jig Saw CJ18DSL
HiKOKI Power Tools Italia S.p.a.

Hitachi Spare Parts for Cordless Jig Saw CJ18DSL

SKU: Hitachi CJ18DSL Condition: New
€2.77
VAT included

Hitachi Spare Parts for Cordless Jig Saw CJ18DSL

Hitachi-Koky genuine spare parts or replacement parts for to repair Cordless JIG Saw CJ18DSL.
Cordless Jigsaw with two 4.0Ah lithium batteries with a range increased by 33% with slide attack. Presents an innovative cutting system orbital geometry optimized (such as the CJ110MV) and cybernetic design.
settings 40 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
40 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

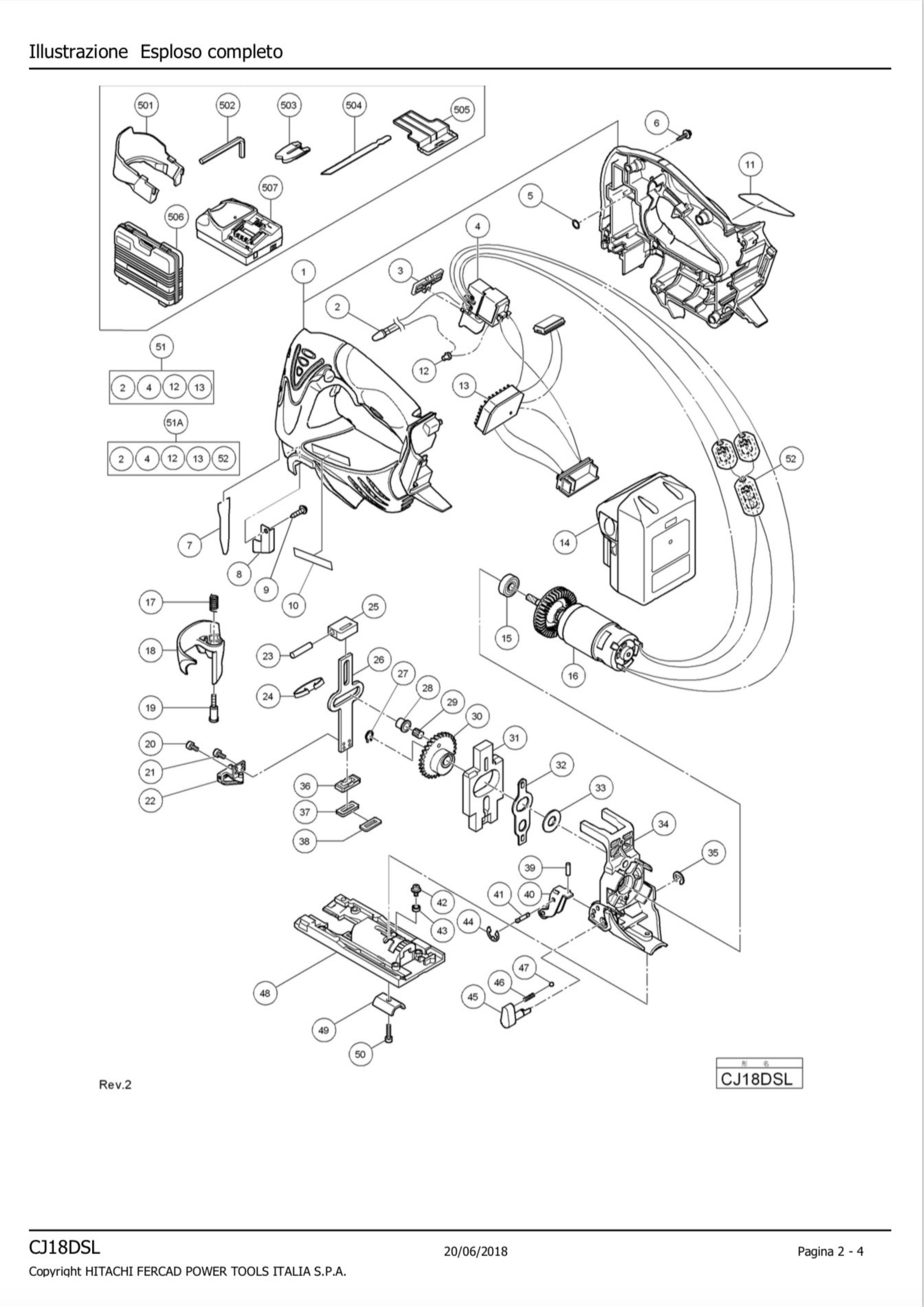

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 330071 HOUSING COMPL. CJ18DSL €43.71
2
 photo_cameraImage coming soon 328336 LED €13.12
3
 photo_cameraImage coming soon 319760 PUSHING BUTTON €2.27
4
 photo_cameraImage coming soon 328335 DC-SPEED CONTROL SWITCH €57.91
5
 photo_cameraImage coming soon 984528 O-RING (P6) €1.58
7
 photo_cameraImage coming soon 328349 GUARD BAR €1.65
8
 photo_cameraImage coming soon 321592 FENCE €2.27
13
 photo_cameraImage coming soon 330070 ELECTRONIC CONTROL CJ18DSL €65.56
15
 photo_cameraImage coming soon 608VVM BALL BEARING 608VVC2PS2L €7.12
16
 Motor 18 V for Cordless Jigsaw Hitachi CJ18DL 328361 Motor 18 V for Cordless Jigsaw Hitachi CJ18DL €62.67
17
 Spring for Jigsaw Hitachi CJ14DSL 321580 Spring for Jigsaw Hitachi CJ14DSL €1.84
18
 Release Lever for Codless Jigsaw CJ14-18/DSL 328347 Release Lever for Codless Jigsaw CJ14-18/DSL €9.76
19
 photo_cameraImage coming soon 328348 LEVER BOLT €3.29
22
 photo_cameraImage coming soon 325076 BLADE HOLDER €18.58
23
 photo_cameraImage coming soon 983564 PIN D6 €3.84
24
 Plate Spring for Jigsaws Hitachi CJ110MV-MVA 325071 Plate Spring for Jigsaws Hitachi CJ110MV-MVA €6.97
25
 photo_cameraImage coming soon 325070 PLUNGER HOLDER (A) €8.63
26
 photo_cameraImage coming soon 328343 PLUNGER €10.94
27
 photo_cameraImage coming soon 994251 RETAINING RING FOR D7 SHAFT €1.65
28
 photo_cameraImage coming soon 328342 CONNECTING PIECE €1.65
29
 photo_cameraImage coming soon 325242 NEEDLE BEARING €6.02
30
 photo_cameraImage coming soon 328341 GEAR €25.14
31
 photo_cameraImage coming soon 328340 BALANCE WEIGHT €36.06
32
 photo_cameraImage coming soon 328339 ORBITAL CAM €8.75
34
 photo_cameraImage coming soon 328328 GEAR HOLDER €57.80
36
 photo_cameraImage coming soon 328344 PLUNGER HOLDER (B) €1.65
37
 photo_cameraImage coming soon 328346 PACKING COVER €1.65
38
 photo_cameraImage coming soon 328345 PACKING €1.65
39
 photo_cameraImage coming soon 328329 NEEDLE ROLLER €1.65
40
 photo_cameraImage coming soon 328330 ROLLER HOLDER €21.86
41
 PIN for Jigsaw Hitachi CJ14DL 328331 PIN for Jigsaw Hitachi CJ14DL €5.43
43
 Rubber Bushing for Jigsaw Hitachi CJ110MVA 321576 Rubber Bushing for Jigsaw Hitachi CJ110MVA €2.46
44
 photo_cameraImage coming soon 872971 RETAINING RING (E-TYPE) FOR D3 SHAFT €1.33
45
 photo_cameraImage coming soon 328332 CHANGE KNOB €11.92
47
 photo_cameraImage coming soon 959155 STEEL BALL D3.97 €1.35
48
 Base for Jigsaw Hitachi CJ120VA 321573 Base for Jigsaw Hitachi CJ120VA €29.36
49
 photo_cameraImage coming soon 321575 BASE LOCKER €2.01
501
 photo_cameraImage coming soon 328352 CHIP COVER €4.02
505
 photo_cameraImage coming soon 329897 BATTERY PROTECTION €2.20
506
 photo_cameraImage coming soon 328351 HOMES €62.77
Page 2 local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
501
 photo_cameraImage coming soon 328352 CHIP COVER €4.02
505
 photo_cameraImage coming soon 329897 BATTERY PROTECTION €2.20
506
 photo_cameraImage coming soon 328351 HOMES €62.77

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Hitachi Spare Parts for Cordless Jig Saw CJ18DSL

Hitachi-Koky genuine spare parts or replacement parts for to repair Cordless JIG Saw CJ18DSL.
Cordless Jigsaw with two 4.0Ah lithium batteries with a range increased by 33% with slide attack. Presents an innovative cutting system orbital geometry optimized (such as the CJ110MV) and cybernetic design.

In the following table, look for the model of the Cordless JIG saw and their spare part.
Hitachi CJ18DSL

Cordless Jigsaw CJ18DSL Parts List Pag.1
# Part Num. Description
1 330071 HOUSING COMPL. CJ18DSL
2 328336 LED CJ14/18DL
3 319760 BUTTON
4 328335 SWITCH CJ14/18DL
5 984528 O-RING (P6)
7 328349 PROTECTION ROD
8 321592 FRONT COVER SUPPORT CJ110MV-MVA
12 959140 JOINT
13 330070 ELECTRONIC CONTROL CJ18DSL
15 608VVM BALL BEARING 608VVM
16 328361 MOTOR CJ18DL
17 321580 SPRING
18 328347 LEVER
19 328348 LEVER PIN CJ14/18DL
22 325076 BLADE SUPPORT CJ110MV-MVA
23 983564 PIN
24 325071 SPRING PLATE CJ110MV-MVA
25 325070 SPINDLE SUPPORT CJ110MV-MVA
26 328343 SPINDLE CJ14/18DL
27 994251 RING
28 328342 BUSH
29 325242 NEEDLE BEARING CJ110MV-MVA
30 328341 GEAR CJ14/18DL
31 328340 BALANCE WEIGHT CJ14/18DL
32 328339 ORBITAL CAM CJ14/18DL
33 957540 WASHER
34 328328 GEAR SUPPORT CJ14/18DL
35 673489 RING TYPE AND X TREES D.5
36 328344 SPINDLE GUIDE CJ14/18DL
37 328346 GASKET SUPPORT CJ14/18DL
38 328345 GASKET CJ14/18DL
39 328329 PIN CJ14/18DL
40 328330 ROLLER SUPPORT CJ14/18DL
41 328331 PIN CJ110MV/MVA
43 321576 RUBBER RING
44 872971 RING TYPE AND X TREES D.3
45 328332 SELECTOR LEVER CJ14/18DL
46 982454 SPRING (C)
47 959155 STEEL BALL D.3969 (10PZ)
48 321573 BASE
49 321575 CLOSING BRACKET * 339663
51A 334877 COMPLETE SWITCH
STANDARD ACCESSORIES Pag.2
501 328352 SAFETY PROTECTION
502 944458 ALLEN KEY
503 321590 PROTECTION
504 879357 JIG SAW BLADES NO.41 (5 PCS.)
505 329897 BATTERY COVER
506 328351 HOMES
507 CHARGER (MODULE UC 18YRSL)
