HiKOKI Power Tools Italia S.p.a.

Hitachi Spare Parts for Rotary Hammer Drill DH26PB

SKU: Hitachi DH26PB
€2.24
VAT included

Hitachi Spare Parts for Rotary Hammer Drill DH26PB

We have the original Spares for Hitachi-HIKOKI Spare Parts for Rotary Hammer Drill DH26PB, the diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your Rotary Hammer Drill DH26PB. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts Guarantee.
Hitachi Spare Parts for Rotary Hammer Drill DH26PB
  • Hitachi Spare Parts for Rotary Hammer Drill DH26PB
  • Hitachi Spare Parts for Rotary Hammer Drill DH26PB
HiKOKI Power Tools Italia S.p.a.

Hitachi Spare Parts for Rotary Hammer Drill DH26PB

SKU: Hitachi DH26PB Condition: New
€2.24
VAT included

Hitachi Spare Parts for Rotary Hammer Drill DH26PB

We have the original Spares for Hitachi-HIKOKI Spare Parts for Rotary Hammer Drill DH26PB, the diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your Rotary Hammer Drill DH26PB. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts Guarantee.
settings 76 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
76 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

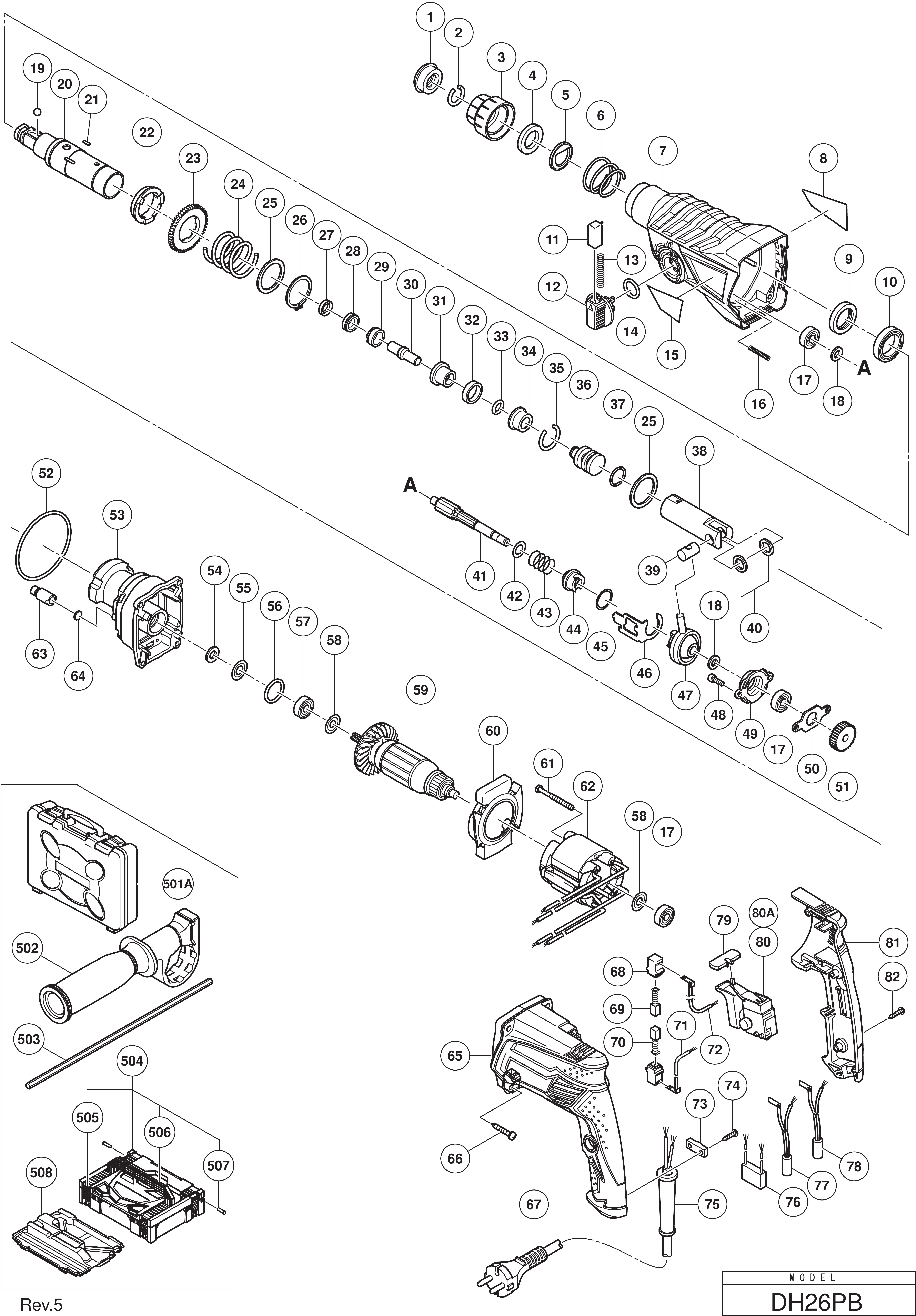

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 Front Cap for Rotary Hammers Hitachi DH22/28 306345 Front Cap for Rotary Hammers Hitachi DH22/28 €4.18
2
 Stopper Ring for Hammers Hitachi 306340 Stopper Ring for Hammers Hitachi €2.08
3
 photo_cameraImage coming soon 324527 GRIP €3.78
4
 photo_cameraImage coming soon 324528 BALL HOLDER €7.34
5
 photo_cameraImage coming soon 324526 Support Thrust Dh24dva €1.46
6
 photo_cameraImage coming soon 322812 Spring Gate Punta €2.05
7
 photo_cameraImage coming soon 335258 PROTECTION L3709-115 HEADSET €10.57
9
 photo_cameraImage coming soon 335259 OIL SEAL €4.06
10
 photo_cameraImage coming soon 335260 BALL BEARING 6805DD €4.66
11
 photo_cameraImage coming soon 322789 BACK PANEL €5.86
12
 photo_cameraImage coming soon 334011 CHANGE LEVER €3.12
13
 photo_cameraImage coming soon 317223 PUSHING SPRING €2.22
14
 O-Ring S-18 for Rotary Hammers Hitachi DH24PC3-PD3 878885 O-Ring S-18 for Rotary Hammers Hitachi DH24PC3-PD3 €1.34
17
 photo_cameraImage coming soon 608VVM BALL BEARING 608VVC2PS2L €7.12
19
 Steel Ball 7 mm for Hammers Hitachi DH24-26-28 335300 Steel Ball 7 mm for Hammers Hitachi DH24-26-28 €3.48
20
 Cylinder for Rotary Hammer Hitachi DH24PG 335261 Cylinder for Rotary Hammer Hitachi DH24PG €30.57
22
 Cylinder Clutch for Rotative Hammer Hitachi DH26PB 335263 Cylinder Clutch for Rotative Hammer Hitachi DH26PB €17.55
23
 photo_cameraImage coming soon 335265 SECOND GEAR €8.91
24
 photo_cameraImage coming soon 335266 PROTECTION L3709-125 HEADSET €11.19
25
 photo_cameraImage coming soon 301679 WASHER (A) €2.18
26
 photo_cameraImage coming soon 948310 RETAINING RING FOR D30 SHAFT €1.71
27
 Oil Seal mm 9,5x16x4 for Rotary Hammer Hitachi DH24PG 335262 Oil Seal mm 9,5x16x4 for Rotary Hammer Hitachi DH24PG €2.63
28
 photo_cameraImage coming soon 335268 HAMMER HOLDER (C) €13.24
29
 photo_cameraImage coming soon 335795 SLEEVE (FW) €5.85
30
 photo_cameraImage coming soon 335269 SECOND HAMMER €5.48
31
 photo_cameraImage coming soon 335267 HAMMER HOLDER (A) €4.17
32
 photo_cameraImage coming soon 322805 DAMPER (A) €2.05
33
 photo_cameraImage coming soon 322808 O-RING (C) €2.02
34
 photo_cameraImage coming soon 324524 DAMPER HOLDER €7.80
35
 photo_cameraImage coming soon 322807 STOPPER RING €2.05
36
 photo_cameraImage coming soon 335246 STRIKER €5.77
37
 photo_cameraImage coming soon 335247 O-Ring D17 €3.63
38
 Piston for Hammers Hitachi DH24-26-28PC 335255 Piston for Hammers Hitachi DH24-26-28PC €23.72
39
 photo_cameraImage coming soon 335793 PISTON PIN €4.62
40
 photo_cameraImage coming soon 335794 PISTON WASHER €1.66
41
 photo_cameraImage coming soon 335248 Second Shaft €12.19
42
 photo_cameraImage coming soon 335251 Washer (C) €2.02
43
 photo_cameraImage coming soon 323182 CLUTCH SPRING €2.05
44
 photo_cameraImage coming soon 335254 CLUTCH €5.44
45
 photo_cameraImage coming soon 331315 WASHER €1.62
46
 photo_cameraImage coming soon 335252 Change Plate €2.29
47
 photo_cameraImage coming soon 335249 RECIPROCATING BEARING €19.44
49
 photo_cameraImage coming soon 335270 BEARING HOLDER €20.31
50
 photo_cameraImage coming soon 335271 BEARING COVER €2.02
51
 photo_cameraImage coming soon 335253 FIRST GEAR €12.19
52
 O-Ring D 72.2 for Rotary Hammers Hitachi DH26PB 335245 O-Ring D 72.2 for Rotary Hammers Hitachi DH26PB €2.78
53
 photo_cameraImage coming soon 335272 Inner Cover €17.60
54
 photo_cameraImage coming soon 322816 FELT PACKING €2.05
55
 Packing Washer for Rotary Hammer Hitachi DH24PB3 322818 Packing Washer for Rotary Hammer Hitachi DH24PB3 €4.09
56
 photo_cameraImage coming soon 876796 O-RING (P-22) €1.33
57
 photo_cameraImage coming soon 608DDM BALL BEARING 608DDC2PS2L €7.07
58
 Dust Washer for Demolition Hammer Hitachi H45MRY 982631 Dust Washer for Demolition Hammer Hitachi H45MRY €1.34
59
 Armature 220v-230v for Rotary Hammer Hitachi DH26PB 360961E Armature 220v-230v for Rotary Hammer Hitachi DH26PB €33.46
60
 photo_cameraImage coming soon 335244 FAN GUIDE €2.29
62
 photo_cameraImage coming soon 340850E Stator 220v-230v €17.00
63
 photo_cameraImage coming soon 334008 AIR CAP €1.60
64
 photo_cameraImage coming soon 324543 In Dh24pb3 Felt Gasket-Pc3 €2.05
65
 photo_cameraImage coming soon 335241 Housing €17.60
68
 Brush Holder for Demolition Hammer Hitachi DH28PCY 955203 Brush Holder for Demolition Hammer Hitachi DH28PCY €4.39
69
 Carbon Brushes for Sanders Hitachi SV12-13 999041 Carbon Brushes for Sanders Hitachi SV12-13 €9.62
70
 Carbon Brushes for Rotary Hammer Hitachi DH24PB3 999072 Carbon Brushes for Rotary Hammer Hitachi DH24PB3 €18.01
73
 photo_cameraImage coming soon 937631 CORD CLIP €1.37
75
 Cord Armor D.8.8 for Hitachi Power Tools 953327 Cord Armor D.8.8 for Hitachi Power Tools €1.37
76
 Noise Suppressor Hitachi GP 10 930039 Noise Suppressor Hitachi GP 10 €4.04
77
 photo_cameraImage coming soon 335857 CHOKE COIL (A) BROWN €4.06
78
 photo_cameraImage coming soon 324551 CHOKE COIL (A) BLUE €13.24
79
 Pusching Button for Drills Hitachi DV16-18V-DV20VB2 322853 Pusching Button for Drills Hitachi DV16-18V-DV20VB2 €2.78
80
 Switch for Rotary Hammers Hitachi DH22-24-26-28 335796 Switch for Rotary Hammers Hitachi DH22-24-26-28 €23.45
81
 photo_cameraImage coming soon 335242 handle Cover €9.48
502
 photo_cameraImage coming soon 335273 SIDE HANDLE €11.47
503
 photo_cameraImage coming soon 303709 delimiter Depth €1.75
506
 photo_cameraImage coming soon 336473 HANDLE FOR EUROPE.RUS €6.68
605
 photo_cameraImage coming soon 948310 RETAINING RING FOR D30 SHAFT €1.71
607
 Steel Ball 6,35 mm for Hammers Hitachi 959150 Steel Ball 6,35 mm for Hammers Hitachi €3.48
654
 photo_cameraImage coming soon 981122 SPECIAL SCREW M6X22 €1.75
678
 photo_cameraImage coming soon 335781 GREASE FOR ROTARY HAMMER (500G) €78.63
679
 photo_cameraImage coming soon 335782 GREASE FOR ROTARY HAMMER (60G) €18.17

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Hitachi Spare Parts for Rotary Hammer Drill DH26PB

Fix Your Rotary Hammer Drill DH26PB. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following table , look for the model of the Rotary Hammer Drill and their respective spare parts.
Hitachi DH26PB

Rotary Hammer Drill DH26PB
# Part Num. Description
1 306345 FRONT CAP
2 306340 STOPPER RING
3 324527 GRIP
4 324528 BALL HOLDER
5 324526 HOLDER PLATE
6 322812 HOLDER SPRING
7 335258 GEAR COVER
9 335259 OIL SEAL
10 335260 BALL BEARING 6805DD
11 322789 PUSHING BUTTON
12 334011 CHANGE LEVER
13 317223 PUSHING SPRING
14 878885 O-RING (S-18)
16 335800 SPRING (E)
17 608VVM BALL BEARING 608VVC2PS2L
18 335250 BEARING WASHER
19 335300 STEEL BALL D7.0
20 335261 CYLINDER
21 335264 PIN D2.5
22 335263 CYLINDER CLUTCH
23 335265 SECOND GEAR
24 335266 SPRING (A)
25 301679 WASHER (A)
26 948310 RETAINING RING FOR D30 SHAFT
27 335262 OIL SEAL (A)
28 335268 HAMMER HOLDER (C)
29 335795 SLEEVE (FW)
30 335269 SECOND HAMMER
31 335267 HAMMER HOLDER (A)
32 322805 DAMPER (A)
33 322808 O-RING (C)
34 324524 DAMPER HOLDER
35 322807 STOPPER RING
36 335246 STRIKER
37 335247 O-RING D17
38 335255 PISTON
39 335793 PISTON PIN
40 335794 PISTON WASHER
41 335248 SECOND SHAFT
42 335251 WASHER (C)
43 323182 CLUTCH SPRING
44 335254 CLUTCH
45 331315 WASHER
46 335252 CHANGE PLATE
47 335249 RECIPROCATING BEARING
49 335270 BEARING HOLDER
50 335271 BEARING COVER
51 335253 FIRST GEAR
52 335245 O-RING D72.2
53 335272 INNER COVER
54 322816 FELT PACKING
55 322818 PACKING WASHER
56 876796 O-RING (P-22)
57 608DDM BALL BEARING 608DD
58 982631 WASHER (A)
59 360961E ARMATURE 220V-230V
60 335244 FAN GUIDE
62 340850E STATOR 220V-230V
63 334008 AIR CAP
64 324543 FELT PACKING (A)
65 335241 HOUSING
68 955203 BRUSH HOLDER
69 999041 CARBON BRUSH (1 PAIR)
70 999072 CARBON BRUSH (AUTO STOP TYPE) (1 PAIR)
73 937631 CORD CLIP
75 953327 CORD ARMOR D8.8
76 930039 NOISE SUPPRESSOR
77 335857 CHOKE COIL (A) BROWN
78 324551 CHOKE COIL (A) BLUE
79 322853 PUSHING BUTTON
80 335796 SWITCH
81 335242 HANDLE COVER
502 335273 SIDE HANDLE
503 303709 DEPTH GAUGE
506 336473 HANDLE
507 336474 HINGE
605 948310 RETAINING RING FOR D30 SHAFT
607 959150 STEEL BALL D6.35
654 981122 SPECIAL SCREW M6X22
678 335781 GREASE FOR ROTARY HAMMER (500G)
679 335782 GREASE FOR ROTARY HAMMER (60G)
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Hitachi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to hitachi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Hitachi DH26PB
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Diagram Hitachi DH26PB

Diagram Hitachi DH26PB

Download (230.53KB)

You might also like

Switch for Rotary Hammers Hitachi DH22-24-26-28
HiKOKI Power Tools Italia S.p.a. SKU: 335796
Switch for Rotary Hammers Hitachi DH22-24-26-28
Switch for Rotary Hammers Hitachi DH22-24-26-28 Original spare parts Hitachi, Switch for Rotary Hammers Hitachi, DH22PG - DH24PB3 - DH24PG - DH26PG - DH28PCY - DH28PC. Parts for the following products: - Rotary Hammer Hitachi DH22PG -...
Last items in stock €23.45
Details
Piston for Hammers Hitachi DH24-26-28PC
HiKOKI Power Tools Italia S.p.a. SKU: 335255
Piston for Hammers Hitachi DH24-26-28PC
Piston for Rotary Hammers Hitachi DH24-26-28PC Genuine replacement part Hitachi Koky, Piston for Rotary Hammers model DH24PC-DH26PC-DH28PCY-DH28PC. Part for the following items: - Hammer DH 24PG - Hammer DH 26PC - Hammer DH 28 PCY -...
AVAILABLE €23.72
Details
Carbon Brushes for Sanders Hitachi SV12-13
HiKOKI Power Tools Italia S.p.a. SKU: 999041
Carbon Brushes for Sanders Hitachi SV12-13
Carbon Brushes for Sanders Hitachi SV12-13 Genuine spare Hitachi, Carbon Brushes for Sanders SV12SD - SV12SG - SV12SH - SV12V, for Drills, D 13VG - DV 18V - DV 20VB2, for Jig Saws FCJ65V3 - CJ90VST - CJ110MVA - CJ110MV, for Hammers DH...
AVAILABLE €9.62
Details
Steel Ball 7 mm for Hammers Hitachi DH24-26-28
HiKOKI Power Tools Italia S.p.a. SKU: 335300
Steel Ball 7 mm for Hammers Hitachi DH24-26-28
Steel Ball 7 mm for Hammers Hitachi DH24-26-28 Hitachi genuine parts, steel ball diameter MM 7, Box 10 Pcs for Demolition hammers and Drills Hammers, DH 24PG - 26PC DH - DH 28PCY - DH28PC. Suitable for the following items: - Drill...
AVAILABLE €3.48
Details
Pusching Button for Drills Hitachi DV16-18V-DV20VB2
HiKOKI Power Tools Italia S.p.a. SKU: 322853
Pusching Button for Drills Hitachi DV16-18V-DV20VB2
Pusching Button for Drills Hitachi DV16-18V-DV20VB2 Original spare part HITACHI, Pusching Button for Percussion Drills Hitachi DV 16-18V - DV 20VB2. Part for the following products: - Percussion Drill DV16V - Percussion Drill DV...
AVAILABLE €2.78
Details
Steel Ball 6,35 mm for Hammers Hitachi
HiKOKI Power Tools Italia S.p.a. SKU: 959150
Steel Ball 6,35 mm for Hammers Hitachi
Steel Ball 6,35 mm for Hammers Hitachi Hitachi genuine parts, steel ball diameter MM 6,35, Box 10 Pcs for Demolition Hammers and Percussion drills, H45MR - H45MRY - H41MB - H60MC - D13VG - DV16V-20VB2. Suitable for the following...
AVAILABLE €3.48
Details
Stopper Ring for Hammers Hitachi
HiKOKI Power Tools Italia S.p.a. SKU: 306340
Stopper Ring for Hammers Hitachi
Stopper Ring for Hammers Hitachi Genuine parts Hitachi, Stopper Ring for Hammers Hitachi. For the following items: - Hammer DH 28 PCY - Hammer DH 26PC - Hammer DH 24PG
AVAILABLE €2.08
Details
Noise Suppressor Hitachi GP 10
HiKOKI Power Tools Italia S.p.a. SKU: 930039
Noise Suppressor Hitachi GP 10
Noise Suppressor Hitachi GP 10 Genuine parts Hitachi, Noise Suppressor Model GP 10 for Angle Grinders, Sanders, Circular Saws, Hammers, Hammers, Routers. Part for the following items: - Rotorbital Sander Hitachi SV13YA - Rotorbital...
AVAILABLE €4.04
Details
Front Cap for Rotary Hammers Hitachi DH22/28
HiKOKI Power Tools Italia S.p.a. SKU: 306345
Front Cap for Rotary Hammers Hitachi DH22/28
Front Cap for Rotary Hammers Hitachi DH22/28 Genuine part HITACHI, Front Cap for Rotary Hammers DH22PG - DH24PG - DH26PC - DH28PCY - DH14DSL - DH18DSL - DH25DL - DH25DAL - DH36DL - DH36DAL - DH28PD - DH24PB3 - DH28PC - DH28PFY.
Last items in stock €4.18
Details
Brush Holder for Demolition Hammer Hitachi DH28PCY
HiKOKI Power Tools Italia S.p.a. SKU: 955203
Brush Holder for Demolition Hammer Hitachi DH28PCY
Brush Holder for Demolition Hammer Hitachi DH28PCY Genuine Spare Part HITACHI, Brush Holder for Demolition Hammer Hitachi DH22PG - DH22PH - DH24PB3 - DH24PC3 - DH24PD3 - DH24PG - DH24PH - DH24PM - DH26PB - DH26PC - DH28PBY - DH28PCY -...
Usually Ships in: 7/10 Business Days Approx. €4.39
Details
O-Ring S-18 for Rotary Hammers Hitachi DH24PC3-PD3
HiKOKI Power Tools Italia S.p.a. SKU: 878885
O-Ring S-18 for Rotary Hammers Hitachi DH24PC3-PD3
O-Ring S-18 for Rotary Hammers Hitachi DH24PC3-PD3 Hitachi genuine parts, O-Ring S-18 for Rotary Hammers DH24PC3 - DH24PD3 - DH24PB3 - DH24PG - DH24PH - DH36DAL - DH36DL - DH24DVA Part for the following products: - ROTARY HAMMER...
AVAILABLE €1.34
Details
Carbon Brushes for Rotary Hammer Hitachi DH24PB3
HiKOKI Power Tools Italia S.p.a. SKU: 999072
Carbon Brushes for Rotary Hammer Hitachi DH24PB3
Carbon Brushes for Rotary Hammer Hitachi DH24PB3 Genuine Spare Part Hitachi, Self-Locking Carbon Brushes for Rotary Hammers DH24PB3 - DH24PC3 - DH24PD3 - DH24PG - DH24PH - DH24PM...
on 7/10 Business Days Approx €18.01
Details
Cylinder Clutch for Rotative Hammer Hitachi DH26PB
HiKOKI Power Tools Italia S.p.a. SKU: 335263
Cylinder Clutch for Rotative Hammer Hitachi DH26PB
Cylinder Clutch for Rotary Hammer Hitachi DH26PB Genuine Spare Part Hitachi, Cylinder Clutch for Rotary Hammers DH26PB - DH18DBL - DH24PG - DH24PH - DH24PB - DH24PC - DH24PBY - DH24PCY - DH24PMY - DH28PMY. Part for the following...
AVAILABLE €17.55
Details
Cylinder for Rotary Hammer Hitachi DH24PG
HiKOKI Power Tools Italia S.p.a. SKU: 335261
Cylinder for Rotary Hammer Hitachi DH24PG
Cylinder for Rotary Hammer Hitachi DH24PG Original spare part Hitachi, Cylinder for Rotary Hammers DH24PG - DH24PH - DH26PB - DH26PC - DH28PBY - DH28PCY - DH18DBL - DH36DBL...
Usually Ships in: 7/10 Business Days Approx. €30.57
Details
Dust Washer for Demolition Hammer Hitachi H45MRY
HiKOKI Power Tools Italia S.p.a. SKU: 982631
Dust Washer for Demolition Hammer Hitachi H45MRY
Dust Washer for Demolition Hammer Hitachi H45MRY Genuine Spare Part Hitachi, Dust Washer for Demolition Hammers H45MR - H45FRV - H45MRY - H45SR - DH40MRY - H41MB. Part for the following items: - Rotary Hammer Hitachi DH24PG - Rotary...
AVAILABLE €1.34
Details
Armature 220v-230v for Rotary Hammer Hitachi DH26PB
HiKOKI Power Tools Italia S.p.a. SKU: 360961E
Armature 220v-230v for Rotary Hammer Hitachi DH26PB
Armature 220v-230v for Rotary Hammer Hitachi DH26PB Genuine Spare Part Hitachi, Armature 220v-230v for Rotary Hammers DH26PB - DH26PC - DH28PBY - DH28PCY - DH28PMY. Part for the following products: -  Rotary Hammer DH26PB - Rotary...
AVAILABLE €33.46
Details
Packing Washer for Rotary Hammer Hitachi DH24PB3
HiKOKI Power Tools Italia S.p.a. SKU: 322818
Packing Washer for Rotary Hammer Hitachi DH24PB3
Packing Washer for Rotary Hammer Hitachi DH24PB3 Genuine replacement part HITACHI HIKOKI, Packing Washer for Rotary Hammers DH24PB3 - DH24PC3 - DH24PD3 - DH24PM Part for the following products: -  Rotary Hammer Hitachi DH24PB3 -...
on 7/10 Business Days Approx. €4.09
Details
Comments (0)
