Hitachi Spare Parts for Compound Miter Saw C10FCH2

SKU: Hitachi C10FCH2
€5.83
VAT included

Hitachi Spare Parts for Compound Miter Saw C10FCH2

We supply original Hitachi-HIKOKI spare parts on offer at unbeatable prices, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Compound Miter Saw C 10FCH2.
Hitachi Spare Parts for Compound Miter Saw C10FCH2
  • Hitachi Spare Parts for Compound Miter Saw C10FCH2
  • Hitachi Spare Parts for Compound Miter Saw C10FCH2
  • Hitachi Spare Parts for Compound Miter Saw C10FCH2
HiKOKI Power Tools Italia S.p.a.

Hitachi Spare Parts for Compound Miter Saw C10FCH2

SKU: Hitachi C10FCH2 Condition: New
€5.83
VAT included

Hitachi Spare Parts for Compound Miter Saw C10FCH2

We supply original Hitachi-HIKOKI spare parts on offer at unbeatable prices, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Compound Miter Saw C 10FCH2.
settings 134 Spare parts

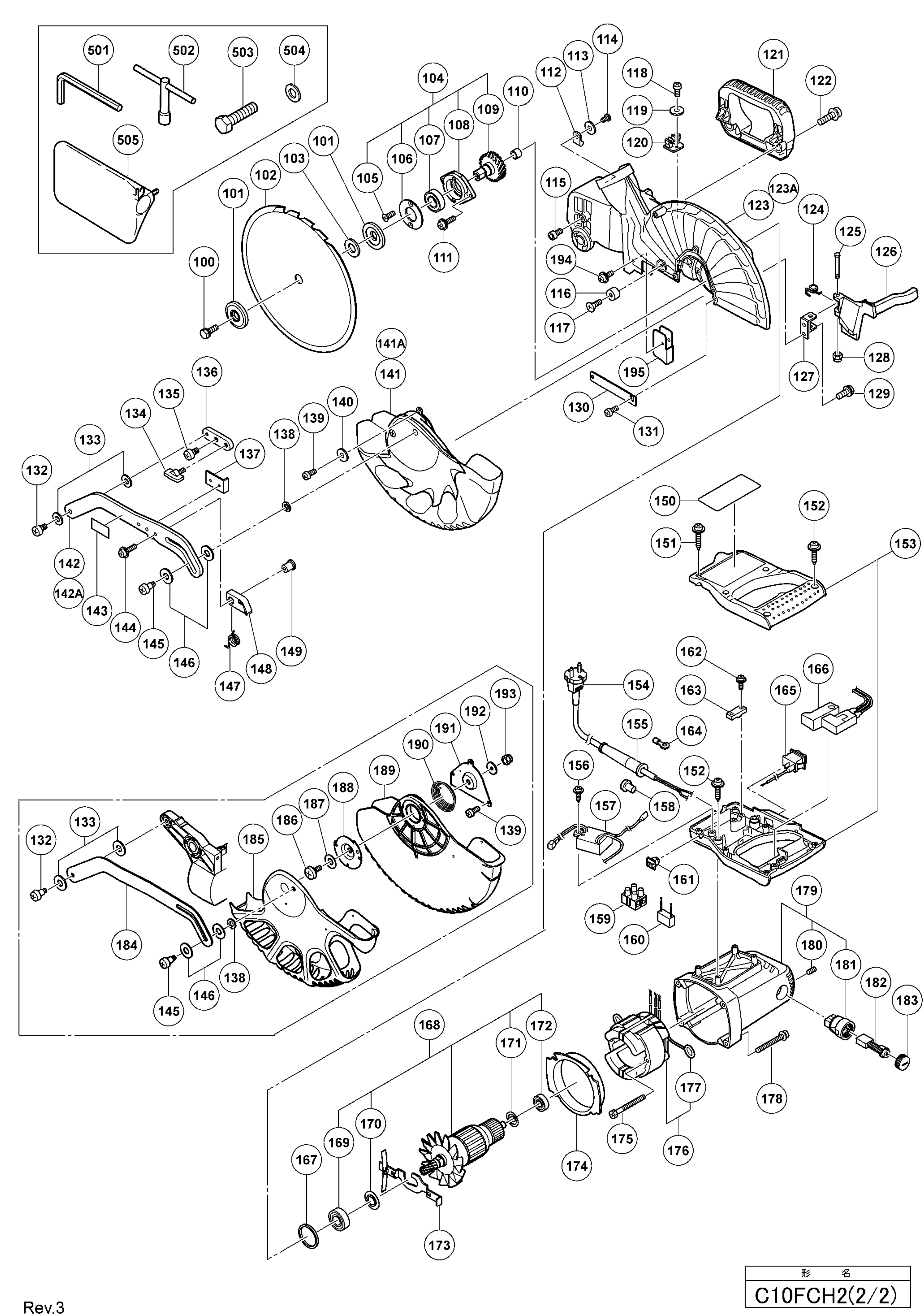

description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10/15 Business Days Approx.

SHIPPING IN: Usually Ships in 10/15 BUSINESS DAYS
Machine Type: Mitre Saw
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal PayPal Pay in 3 Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
134 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in 10/15 BUSINESS DAYS

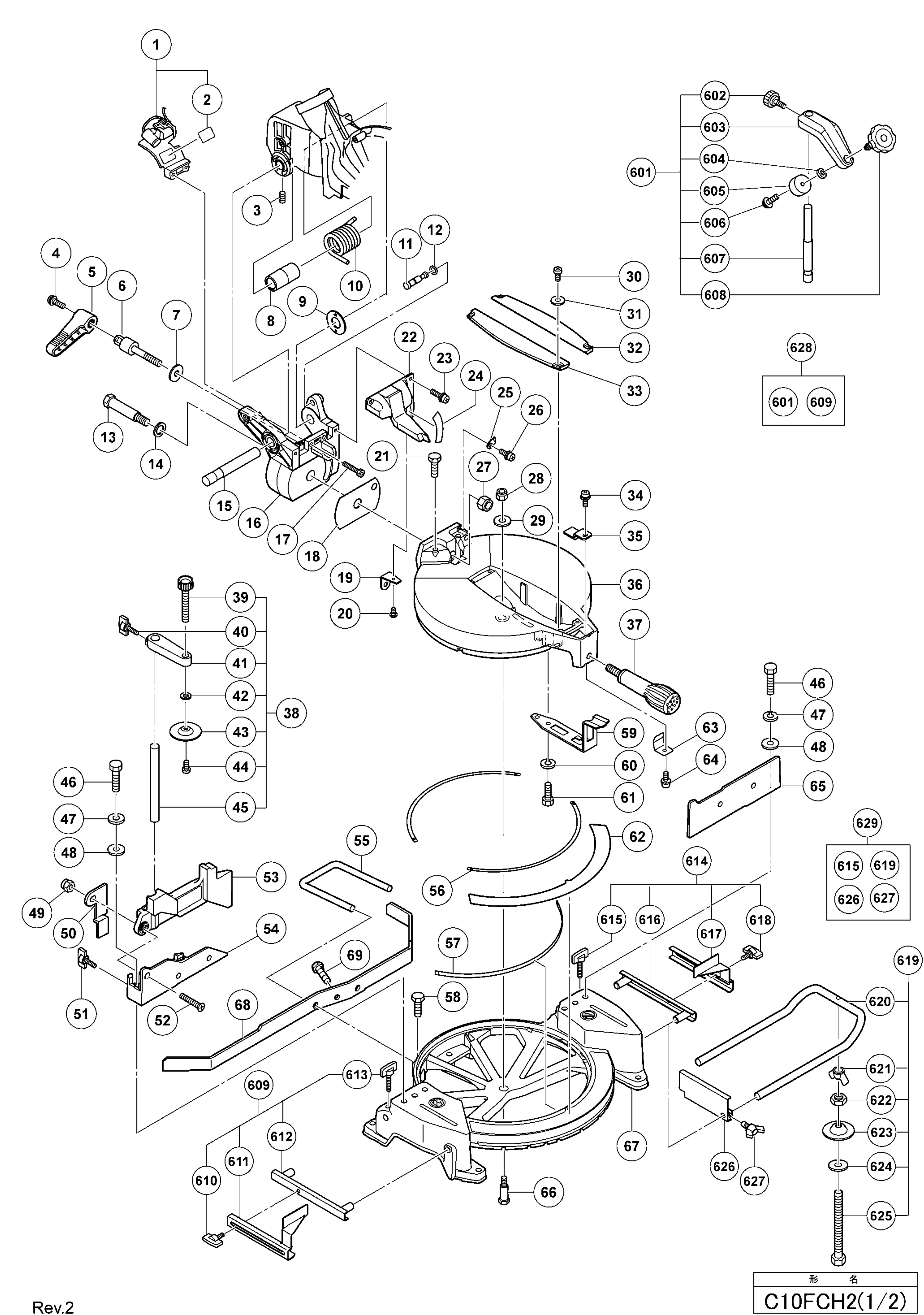

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 326748 LASER HOLDER €41.42
3
 photo_cameraImage coming soon 307956 SEAL LOCK HEX. SET SCREW M6X10 €0.00 Not available for order
4
 photo_cameraImage coming soon 323208 MACHINE SCREW M6X20 (BLACK) €0.00 Not available for order
5
 photo_cameraImage coming soon 322935 USB PLUG €3.60
6
 photo_cameraImage coming soon 326706 BOLT (LEFT HAND) M10 €6.04
7
 photo_cameraImage coming soon 318934 SPECIAL WASHER €0.00 Not available for order
8
 photo_cameraImage coming soon 322889 SLEEVE €1.16
9
 photo_cameraImage coming soon 322965 LINER (D) €0.00 Not available for order
10
 photo_cameraImage coming soon 322890 BUSH €7.26
11
 photo_cameraImage coming soon 302518 STOPPER PIN ASS'Y €6.04
12
 photo_cameraImage coming soon 984528 O-RING (P6) €1.16
13
 photo_cameraImage coming soon 322933 SHAFT (D) €7.26
14
 photo_cameraImage coming soon 322934 WASHER M16 €0.00 Not available for order
15
 photo_cameraImage coming soon 322888 SHAFT (C) €7.26
16
 photo_cameraImage coming soon 322932 HINGE €19.46
17
 photo_cameraImage coming soon 949660 HEX. SOCKET HD.M6X20 (10 PCS.) €0.00 Not available for order
18
 photo_cameraImage coming soon 322937 LINER (B) €0.00 Not available for order
19
 photo_cameraImage coming soon 322963 DUST GUIDE HOLDER €1.16
20
 photo_cameraImage coming soon 949215 MACHINE SCREW M4X8 (10 PCS.) €0.00 Not available for order
21
 photo_cameraImage coming soon 303409 NYLOCK BOLT M8X25 €0.00 Not available for order
22
 photo_cameraImage coming soon 322891 DUST GUIDE ASS'Y €6.04
23
 photo_cameraImage coming soon 990541 MACHINE SCREW M5X16 €0.00 Not available for order
24
 photo_cameraImage coming soon 322892 SCALE (B) €0.00 Not available for order
25
 Front-Cover for Inverter Telwin FORCE 145-165-195-TIG170-168 MPGE 322893 Front-Cover for Inverter Telwin FORCE 145-165-195-TIG170-168 MPGE €17.02
26
 photo_cameraImage coming soon 304043 MACHINE SCREW M4X10 (BLACK) €1.16
27
 photo_cameraImage coming soon 680418 NYLON NUT M12 €6.04
28
 photo_cameraImage coming soon 975348 NYLON NUT M8 €0.00 Not available for order
29
 photo_cameraImage coming soon 318929 WASHER (F) €0.00 Not available for order
30
 photo_cameraImage coming soon 949217 MACHINE SCREW M4X12 €0.00 Not available for order
31
 photo_cameraImage coming soon 949429 BOLT WASHER M4 (10 PCS.) €0.00 Not available for order
32
 photo_cameraImage coming soon 322929 FRAME €14.58
33
 photo_cameraImage coming soon 322930 TABLE INSERT (B) €2.38
34
 photo_cameraImage coming soon 304043 MACHINE SCREW M4X10 (BLACK) €1.16
35
 photo_cameraImage coming soon 322904 INDICATOR (A) €0.00 Not available for order
36
 photo_cameraImage coming soon 326695 TURN TABLE €57.28
37
 Light Guide for Inverter Telwin Force 125 - 145 - 165 322898 Light Guide for Inverter Telwin Force 125 - 145 - 165 €2.38
38
 photo_cameraImage coming soon 322952 VISE ASS'Y €8.48
39
 photo_cameraImage coming soon 302522 KNOB BOLT M10X66 €17.02
40
 Wing Nut M6X15 for Sliding Compound Miter Saw C8FSE 301806 Wing Nut M6X15 for Sliding Compound Miter Saw C8FSE €1.16
42
 photo_cameraImage coming soon 949432 BOLT WASHER M6 (10 PCS.) €0.00 Not available for order
43
 photo_cameraImage coming soon 302532 VISE PLATE €4.82
44
 photo_cameraImage coming soon 949216 MACHINE SCREW M4X10 (10 PCS.) €0.00 Not available for order
45
 photo_cameraImage coming soon 322954 VISE SHAFT €0.00 Not available for order
46
 photo_cameraImage coming soon 949678 BOLT M8X35 (10 PCS.) €0.00 Not available for order
47
 photo_cameraImage coming soon 949457 SPRING WASHER M8 €0.00 Not available for order
48
 photo_cameraImage coming soon 949433 BOLT WASHER M8 €0.00 Not available for order
49
 photo_cameraImage coming soon 963837 NYLON NUT M6 €0.00 Not available for order
50
 photo_cameraImage coming soon 326711 PLATE (A) €2.38
51
 Wing Nut M6X15 for Sliding Compound Miter Saw C8FSE 301806 Wing Nut M6X15 for Sliding Compound Miter Saw C8FSE €1.16
52
 photo_cameraImage coming soon 949342 FLAT HD. SCREW M6X25 (10 PCS.) €0.00 Not available for order
53
 photo_cameraImage coming soon 326704 SUB FENCE (B) €9.70
54
 photo_cameraImage coming soon 326698 FENCE (B) €9.70
55
 photo_cameraImage coming soon 326705 Parking brake lever clamp €3.60
56
 photo_cameraImage coming soon 322901 KNOB FOR SWITCH €2.38
57
 photo_cameraImage coming soon 322964 LINER (C) €0.00 Not available for order
58
 photo_cameraImage coming soon 949611 BOLT M6X12 €0.00 Not available for order
59
 photo_cameraImage coming soon 322903 SPRING PLATE €3.60
60
 photo_cameraImage coming soon 949457 SPRING WASHER M8 €0.00 Not available for order
61
 photo_cameraImage coming soon 949655 HEX. SOCKET HD. M8X16 (10 PCS.) €0.00 Not available for order
62
 photo_cameraImage coming soon 326826 SCALE (A) €0.00 Not available for order
63
 photo_cameraImage coming soon 326696 SPACER (A) €0.00 Not available for order
64
 photo_cameraImage coming soon 317200 MACHINE SCREW M4X8 (BLACK) €0.00 Not available for order
65
 photo_cameraImage coming soon 326697 FENCE (A) €14.58
66
 photo_cameraImage coming soon 322902 SHAFT (B) €0.00 Not available for order
67
 photo_cameraImage coming soon 326694 BASE ASS'Y €62.16
68
 photo_cameraImage coming soon 336353 HOLDER (B) €0.00 Not available for order
69
 photo_cameraImage coming soon 949611 BOLT M6X12 €0.00 Not available for order
101
 photo_cameraImage coming soon 318961 WASHER (A) €3.60
101
 photo_cameraImage coming soon 318962 WASHER (B) €2.38
103
 photo_cameraImage coming soon 974663Z COLLAR (A) FOR D30 HOLE €7.26
104
 photo_cameraImage coming soon 323133 SPINDLE ASS'Y €29.22
105
 photo_cameraImage coming soon 990430 SEAL LOCK FLAT HD.M4X10 €4.82
106
 photo_cameraImage coming soon 322919 BEARING COVER €1.16
107
 photo_cameraImage coming soon 6003VV BALL BEARING 6003VVCMPS2L €8.48
108
 photo_cameraImage coming soon 322918 BEARING HOLDER €0.00 Not available for order
109
 photo_cameraImage coming soon 322917 SPINDLE AND GEAR SET €14.58
110
 photo_cameraImage coming soon 982027 NEEDLE BEARING (HK1010) €17.02
111
 photo_cameraImage coming soon 987512 MACHINE SCREW M5X16 €0.00 Not available for order
112
 Control PCB for Inveter Welding Telwin Technology 188 CE/GE 980523 Control PCB for Inveter Welding Telwin Technology 188 CE/GE €0.00 Not available for order
113
 photo_cameraImage coming soon 949429 BOLT WASHER M4 (10 PCS.) €0.00 Not available for order
114
 photo_cameraImage coming soon 949215 MACHINE SCREW M4X8 (10 PCS.) €0.00 Not available for order
116
 photo_cameraImage coming soon 961729 CUSHION €1.16
117
 photo_cameraImage coming soon 949340 FLAT HD. SCREW M6X16 €0.00 Not available for order
118
 photo_cameraImage coming soon 949217 MACHINE SCREW M4X12 €0.00 Not available for order
119
 photo_cameraImage coming soon 949429 BOLT WASHER M4 (10 PCS.) €0.00 Not available for order
120
 photo_cameraImage coming soon 322920 DUST HOOD HOLDING HOOK €0.00 Not available for order
121
 photo_cameraImage coming soon 326708 HANDLE €7.26
122
 photo_cameraImage coming soon 323208 MACHINE SCREW M6X20 (BLACK) €0.00 Not available for order
123
 photo_cameraImage coming soon 326702 GEAR CASE €52.40
123A
 photo_cameraImage coming soon 336354 GEAR CASE €0.00 Not available for order
124
 photo_cameraImage coming soon 323987 LEVER SPRING €0.00 Not available for order
125
 photo_cameraImage coming soon 323990 LEVER SHAFT €0.00 Not available for order
126
 photo_cameraImage coming soon 323979 LOCK LEVER (C) €4.82
127
 photo_cameraImage coming soon 323982 LEVER HOLDER €0.00 Not available for order
128
 photo_cameraImage coming soon 877371 NYLON NUT M5 €1.16
129
 photo_cameraImage coming soon 949236 MACHINE SCREW M5X10 €0.00 Not available for order
130
 Shift Stick for Hammer SDS-Max Makita HR4000C 322951 Shift Stick for Hammer SDS-Max Makita HR4000C €7.56
131
 photo_cameraImage coming soon 949215 MACHINE SCREW M4X8 (10 PCS.) €0.00 Not available for order
132
 Front-Cover for Inverter Telwin TECNICA 151/S-171/S-211/S 322950 Front-Cover for Inverter Telwin TECNICA 151/S-171/S-211/S €17.02
133
 photo_cameraImage coming soon 322948 WASHER M7 €0.00 Not available for order
134
 Wing Nut M6X15 for Sliding Compound Miter Saw C8FSE 301806 Wing Nut M6X15 for Sliding Compound Miter Saw C8FSE €1.16
135
 Front-Cover for Inverter Telwin TECNICA 151/S-171/S-211/S 322950 Front-Cover for Inverter Telwin TECNICA 151/S-171/S-211/S €17.02
136
 photo_cameraImage coming soon 323986 TURN PLATE €0.00 Not available for order
137
 photo_cameraImage coming soon 323985 STOP PLATE €0.00 Not available for order
138
 photo_cameraImage coming soon 949454 SPRING WASHER M5 (10 PCS.) €0.00 Not available for order
139
 photo_cameraImage coming soon 949215 MACHINE SCREW M4X8 (10 PCS.) €0.00 Not available for order
140
 photo_cameraImage coming soon 949429 BOLT WASHER M4 (10 PCS.) €0.00 Not available for order
141
 photo_cameraImage coming soon 326747 PROTECTIVE COVER €26.78
141A
 photo_cameraImage coming soon 336355 PROTECTIVE COVER €0.00 Not available for order
142
 photo_cameraImage coming soon 323980 LINK (A) ASS'Y €15.80
142A
 photo_cameraImage coming soon 336357 LINK (A) ASS'Y €0.00 Not available for order
144
 photo_cameraImage coming soon 935196 MACHINE SCREW M4X12 (BLACK) €0.00 Not available for order
145
 photo_cameraImage coming soon 322947 SPECIAL SCREW (C) M5 €1.16
146
 photo_cameraImage coming soon 322938 WASHER M10 €1.16
147
 photo_cameraImage coming soon 323984 RETURN SPRING (A) €1.16
148
 photo_cameraImage coming soon 323989 RETURN PLATE €0.00 Not available for order
149
 photo_cameraImage coming soon 323988 RETURN SHAFT €0.00 Not available for order
151
 photo_cameraImage coming soon 307028 TAPPING SCREW D4X25 (BLACK) €0.00 Not available for order
152
 photo_cameraImage coming soon 301653 Tapp.Screw (W / Flange) D4x20 €6.04
153
 photo_cameraImage coming soon 326749 SWITCH HANDLE €4.82
154
 photo_cameraImage coming soon 500234Z Cord €0.00 Not available for order
155
 photo_cameraImage coming soon 940778 CORD ARMOR D10.7 €3.60
156
 photo_cameraImage coming soon 984750 Tapp. Screw (W / Flange) D4x16 €0.00 Not available for order
157
 photo_cameraImage coming soon 323978 SWITCHING POWER SUPPLY €42.64
161
 photo_cameraImage coming soon 319349 CORD BUSH €0.00 Not available for order
162
 photo_cameraImage coming soon 984750 Tapp. Screw (W / Flange) D4x16 €0.00 Not available for order
163
 photo_cameraImage coming soon 937631 CORD CLIP €1.16
165
 photo_cameraImage coming soon 319503 SWITCH (W/COVER) €17.02
166
 photo_cameraImage coming soon 326700 SWITCH (3P FASTON TYPE) LOCK €13.36
167
 photo_cameraImage coming soon 303792 RUBBER RING €1.16
168
 photo_cameraImage coming soon 360695E ARMATURE ASS'Y 220V-230V €62.16
169
 photo_cameraImage coming soon 6202VV BALL BEARING 6202VVCMPS2L €7.26
170
 photo_cameraImage coming soon 980700 DUST WASHER (B) €1.16
171
 photo_cameraImage coming soon 302428 WASHER (A) €0.00 Not available for order
172
 photo_cameraImage coming soon 6000VV BALL BEARING 6000VVCMPS2L €9.70
173
 photo_cameraImage coming soon 322916 LOCK LEVER €1.16
174
 photo_cameraImage coming soon 322915 FAN GUIDE €3.60
175
 photo_cameraImage coming soon 953121 HEX. HD. TAPPING SCREW D5X50 €0.00 Not available for order
176
 photo_cameraImage coming soon 340687E STATOR ASS'Y (B) 220V-230V €57.28
177
 photo_cameraImage coming soon 937623 BRUSH TERMINAL €1.16
178
 photo_cameraImage coming soon 322123 MACHINE SCREW M5X40 (BLACK) €0.00 Not available for order
179
 photo_cameraImage coming soon 322914 HOUSING ASS'Y €29.22
180
 photo_cameraImage coming soon 938477 HEX. SOCKET SET SCREW MSX8 €0.00 Not available for order
181
 Brush Holder for Angle Grinders Hitachi G23SS-G23SW-G23SWU 938241 Brush Holder for Angle Grinders Hitachi G23SS-G23SW-G23SWU €12.14
182
 Carbon Brushes for Angle Grinders Hitachi G 23SS - G 23SW 999038 Carbon Brushes for Angle Grinders Hitachi G 23SS - G 23SW €7.26
182
 photo_cameraImage coming soon 999065 CARBON BRUSH (1 PAIR) €9.70
183
 Brush Holder Cap for Angle Grinders Hitachi G23SS-G23SW-G23SWU 945161 Brush Holder Cap for Angle Grinders Hitachi G23SS-G23SW-G23SWU €2.38
193
 photo_cameraImage coming soon 877371 NYLON NUT M5 €1.16
194
 photo_cameraImage coming soon 304043 MACHINE SCREW M4X10 (BLACK) €1.16
195
 photo_cameraImage coming soon 336358 GUARD €0.00 Not available for order
Page 2 zoom_in View exploded local_shipping Usually Ships in 10/15 BUSINESS DAYS
Esploso pagina 2
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
101
 photo_cameraImage coming soon 318961 WASHER (A) €3.60
101
 photo_cameraImage coming soon 318962 WASHER (B) €2.38
103
 photo_cameraImage coming soon 974663Z COLLAR (A) FOR D30 HOLE €7.26
104
 photo_cameraImage coming soon 323133 SPINDLE ASS'Y €29.22
105
 photo_cameraImage coming soon 990430 SEAL LOCK FLAT HD.M4X10 €4.82
106
 photo_cameraImage coming soon 322919 BEARING COVER €1.16
107
 photo_cameraImage coming soon 6003VV BALL BEARING 6003VVCMPS2L €8.48
108
 photo_cameraImage coming soon 322918 BEARING HOLDER €0.00 Not available for order
109
 photo_cameraImage coming soon 322917 SPINDLE AND GEAR SET €14.58
110
 photo_cameraImage coming soon 982027 NEEDLE BEARING (HK1010) €17.02
111
 photo_cameraImage coming soon 987512 MACHINE SCREW M5X16 €0.00 Not available for order
112
 Control PCB for Inveter Welding Telwin Technology 188 CE/GE 980523 Control PCB for Inveter Welding Telwin Technology 188 CE/GE €0.00 Not available for order
116
 photo_cameraImage coming soon 961729 CUSHION €1.16
117
 photo_cameraImage coming soon 949340 FLAT HD. SCREW M6X16 €0.00 Not available for order
120
 photo_cameraImage coming soon 322920 DUST HOOD HOLDING HOOK €0.00 Not available for order
121
 photo_cameraImage coming soon 326708 HANDLE €7.26
123
 photo_cameraImage coming soon 326702 GEAR CASE €52.40
123A
 photo_cameraImage coming soon 336354 GEAR CASE €0.00 Not available for order
124
 photo_cameraImage coming soon 323987 LEVER SPRING €0.00 Not available for order
125
 photo_cameraImage coming soon 323990 LEVER SHAFT €0.00 Not available for order
126
 photo_cameraImage coming soon 323979 LOCK LEVER (C) €4.82
127
 photo_cameraImage coming soon 323982 LEVER HOLDER €0.00 Not available for order
128
 photo_cameraImage coming soon 877371 NYLON NUT M5 €1.16
129
 photo_cameraImage coming soon 949236 MACHINE SCREW M5X10 €0.00 Not available for order
130
 Back-Cover for Inverter Telwin Tecnica 151/S - 171/S 322951 Back-Cover for Inverter Telwin Tecnica 151/S - 171/S €17.02
132
 Front-Cover for Inverter Telwin TECNICA 151/S-171/S-211/S 322950 Front-Cover for Inverter Telwin TECNICA 151/S-171/S-211/S €17.02
133
 photo_cameraImage coming soon 322948 WASHER M7 €0.00 Not available for order
136
 photo_cameraImage coming soon 323986 TURN PLATE €0.00 Not available for order
137
 photo_cameraImage coming soon 323985 STOP PLATE €0.00 Not available for order
138
 photo_cameraImage coming soon 949454 SPRING WASHER M5 (10 PCS.) €0.00 Not available for order
141
 photo_cameraImage coming soon 326747 PROTECTIVE COVER €26.78
141A
 photo_cameraImage coming soon 336355 PROTECTIVE COVER €0.00 Not available for order
142
 photo_cameraImage coming soon 323980 LINK (A) ASS'Y €15.80
142A
 photo_cameraImage coming soon 336357 LINK (A) ASS'Y €0.00 Not available for order
144
 photo_cameraImage coming soon 935196 MACHINE SCREW M4X12 (BLACK) €0.00 Not available for order
145
 photo_cameraImage coming soon 322947 SPECIAL SCREW (C) M5 €1.16
146
 photo_cameraImage coming soon 322938 WASHER M10 €1.16
147
 photo_cameraImage coming soon 323984 RETURN SPRING (A) €1.16
148
 photo_cameraImage coming soon 323989 RETURN PLATE €0.00 Not available for order
149
 photo_cameraImage coming soon 323988 RETURN SHAFT €0.00 Not available for order
151
 photo_cameraImage coming soon 307028 TAPPING SCREW D4X25 (BLACK) €0.00 Not available for order
152
 photo_cameraImage coming soon 301653 Tapp.Screw (W / Flange) D4x20 €6.04
153
 photo_cameraImage coming soon 326749 SWITCH HANDLE €4.82
154
 photo_cameraImage coming soon 500234Z Cord €0.00 Not available for order
155
 photo_cameraImage coming soon 940778 CORD ARMOR D10.7 €3.60
156
 photo_cameraImage coming soon 984750 Tapp. Screw (W / Flange) D4x16 €0.00 Not available for order
157
 photo_cameraImage coming soon 323978 SWITCHING POWER SUPPLY €42.64
161
 photo_cameraImage coming soon 319349 CORD BUSH €0.00 Not available for order
163
 photo_cameraImage coming soon 937631 CORD CLIP €1.16
165
 photo_cameraImage coming soon 319503 SWITCH (W/COVER) €17.02
166
 photo_cameraImage coming soon 326700 SWITCH (3P FASTON TYPE) LOCK €13.36
167
 photo_cameraImage coming soon 303792 RUBBER RING €1.16
168
 photo_cameraImage coming soon 360695E ARMATURE ASS'Y 220V-230V €62.16
169
 photo_cameraImage coming soon 6202VV BALL BEARING 6202VVCMPS2L €7.26
170
 photo_cameraImage coming soon 980700 DUST WASHER (B) €1.16
171
 photo_cameraImage coming soon 302428 WASHER (A) €0.00 Not available for order
172
 photo_cameraImage coming soon 6000VV BALL BEARING 6000VVCMPS2L €9.70
173
 photo_cameraImage coming soon 322916 LOCK LEVER €1.16
174
 photo_cameraImage coming soon 322915 FAN GUIDE €3.60
175
 photo_cameraImage coming soon 953121 HEX. HD. TAPPING SCREW D5X50 €0.00 Not available for order
176
 photo_cameraImage coming soon 340687E STATOR ASS'Y (B) 220V-230V €57.28
177
 photo_cameraImage coming soon 937623 BRUSH TERMINAL €1.16
178
 photo_cameraImage coming soon 322123 MACHINE SCREW M5X40 (BLACK) €0.00 Not available for order
179
 photo_cameraImage coming soon 322914 HOUSING ASS'Y €29.22
180
 photo_cameraImage coming soon 938477 HEX. SOCKET SET SCREW MSX8 €0.00 Not available for order
181
 Brush Holder for Angle Grinders Hitachi G23SS-G23SW-G23SWU 938241 Brush Holder for Angle Grinders Hitachi G23SS-G23SW-G23SWU €12.14
182
 Carbon Brushes for Angle Grinders Hitachi G 23SS - G 23SW 999038 Carbon Brushes for Angle Grinders Hitachi G 23SS - G 23SW €7.26
182
 photo_cameraImage coming soon 999065 CARBON BRUSH (1 PAIR) €9.70
183
 Brush Holder Cap for Angle Grinders Hitachi G23SS-G23SW-G23SWU 945161 Brush Holder Cap for Angle Grinders Hitachi G23SS-G23SW-G23SWU €2.38
195
 photo_cameraImage coming soon 336358 GUARD €0.00 Not available for order

Shipping and delivery information will be available shortly.

Hitachi Spare Parts for Compound Miter Saw C10FCH2

We supply original Hitachi-HIKOKI spare parts on offer at unbeatable prices, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Compound Miter Saw C 10FCH2.

In the following table, look for the model of the Miter Saw and theirs spare part.
Hitachi C10FCH2

Compound Miter Saw C 10FCH2
# Part NUm. Description
1 326748 LASER HOLDER
3 307956 SEAL LOCK HEX.SET SCREW M6X10
4 323208 MACHINE SCREW M6X20 (BLACK)
5 322935 CLAMP LEVER
6 326706 BOLT (LEFT HAND) M10
7 318934 SPECIAL WASHER
8 322889 SLEEVE
9 322965 LINER (D)
10 322890 SPRING
11 302518 STOPPER PIN ASS'Y
12 984528 O-RING (P-6)
13 322933 SHAFT (D)
14 322934 WASHER M16
15 322888 SHAFT (C)
16 322932 HINGE
17 949660 HEX. SOCKET HD. M6X20
18 322937 LINER (B)
19 322963 DUST GUIDE HOLDER
20 949215 MACHINE SCREW M4X8
21 303409 NYLOCK BOLT M8X25
22 322891 DUST GUIDE ASS'Y
23 990541 MACHINE SCREW M5X16
24 322892 SCALE (B)
25 322893 INDICATOR (B)
26 304043 MACHINE SCREW M4X10 (BLACK)
27 680418 NYLON NUT M12
28 975348 NYLON NUT M8
29 318929 WASHER (F)
30 949217 MACHINE SCREW M4X12
31 949429 BOLT WASHER M4
32 322929 TABLE INSERT (A)
33 322930 TABLE INSERT (B)
34 304043 MACHINE SCREW M4X10 (BLACK)
35 322904 INDICATOR (A)
36 326695 TURN TABLE
37 322898 SIDE HANDLE
38 322952 VISE ASS'Y
39 302522 KNOB BOLT M10X66
40 301806 WING BOLT M6X15
42 949432 BOLT WASHER M6
43 302532 VISE PLATE
44 949216 MACHINE SCREW M4X10
45 322954 VISE SHAFT
46 949678 BOLT M8X35
47 949457 SPRING WASHER M8
48 949433 BOLT WASHER M8
49 963837 NYLON NUT M6
50 326711 PLATE (A)
51 301806 WING BOLT M6X15
52 949342 FLAT HD. SCREW M6X25
53 326704 SUB FENCE (B)
54 326698 FENCE (B)
55 326705 HOLDER
56 322901 LINER (A)
57 322964 LINER (C)
58 949611 BOLT M6X12
59 322903 SPRING PLATE
60 949457 SPRING WASHER M8
61 949655 HEX. SOCKET HD. M8X16
62 326826 SCALE (A)
63 326696 SPACER (A)
64 317200 MACHINE SCREW M4X8 (BLACK)
65 326697 FENCE (A)
66 322902 SHAFT (B)
67 326694 BASE ASS'Y
68 336353 HOLDER (B)
69 949611 BOLT M6X12
101 318961 WASHER (A)
101 318962 WASHER (B)
103 974663Z COLLAR (A) FOR D30 HOLE
104 323133 SPINDLE ASS'Y
105 990430 SEAL LOCK FLAT HD.M4X10
106 322919 BEARING COVER
107 6003VV BALL BEARING 6003VVCMPS2L
108 322918 BEARING HOLDER
109 322917 SPINDLE AND GEAR SET
110 982027 NEEDLE BEARING (HK1010)
111 987512 MACHINE SCREW M5X16
112 980523 NYLON CLIP
113 949429 BOLT WASHER M4
114 949215 MACHINE SCREW M4X8
116 961729 CUSHION
117 949340 FLAT HD. SCREW M6X16
118 949217 MACHINE SCREW M4X12
119 949429 BOLT WASHER M4
120 322920 HOOK
121 326708 HANDLE
122 323208 MACHINE SCREW M6X20 (BLACK)
123 326702 GEAR CASE
123A 336354 GEAR CASE
124 323987 LEVER SPRING
125 323990 LEVER SHAFT
126 323979 LOCK LEVER (C)
127 323982 LEVER HOLDER
128 877371 NYLON NUT M5
129 949236 MACHINE SCREW M5X10
130 322951 SPINDLE COVER
131 949215 MACHINE SCREW M4X8
132 322950 SPECIAL SCREW M6
133 322948 WASHER M7
134 301806 WING BOLT M6X15
135 322950 SPECIAL SCREW M6
136 323986 TURN PLATE
137 323985 STOP PLATE
138 949454 SPRING WASHER M5
139 949215 MACHINE SCREW M4X8
140 949429 BOLT WASHER M4
141 326747 PROTECTIVE COVER
141A 336355 PROTECTIVE COVER
142 323980 LINK (A) ASS'Y
142A 336357 LINK (A) ASS'Y
144 935196 MACHINE SCREW M4X12 (BLACK)
145 322947 SPECIAL SCREW (C) M5
146 322938 WASHER M10
147 323984 RETURN SPRING (A)
148 323989 RETURN PLATE
149 323988 RETURN SHAFT
151 307028 TAPPING SCREW D4X25 (BLACK)
152 301653 TAPPING SCREW D4X20 (BLACK)
153 326749 SWITCH HANDLE
154 500234Z CORD
155 940778 CORD ARMOR D10.7
156 984750 TAPPING SCREW D4X16
157 323978 SWITCHING POWER SUPPLY
161 319349 CORD BUSH
162 984750 TAPPING SCREW D4X16
163 937631 CORD CLIP
165 319503 SWITCH (W/COVER)
166 326700 SWITCH (3P FASTON TYPE) LOCK
167 303792 RUBBER RING
168 360695E ARMATURE ASS'Y 220V-230V
169 6202VV BALL BEARING 6202VVCMPS2L
170 980700 DUST WASHER (B)
171 302428 WASHER (A)
172 6000VV BALL BEARING 6000VVCMPS2L
173 322916 LOCK LEVER
174 322915 FAN GUIDE
175 953121 HEX. HD. TAPPING SCREW D5X50
176 340687E STATOR ASS'Y (B) 220V-230V
177 937623 BRUSH TERMINAL
178 322123 MACHINE SCREW M5X40 (BLACK)
179 322914 HOUSING ASS'Y
180 938477 HEX. SOCKET SET SCREW M5X8
181 938241 BRUSH HOLDER
182 999038 CARBON BRUSH (1 PAIR)
182 999065 CARBON BRUSH (1 PAIR)
183 945161 BRUSH CAP
193 877371 NYLON NUT M5
194 304043 MACHINE SCREW M4X10 (BLACK)
195 336358 GUARD
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s HITACHI websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to HITACHI brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Hitachi C10FCH2
12 Items

Data sheet

SHIPPING IN
Usually Ships in 10/15 BUSINESS DAYS
Machine Type
Mitre Saw

Specific References

New

Download

Diagram Hitachi C10FCH2

Diagram Hitachi C10FCH2

Download (153.9KB)

You might also like

Carbon Brushes for Angle Grinders Hitachi G 23SS - G 23SW
HiKOKI Power Tools Italia S.p.a. SKU: 999038
Carbon Brushes for Angle Grinders Hitachi G 23SS - G 23SW
Carbon Brushes for Angle Grinders Hitachi G 23SS -  G 23SW Genuine parts Hitachi, carbon Brushesfor Angle Grinders 230 mm G 23SS -  G 23SW - G 23SWU - Router M12VE , Circolar Saw C9U2 - Radial Miter Saw C 10FCH2 - C 12LCH. Part for...
AVAILABLE €7.26
Details
Bolt Left Hand M7x17,5 mm Compound Miter Saw Hitachi C8FSE
HiKOKI Power Tools Italia S.p.a. SKU: 998335
Bolt Left Hand M7x17,5 mm Compound Miter Saw Hitachi C8FSE
Bolt Left Hand M7x17,5 mm Compound Miter Saw Hitachi C8FSE Genuine spare part Hitachi, Bolt Left Hand with Washer Diameter mm M7x017,5 Model c 7BC1 for Compound Miter Saw C8FSE - Cordless Circular Saw C18DSL. Part for the following...
AVAILABLE €2.38
Details
Brush Holder for Angle Grinders Hitachi G23SS-G23SW-G23SWU
HiKOKI Power Tools Italia S.p.a. SKU: 938241
Brush Holder for Angle Grinders Hitachi G23SS-G23SW-G23SWU
Brush Holder for Angle Grinders Hitachi G23SS-G23SW-G23SWU Original parts Hitachi, Brush holder for Angle Grinders G 23SS - 23SW G - G 23SWU - Radial Miter Saws 10FCH2 C - C 12LCH - C 12RSH. For the following items: - Angle Grinder...
AVAILABLE €12.14
Details
Dust Seal for Angle Grinders Hitachi G13SD - G12S2
HiKOKI Power Tools Italia S.p.a. SKU: 315877
Dust Seal for Angle Grinders Hitachi G13SD - G12S2
Dust Seal for Angle Grinders Hitachi G13SD - G12S2 Original spare parts Hitachi, Dust Seal for Straight Grinders GP2S2 - GP3V - GP5V - Angle Grinders G 12 SA2 - G 12 SE2 - G 12S2 - G 12SA3 - G 13SB3. Part for the following items: -...
AVAILABLE €1.16
Details
Wing Nut M6X15 for Sliding Compound Miter Saw C8FSE
HiKOKI Power Tools Italia S.p.a. SKU: 301806
Wing Nut M6X15 for Sliding Compound Miter Saw C8FSE
Wing Nut M6X15 for Sliding Compound Miter Saw C8FSE Genuine part Hitachi, Wing Nut M6X15 for Sliding Compound Miter Saws C8FSE - C12LCH - Routers M8SA2 - M12VE - M12V2 - Circular...
AVAILABLE €1.16
Details
Comments (0)
No customer reviews for the moment.
