HiKOKI Power Tools Italia S.p.a.

Hitachi Spare Parts for Cordless Hammer DH18DSL

SKU: Hitachi DH18DSL
€9.61
VAT included

Hitachi Spare Parts for Cordless Hammer DH18DSL

Hitachi-HIKOKI Original spare parts sourced directly from the manufacturer, with after-sales assistance at the best price on the web for to repair Cordless Rotary Hammer DH18DSL.

Fix Your Rotary Hammer DH18DSL. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.
Hitachi Spare Parts for Cordless Hammer DH18DSL
  • Hitachi Spare Parts for Cordless Hammer DH18DSL
  • Hitachi Spare Parts for Cordless Hammer DH18DSL
HiKOKI Power Tools Italia S.p.a.

Hitachi Spare Parts for Cordless Hammer DH18DSL

SKU: Hitachi DH18DSL Condition: New
€9.61
VAT included

Hitachi Spare Parts for Cordless Hammer DH18DSL

Hitachi-HIKOKI Original spare parts sourced directly from the manufacturer, with after-sales assistance at the best price on the web for to repair Cordless Rotary Hammer DH18DSL.

Fix Your Rotary Hammer DH18DSL. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.
settings 60 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
60 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

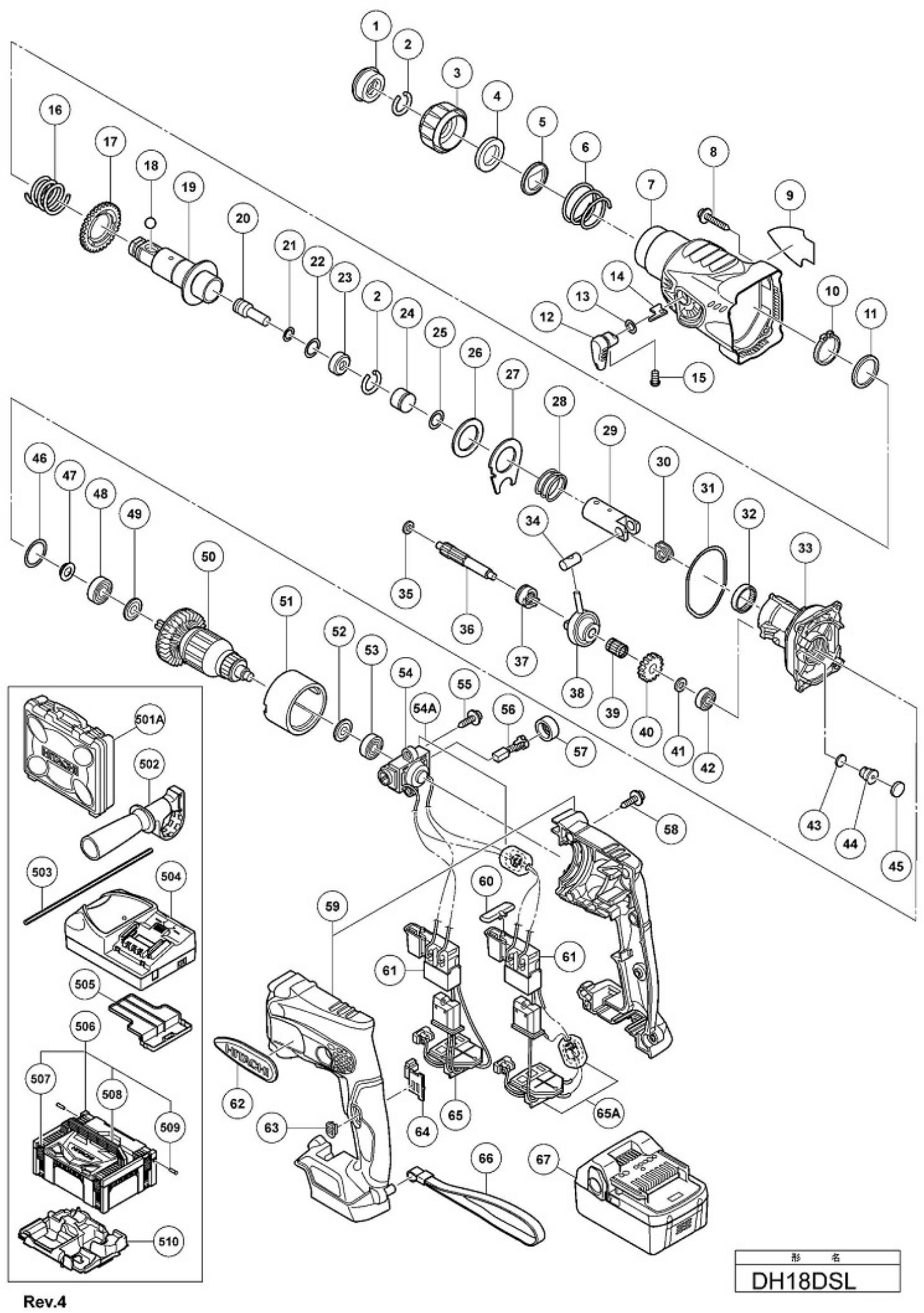

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 Front Cap for Rotary Hammers Hitachi DH22/28 306345 Front Cap for Rotary Hammers Hitachi DH22/28 €4.18
2
 Stopper Ring for Hammers Hitachi 306340 Stopper Ring for Hammers Hitachi €2.08
3
 photo_cameraImage coming soon 325597 ring Dh14/18dl €5.41
4
 photo_cameraImage coming soon 327879 Support Balls DH14-18DL €5.41
5
 photo_cameraImage coming soon 324526 Support Thrust Dh24dva €1.46
6
 photo_cameraImage coming soon 322812 Spring Gate Punta €2.05
7
 photo_cameraImage coming soon 325593 GEAR COVER €79.09
11
 photo_cameraImage coming soon 944274 washer Dh22pg €2.02
12
 photo_cameraImage coming soon 325594 Clutch Lever Dh14/18dl €2.70
13
 photo_cameraImage coming soon 872654 O-Ring 1ap.10 €2.02
14
 Stopper for Hammers Hitachi DH14DSL 327875 Stopper for Hammers Hitachi DH14DSL €4.04
16
 photo_cameraImage coming soon 306334 Clutch spring Dh14/18dl €4.06
17
 Second Gear for Hammers Hitachi DH18PB 306333 Second Gear for Hammers Hitachi DH18PB €27.77
18
 Steel Ball 7 mm for Hammers Hitachi 959156 Steel Ball 7 mm for Hammers Hitachi €3.48
19
 photo_cameraImage coming soon 327876 cylinder Dh14/18dl €36.59
20
 photo_cameraImage coming soon 327877 According Knocker Dh14/18dl €3.83
21
 O-RING (B) for Rotary Hammer Hitachi DH20PB 301672 O-RING (B) for Rotary Hammer Hitachi DH20PB €1.13
22
 photo_cameraImage coming soon 311814 O-Ring Dh14/18dl €2.02
23
 photo_cameraImage coming soon 327878 HAMMER HOLDER €3.83
24
 photo_cameraImage coming soon 325601 swing Dh14/18dl €8.13
25
 photo_cameraImage coming soon 306326 O-Ring (A) Dh14/18dl €4.74
26
 photo_cameraImage coming soon 327880 washer Dh14/18dl €2.02
27
 Thrust Plate for Hammers Hitachi DH18PB 325588 Thrust Plate for Hammers Hitachi DH18PB €8.23
28
 photo_cameraImage coming soon 306976 Spring (B) Dh14/18dl €6.09
29
 Piston for Hammers Hitachi DH14-18DL-22PG 306324 Piston for Hammers Hitachi DH14-18DL-22PG €18.00
30
 photo_cameraImage coming soon 321007 WASHER (A) €5.11
31
 photo_cameraImage coming soon 325583 O-RING (I.D. D61) €2.55
32
 photo_cameraImage coming soon 306328 NEEDLE BEARING €7.67
33
 photo_cameraImage coming soon 328479 INNER COVER ASS'Y €47.28
34
 photo_cameraImage coming soon 306322 Piston pin Dh14/18dl €6.77
35
 photo_cameraImage coming soon 325587 spacer Dh14/18dl €2.70
36
 photo_cameraImage coming soon 327871 tree Second.Dh14/18dl €10.69
37
 photo_cameraImage coming soon 325584 clutch Dh14/18dl €14.76
38
 photo_cameraImage coming soon 325585 Bearing Articulated Dh14/18dl €40.66
39
 photo_cameraImage coming soon 306320 Needle Bearing For Dh14/18dl €8.13
40
 photo_cameraImage coming soon 327872 gear Dh14/18dl €7.45
41
 photo_cameraImage coming soon 995634 Washer (B) D12.5 €1.74
42
 photo_cameraImage coming soon 306328 NEEDLE BEARING €7.67
43
 photo_cameraImage coming soon 324543 In Dh24pb3 Felt Gasket-Pc3 €2.05
44
 photo_cameraImage coming soon 324545 Valve Dh24pb3-Pc3 €1.82
45
 photo_cameraImage coming soon 324544 Felt Dh24pb3-Pc3-Pd3 €1.87
46
 photo_cameraImage coming soon 878609 O-Ring S-24 €2.02
47
 photo_cameraImage coming soon 306312 flange Dh22pg €2.70
48
 photo_cameraImage coming soon 609DDC Ball Bearing 609ddc3ps2-L €12.80
49
 photo_cameraImage coming soon 958915 Washer A Dh22pg €2.02
50
 Armature for Cordless Hammers Hitachi DH18DL - DH18DSL 360809 Armature for Cordless Hammers Hitachi DH18DL - DH18DSL €72.45
51
 photo_cameraImage coming soon 328482 MAGNET €25.55
52
 photo_cameraImage coming soon 980865 WASHER (A) €1.23
53
 photo_cameraImage coming soon 626VVM BALL BEARING 626VVC2PS2L €5.14
54
 Carbon Brushes Holder for Hammers Hitachi DH14-18DL - DSL 328486 Carbon Brushes Holder for Hammers Hitachi DH14-18DL - DSL €22.19
56
 Carbon Brushes for Demolition Hammer Hitachi DH14DSL 999100 Carbon Brushes for Demolition Hammer Hitachi DH14DSL €9.62
57
 Brushes Cap for Demolition Hammers Hitachi DH14DL 319847 Brushes Cap for Demolition Hammers Hitachi DH14DL €2.78
58
 photo_cameraImage coming soon 301653 Tapp.Screw (W / Flange) D4x20 €5.63
59
 photo_cameraImage coming soon 330075 HOUSING (A).(B) SET €42.04
60
 Pusching Button for Drills Hitachi DV16-18V-DV20VB2 322853 Pusching Button for Drills Hitachi DV16-18V-DV20VB2 €2.78
61
 photo_cameraImage coming soon 328484 DC-SPEED CONTROL SWITCH €47.28
63
 photo_cameraImage coming soon 326276 LEVER (A) €2.02
64
 photo_cameraImage coming soon 328480 LEVER (B) €1.91
65
 photo_cameraImage coming soon 330074 CONTROLLER TERMINAL SET €154.48
66
 photo_cameraImage coming soon 306952 STRAP (BLACK) €8.78
67
 photo_cameraImage coming soon 330068 BATTERY BSL 1830 (EUROPE.AUS.NZL) €248.59

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Hitachi Spare Parts for Cordless Hammer DH18DSL

Fix Your Rotary Hammer DH18DSL.All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following table, look for the model of the Hammer and their spare part.
Hitachi DH18DSL

Cordless Rotary Hammer DH18DSL
# Part Num. Description
1 306345 FRONT CAP
2 306340 STOPPER RING
3 325597 GRIP
4 327879 BALL HOLDER
5 324526 HOLDER PLATE
6 322812 HOLDER SPRING
7 325593 GEAR COVER
8 305490 TAPPING SCREW (W/FLANGE) D4X30 (BLACK)
10 965469 RETAINING RING FOR D25 SHAFT
11 944274 WASHER
12 325594 LEVER
13 872654 O-RING (1AP-10)
14 327875 STOPPER
15 949213 MACHINE SCREW M4X5
16 306334 SPRING (A)
17 306333 SECOND GEAR
18 959156 STEEL BALL D7.0
19 327876 CYLINDER
20 327877 SECOND HAMMER
21 301672 O-RING (B)
22 311814 O-RING (P-15)
23 327878 HAMMER HOLDER
24 325601 STRIKER
25 306326 O-RING (A)
26 327880 THRUST WASHER
27 325588 THRUST PLATE
28 306976 SPRING (B)
29 306324 PISTON
30 321007 WASHER (A)
31 325583 O-RING (I.D. D61)
32 306328 NEEDLE BEARING
33 328479 INNER COVER ASS'Y
34 306322 PISTON PIN
35 325587 SPACER
36 327871 SECOND SHAFT
37 325584 CLUTCH
38 325585 RECIPROCATING BEARING
39 306320 NEEDLE CAGE
40 327872 FIRST GEAR
41 995634 WASHER (B) D12.5
42 306328 NEEDLE BEARING
43 324543 FELT PACKING (A)
44 324545 VALVE
45 324544 FELT PACKING (B)
46 878609 O-RING (S-24)
47 306312 FRINGER
48 609DDC BALL BEARING 609DDC3PS2-L
49 958915 WASHER (A)
50 360809 ARMATURE ASS'Y (W/BEARING) DC 18V
51 328482 MAGNET
52 980865 WASHER (A)
53 626VVM BALL BEARING 626VVC2PS2L
54 328486 CARBON BRUSH HOLDER
54A 334890 BRUSH BLOCK SET
55 305812 TAPPING SCREW (W/FLANGE) D4X16 (BLACK)
56 999100 CARBON BRUSH (1 PAIR)
57 319847 BRUSH CAP
58 301653 TAPPING SCREW (W/FLANGE) D4X20 (BLACK)
59 330075 HOUSING (A).(B) SET
60 322853 PUSHING BUTTON
61 328484 DC-SPEED CONTROL SWITCH
63 326276 LEVER (A)
64 328480 LEVER (B)
65 330074 CONTROLLER TERMINAL SET
65A 334895 CONTROLLER SET
66 306952 STRAP (BLACK)
67 330068 BATTERY BSL 1830 (EUROPE.AUS.NZL)
67 330067 BATTERY BSL 1830 (USA.CAN)
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Hitachi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to hitachi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Hitachi DH18DSL
3 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Esploso Hitachi DH18DSL

Esploso Hitachi DH18DSL

Download (249.46KB)
