HiKOKI Power Tools Italia S.p.a.

Hitachi Spare Parts for Variable Speed Die Grinder GP5V

SKU: Hitachi GP5V
€9.63
VAT included

Hitachi Spare Parts for Variable Speed Die Grinder GP5V

Hitachi-Koky genuine spare parts or replacement parts for to repair Electronic Variable Speed Die Grinder GP5V.
Hitachi Spare Parts for Variable Speed Die Grinder GP5V
  • Hitachi Spare Parts for Variable Speed Die Grinder GP5V
  • Hitachi Spare Parts for Variable Speed Die Grinder GP5V
HiKOKI Power Tools Italia S.p.a.

Hitachi Spare Parts for Variable Speed Die Grinder GP5V

SKU: Hitachi GP5V Condition: New
€9.63
VAT included

Hitachi Spare Parts for Variable Speed Die Grinder GP5V

Hitachi-Koky genuine spare parts or replacement parts for to repair Electronic Variable Speed Die Grinder GP5V.
settings 35 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10 Business Days Approx

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
35 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

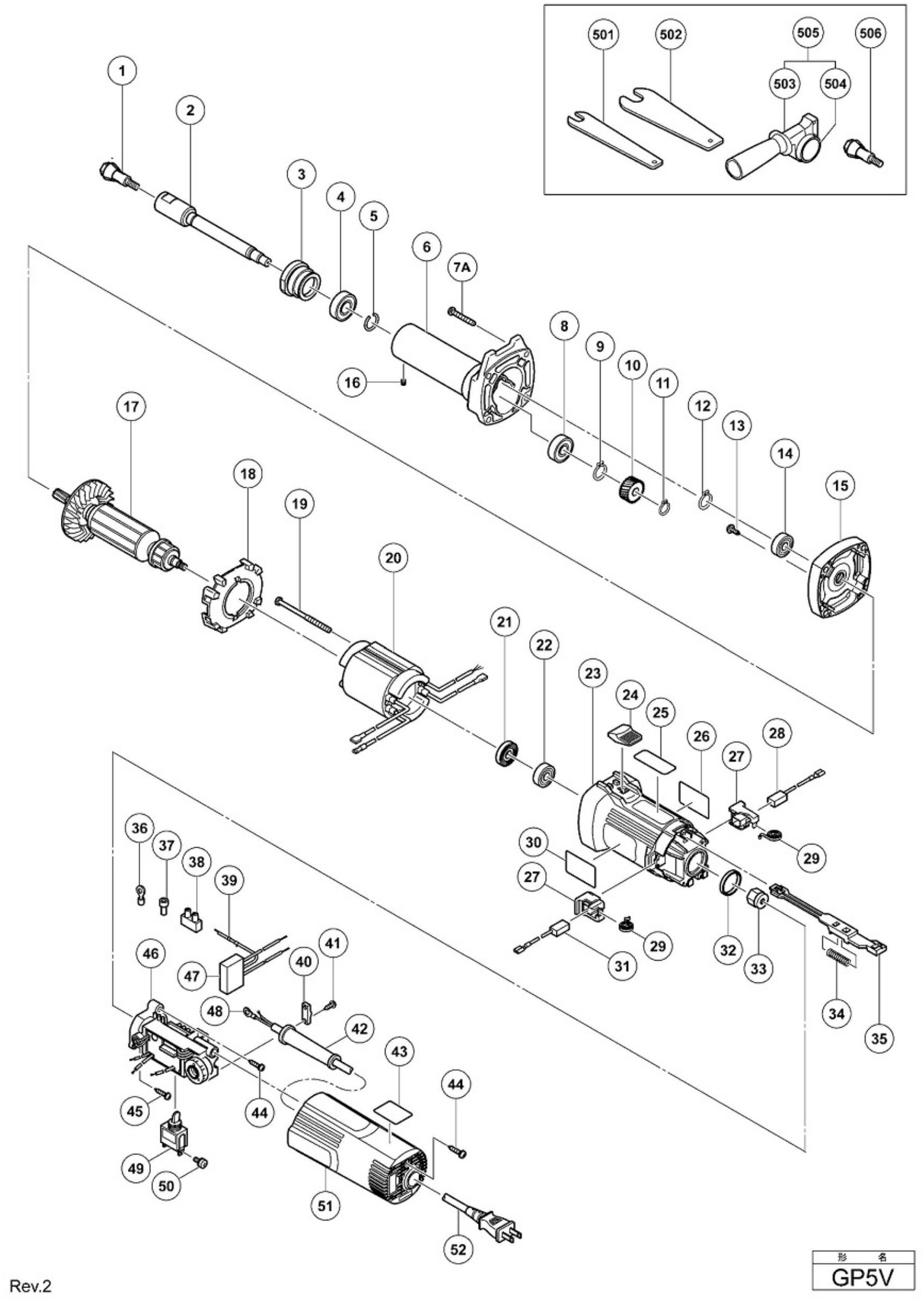

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 333936 COLLET CHUCK 6MM €47.02
2
 photo_cameraImage coming soon 333644 SPINDLE €14.92
3
 photo_cameraImage coming soon 332452 BEARING LID (B) €8.13
4
 photo_cameraImage coming soon 6001VV BALL BEARING 6001VVCMPS2L €8.22
5
 photo_cameraImage coming soon 932617 RING €2.02
6
 photo_cameraImage coming soon 333642 NOSE BRACKET €26.92
8
 photo_cameraImage coming soon 6000VV BALL BEARING 6000VVCMPS2L €9.76
9
 Retaining Ring D.10 for Hammer DH45ME - DH40MR 939540 Retaining Ring D.10 for Hammer DH45ME - DH40MR €0.35
10
 photo_cameraImage coming soon 333646 FIRST GEAR €7.03
12
 photo_cameraImage coming soon 885977 RING OF CIRCUIT BREAKER €1.52
14
 photo_cameraImage coming soon 609VVM BALL BEARING 609VVC2PS2L €13.03
15
 photo_cameraImage coming soon 333643 INNER COVER €10.92
17
 photo_cameraImage coming soon 360914E ARMATURE 220V-230V €47.92
18
 photo_cameraImage coming soon 319898 FAN GUIDE €2.21
21
 Dust Seal for Angle Grinders Hitachi G13SD - G12S2 315877 Dust Seal for Angle Grinders Hitachi G13SD - G12S2 €1.59
22
 photo_cameraImage coming soon 608VVM BALL BEARING 608VVC2PS2L €7.12
23
 photo_cameraImage coming soon 317802 HOUSING €22.89
24
 Slide Knob for Angle Grinders Hitachi G12SA2 - G12SG 314428 Slide Knob for Angle Grinders Hitachi G12SA2 - G12SG €1.66
27
 photo_cameraImage coming soon 317810 BRUSH HOLDER €5.94
28
 photo_cameraImage coming soon 999076 CARBON BRUSH (AUTO STOP TYPE) (1 PAIR) €12.89
29
 Carbon Brush Spring for Angle Grinders G 12 S2 308536 Carbon Brush Spring for Angle Grinders G 12 S2 €2.18
31
 Carbon Brushes for Grinder Hitachi 999088 Carbon Brushes for Grinder Hitachi €9.62
32
 photo_cameraImage coming soon 995662 RUBBER RING €1.30
33
 photo_cameraImage coming soon 333933 MAGNET €7.03
34
 photo_cameraImage coming soon 314429 SPRING €1.32
38
 photo_cameraImage coming soon 938307 PILLAR TERMINAL (OLD 938307Z / 512-31) €2.60
40
 photo_cameraImage coming soon 937631 CORD CLIP €1.37
42
 Cord Armor D.10.1 for Hitachi Power Tools 938051 Cord Armor D.10.1 for Hitachi Power Tools €1.34
42
 Cord Armor D.8.8 for Hitachi Power Tools 953327 Cord Armor D.8.8 for Hitachi Power Tools €1.37
44
 photo_cameraImage coming soon 301653 Tapp.Screw (W / Flange) D4x20 €5.63
46
 photo_cameraImage coming soon 333592 CONTROLLER 220V-240V €75.92
47
 Noise Suppressor Hitachi 325-566 325566 Noise Suppressor Hitachi 325-566 €19.40
49
 Switch for Angle Grinders Hitachi 115 mm G12SN 314603 Switch for Angle Grinders Hitachi 115 mm G12SN €21.20
51
 photo_cameraImage coming soon 319376 HOUSING GP3V-GP5V €9.53
52
 photo_cameraImage coming soon 500409Z Cord €13.41

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Hitachi Spare Parts for Variable Speed Die Grinder GP5V

Hitachi-Koky genuine spare parts or replacement parts for to repair Electronic Variable Speed Die Grinder GP5V.

In the following table, look for the model of the Cutter-Bending and their spare part.
Hitachi GP5V

Variable Speed Die Grinder GP5V
# Part Num. Description
1 333936 COLLET CHUCK 6MM
2 333644 SPINDLE
3 332452 BEARING LID (B)
4 6001VV BALL BEARING 6001VVCMPS2L
5 932617 RING
6 333642 NOSE BRACKET
7A 334402 TAPPING SCREW D5X35 (BLACK)
8 6000VV BALL BEARING 6000VVCMPS2L
9 939540 RETAINING RING FOR D10 SHAFT (10 PCS.)
10 333646 FIRST GEAR
11 940079 RETAINING RING FOR D8 SHAFT
12 885977 RETAINING RING
13 323556 SLOTTED HD. SCREW (SEAL LOCK) M4X8
14 609VVM BALL BEARING 609VVC2PS2L
15 333643 INNER COVER
16 981478 HEX. SOCKET SET SCREW M4X4
17 360914E ARMATURE 220V-230V
18 319898 FAN GUIDE
19 982021 HEX. HD. TAPPING SCREW D4X70
20 340827E STATOR 220V
21 315877 DUST SEAL
22 608VVM BALL BEARING 608VVC2PS2L
23 317802 HOUSING
24 314428 SLIDE KNOB
27 317810 BRUSH HOLDER
28 999076 CARBON BRUSH (AUTO STOP TYPE) (1 PAIR)
29 308536 SPRING
31 999088 CARBON BRUSH (1 PAIR)
32 995662 RUBBER RING
33 333933 MAGNET
34 314429 SPRING
35 319370 SLIDE BAR
36 930804 TERMINAL M4.0 (10 PCS.)
37 959140 CONNECTOR 50091 (10 PCS.)
38 938307 PILLAR TERMINAL
39 314854 EARTH TERMINAL
40 937631 CORD CLIP
41 984750 TAPPING SCREW (W/FLANGE) D4X16
42 953327 CORD ARMOR D8.8
42 938051 CORD ARMOR D10.1
43 333935 SETTING LABEL (B)
44 301653 TAPPING SCREW (W/FLANGE) D4X20 (BLACK)
45 307028 TAPPING SCREW (W/FLANGE) D4X25 (BLACK)
46 333592 CONTROLLER 220V-240V
47 325566 NOISE SUPPRESSOR
48 980063 TERMINAL
49 314603 SWITCH (1P SOLDER TYPE)
50 305499 MACHINE SCREW (W/WASHER) M3.5X6
51 319376 TAIL COVER
52 500409Z CORD
