HiKOKI Power Tools Italia S.p.a.

Hitachi Spare Parts for Angle Grinder G15VA

SKU: Hitachi G15VA
€9.63
VAT included

Hitachi Spare Parts for Angle Grinder G15VA

Hitachi-HIKOKI Original spare parts sourced from the manufacturer, with after-sales service at the lowest price on the web for to make maintenance or repair deteriorated parts for Angle Grinder G 15VA.
Hitachi Spare Parts for Angle Grinder G15VA
  • Hitachi Spare Parts for Angle Grinder G15VA
  • Hitachi Spare Parts for Angle Grinder G15VA
HiKOKI Power Tools Italia S.p.a.

Hitachi Spare Parts for Angle Grinder G15VA

SKU: Hitachi G15VA Condition: New
€9.63
VAT included

Hitachi Spare Parts for Angle Grinder G15VA

Hitachi-HIKOKI Original spare parts sourced from the manufacturer, with after-sales service at the lowest price on the web for to make maintenance or repair deteriorated parts for Angle Grinder G 15VA.
settings 36 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
36 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

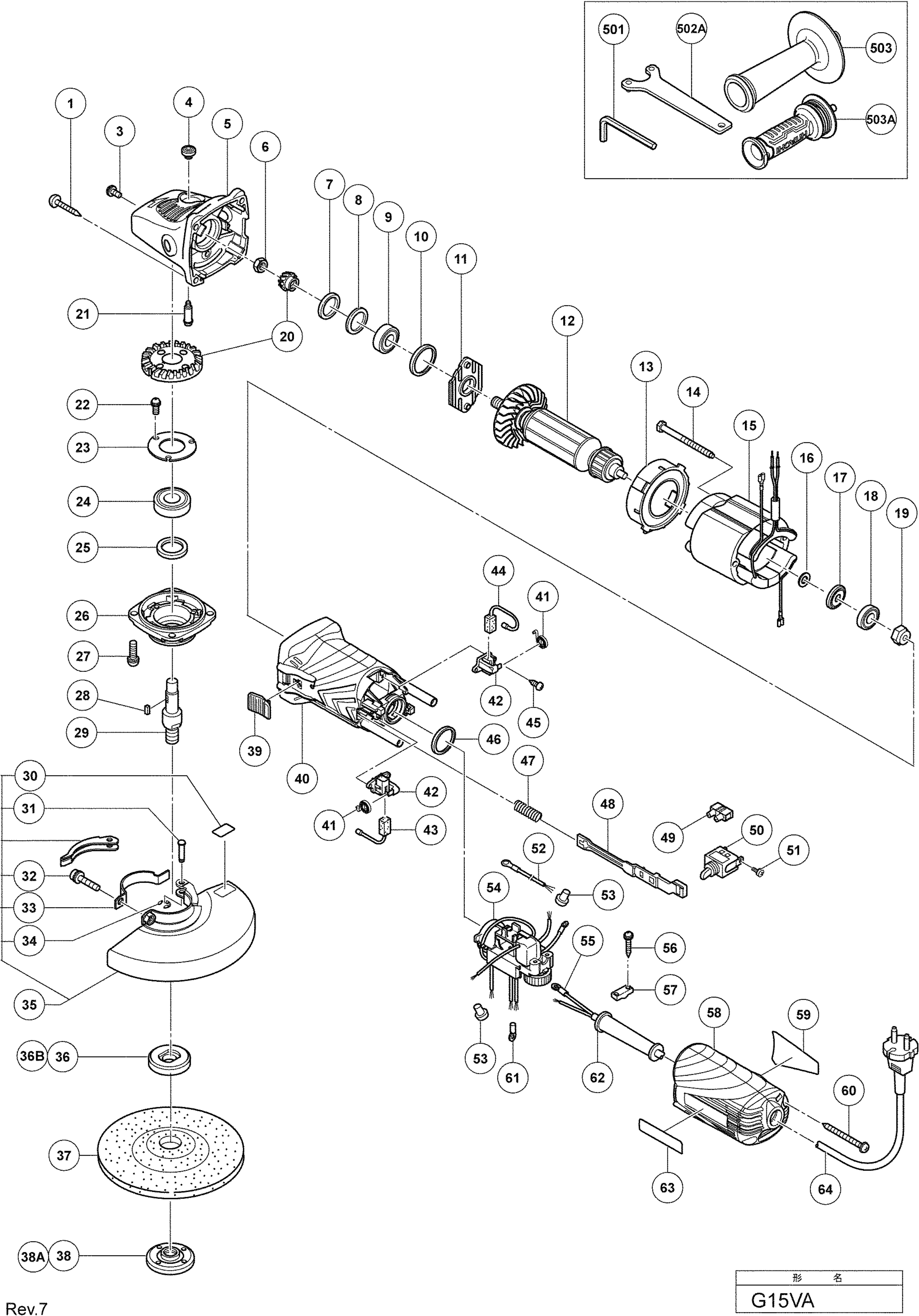

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
4
 Pushing Button for Angle Grinders Hitachi G15VA - G15YF 301944 Pushing Button for Angle Grinders Hitachi G15VA - G15YF €1.52
5
 photo_cameraImage coming soon 321737 GEAR COVER ASS'Y €48.09
6
 photo_cameraImage coming soon 309191 SPECIAL NUT M6 €1.33
8
 photo_cameraImage coming soon 980866 COVER KIT €38.82
9
 photo_cameraImage coming soon 629T12 BALL BEARING 629T12DDC3PS2-L €5.44
10
 photo_cameraImage coming soon 957754 RUBBER RING €1.67
12
 photo_cameraImage coming soon 360870E ARMATURE 230V-240V €59.02
13
 photo_cameraImage coming soon 321732 FAN GUIDE €1.75
15
 photo_cameraImage coming soon 340749E STATOR ASS'Y 220V-240V €29.93
18
 photo_cameraImage coming soon 608VVM BALL BEARING 608VVC2PS2L €7.12
19
 photo_cameraImage coming soon 325475 MAGNET €7.03
20
 photo_cameraImage coming soon 311486 GEAR ASS'Y €57.02
21
 Pin Retainer for Angle Grinder Hitachi G12 301943 Pin Retainer for Angle Grinder Hitachi G12 €4.19
24
 photo_cameraImage coming soon 6201DD BALL BEARING 6201DDCMPS2L €7.04
26
 photo_cameraImage coming soon 308545 PACKING GLAND €10.20
28
 photo_cameraImage coming soon 944109 FEATHER KEY 3X3X8 €2.99
29
 photo_cameraImage coming soon 994301 SPINDLE (A) €18.28
31
 photo_cameraImage coming soon 311744 SET PIN €1.42
33
 photo_cameraImage coming soon 311491 SET PIECE (B) €5.32
35
 photo_cameraImage coming soon 311490 WHEEL GUARD ASS'Y €37.03
36
 Wheel Washer for Grinder Hitachi G12SS 937817Z Wheel Washer for Grinder Hitachi G12SS €13.81
38A
 photo_cameraImage coming soon 337329 WHEEL NUT M14 €6.57
40
 photo_cameraImage coming soon 330808 HOUSING €10.02
41
 Carbon Brush Spring for Angle Grinders G 12 S2 308536 Carbon Brush Spring for Angle Grinders G 12 S2 €2.18
42
 photo_cameraImage coming soon 308535 BRUSH HOLDER €7.92
43
 Carbon Brushes for Grinder Hitachi 999088 Carbon Brushes for Grinder Hitachi €9.62
44
 photo_cameraImage coming soon 999076 CARBON BRUSH (AUTO STOP TYPE) (1 PAIR) €12.89
46
 photo_cameraImage coming soon 995662 RUBBER RING €1.30
47
 photo_cameraImage coming soon 314429 SPRING €1.32
49
 photo_cameraImage coming soon 938307 PILLAR TERMINAL (OLD 938307Z / 512-31) €2.60
50
 Switch for Angle Grinders Hitachi 115 mm G12SN 314603 Switch for Angle Grinders Hitachi 115 mm G12SN €21.20
52
 photo_cameraImage coming soon 331932 INNER WIRE €3.03
54
 photo_cameraImage coming soon 330813 CONTROLLER 220V-240V €63.02
57
 photo_cameraImage coming soon 937631 CORD CLIP €1.37
58
 photo_cameraImage coming soon 330809 TAIL COVER €7.03
62
 Cord Armor D.8.8 for Hitachi Power Tools 953327 Cord Armor D.8.8 for Hitachi Power Tools €1.37

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Hitachi Spare Parts for Angle Grinder G15VA

Hitachi-HIKOKI Original spare parts sourced from the manufacturer, with after-sales service at the lowest price on the web for to make maintenance or repair deteriorated parts for Angle Grinder G 15VA.

In the following table , look for the model of the Grinder and the ripettivo spare part.
Hitachi G15VA

Grinder 150 mm G 15VA
1 320523 TAPPING SCREW D5X25 (BLACK)
3 303255 SEAL LOCK SCREW (W/SP. WASHER) M4X10
4 301944 PUSHING BUTTON
5 321737 GEAR COVER ASS'Y
6 309191 SPECIAL NUT M6
7 308543 SEAL RING (A)
8 980866 WASHER (C)
9 629T12 BALL BEARING 629T12DDC3PS2-L
10 957754 RUBBER RING
11 321734 BEARING COVER
12 360870E ARMATURE 230V-240V
13 321732 FAN GUIDE
14 982021 HEX. HD. TAPPING SCREW D4X70
15 340749E STATOR ASS'Y 220V-240V
16 311737 THRUST WASHER
17 311435 DUST SEAL (A)
18 608VVM BALL BEARING 608VVC2PS2L
19 325475 MAGNET
20 311486 GEAR ASS'Y
21 301943 LOCK PIN
22 991207 SEAL LOCK SCREW (W/SP. WASHER) M4X8
23 936680 BEARING COVER (B)
24 6201DD BALL BEARING 6201DDCMPS2L
25 308546 FELT PACKING
26 308545 PACKING GLAND
27 307046 SEAL LOCK SCREW (W/SP. WASHER) M5X16
28 944109 FEATHER KEY 3X3X8
29 994301 SPINDLE (A)
29 994302 SPINDLE (B)
30 311492 LABEL
31 311744 SET PIN
32 316107 HEX. SOCKET HD. BOLT (W/WASHERS) M5X20
33 311491 SET PIECE (B)
34 874759 RETAINING RING (E-TYPE) FOR D2.5 SHAFT
35 311490 WHEEL GUARD ASS'Y
36 937817Z WHEEL WASHER
36B 334456 WHEEL WASHER (C)
37 316823 D. C. WHEELS 150MM A36Q
38 994324 WHEEL NUT M14
38 937923P WHEEL NUT 5/8"-11UNC
38A 337329 WHEEL NUT M14
39 330810 SLIDE SWITCH KNOB
40 330808 HOUSING
41 308536 SPRING
42 308535 BRUSH HOLDER
43 999088 CARBON BRUSH (1 PAIR)
44 999076 CARBON BRUSH (AUTO STOP TYPE) (1 PAIR)
45 306945 TAPPING SCREW D3X10
46 995662 RUBBER RING
47 314429 SPRING
48 330811 SLIDE BAR
49 938307 PILLAR TERMINAL
50 314603 SWITCH (1P SOLDER TYPE)
51 305499 MACHINE SCREW (W/WASHER) M3.5X6
52 331932 INTERNAL WIRE
53 959140 CONNECTOR 50091
54 330813 CONTROLLER 220V-240V
55 980063 TERMINAL
56 984750 TAPPING SCREW (W/FLANGE) D4X16
57 937631 CORD CLIP
58 330809 TAIL COVER
60 331933 TAPPING SCREW (W/FLANGE) D4X50 (BLACK)
61 311741 TERMINAL
62 953327 CORD ARMOR D8.8

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Hitachi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to hitachi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
