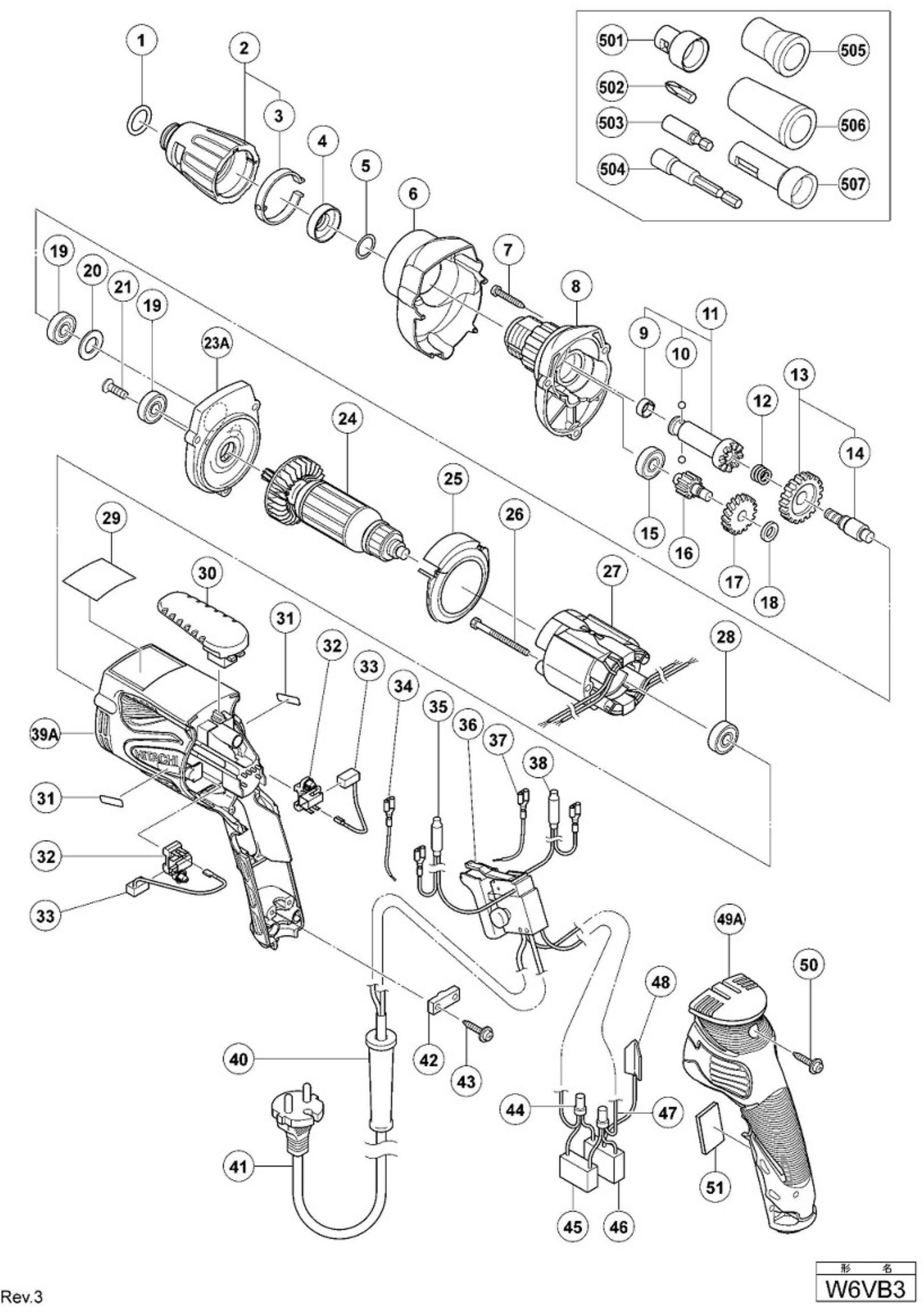

zoom_in View exploded
local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Informazioni sulle spedizioni e consegne saranno disponibili a breve.

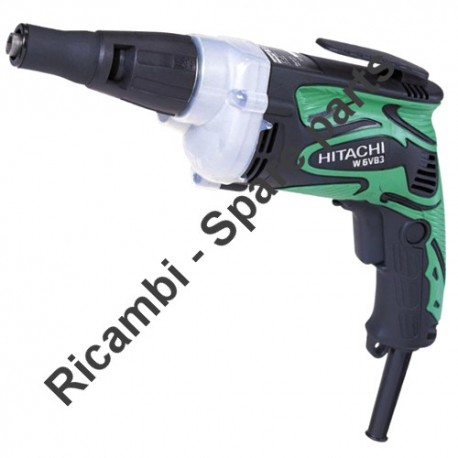

Hitachi Spare Parts for Electronic Screw Driver W6VB3
Hitachi-HIKOKI-Tanaka authorized service center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Electronic Screw Driver W6VB3.
In the following table, look for the model of the Screw Driver and their spare part.
| Electronic Screw Driver W6VB3 | ||
| 1 | 876031 | O-RING (S-16) |
| 2 | 323487 | LOCATOR ASS'Y |
| 3 | 323488 | CLICK SPRING |
| 4 | 971468 | FRINGER (A) |
| 5 | 317662 | O-RING (F) |
| 6 | 323494 | PROTECT COVER (B) |
| 7 | 321057 | TAPPING SCREW D4X25 (BLACK) |
| 8 | 323498 | GEAR COVER ASS'Y (B) |
| 9 | 872573 | SET RING |
| 10 | 959148 | STEEL BALL D3.175 |
| 11 | 317664 | SOCKET (B) ASS'Y |
| 12 | 306024 | SPRING |
| 13 | 317771 | GEAR ASS'Y |
| 14 | 307340 | GEAR SHAFT |
| 15 | 608VVM | BALL BEARING 608VVC2PS2L |
| 16 | 317770 | SECOND PINION ASS'Y |
| 17 | 307337 | FIRST GEAR |
| 18 | 323497 | WASHER |
| 19 | 608VVM | BALL BEARING 608VVC2PS2L |
| 20 | 933545 | WASHER (A) |
| 21 | 323556 | SLOTTED HD. SCREW (SEAL LOCK) M4X8 |
| 23A | 323493 | INNER COVER ASS'Y (A) |
| 24 | 360675E | ARMATURE (D) 220V-230V |
| 25 | 323472 | FAN GUIDE |
| 26 | 961672 | HEX. HD. TAPPING SCREW D4X50 |
| 27 | 340599E | STATOR 220V-240V |
| 28 | 608VVM | BALL BEARING 608VVC2PS2L |
| 30 | 323471 | HOOK |
| 32 | 323512 | BRUSH HOLDER (A) |
| 33 | 999091 | CARBON BRUSH (AUTO STOP TYPE) (1 PAIR) |
| 36 | 323479 | SWITCH (1P PILLAR TYPE) W/LOCK |
| 38 | 323568 | CHOKE COIL (W/INTERNAL WIRE) BLUE |
| 39A | 326671 | HOUSING |
| 40 | 953327 | CORD ARMOR D8.8 |
| 42 | 937631 | CORD CLIP |
| 43 | 984750 | TAPPING SCREW (W/FLANGE) D4X16 |
| 46 | 994273 | NOISE SUPPRESSOR |
| 49A | 326672 | HANDLE COVER |
| 50 | 301653 | TAPPING SCREW (W/FLANGE) D4X20 (BLACK) |
| 51 | 329770 | SPONGE |
