HiKOKI Power Tools Italia S.p.a.

Hitachi Spare Parts for Cordless Rotary Hammer DH36DAL

SKU: Hitachi DH36DAL
€1.32
VAT included

Hitachi Spare Parts for Cordless Rotary Hammer DH36DAL

We are Hitachi-HIKOKI authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair problem for Cordless Rotary Hammer DH36DAL.
Hitachi Spare Parts for Cordless Rotary Hammer DH36DAL
  • Hitachi Spare Parts for Cordless Rotary Hammer DH36DAL
  • Hitachi Spare Parts for Cordless Rotary Hammer DH36DAL
HiKOKI Power Tools Italia S.p.a.

Hitachi Spare Parts for Cordless Rotary Hammer DH36DAL

SKU: Hitachi DH36DAL Condition: New
€1.32
VAT included

Hitachi Spare Parts for Cordless Rotary Hammer DH36DAL

We are Hitachi-HIKOKI authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair problem for Cordless Rotary Hammer DH36DAL.
settings 91 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
81 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

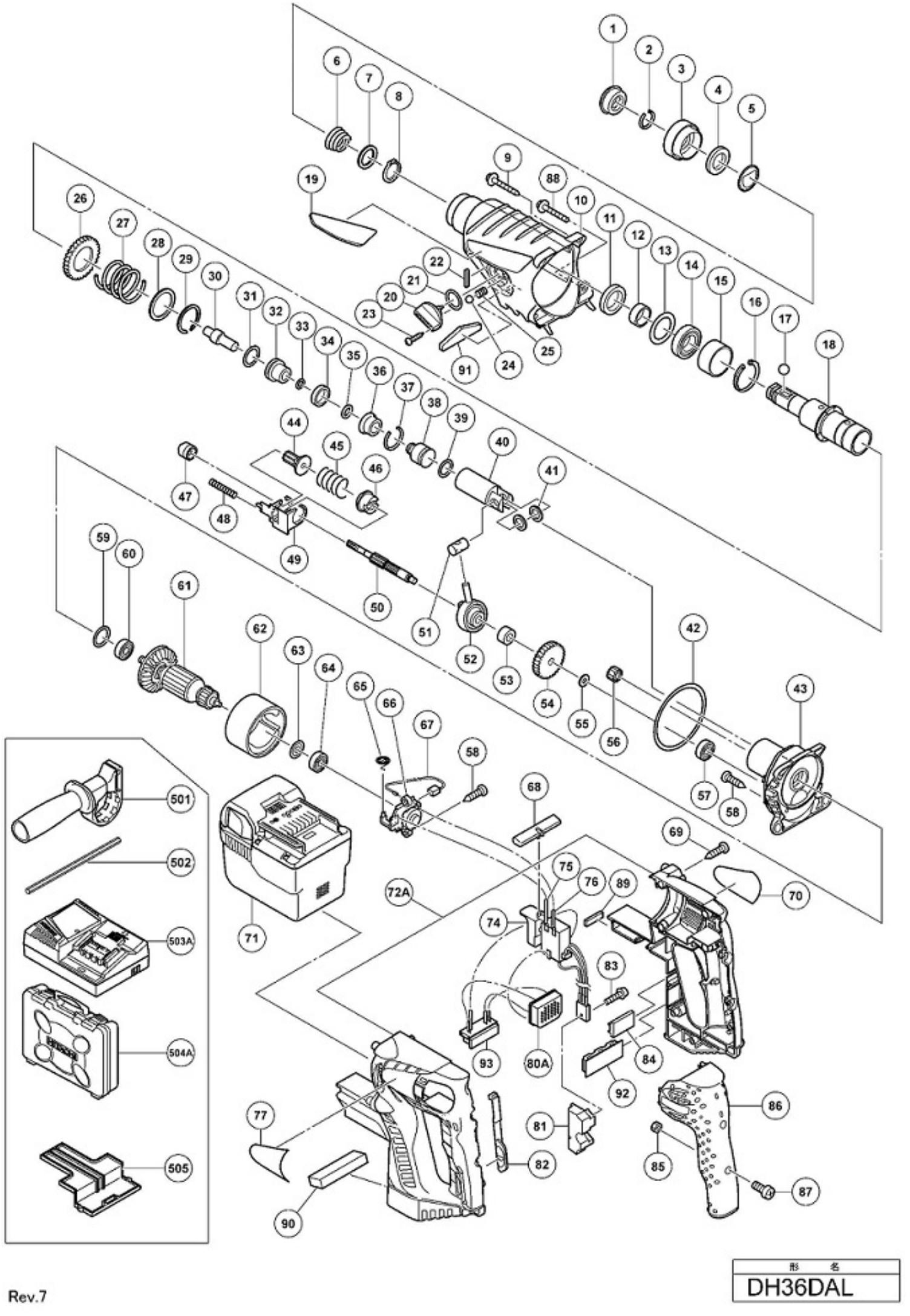

Esploso pagina 1
Pos. Item Price Buy
1
 Front Cap for Rotary Hammers Hitachi DH22/28 306345 Front Cap for Rotary Hammers Hitachi DH22/28 €4.18
2
 Stopper Ring for Hammers Hitachi 306340 Stopper Ring for Hammers Hitachi €2.08
3
 photo_cameraImage coming soon 323154 GRIP €6.39
4
 photo_cameraImage coming soon 324528 BALL HOLDER €7.34
5
 photo_cameraImage coming soon 324526 Support Thrust Dh24dva €1.46
6
 photo_cameraImage coming soon 322812 Spring Gate Punta €2.05
7
 photo_cameraImage coming soon 984118 WASHER (B) €1.30
8
 photo_cameraImage coming soon 939547 RETAINING RING FOR D20 SHAFT €5.65
11
 photo_cameraImage coming soon 307688 OIL SEAL €5.10
12
 photo_cameraImage coming soon 322815 SLEEVE €1.99
13
 photo_cameraImage coming soon 323232 FELT PACKING (B) €2.55
14
 photo_cameraImage coming soon 6904DD BALL BEARING 6904DDPS2L €23.92
15
 photo_cameraImage coming soon 324522 SLEEVE (A) €3.68
16
 photo_cameraImage coming soon 322813 RETAINING RING 37MM €1.99
17
 Steel Ball 7 mm for Hammers Hitachi 959156 Steel Ball 7 mm for Hammers Hitachi €3.48
18
 photo_cameraImage coming soon 323184 CYLINDER €89.30
20
 Change Lever for Cordless Hammers Hitachi DH25DAL-DH36DAL 325551 Change Lever for Cordless Hammers Hitachi DH25DAL-DH36DAL €6.83
21
 O-Ring S-18 for Rotary Hammers Hitachi DH24PC3-PD3 878885 O-Ring S-18 for Rotary Hammers Hitachi DH24PC3-PD3 €1.34
22
 photo_cameraImage coming soon 325554 FELT PACKING €1.91
23
 Screw D 2.6X10 for Cordless Rotary Hammer Hitachi DH25DL 323239 Screw D 2.6X10 for Cordless Rotary Hammer Hitachi DH25DL €1.93
24
 photo_cameraImage coming soon 959155 STEEL BALL D3.97 €1.35
25
 photo_cameraImage coming soon 981328 Spring H Dh24dva €1.91
26
 photo_cameraImage coming soon 323185 SECOND GEAR €25.55
27
 photo_cameraImage coming soon 317233 SPRING (A) €11.50
28
 photo_cameraImage coming soon 317234 WASHER (A) €3.83
29
 photo_cameraImage coming soon 317235 RETAINING RING D30 €2.55
30
 photo_cameraImage coming soon 324525 SECOND HAMMER €7.34
31
 O-Ring 1 AP-20 for Rotary Hammer Hitachi DH24PB3 944486 O-Ring 1 AP-20 for Rotary Hammer Hitachi DH24PB3 €1.41
32
 photo_cameraImage coming soon 324523 HAMMER HOLDER €13.24
33
 photo_cameraImage coming soon 322802 O-RING (B) €3.86
34
 photo_cameraImage coming soon 322805 DAMPER (A) €2.05
35
 photo_cameraImage coming soon 322808 O-RING (C) €2.02
36
 photo_cameraImage coming soon 324524 DAMPER HOLDER €7.80
37
 photo_cameraImage coming soon 322807 STOPPER RING €2.05
38
 Striker for Cordless Hammers Hitachi DH36DL-DH36DAL 324535 Striker for Cordless Hammers Hitachi DH36DL-DH36DAL €12.42
39
 photo_cameraImage coming soon 322834 BACK PANEL €3.86
40
 Piston for Cordless Rotary Hammers Hitachi DH25DAL-DH36DAL 324534 Piston for Cordless Rotary Hammers Hitachi DH25DAL-DH36DAL €21.58
41
 photo_cameraImage coming soon 322799 WASHER (C) €7.66
42
 photo_cameraImage coming soon 325254 O-RING (I.D. 72) €5.11
43
 photo_cameraImage coming soon 323157 INNER COVER ASS'Y €31.94
44
 Second Pinion for Rotary Hammers Hitachi DH24PC3 323181 Second Pinion for Rotary Hammers Hitachi DH24PC3 €20.93
45
 photo_cameraImage coming soon 323182 CLUTCH SPRING €2.05
46
 Clutch for Cordless Hammers Hitachi DH24PC3 324606 Clutch for Cordless Hammers Hitachi DH24PC3 €19.40
47
 photo_cameraImage coming soon 323249 PINION SLEEVE €57.49
48
 photo_cameraImage coming soon 325556 SPRING (C) €2.55
49
 photo_cameraImage coming soon 325553 LOCK PLATE €57.36
50
 photo_cameraImage coming soon 325552 SECOND SHAFT (A) €37.05
51
 photo_cameraImage coming soon 322798 PISTON PIN €2.52
52
 photo_cameraImage coming soon 324533 RECIPROCATING BEARING €42.44
53
 photo_cameraImage coming soon 323152 COLLAR €6.39
54
 photo_cameraImage coming soon 323153 FIRST GEAR €25.55
55
 photo_cameraImage coming soon 301663 SPACER €1.23
56
 photo_cameraImage coming soon 323170 PINION €8.94
57
 photo_cameraImage coming soon 626VVM BALL BEARING 626VVC2PS2L €5.14
59
 photo_cameraImage coming soon 876796 O-RING (P-22) €1.33
60
 photo_cameraImage coming soon 608DDM BALL BEARING 608DDC2PS2L €7.07
61
 Armature for Cordless Hammers Hitachi DH36DL-DH36DAL 360801 Armature for Cordless Hammers Hitachi DH36DL-DH36DAL €94.78
62
 photo_cameraImage coming soon 323156 MAGNET €40.76
63
 Dust Washer for Demolition Hammer Hitachi H45MRY 982631 Dust Washer for Demolition Hammer Hitachi H45MRY €1.34
65
 Carbon Brush Spring for Angle Grinders G 12 S2 308536 Carbon Brush Spring for Angle Grinders G 12 S2 €2.18
66
 Carbon Brushes Holder for Cordless Hammer Hitachi DH25-DH36 323164 Carbon Brushes Holder for Cordless Hammer Hitachi DH25-DH36 €12.41
67
 Carbon Brushes for Cordless Hammer Hitachi DH25-DH36 999090 Carbon Brushes for Cordless Hammer Hitachi DH25-DH36 €15.22
68
 photo_cameraImage coming soon 328064 PUSHING BUTTON €1.91
71
 photo_cameraImage coming soon 328036 BATTERY BSL 3626 (EUROPE.AUS.NZL) €351.24
72A
 photo_cameraImage coming soon 328067 HOUSING (A).(B) SET €60.04
74
 Switch for Cordless Hammers Hitachi DH25-36DL-DAL 328058 Switch for Cordless Hammers Hitachi DH25-36DL-DAL €34.75
75
 photo_cameraImage coming soon 323166 INTERNAL WIRE (RED) €1.91
76
 Internal Wire Black mm 75 for Cordless Hammer Hitachi DH25-DH36 323165 Internal Wire Black mm 75 for Cordless Hammer Hitachi DH25-DH36 €2.08
80A
 photo_cameraImage coming soon 328060 CONTROLLER TERMINAL SET €52.25
81
 photo_cameraImage coming soon 319812 HEAT SINK €5.11
82
 photo_cameraImage coming soon 323159 SHIFT KNOB €2.55
84
 photo_cameraImage coming soon 313591 RUBBER HOLDER €5.11
86
 photo_cameraImage coming soon 323160 GRIP COVER €25.42
89
 photo_cameraImage coming soon 328708 CUSHION (A) €3.83
90
 photo_cameraImage coming soon 331415 PACKING (B) €1.91
91
 photo_cameraImage coming soon 333144 PACKING (C) €1.91
92
 photo_cameraImage coming soon 332668 RUBBER CUSHION €4.06
93
 photo_cameraImage coming soon 333991 BATTERY TERMINAL €7.03
501
 photo_cameraImage coming soon 323155 SIDE HANDLE €19.16
502
 photo_cameraImage coming soon 303709 delimiter Depth €1.75
505
 photo_cameraImage coming soon 329897 BATTERY PROTECTION €2.20

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Hitachi Spare Parts for Cordless Rotary Hammer DH36DAL

We are Hitachi-HIKOKI authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair problem for Cordless Rotary Hammer DH36DAL.

In the following table, look for the model of the Hammer and their spare part.
Tanaka TCS-2801S

Cordless Rotary Hammer DH36DAL
# Part Num. Description
1 306345 FRONT CAP
2 306340 STOPPER RING
3 323154 GRIP
4 324528 BALL HOLDER
5 324526 HOLDER PLATE
6 322812 HOLDER SPRING
7 984118 WASHER (B)
8 939547 RETAINING RING FOR D20 SHAFT
9 305558 TAPPING SCREW (W/FLANGE) D5X25 (BLACK)
10 325555 GEAR COVER (A)
11 307688 OIL SEAL
12 322815 SLEEVE
13 323232 FELT PACKING (B)
14 6904DD BALL BEARING 6904DDPS2L
15 324522 SLEEVE (A)
16 322813 RETAINING RING 37MM
17 959156 STEEL BALL D7.0
18 323184 CYLINDER
19 323172 HITACHI PLATE (GREEN)
20 325551 CHANGE LEVER (A)
21 878885 O-RING (S-18)
22 325554 FELT PACKING
23 323239 TAPPING SCREW D2.6X10
24 959155 STEEL BALL D3.97
25 981328 SPRING (H)
26 323185 SECOND GEAR
27 317233 SPRING (A)
28 317234 WASHER (A)
29 317235 RETAINING RING D30
30 324525 SECOND HAMMER
31 944486 O-RING (1AP-20)
32 324523 HAMMER HOLDER
33 322802 O-RING (B)
34 322805 DAMPER (A)
35 322808 O-RING (C)
36 324524 DAMPER HOLDER
37 322807 STOPPER RING
38 324535 STRIKER
39 322834 O-RING (I.D. 16)
40 324534 PISTON
41 322799 WASHER (C)
42 325254 O-RING (I.D. 72)
43 323157 INNER COVER ASS'Y
44 323181 SECOND PINION
45 323182 CLUTCH SPRING
46 324606 CLUTCH
47 323249 PINION SLEEVE
48 325556 SPRING (C)
49 325553 LOCK PLATE
50 325552 SECOND SHAFT (A)
51 322798 PISTON PIN
52 324533 RECIPROCATING BEARING
53 323152 COLLAR
54 323153 FIRST GEAR
55 301663 SPACER
56 323170 PINION
57 626VVM BALL BEARING 626VVC2PS2L
58 305812 TAPPING SCREW (W/FLANGE) D4X16 (BLACK)
59 876796 O-RING (P-22)
60 608DDM BALL BEARING 608DDC2PS2L
61 360801 ARMATURE AND PINION ASS'Y DC 36V
62 323156 MAGNET
63 982631 WASHER (A)
64 608DDM BALL BEARING 608DDC2PS2L
65 308536 SPRING
66 323164 BRUSH HOLDER
67 999090 CARBON BRUSH (AUTO STOP TYPE) (1 PAIR)
68 328064 PUSHING BUTTON
69 302086 TAPPING SCREW (W/FLANGE) D4X20 (BLACK)
71 328036 BATTERY BSL 3626 (EUROPE.AUS.NZL)
72A 328067 HOUSING (A).(B) SET
74 328058 DC-SPEED CONTROL SWITCH
75 323166 INTERNAL WIRE (RED)
76 323165 INTERNAL WIRE (BLACK) 75L
80A 328060 CONTROLLER TERMINAL SET
81 319812 HEAT SINK
82 323159 SHIFT KNOB
83 993963 MACHINE SCREW (W/WASHERS) M3X12
84 313591 RUBBER HOLDER
85 949554 NUT M4
86 323160 GRIP COVER
87 949215 MACHINE SCREW M4X8
88 328707 TAPPING SCREW (W/FLANGE) D5X30 (BLACK)
89 328708 BEARING (A)
90 331415 PACKING (B)
91 333144 PACKING (C)
92 332668 RUBBER CUSHION
93 333991 BATTERY TERMINAL
501 323155 SIDE HANDLE
502 303709 DEPTH GAUGE
504A 329319 CASE
505 329897 BATTERY COVER
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Hitachi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to hitachi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Hitachi DH36DAL
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Diagram Hitachi DH36DAL

Diagram Hitachi DH36DAL

Download (220.8KB)

You might also like

Carbon Brushes for Cordless Hammer Hitachi DH25-DH36
HiKOKI Power Tools Italia S.p.a. SKU: 999090
Carbon Brushes for Cordless Hammer Hitachi DH25-DH36
Carbon Brushes for Cordless Hammer Hitachi DH25-DH36 Genuine part HITACHI, Carbon Brushes, original part for Codless Hammers DH25DL - DH25DAL - DH36DL - DH36DAL. Part for the following products: - Cordless Hammer DH25DL -...
Last items in stock €15.22
Details
Carbon Brushes Holder for Cordless Hammer Hitachi DH25-DH36
HiKOKI Power Tools Italia S.p.a. SKU: 323164
Carbon Brushes Holder for Cordless Hammer Hitachi DH25-DH36
Carbon Brushes Holder for Cordless Hammer Hitachi DH25-DH36 Genuine part Hitachi, Carbon Brushes Holder for Codless Hammers DH25DL - DH25DAL - DH36DL - DH36DAL. Part for the following products: - Cordless Hammer DH25DL -...
Last items in stock €12.41
Details
Steel Ball 7 mm for Hammers Hitachi
HiKOKI Power Tools Italia S.p.a. SKU: 959156
Steel Ball 7 mm for Hammers Hitachi
Steel Ball 7 mm for Hammers Hitachi Hitachi genuine parts, steel ball diameter MM 7, Box 10 Pcs for Demolition hammers and Drills Hammers, DH14DSL - DH18PB - DH18DSL - DH25DL - DH25DAL - DH36DL - DH36DAL - H25PV - DH28PD - DH30PC2....
AVAILABLE €3.48
Details
Change Lever for Cordless Hammers Hitachi DH24DV
HiKOKI Power Tools Italia S.p.a. SKU: 323161
Change Lever for Cordless Hammers Hitachi DH24DV
Change Lever for Cordless Hammers Hitachi DH24DV Original spare Hitachi, Change Lever for Cordless Hammers DH24DV - DH25DL - DH36DL. Parts for the following products: - Cordless Hammer DH24DV - Cordless Hammer DH25DL - Cordless Hammer...
Last items in stock €4.04
Details
Change Lever for Cordless Hammers Hitachi DH25DAL-DH36DAL
HiKOKI Power Tools Italia S.p.a. SKU: 325551
Change Lever for Cordless Hammers Hitachi DH25DAL-DH36DAL
Change Lever for Cordless Hammers Hitachi DH25DAL-DH36DAL Original spare part Hitachi HIKOKI, Change Lever for Cordless Rotary Hammers DH25DAL - DH36DAL. Part for the following products: -  Cordless Rotary Hammer DH25DAL...
Last items in stock €6.83
Details
Stopper Ring for Hammers Hitachi
HiKOKI Power Tools Italia S.p.a. SKU: 306340
Stopper Ring for Hammers Hitachi
Stopper Ring for Hammers Hitachi Genuine parts Hitachi, Stopper Ring for Hammers Hitachi. For the following items: - Hammer DH 28 PCY - Hammer DH 26PC - Hammer DH 24PG
AVAILABLE €2.08
Details
Switch for Cordless Hammers Hitachi DH25-36DL-DAL
HiKOKI Power Tools Italia S.p.a. SKU: 328058
Switch for Cordless Hammers Hitachi DH25-36DL-DAL
Switch for Cordless Hammers Hitachi DH25-36DL-DAL Genuine parts Hitachi, C212319 DC- Speed Control Switch for Cordless Hammers DH25DL - DH25DAL - DH36DL - DH36DAL.  Part for the following products: -  Cordless Hammer DH25DL...
Last items in stock €34.75
Details
Carbon Brush Spring for Angle Grinders G 12 S2
HiKOKI Power Tools Italia S.p.a. SKU: 308536
Carbon Brush Spring for Angle Grinders G 12 S2
Carbon Brush Spring for Angle Grinders G 12 S2 Genuine spare parts Hitachi, Carbon Brush Spring for Angle Grinders G 12 S2 - G 12 SA2 - G12 SA3 - G 12 SE2 - G 12 VA - G 13 SD - G 13 SB3...
AVAILABLE €2.18
Details
Clutch for Cordless Hammers Hitachi DH24PC3
HiKOKI Power Tools Italia S.p.a. SKU: 324606
Clutch for Cordless Hammers Hitachi DH24PC3
Clutch for Cordless Hammers Hitachi DH24PC3 Original spare Hitachi, Clutch for Cordless Hammers DH24PC3 - DH24DVA - DH24PM - DH25DAL - DH36DAL Parts for the following products: -...
AVAILABLE €19.40
Details
Clutch Spring for Rotative Hammer Hitachi DH24PB3
HiKOKI Power Tools Italia S.p.a. SKU: 301660
Clutch Spring for Rotative Hammer Hitachi DH24PB3
Clutch Spring for Rotative Hammer Hitachi DH24PB3 Genuine Spare Part Hitachi, Clutch Spring for Rotative Hammers DH22PB - DH24PV - DH24PB3 - DH24PD3 - DH25DL - DH36DL Parts for the following products: - Rotative Hammer Hitachi DH22PB...
AVAILABLE €2.08
Details
Second Pinion for Rotary Hammers Hitachi DH24PC3
HiKOKI Power Tools Italia S.p.a. SKU: 323181
Second Pinion for Rotary Hammers Hitachi DH24PC3
Second Pinion for Rotary Hammers Hitachi DH24PC3 Genuine parts Hitachi, Second Pinion for Rotary Hammers DH22PH - DH24PC3 - DH24DVA - DH24PM - DH25DAL - DH36DAL Part for the...
Last items in stock €20.93
Details
Internal Wire Black mm 75 for Cordless Hammer Hitachi DH25-DH36 Sale
HiKOKI Power Tools Italia S.p.a. SKU: 323165
Internal Wire Black mm 75 for Cordless Hammer Hitachi DH25-DH36
Internal Wire Black mm 75 for Cordless Hammer Hitachi DH25-DH36 Genuine part Hitachi, Internal Wire Black mm 75 for Codless Hammers DH25DL - DH25DAL - DH36DL - DH36DAL For Hammers: - Cordless Rotary Hammer Hitachi DH25DL - Cordless...
AVAILABLE €2.08
Details
Screw D 2.6X10 for Cordless Rotary Hammer Hitachi DH25DL
HiKOKI Power Tools Italia S.p.a. SKU: 323239
Screw D 2.6X10 for Cordless Rotary Hammer Hitachi DH25DL
Screw D 2.6X10 for Cordless Rotary Hammer Hitachi DH25DL Genuine parts Hitachi, Screw D 2.6X10 for Cordless Rotary Hammer DH25DL - DH36DL - DH36DAL Part for the following products: - Cordless Rotary Hammer Hitachi DH25DL - Cordless...
AVAILABLE €1.93
Details
Dust Washer for Demolition Hammer Hitachi H45MRY
HiKOKI Power Tools Italia S.p.a. SKU: 982631
Dust Washer for Demolition Hammer Hitachi H45MRY
Dust Washer for Demolition Hammer Hitachi H45MRY Genuine Spare Part Hitachi, Dust Washer for Demolition Hammers H45MR - H45FRV - H45MRY - H45SR - DH40MRY - H41MB. Part for the following items: - Rotary Hammer Hitachi DH24PG - Rotary...
AVAILABLE €1.34
Details
O-Ring 1 AP-20 for Rotary Hammer Hitachi DH24PB3
HiKOKI Power Tools Italia S.p.a. SKU: 944486
O-Ring 1 AP-20 for Rotary Hammer Hitachi DH24PB3
O-Ring 1 AP-20 for Rotary Hammer Hitachi DH24PB3 Genuine replacement part HITACHI, O-Ring 1 AP-20 for Rotary Hammers DH22PB - DH24DV - DH24DVA - DH24PB3 - DH24PC3 - DH24PD3 -  DH24PM. Part for the following products: - Rotary Hammer...
AVAILABLE €1.41
Details
Armature for Cordless Hammers Hitachi DH36DL-DH36DAL
HiKOKI Power Tools Italia S.p.a. SKU: 360801
Armature for Cordless Hammers Hitachi DH36DL-DH36DAL
Armature for Cordless Hammers Hitachi DH36DL-DH36DAL Original spare part Hitachi, Armature and Pinion for Cordless Rotary Hammers DH36DL - DH36DAL. Part for the following products: - Cordless Rotary Hammer DH36DL - Cordless Rotary...
AVAILABLE €94.78
Details
Piston for Cordless Rotary Hammers Hitachi DH25DAL-DH36DAL
HiKOKI Power Tools Italia S.p.a. SKU: 324534
Piston for Cordless Rotary Hammers Hitachi DH25DAL-DH36DAL
Piston for Cordless Rotary Hammers Hitachi DH25DAL-DH36DAL Original spare part Hitachi, Piston for Cordless Rotary Hammers DH25DL - DH25DAL - DH36DL - DH36DAL. Part for the following products: -  Cordless Rotary Hammer DH25DL -...
Last items in stock €21.58
Details
Striker for Cordless Hammers Hitachi DH36DL-DH36DAL
HiKOKI Power Tools Italia S.p.a. SKU: 324535
Striker for Cordless Hammers Hitachi DH36DL-DH36DAL
Striker for Cordless Hammers Hitachi DH36DL-DH36DAL Original spare part Hitachi-HIKOKI, Striker for Cordless Rotary Hammers DH25DL - DH25DAL - DH36DL - DH36DAL. Part for the following products: -  Cordless Rotary Hammer DH25DL -...
Last items in stock €12.42
Details
Comments (0)
