HiKOKI Power Tools Italia S.p.a.

Hitachi Spare Parts for Rotary Hammer DH28PD

SKU: Hitachi DH28PD
€2.08
VAT included

Hitachi Spare Parts for Rotary Hammer DH28PD

Hitachi-HIKOKI Tanaka authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair issues for Rotary Hammer DH28PD.

Hitachi Spare Parts for Rotary Hammer DH28PD
  • Hitachi Spare Parts for Rotary Hammer DH28PD
  • Hitachi Spare Parts for Rotary Hammer DH28PD - Diagram
HiKOKI Power Tools Italia S.p.a.

Hitachi Spare Parts for Rotary Hammer DH28PD

SKU: Hitachi DH28PD Condition: New
€2.08
VAT included

Hitachi Spare Parts for Rotary Hammer DH28PD

Hitachi-HIKOKI Tanaka authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair issues for Rotary Hammer DH28PD.

settings 118 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
118 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

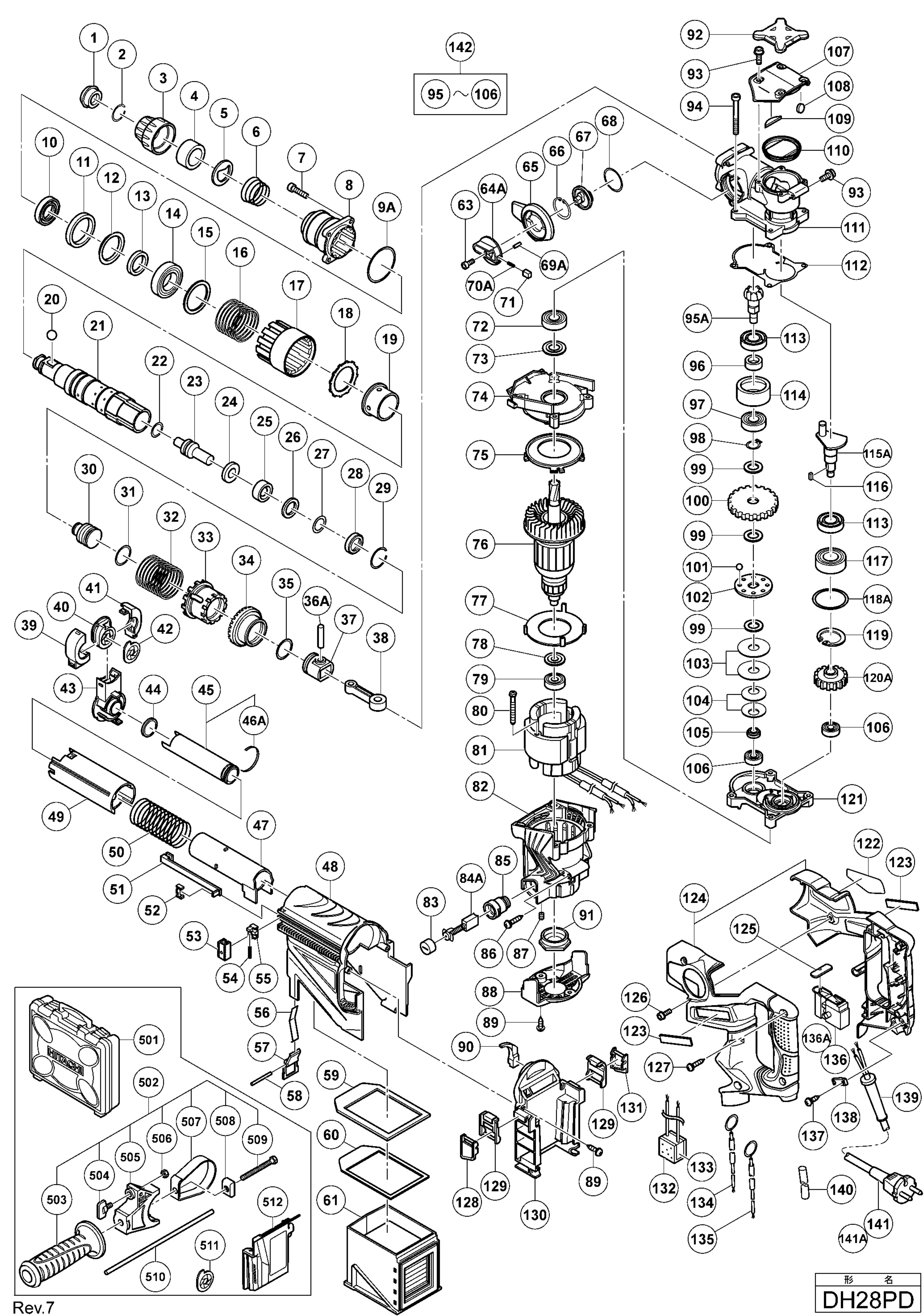

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 Front Cap for Rotary Hammers Hitachi DH22/28 306345 Front Cap for Rotary Hammers Hitachi DH22/28 €4.18
2
 Stopper Ring for Hammers Hitachi 306340 Stopper Ring for Hammers Hitachi €2.08
3
 photo_cameraImage coming soon 324527 GRIP €3.78
4
 photo_cameraImage coming soon 330192 BALL HOLDER €7.98
5
 photo_cameraImage coming soon 324526 Support Thrust Dh24dva €1.46
6
 photo_cameraImage coming soon 330191 HOLDER SPRING €1.44
8
 photo_cameraImage coming soon 330174 CYLINDER CASE €14.89
9A
 photo_cameraImage coming soon 334370 O-RING (I.D 49.5) €1.44
10
 Oil Seal mm 25x35x6 for Rotary Hammers Hitachi 328867 Oil Seal mm 25x35x6 for Rotary Hammers Hitachi €6.26
11
 photo_cameraImage coming soon 330175 DAMPER (A) €9.48
12
 photo_cameraImage coming soon 330184 DAMPER WASHER (B) €6.09
13
 photo_cameraImage coming soon 304020 FELT PACKING (A) €1.39
14
 photo_cameraImage coming soon 6905DD BALL BEARING 6905DDUCMNS7S €44.72
15
 photo_cameraImage coming soon 330176 WASHER (A) €1.44
16
 photo_cameraImage coming soon 330177 LOCK SPRING €1.44
17
 photo_cameraImage coming soon 330178 LOCK SLEEVE €18.83
18
 photo_cameraImage coming soon 330179 WASHER (B) €1.44
19
 photo_cameraImage coming soon 330187 SLIDE SLEEVE €13.53
20
 Steel Ball 7 mm for Hammers Hitachi 959156 Steel Ball 7 mm for Hammers Hitachi €3.48
21
 Cylinder for Demolition Hammer Hitachi DH28PC 330180 Cylinder for Demolition Hammer Hitachi DH28PC €69.66
22
 O-Ring for Rotary Hammers Hitachi H25PV-DH28PD-DH30PC2 323058 O-Ring for Rotary Hammers Hitachi H25PV-DH28PD-DH30PC2 €5.43
23
 Second Hammer for Hammers Hitachi DH28PC/PD 330181 Second Hammer for Hammers Hitachi DH28PC/PD €13.00
24
 photo_cameraImage coming soon 330182 DAMPER WASHER €4.06
25
 photo_cameraImage coming soon 330183 DAMPER (B) €6.77
26
 photo_cameraImage coming soon 331672 DAMPER HOLDER (A) €4.06
27
 photo_cameraImage coming soon 330186 O-RING (A) €4.06
28
 photo_cameraImage coming soon 331673 DAMPER HOLDER (B) €5.41
29
 Seeger for Rotary Hammer Hitachi DH28PC2-DH30PC2 323062 Seeger for Rotary Hammer Hitachi DH28PC2-DH30PC2 €2.08
30
 photo_cameraImage coming soon 330185 STRIKER €6.77
31
 O-Ring 19.2 mm for Hammers Hitachi H25PV-DH28PD-H30PV 319577 O-Ring 19.2 mm for Hammers Hitachi H25PV-DH28PD-H30PV €6.83
32
 Clutch Spring for Demolition Hammer Hitachi DH28PC 330188 Clutch Spring for Demolition Hammer Hitachi DH28PC €2.08
33
 photo_cameraImage coming soon 330189 CLUTCH €54.07
34
 photo_cameraImage coming soon 330190 BEVEL GEAR €27.09
35
 O-Ring 19.2 mm for Hammers Hitachi H25PV-DH28PD-H30PV 319577 O-Ring 19.2 mm for Hammers Hitachi H25PV-DH28PD-H30PV €6.83
36A
 Piston Pin for Hammers Hitachi DH28PD-DH28PC 330173 Piston Pin for Hammers Hitachi DH28PD-DH28PC €3.48
37
 Piston for Demolition Hammer Hitachi DH28PC 330172 Piston for Demolition Hammer Hitachi DH28PC €11.00
38
 Conrod for Combined Hammer Hitachi H25PV-DH30PC2 319585 Conrod for Combined Hammer Hitachi H25PV-DH30PC2 €8.23
39
 photo_cameraImage coming soon 330236 NOZZLE (C) €4.06
40
 photo_cameraImage coming soon 330237 NOZZLE SEAL €4.06
41
 photo_cameraImage coming soon 330235 NOZZLE (B) €4.06
42
 photo_cameraImage coming soon 330238 RUBBER CAP €1.41
43
 photo_cameraImage coming soon 330234 NOZZLE (A) €6.77
45
 photo_cameraImage coming soon 330229 INNER PIPE (A) ASS'Y €6.77
47
 photo_cameraImage coming soon 330230 INNER PIPE (B) €6.77
48
 photo_cameraImage coming soon 330221 DUST CASING (A) €36.59
49
 photo_cameraImage coming soon 330233 OUTER PIPE €10.84
50
 photo_cameraImage coming soon 330232 PIPE SPRING €1.41
51
 photo_cameraImage coming soon 330242 ADJUSTING ROD €4.06
52
 photo_cameraImage coming soon 330246 STOPPER €4.06
53
 photo_cameraImage coming soon 330243 ADJUSTER (A) €4.06
54
 photo_cameraImage coming soon 330245 SPRING €1.41
55
 photo_cameraImage coming soon 330244 ADJUSTER (C) €6.77
56
 photo_cameraImage coming soon 330223 LEAF SPRING €1.41
57
 photo_cameraImage coming soon 330224 LEVER €4.06
58
 photo_cameraImage coming soon 330225 PIN D3 €1.41
59
 photo_cameraImage coming soon 330226 SEAL PLATE (A) €6.77
60
 photo_cameraImage coming soon 330227 SEAL PACKING (A) €4.74
61
 photo_cameraImage coming soon 330228 DUST BOX €56.78
64A
 Change Lever for Rotary Hammer Hitachi DH28PC 331545 Change Lever for Rotary Hammer Hitachi DH28PC €7.10
65
 photo_cameraImage coming soon 330207 LEVER HOLDER €4.06
66
 photo_cameraImage coming soon 939556 Ring Type C X D.35 Holes €13.80
67
 photo_cameraImage coming soon 330206 LEVER SHAFT €9.48
68
 photo_cameraImage coming soon 330205 STATOR L 3309-125 €91.88
69A
 photo_cameraImage coming soon 331548 PIN D2X10 €3.93
70A
 photo_cameraImage coming soon 331546 LEVER SPRING €3.93
71
 photo_cameraImage coming soon 321311 PUSHING BUTTON €3.47
72
 photo_cameraImage coming soon 6001DD BALL BEARING 6001DDCMPS2L €8.46
73
 photo_cameraImage coming soon 330249 DUST WASHER €1.41
74
 photo_cameraImage coming soon 330250 CASING €12.19
75
 photo_cameraImage coming soon 330248 FAN GUIDE (B) €4.06
76
 Armature for Rotary Hammers Hitachi DH28PD 360859E Armature for Rotary Hammers Hitachi DH28PD €56.55
77
 photo_cameraImage coming soon 330247 FAN GUIDE (A) €4.06
78
 Dust Washer for Demolition Hammer Hitachi H45MRY 982631 Dust Washer for Demolition Hammer Hitachi H45MRY €1.34
79
 photo_cameraImage coming soon 608VVM BALL BEARING 608VVC2PS2L €7.12
81
 photo_cameraImage coming soon 340739E STATOR 220V-230V €55.56
82
 photo_cameraImage coming soon 330201 HOUSING ASS'Y €56.91
83
 Brushes Cap for Demolition Hammers Hitachi H45MR - H45MRY - H45FRV 935829 Brushes Cap for Demolition Hammers Hitachi H45MR - H45MRY - H45FRV €1.66
84A
 Carbon Brushes for Hitachi Hammer DH28PC 999004 Carbon Brushes for Hitachi Hammer DH28PC €11.02
85
 photo_cameraImage coming soon 957051 BRUSH HOLDER €6.97
88
 photo_cameraImage coming soon 330203 TAIL COVER €14.89
89
 photo_cameraImage coming soon 307811 TAPPING SCREW (W/FLANGE) D4X16 (BLACK) €1.40
90
 photo_cameraImage coming soon 331727 DAMPER (B) €12.19
91
 photo_cameraImage coming soon 310111 BEARING BUSHING (B) €11.17
92
 photo_cameraImage coming soon 331729 TOP COVER €6.09
95A
 photo_cameraImage coming soon 330196 BEVEL PINION €18.96
96
 photo_cameraImage coming soon 330197 COLLAR €4.06
97
 photo_cameraImage coming soon 6001DD BALL BEARING 6001DDCMPS2L €8.46
98
 Retaining Ring 12 mm for Hitachi Power Tools 939542 Retaining Ring 12 mm for Hitachi Power Tools €3.13
100
 photo_cameraImage coming soon 330198 SECOND GEAR €20.18
101
 photo_cameraImage coming soon 959155 STEEL BALL D3.97 €1.35
102
 photo_cameraImage coming soon 992916 CLUTCH PLATE €5.41
103
 photo_cameraImage coming soon 992926 SPRING PLATE €1.23
105
 photo_cameraImage coming soon 330199 BUSHING €4.06
106
 photo_cameraImage coming soon 608VVM BALL BEARING 608VVC2PS2L €7.12
107
 photo_cameraImage coming soon 330204 CRANK COVER €27.09
108
 photo_cameraImage coming soon 324544 Felt Dh24pb3-Pc3-Pd3 €1.87
109
 photo_cameraImage coming soon 331674 FELT PACKING €3.93
110
 photo_cameraImage coming soon 331675 RUBBER SEAL €6.09
111
 photo_cameraImage coming soon 330169 CRANK CASE €52.86
112
 photo_cameraImage coming soon 331676 SEAL PACKING €4.06
113
 Oil Seal 20x28x4,5 mm for Hammers Hitachi H25PV-DH28PD-DH30PC2 981851 Oil Seal 20x28x4,5 mm for Hammers Hitachi H25PV-DH28PD-DH30PC2 €4.18
114
 photo_cameraImage coming soon 330194 SLEEVE €6.77
115A
 photo_cameraImage coming soon 330170 CRANK SHAFT €29.67
116
 photo_cameraImage coming soon 944109 FEATHER KEY 3X3X8 €2.99
117
 Bearing 6002DD for Hammers-Reciprocatin Saw-Milling Machine Hitachi 6002DD Bearing 6002DD for Hammers-Reciprocatin Saw-Milling Machine Hitachi €9.62
118A
 photo_cameraImage coming soon 334369 O-RING (I.D 31.5) €1.44
119
 photo_cameraImage coming soon 948001 RETAINING RING FOR D32 HOLE €2.93
120A
 photo_cameraImage coming soon 330171 FIRST GEAR €27.09
121
 photo_cameraImage coming soon 330200 GEAR COVER €23.03
124
 photo_cameraImage coming soon 330257 HANDLE (A).(B) SET €27.09
125
 Pusching Button for Drills Hitachi DV16-18V-DV20VB2 322853 Pusching Button for Drills Hitachi DV16-18V-DV20VB2 €2.78
128
 photo_cameraImage coming soon 330240 KNOB (A) €4.06
129
 photo_cameraImage coming soon 330239 LATCH €4.06
130
 photo_cameraImage coming soon 330222 DUST CASING (B) €14.89
131
 photo_cameraImage coming soon 330241 KNOB (B) €4.06
132
 photo_cameraImage coming soon 317492 SUPPORT (B) €1.91
133
 Noise Suppressor Hitachi GP 10 930039 Noise Suppressor Hitachi GP 10 €4.04
136
 Switch for Rotary Hammers Hitachi DH 28PC/PD 331677 Switch for Rotary Hammers Hitachi DH 28PC/PD €23.03
138
 photo_cameraImage coming soon 960266 CORD CLIP €1.37
139
 Cord Armor D.8.8 for Hitachi Power Tools 953327 Cord Armor D.8.8 for Hitachi Power Tools €1.37
140
 photo_cameraImage coming soon 321322 VINYL TUBE €3.93

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Hitachi Spare Parts for Rotary Hammer DH28PD

Hitachi-HIKOKI Tanaka

 authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair issues for Rotary Hammer DH28PD.

In the following table, look for the model of the Hammer and the respective parts of the code.
Hitachi DH28PD

Rotary Hammer DH28PD
# Part Num. Description
1 306345 FRONT CAP
2 306340 STOPPER RING
3 324527 GRIP
4 330192 BALL HOLDER
5 324526 HOLDER PLATE
6 330191 HOLDER SPRING
7 992803 SEAL LOCK HEX. SOCKET HD. BOLT M6X20
8 330174 CYLINDER CASE
9A 334370 O-RING (I.D 49.5)
10 328867 OIL SEAL
11 330175 DAMPER (A)
12 330184 DAMPER WASHER (B)
13 304020 FELT PACKING (A)
14 6905DD BALL BEARING 6905DDUCMNS7S
15 330176 WASHER (A)
16 330177 LOCK SPRING
17 330178 LOCK SLEEVE
18 330179 WASHER (B)
19 330187 SLIDE SLEEVE
20 959156 STEEL BALL D7.0
21 330180 CYLINDER
22 323058 O-RING (C)
23 330181 SECOND HAMMER
24 330182 DAMPER WASHER
25 330183 DAMPER (B)
26 331672 DAMPER HOLDER (A)
27 330186 O-RING (A)
28 331673 DAMPER HOLDER (B)
29 323062 STOPPER RING
30 330185 STRIKER
31 319577 O-RING (I.D 19.2)
32 330188 CLUTCH SPRING
33 330189 CLUTCH
34 330190 BEVEL GEAR
35 319577 O-RING (I.D 19.2)
36A 330173 PISTON PIN
37 330172 PISTON
38 319585 CONNECTING ROD
39 330236 NOZZLE (C)
40 330237 NOZZLE SEAL
41 330235 NOZZLE (B)
42 330238 RUBBER CAP
43 330234 NOZZLE (A)
44 330231 FELT WASHER
45 330229 INNER PIPE (A) ASS'Y
47 330230 INNER PIPE (B)
48 330221 DUST CASING (A)
49 330233 OUTER PIPE
50 330232 PIPE SPRING
51 330242 ADJUSTING ROD
52 330246 STOPPER
53 330243 ADJUSTER (A)
54 330245 SPRING
55 330244 ADJUSTER (C)
56 330223 LEAF SPRING
57 330224 LEVER
58 330225 PIN D3
59 330226 SEAL PLATE (A)
60 330227 SEAL PACKING (A)
61 330228 DUST BOX
63 983162 SEAL LOCK HEX. SOCKET HD. BOLT M4X12
64A 331545 CHANGE LEVER
65 330207 LEVER HOLDER
66 939556 RETAINING RING FOR D35 HOLE
67 330206 LEVER SHAFT
68 330205 O-RING
69A 331548 PIN D2X10
70A 331546 LEVER SPRING
71 321311 PUSHING BUTTON
72 6001DD BALL BEARING 6001DDCMPS2L
73 330249 DUST WASHER
74 330250 CASING
75 330248 FAN GUIDE (B)
76 360859E ARMATURE 220V-230V
77 330247 FAN GUIDE (A)
78 982631 WASHER (A)
79 608VVM BALL BEARING 608VVC2PS2L
80 980864 HEX. HD. TAPPING SCREW D5X40
81 340739E STATOR 220V-230V
82 330201 HOUSING ASS'Y
83 935829 BRUSH CAP
84A 999004 CARBON BRUSH 7X11X17 (1 PAIR)
85 957051 BRUSH HOLDER
86 302089 TAPPING SCREW (W/FLANGE) D5X20 (BLACK)
87 938477 HEX. SOCKET SET SCREW M5X8
88 330203 TAIL COVER
89 307811 TAPPING SCREW (W/FLANGE) D4X16 (BLACK)
90 331727 DAMPER (B)
91 310111 BEARING BUSHING (B)
92 331729 TOP COVER
93 994192 HEX. SOCKET HD. BOLT (W/FLANGE) M5X16
94 330251 SEAL LOCK BOLT M5X55
95A 330196 BEVEL PINION
96 330197 COLLAR
97 6001DD BALL BEARING 6001DDCMPS2L
98 939542 RETAINING RING FOR D12 SHAFT
99 992503 WASHER
100 330198 SECOND GEAR
101 959155 STEEL BALL D3.97
102 992916 CLUTCH PLATE
103 992926 SPRING PLATE
104 980877 BELLEVILLE SPRING
105 330199 BUSHING
106 608VVM BALL BEARING 608VVC2PS2L
107 330204 CRANK COVER
108 324544 FELT PACKING (B)
109 331674 FELT PACKING
110 331675 RUBBER SEAL
111 330169 CRANK CASE
112 331676 SEAL PACKING
113 981851 OIL SEAL (B)
114 330194 SLEEVE
115A 330170 CRANK SHAFT
116 944109 FEATHER KEY 3X3X8
117 6002DD BALL BEARING 6002DDCMPS2L
118A 334369 O-RING (I.D 31.5)
119 948001 RETAINING RING FOR D32 HOLE
120A 330171 FIRST GEAR
121 330200 GEAR COVER
124 330257 HANDLE (A).(B) SET
125 322853 PUSHING BUTTON
126 316228 HEX. SOCKET HD. BOLT (W/FLANGE) M4X10
127 307028 TAPPING SCREW (W/FLANGE) D4X25 (BLACK)
128 330240 KNOB (A)
129 330239 LATCH
130 330222 DUST CASING (B)
131 330241 KNOB (B)
132 317492 SUPPORT (B)
133 930039 NOISE SUPPRESSOR
136 331677 SWITCH
138 960266 CORD CLIP
139 953327 CORD ARMOR D8.8
140 321322 VINYL TUBE
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Hitachi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to hitachi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Hitachi DH28PD
5 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Diagram Hitachi DH28PD

Diagram Hitachi DH28PD

Download (134.53KB)

You might also like

Impact Drill Hitachi DV16V - 590 W
HiKOKI Power Tools Italia S.p.a. SKU: DV16V - 590 W
Impact Drill Hitachi DV16V - 590 W
Impact Drill Hitachi DV16V - 590 W Excellent for drilling steel, wood and plastic without impact concrete, brick, ceramic tile, marble, granite and other stones with percussion.
Last items in stock €158.79
Details
Percussion Drill Hitachi DV 18V - 690 W
HiKOKI Power Tools Italia S.p.a. SKU: DV 18V - 690 W
Impact Drill Hitachi DV 18V - 690 W
Impact Drill Hitachi DV 18V - 690 W Combined action of rotation and impact for making holes in hard materials (concrete, marble, granite ...), the ability to drill up to 18 mm. Action only rotation: for the execution of holes in the...
Last items in stock €252.93
Details
Percussion Drill Hitachi DV 20VB2 - 790 W
HiKOKI Power Tools Italia S.p.a. SKU: DV 20VB2 - 790 W
Impact Drill Hitachi DV 20VB2 - 790 W
Impact Drill Hitachi DV 20VB2 - 790 W New drill reversible evolution of the previous model DV20VB. Extremely rugged and powerful with high-quality and robust chuck with manual transmission and two-speed electronic switch with variable...
Out-of-Stock €227.11
Details
Carbon Brushes for Demolition Hammer Hitachi DH30PC2
HiKOKI Power Tools Italia S.p.a. SKU: 999073
Carbon Brushes for Demolition Hammer Hitachi DH30PC2
Carbon Brushes for Demolition Hammer Hitachi DH30PC2 Genuine Spare Part Hitachi, Autolocking Carbon Brushes for Rotary Hammers D13 - DH30PC2 - DH40MR - DH40MRY - DH40SR - H41SA - H41SC - H45MR - H45MRY - H45SR Part for the following...
AVAILABLE €16.60
Details
Grease for Hammers Hitachi
HiKOKI Power Tools Italia S.p.a. SKU: Grasso Hitachi
Grease for Hammers Hitachi
Grease for Hammers Hitachi Genuine spare parts Hitachi, Grease for all Demolition Hammers Hitachi Grease should be replaced for reasons of maintenance in the replacement of parts as: Piston, Rod, Tree, Barrel, first or second gear...
Last items in stock €10.99
Details
Steel Ball 7 mm for Hammers Hitachi
HiKOKI Power Tools Italia S.p.a. SKU: 959156
Steel Ball 7 mm for Hammers Hitachi
Steel Ball 7 mm for Hammers Hitachi Hitachi genuine parts, steel ball diameter MM 7, Box 10 Pcs for Demolition hammers and Drills Hammers, DH14DSL - DH18PB - DH18DSL - DH25DL - DH25DAL - DH36DL - DH36DAL - H25PV - DH28PD - DH30PC2....
AVAILABLE €3.48
Details
Second Hammer for Hammers Hitachi DH28PC/PD
HiKOKI Power Tools Italia S.p.a. SKU: 330181
Second Hammer for Hammers Hitachi DH28PC/PD
Second Hammer for Hammers Hitachi DH28PC/PD Genuine parts Hitachi, Second Hammer for Hammers model DH28PC/PD. For the following items: - Hammer Perf. Joule 3.5 - 3.5Kg DH28PC/PD - Code: 330181
AVAILABLE €13.00
Details
O-Ring for Rotary Hammers Hitachi H25PV-DH28PD-DH30PC2
HiKOKI Power Tools Italia S.p.a. SKU: 323058
O-Ring for Rotary Hammers Hitachi H25PV-DH28PD-DH30PC2
O-Ring (C) for Rotary Hammers Hitachi H25PV-DH28PD-DH30PC2 Genuine part HITACHI, O-Ring (C) for Second Hammer for Rotary Hammers H25PV - DH 28 PD - DH 30 PC2. Parts for the following products: - Demolition Hammer Class 3.5 Kg H25PV -...
AVAILABLE €5.43
Details
Needle Bearing for Demolition Hammers Hitachi DH 40/50MRY-DH45MR
HiKOKI Power Tools Italia S.p.a. SKU: 939299
Needle Bearing for Demolition Hammers Hitachi DH 40/50MRY-DH45MR
Needle Bearing for Demolition Hammers Hitachi DH 40/50MRY-DH45MR Genuine part HITACHI, Needle Bearing M661 for Demolition Hammers H45MR - H45MRY - H45FRV - H45SR - DH40MRY - DH45MR - H41MB - H25PV - DH30PC2 - DH38MS - DH50MRY - PR-38E....
AVAILABLE €13.81
Details
Piston for Hammers Hitachi H25PV-H30PV
HiKOKI Power Tools Italia S.p.a. SKU: 319580
Piston for Hammers Hitachi H25PV-H30PV
Piston for Hammers Hitachi H25PV-H30PV Hitachi genuine parts, Piston H25PV-H30PV for Demolition Hammers model H25PV - DH 30 PC2 - H30PV. For the following items: - Combination Hammer Joule 5.4 - 4.3kg DH 30 PC2 - Combination Hammer...
AVAILABLE €9.62
Details
Brushes Cap for Demolition Hammers Hitachi H45MR - H45MRY - H45FRV
HiKOKI Power Tools Italia S.p.a. SKU: 935829
Brushes Cap for Demolition Hammers Hitachi H45MR - H45MRY - H45FRV
Brushes Cap for Demolition Hammers Hitachi H45MR - H45MRY - H45FRV - H45SR Genuine Spare Part Hitachi, Brushes Cap for Demolition Hammers Hitachi H45MR - H45MRY - H45FRV - H45SR - PR-38E - DH - 28 PD DH40MRY - IMPACT WRENCH...
Usually Ships in: 7/10 Business Days Approx. €1.66
Details
O-Ring 19.2 mm for Hammers Hitachi H25PV-DH28PD-H30PV
HiKOKI Power Tools Italia S.p.a. SKU: 319577
O-Ring 19.2 mm for Hammers Hitachi H25PV-DH28PD-H30PV
O-Ring 19.2 mm for Hammers Hitachi H25PV-DH28PD-H30PV Genuine part HITACHI, O-Ring 19.2 mm for Demolition Hammers H25PV - DH 28 PD - H30PV. Parts for the following products: - Demolition Hammer Class 3.5 Kg H25PV - Demolition Hammer...
AVAILABLE €6.83
Details
O-RING S.48 for Hammer Hitachi H25PV
HiKOKI Power Tools Italia S.p.a. SKU: 980715
O-RING S-48 for Hammer Hitachi H25PV
O-RING S-48 for Hammer Hitachi H25PV Original spare parts Hitachi, O-RING S-48 for Demolition Hammers Hitachi, H25PV - H41MB - DH 30 PC2. For the follows items: - Hammer Class 3.5 Kg H25PV - Hammer Class 5 Kg H41MB - Combination...
AVAILABLE €3.48
Details
Damper Holder for Hammer Hitachi H25PV
HiKOKI Power Tools Italia S.p.a. SKU: 323061
Damper Holder for Hammer Hitachi H25PV
Damper Holder for Hammer Hitachi H25PV Original spare parts Hitachi, Damper Holder for Demolition Hammers Hitachi, H25PV - DH 30 PC2. For the follows items: - Hammer Class 3.5 Kg H25PV - Combination Hammer Class 5.4...
AVAILABLE €11.02
Details
Oil Seal 20x28x4,5 mm for Hammers Hitachi H25PV-DH28PD-DH30PC2 Sale
HiKOKI Power Tools Italia S.p.a. SKU: 981851
Oil Seal 20x28x4,5 mm for Hammers Hitachi H25PV-DH28PD-DH30PC2
Oil Seal 20x28x4,5 mm for Hammers Hitachi H25PV-DH28PD-DH30PC2 Original Spare Parts Hitachi, Oil Seal 20x28x4,5 mm for Rotary Hammers Hitachi H25PV - DH 28 PD - DH 30 PC2. Parts for the following products: - Demolition Hammer Hitachi...
AVAILABLE €4.18
Details
O-Ring S-32 for Hammers Hitachi H25PV-DH30PC2-DH40MRY-H60MC
HiKOKI Power Tools Italia S.p.a. SKU: 872767
O-Ring S-32 for Hammers Hitachi H25PV-DH30PC2-DH40MRY-H60MC
O-Ring S-32 for Hammers Hitachi H25PV-DH30PC2-DH40MRY-H60MC Hitachi genuine replacement part, O-Ring S-32 for Demolition Hammers H25PV - DH 30 PC2 - DH40MRY - H60MC - H41MB - 60MRV - H45MRY - Nailer Hitachi NV90HMC. Part for the...
AVAILABLE €2.78
Details
Stopper Ring for Hammers Hitachi
HiKOKI Power Tools Italia S.p.a. SKU: 306340
Stopper Ring for Hammers Hitachi
Stopper Ring for Hammers Hitachi Genuine parts Hitachi, Stopper Ring for Hammers Hitachi. For the following items: - Hammer DH 28 PCY - Hammer DH 26PC - Hammer DH 24PG
AVAILABLE €2.08
Details
Retainer Sleeve for Combined Hammer Hitachi DH30PC2 Sale
HiKOKI Power Tools Italia S.p.a. SKU: 325652
Retainer Sleeve for Combined Hammer Hitachi DH30PC2
Retainer Sleeve for Combined Hammer Hitachi DH30PC2 Genuine parts Hitachi, Retainer Sleeve for Combined Hammer DH 30 PC2. For the following items: - Combined Hammer 5.4 Joule - 4.3Kg Hitachi DH 30 PC2 - Code: 325652
AVAILABLE €115.88
Details
Damper (B) for Combined Hammer Hitachi DH30PC2 Sale
HiKOKI Power Tools Italia S.p.a. SKU: 320325
Damper (B) for Combined Hammer Hitachi DH30PC2
Damper (B) for Combined Hammer Hitachi DH30PC2 Genuine parts Hitachi, Damper (B) for Combined Hammer DH 30 PC2. For the following items: - Combined Hammer 5.4 Joule - 4.3Kg Hitachi DH 30 PC2 - Code: 320325
AVAILABLE €6.83
Details
Oil Seal 28x38x mm for Hammers Hitachi DH30PC2 Sale
HiKOKI Power Tools Italia S.p.a. SKU: 320324
Oil Seal 28x38x mm for Hammers Hitachi DH30PC2
Oil Seal 28x38x mm for Hammers Hitachi DH30PC2 Original Spare Parts Hitachi, Oil Seal 28x38x6 mm for Combined Hammer Hitachi DH 30 PC2. Parts for the following products: - Combined Hammer Hitachi 5.4 Joule - 4.3kg DH 30 PC2 - Code:...
AVAILABLE €6.83
Details
Damper for Combined Hammer Hitachi H25PV-DH30PC2 Sale
HiKOKI Power Tools Italia S.p.a. SKU: 325652
Damper for Demolition Hammers Hitachi H25PV-DH30PC2
Damper for Demolition Hammers Hitachi H25PV-DH30PC2 Genuine parts Hitachi, Damper for Demolition Hammers H25PV - DH 30 PC2. Part for the following products: - Demolition Hammer Class 3,5 Kg Hitachi H25PV - Combined Demolition Hammer...
AVAILABLE €4.88
Details
Damper (C) for Combined Hammer Hitachi DH30PC2 Sale
HiKOKI Power Tools Italia S.p.a. SKU: 326303
Damper (C) for Combined Hammer Hitachi DH30PC2
Damper (C) for Combined Hammer Hitachi DH30PC2 Genuine parts Hitachi, Damper (C) for Combined Hammer DH 30 PC2. For the following items: - Combined Hammer 5.4 Joule - 4.3Kg Hitachi DH 30 PC2 - Code: 326303
AVAILABLE €6.27
Details
Conrod for Combined Hammer Hitachi H25PV-DH30PC2
HiKOKI Power Tools Italia S.p.a. SKU: 319585
Conrod for Combined Hammer Hitachi H25PV-DH30PC2
Conrod for Combined Hammer Hitachi H25PV-DH30PC2 Genuine part Hitachi, Conrod for Demolition Hammer H25PV - Combined Hammer DH30PC2 - Rotary Hammers DH28PC - DH28PD. Part for the following...
AVAILABLE €8.23
Details
Front Cap for Combined Hammer Hitachi H25PV-DH30PC2 Sale
HiKOKI Power Tools Italia S.p.a. SKU: 323078
Front Cap for Combined Hammer Hitachi H25PV-DH30PC2
Front Cap for Combined Hammer Hitachi H25PV-DH30PC2 Genuine parts Hitachi, Front Cap for Combined Hammer H25PV - DH 30 PC2. Part for the following items: - Hammer Class 3,5 Kg Hitachi H25PV - Combined Hammer 5.4 Joule - 4.3Kg Hitachi...
AVAILABLE €4.88
Details
Cylinder for Demolition Hammer Hitachi DH28PC
HiKOKI Power Tools Italia S.p.a. SKU: 330180
Cylinder for Demolition Hammer Hitachi DH28PC
Cylinder for Demolition Hammer Hitachi DH28PC Original spare parts Hitachi, Cylinder for Rotary Hammers DH28PC and Rotary Hammer 3.5 Joule - 4.7Kg DH 28PD. Part for the follows products: -  Demolition Hammers...
Last items in stock €69.66
Details
Carbon Brushes for Hitachi Hammer DH28PC
HiKOKI Power Tools Italia S.p.a. SKU: 999004
Carbon Brushes for Hitachi Hammer DH28PC
Carbon Brushes for Hitachi Hammer DH28PC Original spare parts Hitachi,Couple of carbon Brushes for Hammer DH28PC - DH28PD. Parts for the following products: -  Demolition Hammers Hitachi DH28PC -  Rotary Hammer 3.5 Joule - 4.7Kg...
AVAILABLE €11.02
Details
Seeger for Rotary Hammer Hitachi DH30PC2
HiKOKI Power Tools Italia S.p.a. SKU: 306993
Seeger for Rotary Hammer Hitachi DH30PC2
Seeger for Rotary Hammer Hitachi DH30PC2 Genuine parts Hitachi, Seeger for Rotary Hammers DH24PM - DH 30 PC2. Part for the following items: - Rotary Hammer Hitachi DH24PM - Rotary Hammer Hitachi DH 30 PC2 - Code: 306993
AVAILABLE €1.76
Details
Ball Holder for Combined Hammer Hitachi DH30PC2 Sale
HiKOKI Power Tools Italia S.p.a. SKU: 323076
Ball Holder for Combined Hammer Hitachi DH30PC2
Ball Holder for Combined Hammer Hitachi DH30PC2 Genuine parts Hitachi, Ball Holder for Combined Hammer DH 30 PC2 - H25PV For the following items: - Combined Hammer 5.4 Joule - 4.3Kg Hitachi DH 30 PC2 - Demolition Hammer Hitachi H25PV...
AVAILABLE €33.36
Details
Switch for Rotary Hammers Hitachi DH 28PC/PD
HiKOKI Power Tools Italia S.p.a. SKU: 331677
Switch for Rotary Hammers Hitachi DH 28PC/PD
Switch for Rotary Hammers Hitachi DH 28PC/PD Original spare parts Hitachi, Switch for Rotary Hammers Hitachi, DH 28PC - DH 28PD Parts for the following products: -  Rotary Hammer Hitachi DH 28PC -  Rotary Hammer Hitachi DH 28PD -...
Last items in stock €23.03
Details
Seeger for Rotary Hammer Hitachi DH28PC2-DH30PC2
HiKOKI Power Tools Italia S.p.a. SKU: 323062
Seeger for Rotary Hammer Hitachi DH28PC2-DH30PC2
Seeger for Rotary Hammer Hitachi DH28PC2-DH30PC2 Genuine parts Hitachi, Seeger for Rotary Hammers DH28PC2 - DH30PC2. Part for the following items: - Rotary Hammer DH28PD - Rotary Hammer DH30PC2 - Rotary Hammer H25PV - Rotary Hammer...
AVAILABLE €2.08
Details
Piston Pin for Hammers Hitachi DH28PD-DH28PC
HiKOKI Power Tools Italia S.p.a. SKU: 330173
Piston Pin for Hammers Hitachi DH28PD-DH28PC
Piston Pin for Hammers Hitachi DH28PD-DH28PC Hitachi genuine parts, Piston Pin for Hammers Hitachi DH28PD - DH28PC. Part for the following items: - Hammer DH28PD - Hammer DH28PC - Code: 330173
AVAILABLE €3.48
Details
Clutch Spring for Demolition Hammer Hitachi DH28PC Sale
HiKOKI Power Tools Italia S.p.a. SKU: 330188
Clutch Spring for Demolition Hammer Hitachi DH28PC
Clutch Spring for Demolition Hammer Hitachi DH28PC Original spare parts Hitachi, Clutch Spring for Demolition Hammers DH28PC - DH28PD For the follows items: - Demolition Hammer Hitachi DH28PC - Demolition Hammer Hitachi DH28PD - Code...
AVAILABLE €2.08
Details
Piston for Demolition Hammer Hitachi DH28PC
HiKOKI Power Tools Italia S.p.a. SKU: 330172
Piston for Demolition Hammer Hitachi DH28PC
Piston for Demolition Hammer Hitachi DH28PC Original spare parts Hitachi, Piston for Demolition Hammers DH28PC - DH28PD For the follows items: - Demolition Hammer Hitachi DH28PC - Demolition Hammer...
AVAILABLE €11.00
Details
Armature for Rotary Hammers Hitachi DH28PD
HiKOKI Power Tools Italia S.p.a. SKU: 360859E
Armature for Rotary Hammers Hitachi DH28PD
Armature for Rotary Hammers Hitachi DH28PD Genuine part Hitachi, Armature 220V-230V for Rotary Hammers DH28PD Part for the following article: - Rotary Hammer Hitachi DH28PD - Code : 360859E
AVAILABLE €56.55
Details
Oil Seal mm 25x35x6 for Rotary Hammers Hitachi Sale
HiKOKI Power Tools Italia S.p.a. SKU: 328867
Oil Seal mm 25x35x6 for Rotary Hammers Hitachi
Oil Seal mm 25x35x6 for Rotary Hammers Hitachi Original Spare Parts Hitachi, Oil Seal SD7 mm 25x35x6 for Hammers Hitachi DH28PC - DH28PD - DH50MRY - DH52MEY - H60MEY Part for the following article : - Rotary Hammer Hitachi DH28PC -...
AVAILABLE €6.26
Details
Ball Bearing 6005 DD for Rotary Hammer Hitachi DH30PC2
HiKOKI Power Tools Italia S.p.a. SKU: 326304
Ball Bearing 6005 DD for Rotary Hammer Hitachi DH30PC2
Ball Bearing 6005 DD for Rotary Hammer Hitachi DH30PC2 Genuine Spare Part Hitachi, Ball Bearing 6005 DD for Rotary Hammer DH30PC2 Parts for the following products: - Rotary Hammer Hitachi DH30PC2 - Code...
AVAILABLE €23.71
Details
Dust Washer for Demolition Hammer Hitachi H45MRY
HiKOKI Power Tools Italia S.p.a. SKU: 982631
Dust Washer for Demolition Hammer Hitachi H45MRY
Dust Washer for Demolition Hammer Hitachi H45MRY Genuine Spare Part Hitachi, Dust Washer for Demolition Hammers H45MR - H45FRV - H45MRY - H45SR - DH40MRY - H41MB. Part for the following items: - Rotary Hammer Hitachi DH24PG - Rotary...
AVAILABLE €1.34
Details
Change Lever for Rotary Hammer Hitachi DH28PC
HiKOKI Power Tools Italia S.p.a. SKU: 331545
Change Lever for Rotary Hammer Hitachi DH28PC
Change Lever for Rotary Hammer Hitachi DH28PC Genuine part Hitachi, Change Lever for Rotary Hammers DH28PC - DH28PD - DH30PC2 - DH38MS - DH40MR - DH40MRY - DH45MR - DH50MRY....
Last items in stock €7.10
Details
Comments (0)
