Hitachi Spare Parts for Angle Grinder G23MR

SKU: Hitachi G23MR
€1.61
VAT included

Hitachi Spare Parts for Angle Grinder G23MR

Hitachi-HIKOKI Tanaka authorized repair center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Angle Grinder G23MR.

Hitachi Spare Parts for Angle Grinder G23MR
  • Hitachi Spare Parts for Angle Grinder G23MR
  • Hitachi Spare Parts for Angle Grinder G23MR
HiKOKI Power Tools Italia S.p.a.

Hitachi Spare Parts for Angle Grinder G23MR

SKU: Hitachi G23MR Condition: New
€1.61
VAT included

Hitachi Spare Parts for Angle Grinder G23MR

Hitachi-HIKOKI Tanaka authorized repair center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Angle Grinder G23MR.

settings 69 Spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN: Usually Ships in 10/15 BUSINESS DAYS
MORE INFO:: [email protected]
Machine Type: Grinder
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal PayPal Pay in 3 Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
69 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in 10/15 BUSINESS DAYS

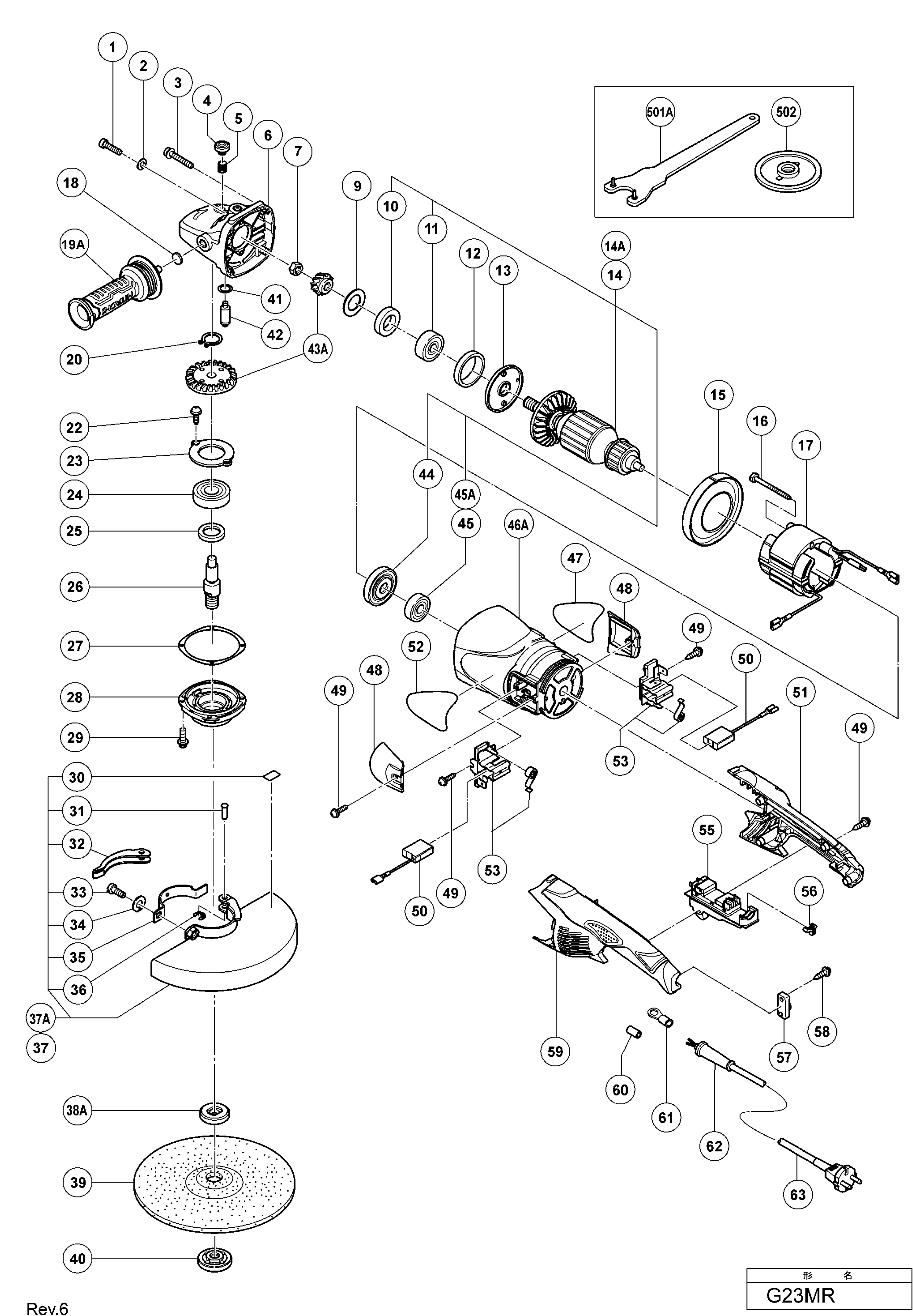

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 984509 SEAL LOCK HEX. SOCKET HD. BOLT MSX14 €0.00 Not available for order
2
 photo_cameraImage coming soon 949454 SPRING WASHER M5 (10 PCS.) €0.00 Not available for order
3
 photo_cameraImage coming soon 313585 HEX. SOCKET HD. BOLT (W/FLANGE) M5X30 €0.00 Not available for order
4
 Pushing Button for Angle Grinders Hitachi G23 306888 Pushing Button for Angle Grinders Hitachi G23 €1.16
5
 Button Spring for Angle Grinders Hitachi G23 320219 Button Spring for Angle Grinders Hitachi G23 €3.60
6
 photo_cameraImage coming soon 322544 GEAR COVER ASS'Y €64.60
7
 photo_cameraImage coming soon 320226 SPECIAL NUT M10 €3.60
9
 photo_cameraImage coming soon 320221 SEAL WASHER €2.38
10
 photo_cameraImage coming soon 320222 FELT PACKING €2.38
11
 Ball Bearing Hitachi 6301DD 6301DD Ball Bearing Hitachi 6301DD €10.92
12
 photo_cameraImage coming soon 994208 RUBBER RING (B) €1.16
13
 photo_cameraImage coming soon 320220 BEARING COVER (A) €6.04
14A
 photo_cameraImage coming soon 360594E ARMATURE 220V-230V €120.72
15
 photo_cameraImage coming soon 320215 FAN GUIDE €2.38
16
 photo_cameraImage coming soon 984271 HEX. HD. TAPPING SCREW D5X75 €0.00 Not available for order
17
 photo_cameraImage coming soon 340546E STATOR 220V-230V €81.68
18
 photo_cameraImage coming soon 937033 FELT WASHER €2.38
19A
 photo_cameraImage coming soon 336864 SIDE HANDLE €29.22
20
 Retaining Ring 12 mm for Hitachi Power Tools 939542 Retaining Ring 12 mm for Hitachi Power Tools €3.60
22
 photo_cameraImage coming soon 949236 MACHINE SCREW M5X10 €0.00 Not available for order
23
 Bearing Cover (B) for Angle Grinder Hitachi G23SS 320229 Bearing Cover (B) for Angle Grinder Hitachi G23SS €3.60
24
 photo_cameraImage coming soon 6302DD BALL BEARING 6302DDCMPS2L €8.48
25
 photo_cameraImage coming soon 990852 FELT PACKING (B) €2.38
26
 photo_cameraImage coming soon 320234 SPINDLE €18.24
26
 photo_cameraImage coming soon 321541 SPINDLE €0.00 Not available for order
27
 Packing Gland Gasket for Angle Grinder Hitachi G23SS 320228 Packing Gland Gasket for Angle Grinder Hitachi G23SS €3.60
28
 Packing Gland for Angle Grinder Hitachi G23SS 320227 Packing Gland for Angle Grinder Hitachi G23SS €15.80
29
 photo_cameraImage coming soon 994192 HEX. SOCKET HD. BOLT (W/FLANGE) M5X16 €0.00 Not available for order
30
 photo_cameraImage coming soon 311492 Label G12Se G18Se3 G23Sc3 €0.00 Not available for order
31
 photo_cameraImage coming soon 321546 SET PIN €0.00 Not available for order
32
 photo_cameraImage coming soon 321545 LEVER €3.60
33
 photo_cameraImage coming soon 306887 BOLT M8X22 €1.16
34
 photo_cameraImage coming soon 949457 SPRING WASHER M8 €0.00 Not available for order
35
 photo_cameraImage coming soon 321544 SET PIECE €2.38
36
 photo_cameraImage coming soon 673489 RETAINING RING (E-TYPE) FOR D5 SHAFT €0.00 Not available for order
37
 photo_cameraImage coming soon 321547 WHEEL GUARD ASS'Y €48.74
37A
 photo_cameraImage coming soon 324267 WHEEL GUARD ASS'Y €0.00 Not available for order
37A
 photo_cameraImage coming soon 337223 WHEEL GUARD ASS'Y €0.00 Not available for order
38
 photo_cameraImage coming soon 310337 SUPER WASHER €26.78
38A
 Wheel Washer for Angle Grinder Hitachi G23SS 937907Z Wheel Washer for Angle Grinder Hitachi G23SS €12.14
38
 photo_cameraImage coming soon 937908Z WHEEL WASHER (B) €0.00 Not available for order
38
 photo_cameraImage coming soon 937922P WHEEL WASHER (B) G13SC2 €0.00 Not available for order
39
 photo_cameraImage coming soon 316825 D. C. WHEELS 230MM A24R €0.00 Not available for order
40
 Wheel Nut for Angle Grinder Hitachi G23SS 937909Z Wheel Nut for Angle Grinder Hitachi G23SS €17.02
40
 photo_cameraImage coming soon 937923P WHEEL NUT 5/811 UMC THREAD €0.00 Not available for order
41
 photo_cameraImage coming soon 320218 0-RING €2.38
42
 Lock Pin for Angle Grinder Hitachi G23SS 306890 Lock Pin for Angle Grinder Hitachi G23SS €2.38
43A
 Gear an Pinion for Grinder Hitachi G23SS 330032 Gear an Pinion for Grinder Hitachi G23SS €35.32
44
 photo_cameraImage coming soon 320216 DUST SEAL €2.38
45A
 photo_cameraImage coming soon 6000VV BALL BEARING 6000VVCMPS2L €9.70
45
 BALL BEARING 6200VVCMPS2L 6200VV BALL BEARING 6200VVCMPS2L €6.04
46A
 photo_cameraImage coming soon 323224 HOUSING €35.32
48
 photo_cameraImage coming soon 322547 BRUSH COVER €2.38
49
 photo_cameraImage coming soon 305812 SCREW WITH FLANGE D4X16 BLACK €0.00 Not available for order
50
 Carbon Brushes for Angle Grinders Hitachi G23SR-S23UBY 999061 Carbon Brushes for Angle Grinders Hitachi G23SR-S23UBY €10.20
50
 photo_cameraImage coming soon 999089 CARBON BRUSH (AUTO STOP TYPE) (1 PAIR) €19.46
51
 photo_cameraImage coming soon 322546 HANDLE (B) €19.46
53
 photo_cameraImage coming soon 322323 BRUSH HOLDER SET €12.14
55
 Switch for Angle Grinders Hitachi 230 mm 320238 Switch for Angle Grinders Hitachi 230 mm €37.76
55
 Switch for Angle Grinders Hitachi G-23SR G 23SS 320239 Switch for Angle Grinders Hitachi G-23SR G 23SS €31.66
55
 photo_cameraImage coming soon 322614 SWITCH (2P PILLAR TYPE) W/SAFETY LOCK €0.00 Not available for order
56
 photo_cameraImage coming soon 322549 SWITCH COVER  €0.00 Not available for order
57
 photo_cameraImage coming soon 960266 CORD CLIP €1.16
58
 photo_cameraImage coming soon 984750 Tapp. Screw (W / Flange) D4x16 €0.00 Not available for order
59
 photo_cameraImage coming soon 322545 HANDLE (A) €19.46
60
 photo_cameraImage coming soon 981373 TUBE (D) €1.16
61
 photo_cameraImage coming soon 930804 TERMINAL M4.0 €0.00 Not available for order
62
 photo_cameraImage coming soon 940778 CORD ARMOR D10.7 €3.60
62
 photo_cameraImage coming soon 958049 CORD ARMOR D8.2 €1.16

Shipping and delivery information will be available shortly.

Hitachi Spare Parts for Angle Grinder G23MR

Hitachi-HIKOKI Tanaka authorized repair center

 and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Angle Grinder G23MR.

In the following table, choose the Spare Part number for the Grinder to be ordered.
Hitachi G23MR

Disc Grinder 230 mm G 23MR
# Part Num. Description
1 984509 SEAL LOCK HEX. SOCKET HD. BOLT M5X14
2 949454 SPRING WASHER M5
3 313585 HEX. SOCKET HD. BOLT (W/FLANGE) M5X30
4 306888 PUSHING BUTTON
5 320219 SPRING
6 322544 GEAR COVER ASS'Y
7 320226 SPECIAL NUT M10
9 320221 SEAL WASHER
10 320222 FELT PACKING
11 6301DD BALL BEARING 6301DDCMPS2L
12 994208 RUBBER RING (B)
13 320220 BEARING COVER (A)
14A 360594E ARMATURE 220V-230V
15 320215 FAN GUIDE
16 984271 HEX. HD. TAPPING SCREW D5X75
17 340546E STATOR 220V-230V
18 937033 FELT WASHER
19A 336864 SIDE HANDLE
20 939542 RETAINING RING FOR D12 SHAFT
22 949236 MACHINE SCREW M5X10
23 320229 BEARING COVER (B)
24 6302DD BALL BEARING 6302DDCMPS2L
25 990852 FELT PACKING (B)
26 320234 SPINDLE
26 321541 SPINDLE
27 320228 SEAL PLATE
28 320227 PACKING GLAND
29 994192 HEX. SOCKET HD. BOLT (W/FLANGE) M5X16
30 311492 LABEL
31 321546 SET PIN
32 321545 LEVER
33 306887 BOLT M8X22
34 949457 SPRING WASHER M8
35 321544 SET PIECE
36 673489 RETAINING RING (E-TYPE) FOR D5 SHAFT
37 321547 WHEEL GUARD ASS'Y
37A 324267 WHEEL GUARD ASS'Y
37A 337223 WHEEL GUARD ASS'Y
38 937922P WHEEL WASHER (B) FOR D5/8" HOLE
38 937908Z WHEEL WASHER (B)
38 310337 SUPER WASHER
38A 937907Z WHEEL WASHER (C)
39 316825 D. C. WHEELS 230MM A24R
40 937909Z WHEEL NUT M14X2
40 937923P WHEEL NUT 5/8"-11UNC
41 320218 O-RING
42 306890 LOCK PIN
43A 330032 GEAR AND PINION SET
44 320216 DUST SEAL
45 6200VV BALL BEARING 6200VVCMPS2L
45A 6000VV BALL BEARING 6000VVCMPS2L
46A 323224 HOUSING
48 322547 BRUSH COVER
49 305812 TAPPING SCREW (W/FLANGE) D4X16 (BLACK)
50 999061 CARBON BRUSH 7X17X22.5 (1 PAIR)
50 999089 CARBON BRUSH (AUTO STOP TYPE) (1 PAIR)
51 322546 HANDLE (B)
53 322323 BRUSH HOLDER SET
55 320239 SWITCH (2P PILLAR TYPE) W/SAFETY LOCK
55 320238 SWITCH (2P PILLAR TYPE) W/SAFETY LOCK
55 322614 SWITCH (2P PILLAR TYPE) W/SAFETY LOCK
56 322549 SWITCH COVER
57 960266 CORD CLIP
58 984750 TAPPING SCREW (W/FLANGE) D4X16
59 322545 HANDLE (A)
60 981373 TUBE (D)
61 930804 TERMINAL M4.0
62 958049 CORD ARMOR D8.2
62 940778 CORD ARMOR D10.7
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Hitachi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to hitachi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Hitachi G23MR
11 Items

Data sheet

SHIPPING IN
Usually Ships in 10/15 BUSINESS DAYS
Machine Type
Grinder
MORE INFO:
[email protected]

Specific References

New

Download

Diagram Hitachi G23MR

Diagram Hitachi G23MR

Download (80.18KB)

You might also like

Carbon Brushe Set for Hitachi Wall Chasers CM7R - CM9SR
HiKOKI Power Tools Italia S.p.a. SKU: 999044
Carbon Brushe Set for Hitachi Wall Chasers CM7R - CM9SR
Carbon Brushe Set for Hitachi Wall Chasers CM7R - CM9SR Genuine part Hitachi, Carbon Brushe Set for Hitachi Wall Chasers CM7R-CM9SR-CM12Y, Hammer DH50MRY, Demolition Hammers H60MC, Grinder G23SR, Router M12V2, Mitre Saw...
AVAILABLE €9.70
Details
Armature for Grinder Hitachi 230 mm G23SR-SRU
HiKOKI Power Tools Italia S.p.a. SKU: 360762E
Armature for Grinder Hitachi 230 mm G23SR-SRU
Armature for Grinder Hitachi 230 mm G23SR-SRU Original spare parts for Hitachi KOKY grinder with disc 230 mm, G23SR - G23SRU - Cutting Machine CM9SR - Wall Chaser CM7MR. - Hitachi Code: 360762E
AVAILABLE €75.58
Details
Ball Bearing Hitachi 6302VV
HiKOKI Power Tools Italia S.p.a. SKU: 6302VV
Ball Bearing Hitachi 6302VV
Ball Bearing Hitachi 6302VV Genuine parts Hitachi, Ball Bearing 6302VV CMPS2S for Angle Grinders S 23UBY - G 23SR - G 23SS - G 23SW. Parts for the following products: - Angle Grinder Hitachi 230 mm S 23UBY - Angle Grinder Hitachi 230...
AVAILABLE €9.70
Details
Ball Bearing Hitachi 6301DD
HiKOKI Power Tools Italia S.p.a. SKU: 6301DD
Ball Bearing Hitachi 6301DD
Ball Bearing Hitachi 6301DD Genuine parts Hitachi, Ball Bearing 6301DD CMPS2S for Angle Grinders G 23SF2 - G 23MR - S 23UBY - G 23SF. Parts for the following products: - Angle Grinder Hitachi 230 mm G 23SF2 - Angle Grinder Hitachi 230...
AVAILABLE €10.92
Details
Carbon Brushes for Angle Grinder Hitachi G23SF - G23SR
HiKOKI Power Tools Italia S.p.a. SKU: 999074
Carbon Brushes for Angle Grinder Hitachi G23SF - G23SR
Carbon Brushes for Angle Grinder Hitachi G23SF - G23SR Genuine parts HITACHI, Carbon Brushes for Angle Grinder Hitachi G23SF - G23SR  230 mm G23SF - G23SR - Combination Hammer UVP DH50MRY - Demolition Hammer H60MC...
AVAILABLE €14.58
Details
Pushing Button for Angle Grinders Hitachi G15VA - G15YF
HiKOKI Power Tools Italia S.p.a. SKU: 306888
Pushing Button for Angle Grinders Hitachi G23
Pushing Button for Angle Grinders Hitachi G23 Original spare parts Hitachi, Pushing Button for Angle Grinders G23SS - G23SW - G23SF2 - S23UBY - G23UBY - G23SWU - G23SR - G23MR - G23SF - CM12Y - CM7MR - CM9SR - SP18VA. Part for the...
AVAILABLE €1.16
Details
Pushing Button for Angle Grinders Hitachi G23
HiKOKI Power Tools Italia S.p.a. SKU: 320219
Button Spring for Angle Grinders Hitachi G23
Button Spring for Angle Grinders Hitachi G23 Original spare parts Hitachi, Button Spring for Angle Grinders S23UBY - G23UBY - G23SWU - G23SS - G23SW - G23SR - G23MR - G23SF2 - CM7MR - CM9SR. Part for the following items: - Angle...
AVAILABLE €3.60
Details
Carbon Brushes for Angle Grinders Hitachi G23SR-S23UBY
Bosch SKU: 999061
Carbon Brushes for Angle Grinders Hitachi G23SR-S23UBY
Carbon Brushes for Angle Grinders Hitachi G23SR-S23UBY Genuine replacement part Bosch, Carbon Brushes mm 7X17X22.5 for Angle Grinders G23SR - S23UBY - G23UBY - G23SF2. Part for the following products: - Angle Grinder Hitachi 230 mm S...
AVAILABLE €10.20
Details
Wheel Guard Ass’y for Angle Grinder Hitachi G 23SF
HiKOKI Power Tools Italia S.p.a. SKU: 330036
Wheel Guard Ass’y for Angle Grinder Hitachi G 23SF
Wheel Guard Ass’y for Angle Grinder Hitachi G 23SF Genuine part Hitachi, Wheel Guard Ass’y for Angle Grinders G 23SF2 - G 23SS - G 23SW -  G 23SR - G 23SWU Parts for the following products: - Angle Grinder Hitachi G 23SF2 - Angle...
AVAILABLE €26.78
Details
Wheel Washer for Angle Grinder Hitachi G23SS
HiKOKI Power Tools Italia S.p.a. SKU: 937907Z
Wheel Washer for Angle Grinder Hitachi G23SS
Wheel Washer for Angle Grinder Hitachi G23SS Genuine spare part Hitachi HIKOKI, Wheel Washer for Angle Grinders G23SS - G23MR - G23SC3 - G23SE2 - G23SF2 - G23SR - G23ST. Part for the following products: - Angle Grinder HITACHI G23SS -...
on 7/10 Business Days Approx. €12.14
Details
Wheel Nut for Angle Grinder Hitachi G23SS
HiKOKI Power Tools Italia S.p.a. SKU: 937909Z
Wheel Nut for Angle Grinder Hitachi G23SS
Wheel Nut for Angle Grinder Hitachi G23SS Genuine spare part Hitachi KOKY, Wheel Nut for Angle Grinders G23SS - G23MR - G23SC3 - G23SE2 - G23SF2 - G23SR - G23ST Part for the following products: - Angle Grinder HITACHI G23SS - Angle...
AVAILABLE €17.02
Details
Packing Gland for Angle Grinder Hitachi G23SS
HiKOKI Power Tools Italia S.p.a. SKU: 320227
Packing Gland for Angle Grinder Hitachi G23SS
Packing Gland for Angle Grinder Hitachi G23SS Genuine spare part Hitachi HIKOKI, Packing Gland for Angle Grinders G23SS - G23MR - G23SC3 - G23SE2 - G23SE2 - G23SR - G23ST Part for the following products: -  Angle Grinder G23SS -...
on 7/10 Business Days Approx. €15.80
Details
Packing Gland Gasket for Angle Grinder Hitachi G23SS
HiKOKI Power Tools Italia S.p.a. SKU: 320228
Packing Gland Gasket for Angle Grinder Hitachi G23SS
Packing Gland Gasket for Angle Grinder Hitachi G23SS Genuine spare part Hitachi HIKOKI, Packing Gland Gasket for Angle Grinders G23SS - G23MR - G23SC3 - G23SE2 - G23SE2 - G23SR - G23ST Part for the following products: -  Angle Grinder...
on 7/10 Business Days Approx. €3.60
Details
Lock Pin for Angle Grinder Hitachi G23SS
HiKOKI Power Tools Italia S.p.a. SKU: 306890
Lock Pin for Angle Grinder Hitachi G23SS
Lock Pin for Angle Grinder Hitachi G23SS Genuine spare part Hitachi HIKOKI, Lock Pin for Angle Grinders G23SS - G23MR - G23SC3 - G23SE2 - G23SE2 - G23SR - G23ST Part for the following...
Usually Ships in: 7/10 Business Days Approx. €2.38
Details
Bearing Cover (B) for Angle Grinder Hitachi G23SS
HiKOKI Power Tools Italia S.p.a. SKU: 320229
Bearing Cover (B) for Angle Grinder Hitachi G23SS
Bearing Cover (B) for Angle Grinder Hitachi G23SS Genuine spare part Hitachi HIKOKI, Bearing Cover (B) for Angle Grinders G23SS - G23MR - G23SC3 - G23SE2 - G23SE2 - G23SR - G23ST Part for the following products: -  Angle Grinder G23SS...
on 7/10 Business Days Approx. €3.60
Details
Comments (0)
No customer reviews for the moment.
