HiKOKI Power Tools Italia S.p.a.

Hitachi Spare Parts for Angle Grinder G23UDY

SKU: Hitachi G23UDY
€1.78
VAT included

Hitachi Spare Parts for Angle Grinder G23UDY

Hitachi-HIKOKI Tanaka authorized service center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Angle Grinder G23UDY.
Hitachi Spare Parts for Angle Grinder G23UDY
  • Hitachi Spare Parts for Angle Grinder G23UDY
  • Hitachi Spare Parts for Angle Grinder G23UDY
HiKOKI Power Tools Italia S.p.a.

Hitachi Spare Parts for Angle Grinder G23UDY

SKU: Hitachi G23UDY Condition: New
€1.78
VAT included

Hitachi Spare Parts for Angle Grinder G23UDY

Hitachi-HIKOKI Tanaka authorized service center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Angle Grinder G23UDY.
settings 71 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 7/10 Business Days Approx

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
48 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

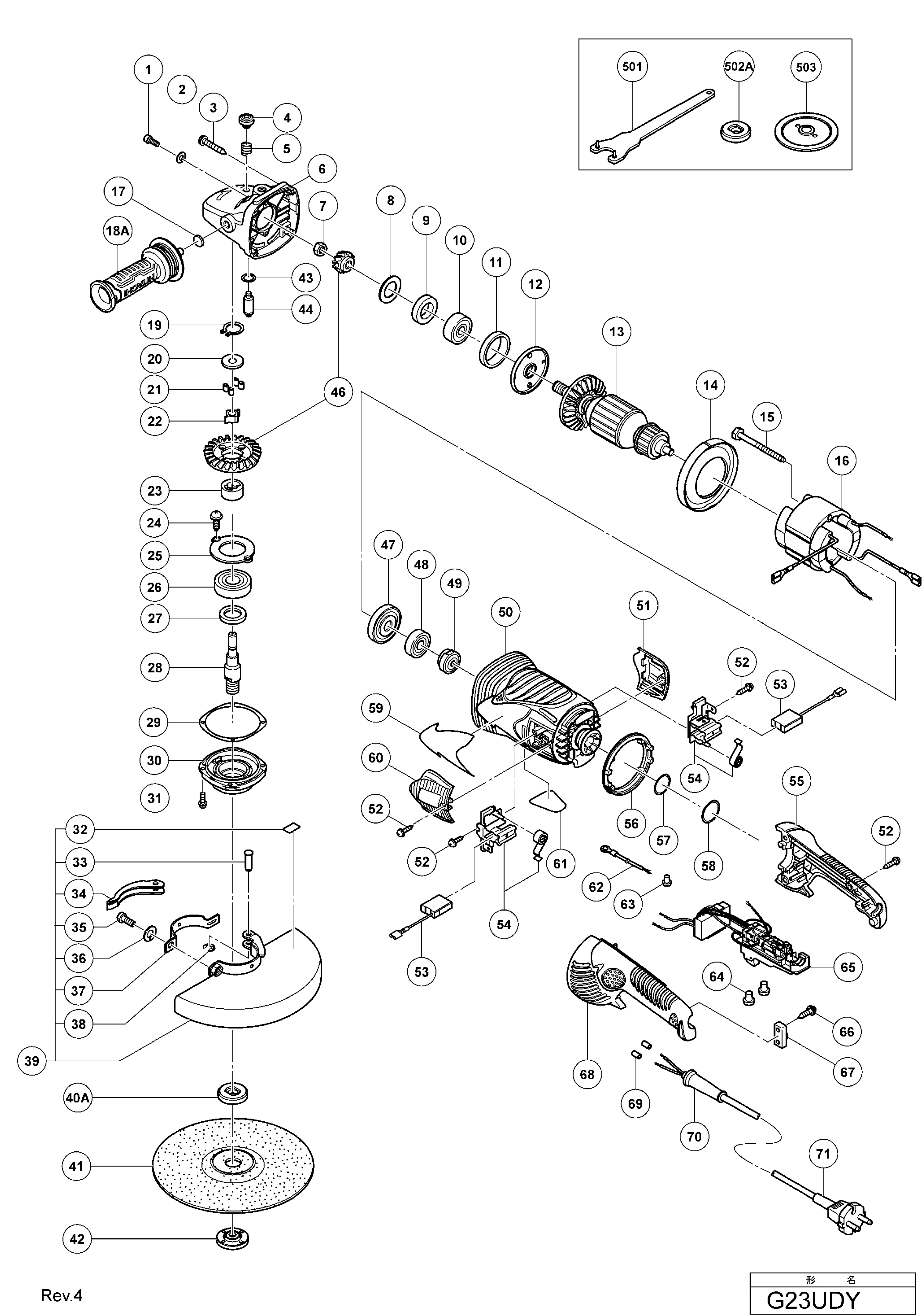

Esploso pagina 1
Pos. Item Price Buy
4
 Pushing Button for Angle Grinders Hitachi G23 306888 Pushing Button for Angle Grinders Hitachi G23 €0.83
5
 Button Spring for Angle Grinders Hitachi G23 320219 Button Spring for Angle Grinders Hitachi G23 €3.19
6
 photo_cameraImage coming soon 326717 GEAR COVER ASS'Y €29.93
7
 photo_cameraImage coming soon 320226 SPECIAL NUT M10 €3.19
8
 photo_cameraImage coming soon 320221 SEAL WASHER €2.67
9
 photo_cameraImage coming soon 320222 FELT PACKING €2.67
10
 photo_cameraImage coming soon 6301VV BALL BEARING 6301VVCMPS2L €12.55
11
 photo_cameraImage coming soon 994208 RUBBER RING (B) €1.34
12
 photo_cameraImage coming soon 320220 BEARING COVER (A) €5.81
13
 photo_cameraImage coming soon 360777E ARMATURE 220V-230V €81.92
14
 photo_cameraImage coming soon 320215 FAN GUIDE €2.67
16
 photo_cameraImage coming soon 340846E STATOR 230V-240V €60.02
17
 photo_cameraImage coming soon 937033 FELT WASHER €2.08
18A
 photo_cameraImage coming soon 336864 SIDE HANDLE €29.08
19
 Retaining Ring D.10 for Hammer DH45ME - DH40MR 939540 Retaining Ring D.10 for Hammer DH45ME - DH40MR €0.35
21
 photo_cameraImage coming soon 326721 COUPLING DAMPER €13.02
22
 photo_cameraImage coming soon 333147 COUPLING €7.03
26
 Ball Bearing Hitachi 6302VV 6302VV Ball Bearing Hitachi 6302VV €9.62
27
 photo_cameraImage coming soon 990852 FELT PACKING (B) €2.64
28
 Spindle for Angle Grinders Hitachi G 23UBY-S 23UBY 326727 Spindle for Angle Grinders Hitachi G 23UBY-S 23UBY €18.00
29
 Packing Gland Gasket for Angle Grinder Hitachi G23SS 320228 Packing Gland Gasket for Angle Grinder Hitachi G23SS €3.33
30
 Packing Gland for Angle Grinder Hitachi G23SS 320227 Packing Gland for Angle Grinder Hitachi G23SS €16.00
34
 photo_cameraImage coming soon 321545 LEVER €3.04
35
 photo_cameraImage coming soon 306887 BOLT M8X22 €1.73
37
 photo_cameraImage coming soon 321544 SET PIECE €2.00
39
 photo_cameraImage coming soon 321547 WHEEL GUARD ASS'Y €48.56
40A
 Wheel Washer for Angle Grinder Hitachi G23SS 937907Z Wheel Washer for Angle Grinder Hitachi G23SS €12.42
42
 Wheel Nut for Angle Grinder Hitachi G23SS 937909Z Wheel Nut for Angle Grinder Hitachi G23SS €17.44
43
 photo_cameraImage coming soon 320218 0-RING €2.67
44
 Lock Pin for Angle Grinder Hitachi G23SS 306890 Lock Pin for Angle Grinder Hitachi G23SS €2.96
46
 photo_cameraImage coming soon 326718 GEAR AND PINION SET €36.82
47
 photo_cameraImage coming soon 330029 DUST SEAL €3.47
48
 photo_cameraImage coming soon 6000VV BALL BEARING 6000VVCMPS2L €9.76
49
 Bearing Bush for Angle Grinder Hitachi G23SR 321536 Bearing Bush for Angle Grinder Hitachi G23SR €16.60
50
 photo_cameraImage coming soon 326712 HOUSING ASS'Y €46.92
51
 photo_cameraImage coming soon 326715 BRUSH COVER €3.03
53
 Carbon Brushes for Angle Grinders Hitachi G23SR-S23UBY 999061 Carbon Brushes for Angle Grinders Hitachi G23SR-S23UBY €10.20
53
 photo_cameraImage coming soon 999089 CARBON BRUSH (AUTO STOP TYPE) (1 PAIR) €19.60
54
 photo_cameraImage coming soon 322323 BRUSH HOLDER SET €11.71
55
 photo_cameraImage coming soon 326714 HANDLE (B) €17.02
56
 photo_cameraImage coming soon 326726 HANDLE DAMPER €7.03
60
 photo_cameraImage coming soon 326716 BRUSH COVER €4.53
65
 photo_cameraImage coming soon 335122 CONTROLLER SWITCH 250V €52.12
67
 photo_cameraImage coming soon 960266 CORD CLIP €1.37
68
 photo_cameraImage coming soon 326713 HANDLE (A) €17.02
69
 photo_cameraImage coming soon 981373 TUBE (D) €1.37
70
 photo_cameraImage coming soon 940778 CORD ARMOR D10.7 €3.43
70
 photo_cameraImage coming soon 958049 CORD ARMOR D8.2 €1.34

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Hitachi Spare Parts for Angle Grinder G23UDY

Hitachi-HIKOKI Tanaka authorized service center

 and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Angle Grinder G23UDY.

In the following table , look for the model of the grinder and their respective spare parts.
Hitachi G23UDY

Disc Grinder 230 mm G 23UDY
# Part Num. Description
1 984509 SEAL LOCK HEX. SOCKET HD. BOLT M5X14
2 949454 SPRING WASHER M5 (10 PCS.)
3 323209 TAPPING SCREW (W/FLANGE) D5X35 (BLACK)
4 306888 PUSHING BUTTON
5 320219 SPRING
6 326717 GEAR COVER ASS'Y
7 320226 SPECIAL NUT M10
8 320221 SEAL WASHER
9 320222 FELT PACKING
10 6301VV BALL BEARING 6301VVCMPS2L
11 994208 RUBBER RING (B)
12 320220 BEARING COVER (A)
13 360777E ARMATURE 220V-230V
14 320215 FAN GUIDE
15 984271 HEX. HD. TAPPING SCREW D5X75
16 340846E STATOR 230V-240V
17 937033 FELT WASHER
18A 336864 SIDE HANDLE
19 939540 RETAINING RING FOR D10 SHAFT
20 326722 COUPLING COVER
21 326721 COUPLING DAMPER
22 333147 COUPLING
23 328700 INNER
24 949236 MACHINE SCREW M5X10 (10 PCS.)
25 326723 BEARING COVER (B)
26 6302VV BALL BEARING 6302VVCMPS2L
27 990852 FELT PACKING (B)
28 326727 SPINDLE
29 320228 SEAL PLATE
30 320227 PACKING GLAND
31 994192 HEX. SOCKET HD. BOLT (W/FLANGE) M5X16
32 311492 LABEL
33 321546 SET PIN
34 321545 LEVER
35 306887 BOLT M8X22
36 949457 SPRING WASHER M8 (10 PCS.)
37 321544 SET PIECE
38 673489 RETAINING RING (E-TYPE) FOR D5 SHAFT
39 321547 WHEEL GUARD ASS'Y
39A 337225 WHEEL GUARD ASS'Y
40 937908Z WHEEL WASHER (B)
40A 937907Z WHEEL WASHER (C)
41 316825 D. C. WHEELS 230MM A24R (25 PCS.)
42 937909Z WHEEL NUT M14X2
43 320218 O-RING
44 306890 LOCK PIN
46 326718 GEAR AND PINION SET
47 330029 DUST SEAL
48 6000VV BALL BEARING 6000VVCMPS2L
49 321536 BEARING BUSHING
50 326712 HOUSING ASS'Y
51 326715 BRUSH COVER
52 305812 TAPPING SCREW (W/FLANGE) D4X16 (BLACK)
53 999089 CARBON BRUSH (AUTO STOP TYPE) (1 PAIR)
53 999061 CARBON BRUSH 7X17X22.5 (1 PAIR)
54 322323 BRUSH HOLDER SET
55 326714 HANDLE (B)
56 326726 HANDLE DAMPER
57 326724 O-RING
58 326725 O-RING
60 326716 BRUSH COVER
62 330216 INTERNAL WIRE 270L
63 959140 CONNECTOR 50091 (10 PCS.)
64 959141 CONNECTOR 50092 (10 PCS.)
65 335122 CONTROLLER SWITCH 250V
66 984750 TAPPING SCREW (W/FLANGE) D4X16
67 960266 CORD CLIP
68 326713 HANDLE (A)
69 981373 TUBE (D)
70 940778 CORD ARMOR D10.7
70 958049 CORD ARMOR D8.2

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Hitachi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to hitachi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Hitachi G23UDY
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Diagram Hitachi G23UDY

Diagram Hitachi G23UDY

Download (82.02KB)
