HiKOKI Power Tools Italia S.p.a.

Hitachi Spare Parts for Angle Grinder G23SF2

SKU: Hitachi G23SF2
€19.73
VAT included

Hitachi Spare Parts for Angle Grinder G23SF2

Hitachi-HIKOKI Tanaka authorized service center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Angle Grinder G23SF2.
Hitachi Spare Parts for Angle Grinder G23SF2
  • Hitachi Spare Parts for Angle Grinder G23SF2
  • Hitachi Spare Parts for Angle Grinder G23SF2
HiKOKI Power Tools Italia S.p.a.

Hitachi Spare Parts for Angle Grinder G23SF2

SKU: Hitachi G23SF2 Condition: New
€19.73
VAT included

Hitachi Spare Parts for Angle Grinder G23SF2

Hitachi-HIKOKI Tanaka authorized service center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Angle Grinder G23SF2.
settings 55 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
44 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

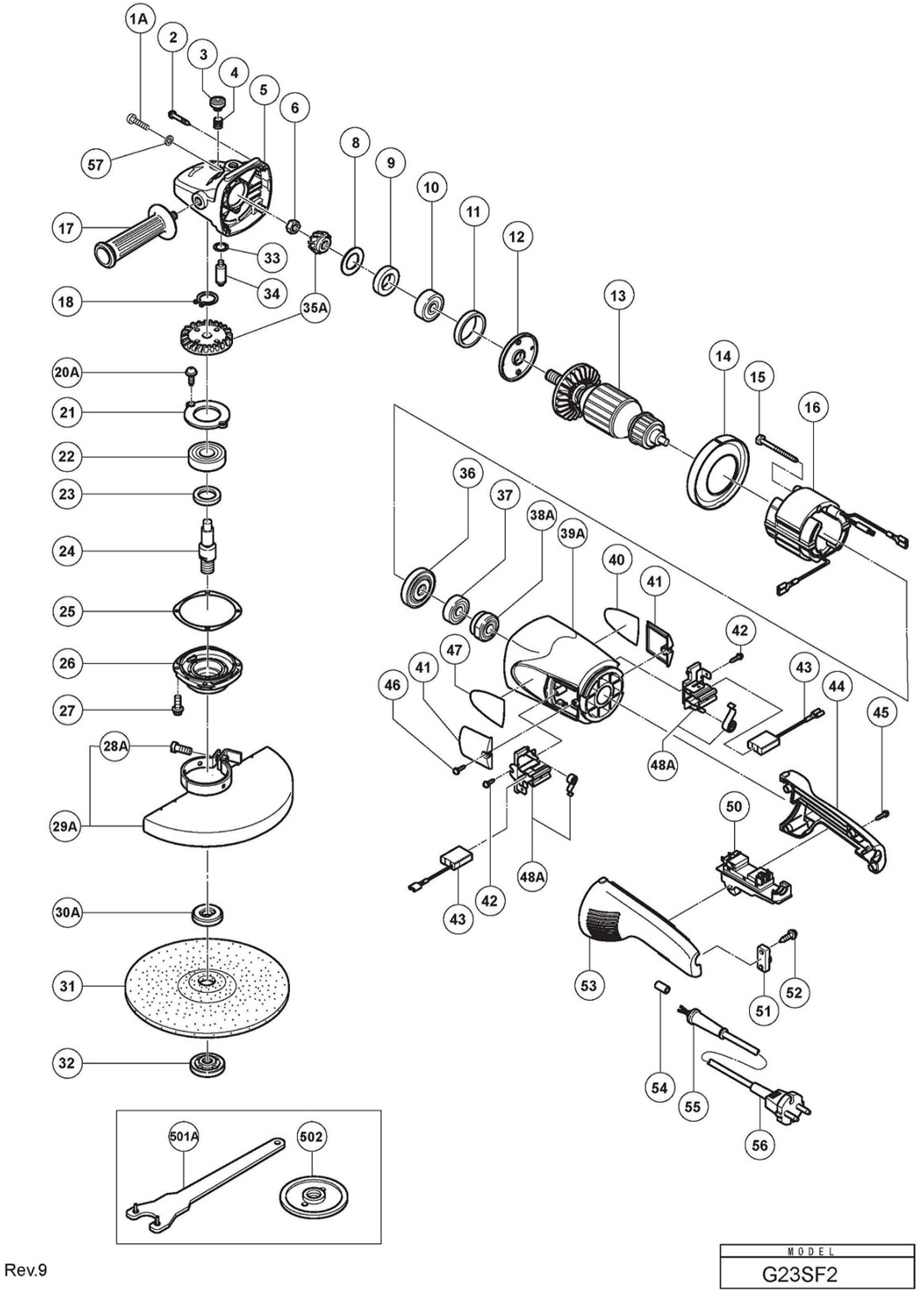

Esploso pagina 1
Pos. Item Price Buy
3
 Pushing Button for Angle Grinders Hitachi G23 306888 Pushing Button for Angle Grinders Hitachi G23 €0.83
4
 Button Spring for Angle Grinders Hitachi G23 320219 Button Spring for Angle Grinders Hitachi G23 €3.19
5
 photo_cameraImage coming soon 320217 GEAR COVER ASS'Y €23.07
6
 photo_cameraImage coming soon 320226 SPECIAL NUT M10 €3.19
8
 photo_cameraImage coming soon 320221 SEAL WASHER €2.67
9
 photo_cameraImage coming soon 320222 FELT PACKING €2.67
10
 Ball Bearing Hitachi 6301DD 6301DD Ball Bearing Hitachi 6301DD €11.16
11
 photo_cameraImage coming soon 994208 RUBBER RING (B) €1.34
12
 photo_cameraImage coming soon 320220 BEARING COVER (A) €5.81
13
 Armature for Angle Grinder Hitachi G23SF2 360558E Armature for Angle Grinder Hitachi G23SF2 €62.68
14
 photo_cameraImage coming soon 320215 FAN GUIDE €2.67
16
 photo_cameraImage coming soon 340501E STATOR 220V-230V €33.12
17
 photo_cameraImage coming soon 937981 SIDE HANDLE FOR M14 €17.43
18
 Retaining Ring 12 mm for Hitachi Power Tools 939542 Retaining Ring 12 mm for Hitachi Power Tools €3.13
21
 Bearing Cover (B) for Angle Grinder Hitachi G23SS 320229 Bearing Cover (B) for Angle Grinder Hitachi G23SS €3.71
22
 photo_cameraImage coming soon 6302DD BALL BEARING 6302DDCMPS2L €8.65
23
 photo_cameraImage coming soon 990852 FELT PACKING (B) €2.64
24
 photo_cameraImage coming soon 320234 SPINDLE €18.12
25
 Packing Gland Gasket for Angle Grinder Hitachi G23SS 320228 Packing Gland Gasket for Angle Grinder Hitachi G23SS €3.33
26
 Packing Gland for Angle Grinder Hitachi G23SS 320227 Packing Gland for Angle Grinder Hitachi G23SS €16.00
29
 photo_cameraImage coming soon 306120 WHEEL GUARD ASS'Y €19.70
29A
 Wheel Guard Ass’y for Angle Grinder Hitachi G 23SF 330036 Wheel Guard Ass’y for Angle Grinder Hitachi G 23SF €26.38
30
 photo_cameraImage coming soon 310337 SUPER WASHER €26.46
30A
 Wheel Washer for Angle Grinder Hitachi G23SS 937907Z Wheel Washer for Angle Grinder Hitachi G23SS €12.42
32
 Wheel Nut for Angle Grinder Hitachi G23SS 937909Z Wheel Nut for Angle Grinder Hitachi G23SS €17.44
33
 photo_cameraImage coming soon 320218 0-RING €2.67
34
 Lock Pin for Angle Grinder Hitachi G23SS 306890 Lock Pin for Angle Grinder Hitachi G23SS €2.96
35A
 Gear an Pinion for Grinder Hitachi G23SS 330032 Gear an Pinion for Grinder Hitachi G23SS €34.89
36
 photo_cameraImage coming soon 320216 DUST SEAL €2.67
37
 photo_cameraImage coming soon 6000VV BALL BEARING 6000VVCMPS2L €9.76
38
 photo_cameraImage coming soon 320244 BEARING BUSHING €7.12
39A
 photo_cameraImage coming soon 320214 HOUSING ASS'Y €23.12
41
 photo_cameraImage coming soon 320232 BRUSH COVER €2.62
43
 Carbon Brushes for Angle Grinders Hitachi G23SR-S23UBY 999061 Carbon Brushes for Angle Grinders Hitachi G23SR-S23UBY €10.20
43
 photo_cameraImage coming soon 999089 CARBON BRUSH (AUTO STOP TYPE) (1 PAIR) €19.60
44
 photo_cameraImage coming soon 320231 HANDLE (B) €7.12
48A
 photo_cameraImage coming soon 322323 BRUSH HOLDER SET €11.71
50
 Switch for Angle Grinders Hitachi 230 mm 320238 Switch for Angle Grinders Hitachi 230 mm €46.06
50
 Switch for Angle Grinders Hitachi G-23SR G 23SS 320239 Switch for Angle Grinders Hitachi G-23SR G 23SS €31.82
51
 photo_cameraImage coming soon 960266 CORD CLIP €1.37
53
 photo_cameraImage coming soon 320230 HANDLE (A) €9.13
54
 photo_cameraImage coming soon 981373 TUBE (D) €1.37
55
 photo_cameraImage coming soon 940778 CORD ARMOR D10.7 €3.43
55
 photo_cameraImage coming soon 958049 CORD ARMOR D8.2 €1.34

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Hitachi Spare Parts for Angle Grinder G23SF2

Hitachi-HIKOKI Tanaka authorized service center

 and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Angle Grinder G23SF2.

In the following table, look for the model of the Angle Grinder and their spare part.
Hitachi G23SF2

Disc Grinder 230 mm G 23SF2
# Part Num. Description
1A 984509 SEAL LOCK HEX. SOCKET HD. BOLT M5X14
2 301654 TAPPING SCREW (W/FLANGE) D5X35
3 306888 PUSHING BUTTON
4 320219 SPRING
5 320217 GEAR COVER ASS'Y
6 320226 SPECIAL NUT M10
8 320221 SEAL WASHER
9 320222 FELT PACKING
10 6301DD BALL BEARING 6301DDCMPS2L
11 994208 RUBBER RING (B)
12 320220 BEARING COVER (A)
13 360558E ARMATURE 220V-240V
14 320215 FAN GUIDE
15 961501 HEX. HD. TAPPING SCREW D5X60
16 340501E STATOR 220V-230V
17 937981 SIDE HANDLE FOR M14
18 939542 RETAINING RING FOR D12 SHAFT
20 949236 MACHINE SCREW M5X10
21 320229 BEARING COVER (B)
22 6302DD BALL BEARING 6302DDCMPS2L
23 990852 FELT PACKING (B)
24 320234 SPINDLE
25 320228 SEAL PLATE
26 320227 PACKING GLAND
27 994192 HEX. SOCKET HD. BOLT (W/FLANGE) M5X16
28A 949760 HEX. SOCKET HD. BOLT M8X25
29 306120 WHEEL GUARD ASS'Y
29A 330036 WHEEL GUARD ASS'Y
30 310337 SUPER WASHER
30 937908Z WHEEL WASHER (B)
30A 937907Z WHEEL WASHER (C)
31 316825 D. C. WHEELS 230MM A24R
32 937909Z WHEEL NUT M14X2
33 320218 O-RING
34 306890 LOCK PIN
35A 330032 GEAR AND PINION SET
36 320216 DUST SEAL
37 6000VV BALL BEARING 6000VVCMPS2L
38 320244 BEARING BUSHING
39A 320214 HOUSING ASS'Y
41 320232 BRUSH COVER
42 305812 TAPPING SCREW (W/FLANGE) D4X16 (BLACK)
43 999061 CARBON BRUSH 7X17X22.5 (1 PAIR)
43 999089 CARBON BRUSH (AUTO STOP TYPE) (1 PAIR)
44 320231 HANDLE (B)
45 305812 TAPPING SCREW (W/FLANGE) D4X16 (BLACK)
46 305812 TAPPING SCREW (W/FLANGE) D4X16 (BLACK)
48A 322323 BRUSH HOLDER SET
50 320238 SWITCH (2P PILLAR TYPE) W/SAFETY LOCK
50 320239 SWITCH (2P PILLAR TYPE) W/SAFETY LOCK
51 960266 CORD CLIP
52 984750 TAPPING SCREW (W/FLANGE) D4X16
53 320230 HANDLE (A)
54 981373 TUBE (D)
55 940778 CORD ARMOR D10.7
55 958049 CORD ARMOR D8.2
57 949454 SPRING WASHER M5
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Hitachi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to hitachi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Hitachi G23SF2
11 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Diagram Hitachi G23SF2

Diagram Hitachi G23SF2

Download (343.02KB)
