Hitachi Spare Parts for Demolition Hammer H60MEY

SKU: Hitachi H60MEY
€19.79
VAT included

Hitachi Spare Parts for Demolition Hammer H60MEY

Hitachi-HIKOKI Tanaka authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair issues for Demolition Hammer H60MEY.
Hitachi Spare Parts for Demolition Hammer H60MEY
  • Hitachi Spare Parts for Demolition Hammer H60MEY
  • Hitachi Spare Parts for Demolition Hammer H60MEY

Hitachi Spare Parts for Demolition Hammer H60MEY

SKU: Hitachi H60MEY Condition: New
€19.79
VAT included

Hitachi Spare Parts for Demolition Hammer H60MEY

Hitachi-HIKOKI Tanaka authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair issues for Demolition Hammer H60MEY.
settings 114 spare parts

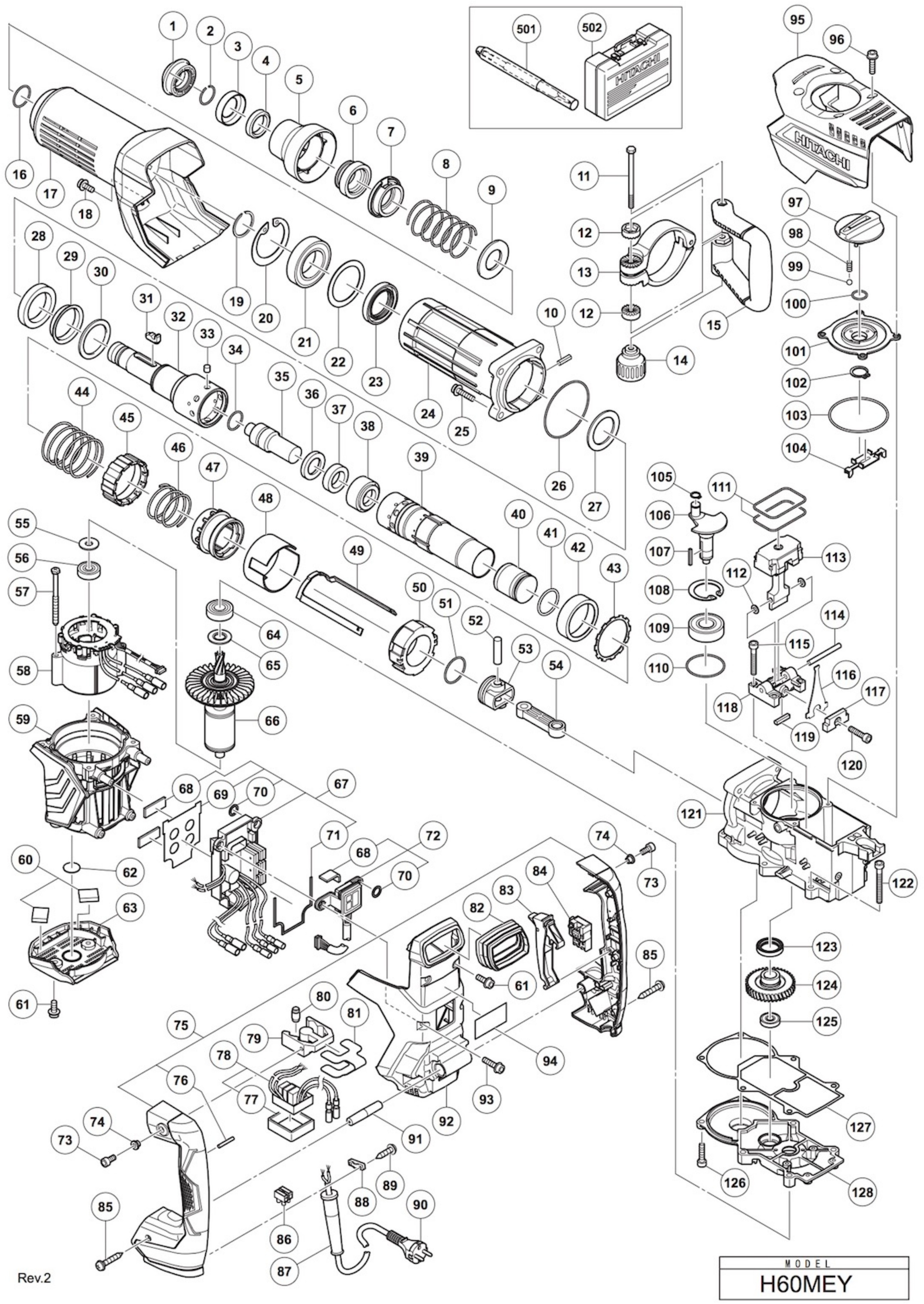

description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

99 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 337562 FRONT CAP €3.88
2
photo_cameraImage coming soon 318590 STOPPER RING €2.27
3
photo_cameraImage coming soon 338155 RETAINER WASHER €6.38
4
photo_cameraImage coming soon 339053 RETAINER DAMPER (A) €11.01
5
photo_cameraImage coming soon 338154 GRIP €2.25
6
photo_cameraImage coming soon 370669 BIT LOCK HOLDER €8.96
7
photo_cameraImage coming soon 370668 THRUST PLATE €13.45
8
photo_cameraImage coming soon 339052 RETAINER SPRING €2.11
9
photo_cameraImage coming soon 337557 SPRING HOLDER (A) €1.65
13
photo_cameraImage coming soon 370393 HANDLE HOLDER €15.95
14
photo_cameraImage coming soon 333201 GRIP €2.18
15
photo_cameraImage coming soon 333199 SIDE HANDLE €8.79
16
photo_cameraImage coming soon 872470 O-RING (S-26) €2.09
17
photo_cameraImage coming soon 338198 CYLINDER CASE COVER €16.15
19
photo_cameraImage coming soon 318582 RETAINING RING D40 €6.24
20
photo_cameraImage coming soon 338200 RETAINING RING D68 €5.53
21
photo_cameraImage coming soon 339063 BALL BEARING 6008DDU €16.98
22
photo_cameraImage coming soon 338201 BEARING WASHER €1.40
23
photo_cameraImage coming soon 318588 OIL SEAL (NBR710) €8.26
24
photo_cameraImage coming soon 338199 CYLINDER CASE €17.47
27
photo_cameraImage coming soon 338204 RETAINER DAMPER HOLDER €6.22
28
photo_cameraImage coming soon 338203 RETAINER DAMPER (B) €4.68
30
photo_cameraImage coming soon 338202 RETAINER DAMPER WASHER €6.11
31
photo_cameraImage coming soon 370654 BIT LOCK €7.01
32
photo_cameraImage coming soon 338205 RETAINER SLEEVE €36.34
33
photo_cameraImage coming soon 338210 NEEDLE PIN D8 €2.11
34
O-Ring 23X30X3 mm for Demolition Hammers Hitachi DH40MRY-DH38MS 986104 O-Ring 23X30X3 mm for Demolition Hammers Hitachi DH40MRY-DH38MS €2.08
35
photo_cameraImage coming soon 370657 THREADED €21.65
36
photo_cameraImage coming soon 370659 DAMPER WASHER €9.00
37
photo_cameraImage coming soon 328887 DAMPER €5.41
38
photo_cameraImage coming soon 370658 DAMPER HOLDER €3.14
39
photo_cameraImage coming soon 338209 CYLINDER €36.01
40
photo_cameraImage coming soon 370391 AIR HAMMER €18.77
41
photo_cameraImage coming soon 328880 O-RING €7.45
42
photo_cameraImage coming soon 338211 SPRING HOLDER (B) €17.04
43
photo_cameraImage coming soon 338216 LOCK SPRING WASHER €1.29
44
photo_cameraImage coming soon 338217 LOCK SPRING €1.57
45
photo_cameraImage coming soon 338215 LOCK SLEEVE €1.32
46
photo_cameraImage coming soon 338212 CLUTCH SPRING €1.57
47
photo_cameraImage coming soon 370392 CLUTCH €45.82
49
photo_cameraImage coming soon 338235 SLIDER €3.80
50
photo_cameraImage coming soon 370384 METAL (A) €17.93
52
photo_cameraImage coming soon 338228 PISTON PIN €4.89
53
photo_cameraImage coming soon 328877 PISTON €10.84
54
Connecting Rod for Rotary Hammers Hitachi DH50MRY 328878 Connecting Rod for Rotary Hammers Hitachi DH50MRY €9.62
55
photo_cameraImage coming soon 944954 BEARING WASHER €1.30
56
photo_cameraImage coming soon 6201VV BALL BEARING 6201VVCMPS2L €6.76
58
photo_cameraImage coming soon 340899 STATOR SENSOR PCB SET 220V-240V €53.30
59
photo_cameraImage coming soon 338168 HOUSING €29.40
62
photo_cameraImage coming soon 333225 DUST SEAL €1.29
63
photo_cameraImage coming soon 338170 TAIL COVER €3.13
64
photo_cameraImage coming soon 6202DD Ball Bearing 6202dd €7.97
65
photo_cameraImage coming soon 980700 DUST WASHER (B) €1.24
66
photo_cameraImage coming soon 360992 ROTOR €166.98
67
photo_cameraImage coming soon 370387 CONTROLLER ASS'Y 220V-240V €106.43
69
photo_cameraImage coming soon 339056 RUBBER SHEET (C) €2.56
71
photo_cameraImage coming soon 339057 RUBBER SHEET (D) €1.74
72
photo_cameraImage coming soon 370656 PANEL ASS'Y €16.89
74
photo_cameraImage coming soon 991711 DISTANCE PIECE (B) €1.33
75
photo_cameraImage coming soon 370394 HANDLE (A).(B) ASS'Y €15.78
76
photo_cameraImage coming soon 949890 PIN D3X20 (10 PCS.) €2.65
77
photo_cameraImage coming soon 339058 FILTER PACKING €1.32
78
Filter PCB Ass'y for Rotary Hammer DH45ME 338181 Filter PCB Ass'y for Rotary Hammer DH45ME €30.88
79
Transatory Unit for Demolition Hammer Hitachi H45SA 310123 Transatory Unit for Demolition Hammer Hitachi H45SA €16.13
80
Damper for Demolition Hammers H60MRV-H45MR-H45MRY 310124 Damper for Demolition Hammers H60MRV-H45MR-H45MRY €5.77
82
photo_cameraImage coming soon 338176 BELLOWS €6.78
83
photo_cameraImage coming soon 370254 TRIGGER €2.32
84
photo_cameraImage coming soon 337587 SWITCH €18.75
87
photo_cameraImage coming soon 940778 CORD ARMOR D10.7 €3.43
88
photo_cameraImage coming soon 960266 CORD CLIP €1.37
92
photo_cameraImage coming soon 338197 BACK COVER €8.25
95
photo_cameraImage coming soon 370390 CRANK COVER €7.73
97
photo_cameraImage coming soon 370383 CHANGE LEVER €2.83
99
photo_cameraImage coming soon 959149 STEEL BALL D4.76 €1.28
100
O-Ring S-18 for Rotary Hammers Hitachi DH24PC3-PD3 878885 O-Ring S-18 for Rotary Hammers Hitachi DH24PC3-PD3 €1.34
101
photo_cameraImage coming soon 370382 LEVER HOLDER €15.46
102
photo_cameraImage coming soon 939547 RETAINING RING FOR D20 SHAFT €5.65
103
O-RING (A) mm 76x2,3 for Rotary Hammer Hitachi DH52MEY 338160 O-RING (A) mm 76x2,3 for Rotary Hammer Hitachi DH52MEY €1.23
105
Retaining Ring 12 mm for Hitachi Power Tools 939542 Retaining Ring 12 mm for Hitachi Power Tools €3.13
106
photo_cameraImage coming soon 338224 CRANK SHAFT €21.68
107
photo_cameraImage coming soon 328869 FEATHER KEY 3X3X25 €2.70
108
photo_cameraImage coming soon 948227 RETAINING RING FOR D47 HOLE €1.65
109
photo_cameraImage coming soon 6204DD BALL BEARING 6204DDCMPS2L €11.52
111
photo_cameraImage coming soon 878713 CYLINDER O-RING (B) €4.06
113
photo_cameraImage coming soon 370653 HANDLE WEIGHT €28.77
114
photo_cameraImage coming soon 338192 WEIGHT PIN €4.40
116
photo_cameraImage coming soon 370389 LEAF SPRING €8.10
117
photo_cameraImage coming soon 328906 SPRING HOLDER €10.16
118
photo_cameraImage coming soon 338190 ANTIVIBRATION Ø40X30 MF M8X25 65SH €11.76
121
photo_cameraImage coming soon 370380 CRANK CASE €53.12
123
Oil Seal mm 25x35x6 for Rotary Hammers Hitachi 328867 Oil Seal mm 25x35x6 for Rotary Hammers Hitachi €6.26
124
photo_cameraImage coming soon 338225 FIRST GEAR €10.79
125
photo_cameraImage coming soon 629VVM BALL BEARING 629VVC2PS2L €7.32
127
photo_cameraImage coming soon 370388 SEAL PACKING €1.25
128
photo_cameraImage coming soon 370381 GEAR COVER €28.86
502
photo_cameraImage coming soon 370395 CASE (PLASTIC) €72.42
601
photo_cameraImage coming soon 981840 GREASE 30 GR €10.98
602
photo_cameraImage coming soon 308471 GREASE 70 GR €19.79
603
photo_cameraImage coming soon 980927 GREASE 500 GR €84.44

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Hitachi Spare Parts for Demolition Hammer H60MEY

Hitachi-HIKOKI Tanaka

 authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair issues for Demolition Hammer H60MEY.

In the following table, look for the model of the Demolition Hammer and the respective parts of the code.
Demolition Hammer H60MEY

Demolition Hammer H60MEY
1 337562 FRONT CAP
2 318590 STOPPER RING
3 338155 RETAINER WASHER
4 339053 RETAINER DAMPER (A)
5 338154 GRIP
6 370669 BIT LOCK HOLDER
7 370668 THRUST PLATE
8 339052 RETAINER SPRING
9 337557 SPRING HOLDER (A)
10 949860 ROLL PIN D2X10
12 333202 HANDLE HOLDER (B)
13 370393 HANDLE HOLDER
14 333201 GRIP
15 333199 SIDE HANDLE
16 872470 O-RING (S-26)
17 338198 CYLINDER CASE COVER
19 318582 RETAINING RING D40
20 338200 RETAINING RING D68
21 339063 BALL BEARING 6008DDU
22 338201 BEARING WASHER
23 318588 OIL SEAL (NBR710)
24 338199 CYLINDER CASE
26 338222 O-RING (C)
27 338204 RETAINER DAMPER HOLDER
28 338203 RETAINER DAMPER (B)
29 339064 DAMPER SLEEVE
30 338202 RETAINER DAMPER WASHER
31 370654 BIT LOCK
32 338205 RETAINER SLEEVE
33 338210 NEEDLE PIN D8
34 986104 O-RING
35 370657 SECOND HAMMER
36 370659 DAMPER WASHER
37 328887 DAMPER
38 370658 DAMPER HOLDER
39 338209 CYLINDER
40 370391 STRIKER
41 328880 O-RING
42 338211 SPRING HOLDER (B)
43 338216 LOCK SPRING WASHER
44 338217 LOCK SPRING
45 338215 LOCK SLEEVE
46 338212 CLUTCH SPRING
47 370392 CLUTCH
48 338218 SLEEVE
49 338235 SLIDER
50 370384 METAL (A)
51 328880 O-RING
52 338228 PISTON PIN
53 328877 PISTON
54 328878 CONNECTING ROD
55 944954 BEARING WASHER
56 6201VV BALL BEARING 6201VV
58 340899 STATOR SENSOR PCB SET 220V-240V
59 338168 HOUSING
60 339065 PACKING (B)
62 333225 DUST SEAL
63 338170 TAIL COVER
64 6202DD BALL BEARING 6202DD
65 980700 DUST WASHER (B)
66 360992 ROTOR
67 370387 CONTROLLER ASS'Y 220V-240V
68 370655 CASE PACKING
69 339056 RUBBER SHEET (C)
70 339055 RUBBER SHEET (A)
71 339057 RUBBER SHEET (D)
72 370656 PANEL ASS'Y
74 991711 DISTANCE PIECE (B)
75 370394 HANDLE (A).(B) ASS'Y
76 949890 PIN D3X20
77 339058 FILTER PACKING
78 338181 FILTER PCB ASS'Y 220V-240V
79 310123 TRANSATORY UNIT
80 310124 HANDLE DAMPER
81 338162 HANDLE DAMPER HOLDER
82 338176 BELLOWS
83 370254 TRIGGER
84 337587 SWITCH
87 940778 CORD ARMOR D10.7
88 960266 CORD CLIP
91 338175 HANDLE SHAFT
92 338197 BACK COVER
95 370390 CRANK COVER
97 370383 CHANGE LEVER
98 337567 LEVER SPRING
99 959149 STEEL BALL D4.76
100 878885 O-RING (S-18)
101 370382 LEVER HOLDER
102 939547 RETAINING RING FOR D20 SHAFT
103 338160 O-RING (A)
104 338234 CHANGE PLATE
105 939542 RETAINING RING FOR D12 SHAFT
106 338224 CRANK SHAFT
107 328869 FEATHER KEY 3X3X25
108 948227 RETAINING RING FOR D47 HOLE
109 6204DD BALL BEARING 6204DD
110 338227 O-RING (F)
111 878713 CYLINDER O-RING (B)
112 338191 WASHER
113 370653 WEIGHT
114 338192 WEIGHT PIN
116 370389 LEAF SPRING
117 328906 SPRING HOLDER
118 338190 BASE
119 338194 WEIGHT BUMPER
121 370380 CRANK CASE
123 328867 OIL SEAL
124 338225 FIRST GEAR
125 629VVM BALL BEARING 629VV
127 370388 SEAL PACKING
128 370381 GEAR COVER
502 370395 CASE (PLASTIC)
601 981840 GREASE (A) FOR HAMMER.HAMMER DRILL (30G)
602 308471 GREASE FOR HAMMER.HAMMER DRILL (70G)
603 980927 GREASE FOR HAMMER.HAMMER DRILL (500G)
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Hitachi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to hitachi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Hitachi H60MEY
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Diagram Hitachi H60MEY

Diagram Hitachi H60MEY

Download (538.67KB)

You might also like

HiKOKI Power Tools Italia S.p.a. SKU: 338160
O-RING (A) mm 76x2,3 for Demolition Hammer Hitachi DH52MEY Original spare part Hitachi - HIKOKI, O-RING (A) mm 76x2,3 for Demolition Hammer SDS MAX DH52MEY Equipped with Brushless Motor. Part for the follows items: - Rotary Hammer...
AVAILABLE €1.23
HiKOKI Power Tools Italia S.p.a. SKU: 338181
Filter PCB Ass'y for Rotary Hammer DH45ME Original spare parts HITACHI, Filter PCB Ass'y 220V-240V for Rotary Hammer DH45ME - Demolition Hammers DH52MEY - H60MEY Parts for the following products: -  Rotary Hammer DH45ME Y -...
Last items in stock €30.88
Comments (0)
