Hitachi Spare Parts for Belt Sander SB10V2

SKU: Hitachi SB10V2
€9.62
VAT included

Hitachi Spare Parts for Belt Sander SB10V2

We supply original Hitachi-HIKOKI spare parts on offer at unbeatable prices, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Belt Sander SB10V2

Hitachi Spare Parts for Belt Sander SB10V2
  • Hitachi Spare Parts for Belt Sander SB10V2
  • Hitachi Spare Parts for Belt Sander SB10V2

Hitachi Spare Parts for Belt Sander SB10V2

SKU: Hitachi SB10V2 Condition: New
€9.62
VAT included

Hitachi Spare Parts for Belt Sander SB10V2

We supply original Hitachi-HIKOKI spare parts on offer at unbeatable prices, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Belt Sander SB10V2

settings 65 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

47 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 327742 PULLEY (A) €10.38
2
photo_cameraImage coming soon 6000VV BALL BEARING 6000VVCMPS2L €9.76
3
photo_cameraImage coming soon 327739 DUST GUIDE €3.84
4
photo_cameraImage coming soon 360797E ARMATURE 220V-230V €62.28
5
photo_cameraImage coming soon 608VVM BALL BEARING 608VVC2PS2L €7.12
7
photo_cameraImage coming soon 931701 BEARING LOCK €1.33
8
photo_cameraImage coming soon 328209 DUST PLATE €3.84
9
photo_cameraImage coming soon 327738 FAN GUIDE €3.31
11
photo_cameraImage coming soon 340700G STATOR ASS'Y 220V-230V €66.55
12
photo_cameraImage coming soon 930703 BRUSH TERMINAL €3.04
14
photo_cameraImage coming soon 328433 BELT COVER €6.57
16
photo_cameraImage coming soon 327740 DUST COVER €32.80
17
photo_cameraImage coming soon 327760 HANDLE COVER €19.67
19
photo_cameraImage coming soon 937631 CORD CLIP €1.37
20
photo_cameraImage coming soon 958049 CORD ARMOR D8.2 €1.34
21
photo_cameraImage coming soon 327759 HOUSING ASS'Y €68.73
25
photo_cameraImage coming soon 958900 BRUSH HOLDER €7.81
26
Carbon Brushes for Hitachi Hammer Hitachi DH38MS 999043 Carbon Brushes for Hitachi Hammer Hitachi DH38MS €9.62
27
Brush Holder Cap for Angle Grinders Hitachi G23SS-G23SW-G23SWU 945161 Brush Holder Cap for Angle Grinders Hitachi G23SS-G23SW-G23SWU €2.78
28
photo_cameraImage coming soon 327779 PULLEY COVER €7.66
30
photo_cameraImage coming soon 325085 SWITCH (E) (1P SCREW TYPE) W/LOCK €11.02
37
Noise Suppressor Hitachi 325-566 325566 Noise Suppressor Hitachi 325-566 €19.40
39
photo_cameraImage coming soon 953042 METAL €2.20
40
Idle Pulley Assembley for Belt Sander Hitachi SB10T 995586 Idle Pulley Assembley for Belt Sander Hitachi SB10T €46.31
42
photo_cameraImage coming soon 327744 CLEAR COVER €3.31
43
photo_cameraImage coming soon 995578 KNOB NUT €3.31
44
photo_cameraImage coming soon 327780 BODY ASS'Y €102.60
45
photo_cameraImage coming soon 953161 WASHER €1.23
47
Retaining Ring 12 mm for Hitachi Power Tools 939542 Retaining Ring 12 mm for Hitachi Power Tools €3.13
48
photo_cameraImage coming soon 995587 SHAFT €17.38
49
photo_cameraImage coming soon 327746 STRIKING GUIDE €3.31
51
photo_cameraImage coming soon 953063 SPRING €4.39
53
photo_cameraImage coming soon 995585 FORK ASS'Y €37.17
54A
Belt for Belt Sanders Hitachi SB8V2-SB10V2 330690 Belt for Belt Sanders Hitachi SB8V2-SB10V2 €12.42
55
photo_cameraImage coming soon 327749 PULLEY (B) €19.57
56
photo_cameraImage coming soon 327748 GEAR COVER €6.03
57
photo_cameraImage coming soon 6200VV BALL BEARING 6200VVCMPS2L €6.22
58
photo_cameraImage coming soon 327750 PINION €12.02
59
photo_cameraImage coming soon 935522 METAL €3.18
60
Retaining Ring D.10 for Hammer DH45ME - DH40MR 939540 Retaining Ring D.10 for Hammer DH45ME - DH40MR €0.35
61
photo_cameraImage coming soon 995576 GEAR €18.47
62
photo_cameraImage coming soon 948213 WASHER (B) D19 €1.23
63
photo_cameraImage coming soon 953175 METAL D10X14X12 €1.99
64A
photo_cameraImage coming soon 329900 SHOE CUSHION €9.85
65
photo_cameraImage coming soon 327781 SHOE PLATE €7.66
66
photo_cameraImage coming soon 944109 FEATHER KEY 3X3X8 €2.99
67
photo_cameraImage coming soon 995575 DRIVE PULLEY €54.52

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Hitachi Spare Parts for Belt Sander SB10V2

We supply original Hitachi-HIKOKI spare parts on offer at unbeatable prices, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Belt Sander SB10V2.

In the following table, look for the model of the BELT SANDER and theirs spare part.
Hitachi SB10V2

BELT SANDER SB10V2
# Part Num. Description
1 327742 PULLEY (A)
2 6000VV BALL BEARING 6000VVCMPS2L
3 327739 DUST GUIDE
4 360797E ARMATURE 220V-230V
5 608VVM BALL BEARING 608VVC2PS2L
6 935196 MACHINE SCREW (W/WASHERS) M4X12 (BLACK)
7 931701 BEARING LOCK
8 328209 DUST PLATE
9 327738 FAN GUIDE
10 953174 HEX. HD. TAPPING SCREW D5X55
11 340700G STATOR ASS'Y 220V-230V
12 930703 BRUSH TERMINAL
13 980063 TERMINAL
14 328433 BELT COVER
15 316321 TAPPING SCREW (W/FLANGE) D5X45
16 327740 DUST COVER
17 327760 HANDLE COVER
18 984750 TAPPING SCREW (W/FLANGE) D4X16
19 937631 CORD CLIP
20 958049 CORD ARMOR D8.2
21 327759 HOUSING ASS'Y
22 938477 HEX. SOCKET SET SCREW M5X8
25 958900 BRUSH HOLDER
26 999043 CARBON BRUSH (1 PAIR)
27 945161 BRUSH CAP
28 327779 PULLEY COVER
29 305812 TAPPING SCREW (W/FLANGE) D4X16 (BLACK)
30 325085 SWITCH (E) (1P SCREW TYPE) W/LOCK
32 328432 VARISTOR
33 305499 MACHINE SCREW (W/WASHER) M3.5X6
34 980063 TERMINAL
36 938108 TERMINAL
37 325566 NOISE SUPPRESSOR
38 953043 WASHER
39 953042 METAL
40 995586 IDLE PULLEY ASS'Y
41 305490 TAPPING SCREW (W/FLANGE) D4X30 (BLACK)
42 327744 CLEAR COVER
43 995578 KNOB NUT
44 327780 BODY ASS'Y
45 953161 WASHER
46 995577 SPRING
47 939542 RETAINING RING FOR D12 SHAFT
48 995587 SHAFT
49 327746 STRIKING GUIDE
50 949216 MACHINE SCREW M4X10
51 953063 SPRING
52 949218 MACHINE SCREW M4X14
53 995585 FORK ASS'Y
54A 330690 BELT
55 327749 PULLEY (B)
56 327748 GEAR COVER
57 6200VV BALL BEARING 6200VVCMPS2L
58 327750 PINION
59 935522 METAL
60 939540 RETAINING RING FOR D10 SHAFT
61 995576 GEAR
62 948213 WASHER (B) D19
63 953175 METAL D10X14X12
64A 329900 SHOE CUSHION
65 327781 SHOE PLATE
66 944109 FEATHER KEY 3X3X8
67 995575 DRIVE PULLEY
68 995552 SANDING BELTS 100X610 WA80
69 328513 DUST SEAL
70 302086 TAPPING SCREW (W/FLANGE) D4X20 (BLACK)
500 ABRASIVES PAPER
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Hitachi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to hitachi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Hitachi SB10V2
11 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

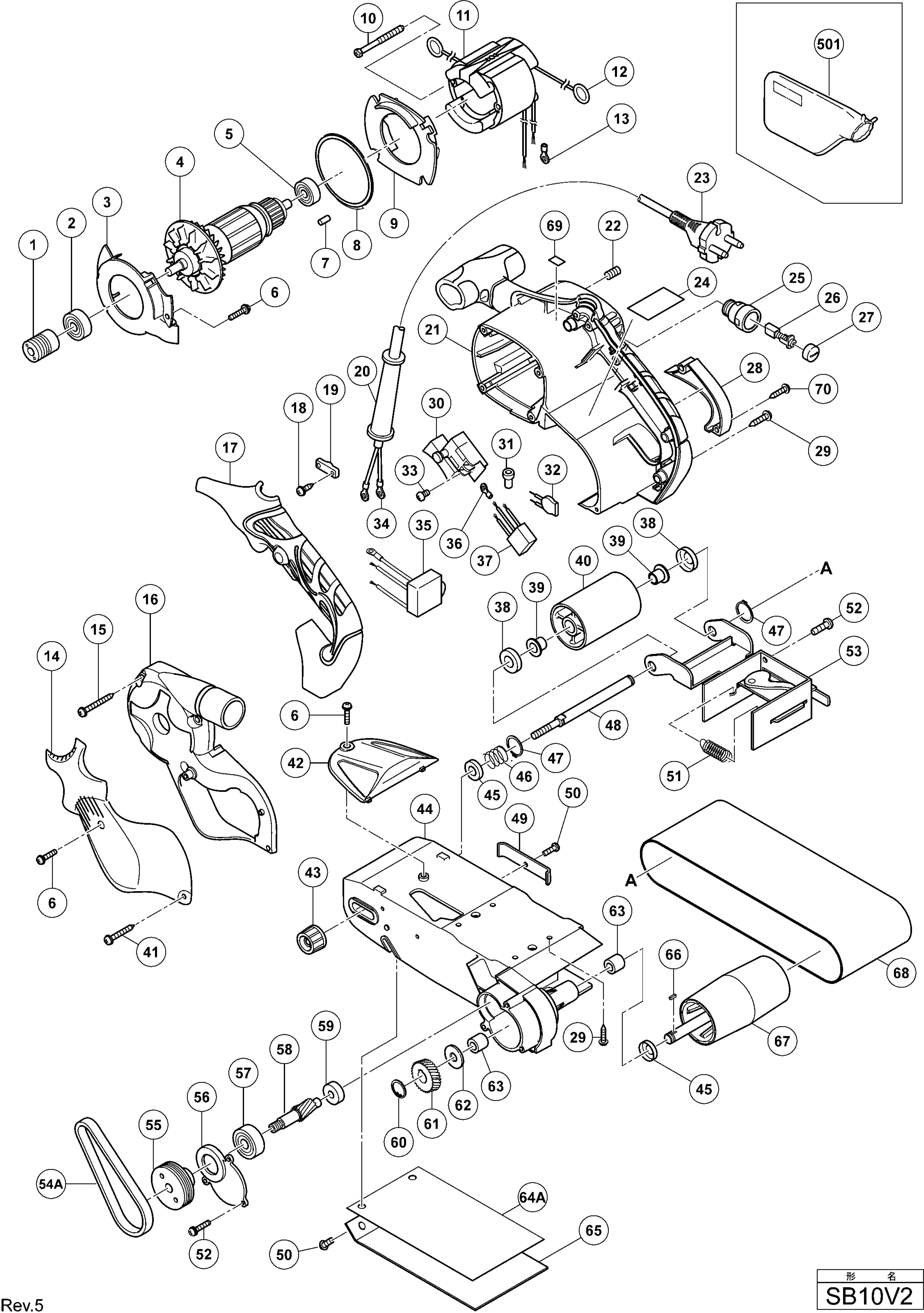

Diagram Hitachi SB10V2

Diagram Hitachi SB10V2

Download (173.63KB)
