Hitachi Spare Parts for Disc Cutter CM12Y

SKU: Hitachi CM12Y
€40.56
VAT included

Hitachi Spare Parts for Disc Cutter CM12Y

Hitachi-HIKOKI Tanaka Authorized Technical Assistance, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Disc Cutter CM12Y.

Hitachi Spare Parts for Disc Cutter CM12Y
  • Hitachi Spare Parts for Disc Cutter CM12Y
  • Hitachi Spare Parts for Disc Cutter CM12Y
HiKOKI Power Tools Italia S.p.a.

Hitachi Spare Parts for Disc Cutter CM12Y

SKU: Hitachi CM12Y Condition: New
€40.56
VAT included

Hitachi Spare Parts for Disc Cutter CM12Y

Hitachi-HIKOKI Tanaka Authorized Technical Assistance, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Disc Cutter CM12Y.

settings 91 Spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN: Usually Ships in 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal PayPal Pay in 3 Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
91 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in 7/10 BUSINESS DAYS

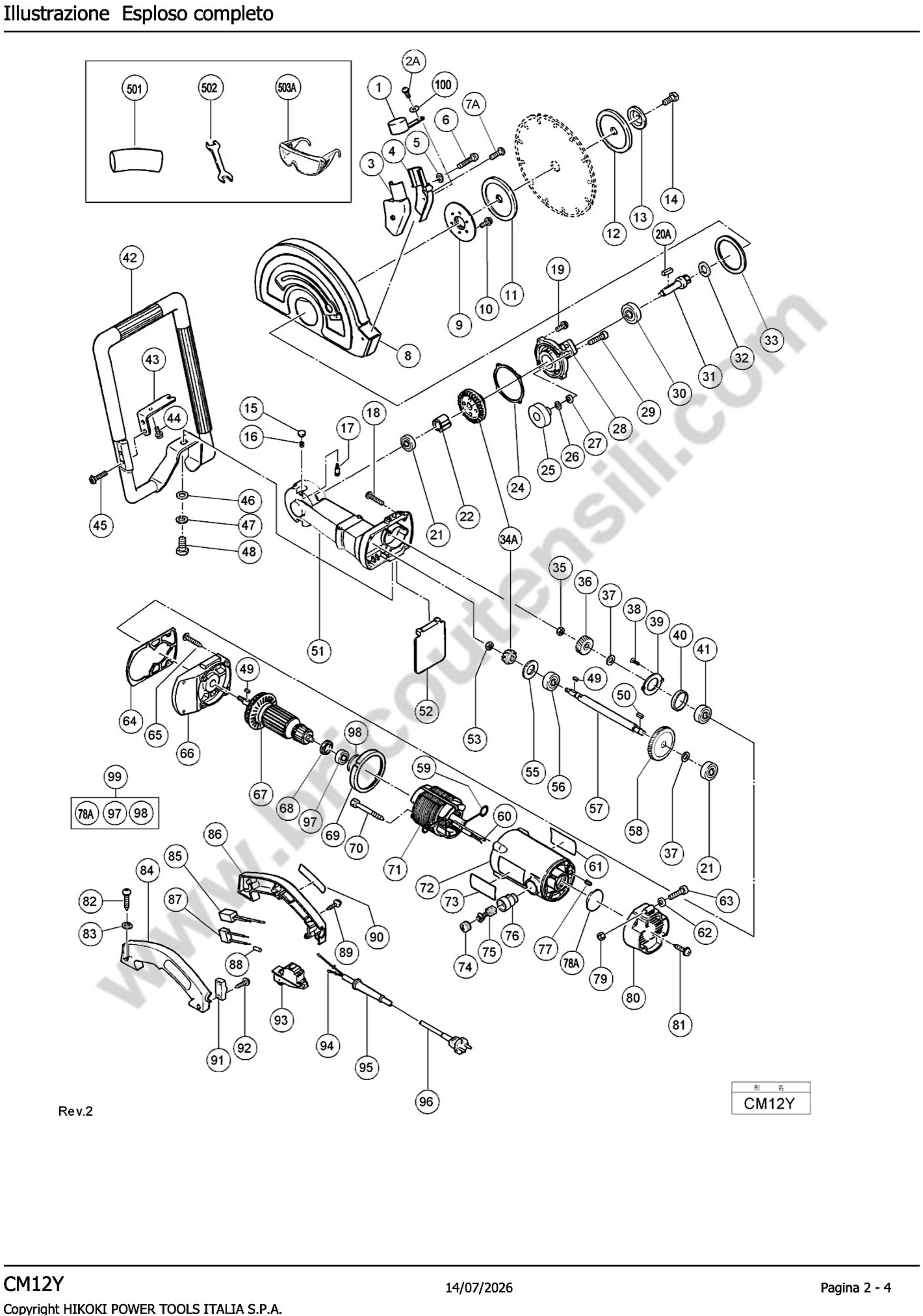

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 312314 RUBBER CAP €7.26
2A
 photo_cameraImage coming soon 935196 MACHINE SCREW M4X12 (BLACK) €0.00 Not available for order
3
 photo_cameraImage coming soon 312312 RULER CSM 4060 €14.58
4
 photo_cameraImage coming soon 312311 DUST COLLECTOR (A) €14.58
5
 photo_cameraImage coming soon 949453 SPRING WASHER M4 €0.00 Not available for order
6
 photo_cameraImage coming soon 949224 MACHINE SCREW M4X30 (10 PCS.) €0.00 Not available for order
7A
 photo_cameraImage coming soon 935196 MACHINE SCREW M4X12 (BLACK) €0.00 Not available for order
8
 photo_cameraImage coming soon 312310 WHEEL GUARD €80.46
9
 photo_cameraImage coming soon 312307 GUARD HOLDER €7.26
10
 photo_cameraImage coming soon 992038 SEAL LOCK SCREW (W/SP. WASHER) M5X10 €0.00 Not available for order
11
 photo_cameraImage coming soon 312327 WHEEL WASHER (B) €32.88
12
 photo_cameraImage coming soon 312324 WHEEL WASHER (C) €29.22
13
 photo_cameraImage coming soon 312308 WHEEL WASHER (D) €3.60
14
 photo_cameraImage coming soon 312309 BOLT (LEFT HAND) M10X20 €19.46
15
 Pushing Button for Angle Grinders Hitachi G23 306888 Pushing Button for Angle Grinders Hitachi G23 €1.16
16
 photo_cameraImage coming soon 306889 SPRING €0.00 Not available for order
17
 Lock Pin for Angle Grinder Hitachi G23SS 306890 Lock Pin for Angle Grinder Hitachi G23SS €2.38
18
 photo_cameraImage coming soon 312298 MACHINE SCREW (W/WASHERS) M5X35 €0.00 Not available for order
19
 photo_cameraImage coming soon 994192 HEX. SOCKET HD. BOLT (W/FLANGE) M5X16 €0.00 Not available for order
20A
 photo_cameraImage coming soon 948920 FEATHER KEY 4X4X30 €2.38
21
 BALL BEARING 6200VVCMPS2L 6200VV BALL BEARING 6200VVCMPS2L €6.04
22
 photo_cameraImage coming soon 312303 LOCK SLEEVE €29.22
24
 photo_cameraImage coming soon 312304 SEAL PLATE (A) €3.60
25
 photo_cameraImage coming soon 302458 KNOB €1.16
26
 photo_cameraImage coming soon 949433 BOLT WASHER M8 €0.00 Not available for order
27
 photo_cameraImage coming soon 957042 SUPER LOCK WASHER M8 €0.00 Not available for order
29
 photo_cameraImage coming soon 302457 BOLT (SQUARE) M8X30 €0.00 Not available for order
30
 photo_cameraImage coming soon 6302DD BALL BEARING 6302DDCMPS2L €8.48
31
 photo_cameraImage coming soon 312302 SPINDLE €47.52
32
 photo_cameraImage coming soon 312306 FELT PACKING €0.00 Not available for order
33
 photo_cameraImage coming soon 312651 SPACER €8.48
34A
 photo_cameraImage coming soon 332119 GEAR SET €26.78
35
 photo_cameraImage coming soon 946228 U-NUT M8 €0.00 Not available for order
36
 photo_cameraImage coming soon 312325 PINION (A) €30.44
37
 photo_cameraImage coming soon 312294 SPACE WASHER €3.60
38
 photo_cameraImage coming soon 990430 SEAL LOCK FLAT HD.M4X10 €4.82
39
 photo_cameraImage coming soon 312293 BEARING COVER €3.60
40
 photo_cameraImage coming soon 994208 RUBBER RING (B) €1.16
41
 Ball Bearing Hitachi 6301DD 6301DD Ball Bearing Hitachi 6301DD €10.92
42
 photo_cameraImage coming soon 312315 PIPE HANDLE (C) €158.54
43
 photo_cameraImage coming soon 312316 JOINT PLATE €9.70
44
 photo_cameraImage coming soon 878533 HEX. SOCKET HD. BOLT (W/FLANGE) M6X16 €0.00 Not available for order
45
 photo_cameraImage coming soon 878877 HEX. SOCKET HD. BOLT (W/FLANGE) M6X30 €0.00 Not available for order
46
 photo_cameraImage coming soon 949437 BOLT WASHER M12 (10 PCS.) €0.00 Not available for order
47
 photo_cameraImage coming soon 949463 SPRING WASHER M12 (10 PCS.) €0.00 Not available for order
48
 photo_cameraImage coming soon 949671 BOLT M12X25 (10 PCS.) €0.00 Not available for order
49
 photo_cameraImage coming soon 940533 FEATHER KEY 3X3X10 €2.38
50
 photo_cameraImage coming soon 948919 FEATHER KEY 4X4X15 €0.00 Not available for order
51
 photo_cameraImage coming soon 312297 GEAR COVER ASS'Y €175.62
52
 photo_cameraImage coming soon 312313 DUST GUARD €9.70
53
 photo_cameraImage coming soon 960256 U-NUT (LEFT HAND) M8 €0.00 Not available for order
55
 photo_cameraImage coming soon 312296 THRUST WASHER (A) €0.00 Not available for order
56
 photo_cameraImage coming soon 6301VV BALL BEARING 6301VVCMPS2L €12.14
57
 photo_cameraImage coming soon 312295 DRIVE SHAFT €49.96
58
 photo_cameraImage coming soon 315326 FIRST GEAR (A) €49.96
59
 photo_cameraImage coming soon 958032 BRUSH TERMINAL €1.16
60
 photo_cameraImage coming soon 981373 TUBE (D) €1.16
62
 photo_cameraImage coming soon 949425 WASHER M6 (10 PCS.) €0.00 Not available for order
63
 photo_cameraImage coming soon 949263 MACHINE SCREW M6X35 (10 PCS.) €0.00 Not available for order
64
 photo_cameraImage coming soon 312291 SEAL PLATE (B) €3.60
65
 photo_cameraImage coming soon 301654 Tap. Screw (W / Flange) D5x35 €0.00 Not available for order
66
 photo_cameraImage coming soon 312292 INNER COVER €71.92
67
 photo_cameraImage coming soon 360287E ARMATURE ASS'Y 220V-230V €115.84
68
 photo_cameraImage coming soon 310998 DUST SEAL €0.00 Not available for order
69
 photo_cameraImage coming soon 306103 FAN GUIDE €3.60
70
 photo_cameraImage coming soon 984271 HEX. HD. TAPPING SCREW D5X75 €0.00 Not available for order
71
 photo_cameraImage coming soon 340349E STATOR ASS'Y 230V €141.46
71
 photo_cameraImage coming soon 340349F STATOR ASS'Y 240V €0.00 Not available for order
71
 photo_cameraImage coming soon 340349G STATOR ASS'Y 230V €0.00 Not available for order
72
 photo_cameraImage coming soon 306102 HOUSING ASS'Y €29.22
74
 Brushe Cap for Routers Hitachi M12SA-M12V G 940540 Brushe Cap for Routers Hitachi M12SA-M12V G €1.16
75
 Carbon Brushe Set for Hitachi Wall Chasers CM7R - CM9SR 999044 Carbon Brushe Set for Hitachi Wall Chasers CM7R - CM9SR €9.70
76
 photo_cameraImage coming soon 980487 BRUSH HOLDER €9.70
77
 photo_cameraImage coming soon 938477 HEX. SOCKET SET SCREW MSX8 €0.00 Not available for order
78A
 photo_cameraImage coming soon 313306 BEARING BUSHING €20.68
79
 photo_cameraImage coming soon 949556 NUT M6 €0.00 Not available for order
80
 photo_cameraImage coming soon 312299 TAIL COVER €17.02
81
 photo_cameraImage coming soon 305558 TAPPING SCREW D5X25 (BLACK) €0.00 Not available for order
82
 photo_cameraImage coming soon 949241 MACHINE SCREW M5X20 (10 PCS.) €0.00 Not available for order
83
 photo_cameraImage coming soon 949454 SPRING WASHER M5 (10 PCS.) €0.00 Not available for order
84
 photo_cameraImage coming soon 312300 HANDLE (A) €19.46
86
 photo_cameraImage coming soon 312301 HANDLE (B) €19.46
88
 photo_cameraImage coming soon 981373 TUBE (D) €1.16
89
 photo_cameraImage coming soon 304035 TAPPING SCREW D4X25 (BLACK) €0.00 Not available for order
90
 photo_cameraImage coming soon 312317 GRIP RUBBER €8.48
91
 photo_cameraImage coming soon 960266 CORD CLIP €1.16
92
 photo_cameraImage coming soon 984750 Tapp. Screw (W / Flange) D4x16 €0.00 Not available for order
93
 photo_cameraImage coming soon 307650 SWITCH (2P PILLAR TYPE) W/SAFETY LOCK €69.48
94
 photo_cameraImage coming soon 981373 TUBE (D) €1.16
95
 photo_cameraImage coming soon 940778 CORD ARMOR D10.7 €3.60
97
 photo_cameraImage coming soon 6000VV BALL BEARING 6000VVCMPS2L €9.70
98
 photo_cameraImage coming soon 994202 RUBBER RING (A) €1.16
99
 photo_cameraImage coming soon 313307 BEARING BUSHING ASS'Y €32.88
100
 photo_cameraImage coming soon 322270 THRUST WASHER €0.00 Not available for order

Shipping and delivery information will be available shortly.

Hitachi Spare Parts for Disc Cutter CM12Y

Hitachi-HIKOKI Tanaka Authorized Technical Assistance, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Disc Cutter CM12Y.

In the following table, look for the model of the Disc Cutter and theirs spare part.
Hitachi CM12Y

Disc Cutter CM 12Y
# Part Num. Description
1 312314 RUBBER CAP
2A 935196 MACHINE SCREW (W/WASHERS) M4X12 (BLACK)
3 312312 DUST COLLECTOR (B)
4 312311 DUST COLLECTOR (A)
5 949453 SPRING WASHER M4 (10 PCS.)
6 949224 MACHINE SCREW M4X30 (10 PCS.)
7A 935196 MACHINE SCREW (W/WASHERS) M4X12 (BLACK)
8 312310 WHEEL GUARD
9 312307 GUARD HOLDER
10 992038 SEAL LOCK SCREW (W/SP. WASHER) M5X10
11 312327 WHEEL WASHER (B)
12 312324 WHEEL WASHER (C)
13 312308 WHEEL WASHER (D)
14 312309 BOLT (LEFT HAND) M10X20
15 306888 PUSHING BUTTON
16 306889 SPRING
17 306890 LOCK PIN
18 312298 MACHINE SCREW (W/WASHERS) M5X35
19 994192 HEX. SOCKET HD. BOLT (W/FLANGE) M5X16
20A 948920 FEATHER KEY 4X4X30
21 6200VV BALL BEARING 6200VVCMPS2L
22 312303 LOCK SLEEVE
24 312304 SEAL PLATE (A)
25 302458 KNOB
26 949433 BOLT WASHER M8 (10 PCS.)
27 957042 SUPER LOCK WASHER M8
28 312305 PACKING GLAND
29 302457 BOLT (SQUARE) M8X30
30 6302DD BALL BEARING 6302DDCMPS2L
31 312302 SPINDLE
32 312306 FELT PACKING
33 312651 SPACER
34A 332119 GEAR SET
35 946228 U-NUT M8
36 312325 PINION (A)
37 312294 SPACE WASHER
38 990430 SEAL LOCK FLAT HD. SCREW M4X10
39 312293 BEARING COVER
40 994208 RUBBER RING (B)
41 6301DD BALL BEARING 6301DDCMPS2L
42 312315 PIPE HANDLE (C)
43 312316 JOINT PLATE
44 878533 HEX. SOCKET HD. BOLT (W/FLANGE) M6X16
45 878877 HEX. SOCKET HD. BOLT (W/FLANGE) M6X30
46 949437 BOLT WASHER M12 (10 PCS.)
47 949463 SPRING WASHER M12 (10 PCS.)
48 949671 BOLT M12X25 (10 PCS.)
49 940533 FEATHER KEY 3X3X10
50 948919 FEATHER KEY 4X4X15
51 312297 GEAR COVER ASS'Y
52 312313 DUST GUARD
53 960256 U-NUT (LEFT HAND) M8
55 312296 THRUST WASHER (A)
56 6301VV BALL BEARING 6301VVCMPS2L
57 312295 DRIVE SHAFT
58 315326 FIRST GEAR (A)
59 958032 BRUSH TERMINAL
60 981373 TUBE (D)
62 949425 WASHER M6 (10 PCS.)
63 949263 MACHINE SCREW M6X35 (10 PCS.)
64 312291 SEAL PLATE (B)
65 301654 TAPPING SCREW (W/FLANGE) D5X35
66 312292 INNER COVER
67 360287E ARMATURE ASS'Y 220V-230V
68 310998 DUST SEAL
69 306103 FAN GUIDE
70 984271 HEX. HD. TAPPING SCREW D5X75
71 340349E STATOR ASS'Y 230V
71 340349F STATOR ASS'Y 240V
71 340349G STATOR ASS'Y 230V
72 306102 HOUSING ASS'Y
74 940540 BRUSH CAP
75 999044 CARBON BRUSH (1 PAIR)
76 980487 BRUSH HOLDER
77 938477 HEX. SOCKET SET SCREW M5X8
78A 313306 BEARING BUSHING
79 949556 NUT M6 (10 PCS.)
80 312299 TAIL COVER
81 305558 TAPPING SCREW (W/FLANGE) D5X25 (BLACK)
82 949241 MACHINE SCREW M5X20 (10 PCS.)
83 949454 SPRING WASHER M5 (10 PCS.)
84 312300 HANDLE (A)
86 312301 HANDLE (B)
88 981373 TUBE (D)
89 304035 TAPPING SCREW (W/FLANGE) D4X25 (BLACK)
90 312317 GRIP RUBBER
91 960266 CORD CLIP
92 984750 TAPPING SCREW (W/FLANGE) D4X16
93 307650 SWITCH (2P PILLAR TYPE) W/SAFETY LOCK
94 981373 TUBE (D)
95 940778 CORD ARMOR D10.7
97 6000VV BALL BEARING 6000VVCMPS2L
98 994202 RUBBER RING (A)
99 313307 BEARING BUSHING ASS'Y
100 322270 THRUST WASHER
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Hitachi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to hitachi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Hitachi CM12Y
12 Items

Data sheet

SHIPPING IN
Usually Ships in 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Diagram Hitachi CM12Y

Diagram Hitachi CM12Y

Download (724.28KB)

You might also like

Carbon Brushe Set for Hitachi Wall Chasers CM7R - CM9SR
HiKOKI Power Tools Italia S.p.a. SKU: 999044
Carbon Brushe Set for Hitachi Wall Chasers CM7R - CM9SR
Carbon Brushe Set for Hitachi Wall Chasers CM7R - CM9SR Genuine part Hitachi, Carbon Brushe Set for Hitachi Wall Chasers CM7R-CM9SR-CM12Y, Hammer DH50MRY, Demolition Hammers H60MC, Grinder G23SR, Router M12V2, Mitre Saw...
AVAILABLE €9.70
Details
Gear an Pinion for Grinder Hitachi G23SS
HiKOKI Power Tools Italia S.p.a. SKU: 330032
Gear an Pinion for Grinder Hitachi G23SS
Gear and Pinion for Grinder Hitachi G23SS Genuine spare part Hitachi KOKY, Gear and Pinion for Angle Grinder G23SS - G 23SF2 - G 23SR - G 23MR - Wall Chaser CM7MR - Cutting Machine CM9SR Part for the following products:...
AVAILABLE €35.32
Details
Armature for Grinder Hitachi 230 mm G23SR-SRU
HiKOKI Power Tools Italia S.p.a. SKU: 360762E
Armature for Grinder Hitachi 230 mm G23SR-SRU
Armature for Grinder Hitachi 230 mm G23SR-SRU Original spare parts for Hitachi KOKY grinder with disc 230 mm, G23SR - G23SRU - Cutting Machine CM9SR - Wall Chaser CM7MR. - Hitachi Code: 360762E
AVAILABLE €75.58
Details
Ball Bearing Hitachi 6302VV
HiKOKI Power Tools Italia S.p.a. SKU: 6302VV
Ball Bearing Hitachi 6302VV
Ball Bearing Hitachi 6302VV Genuine parts Hitachi, Ball Bearing 6302VV CMPS2S for Angle Grinders S 23UBY - G 23SR - G 23SS - G 23SW. Parts for the following products: - Angle Grinder Hitachi 230 mm S 23UBY - Angle Grinder Hitachi 230...
AVAILABLE €9.70
Details
Ball Bearing Hitachi 6301DD
HiKOKI Power Tools Italia S.p.a. SKU: 6301DD
Ball Bearing Hitachi 6301DD
Ball Bearing Hitachi 6301DD Genuine parts Hitachi, Ball Bearing 6301DD CMPS2S for Angle Grinders G 23SF2 - G 23MR - S 23UBY - G 23SF. Parts for the following products: - Angle Grinder Hitachi 230 mm G 23SF2 - Angle Grinder Hitachi 230...
AVAILABLE €10.92
Details
Carbon Brushes for Angle Grinder Hitachi G23SF - G23SR
HiKOKI Power Tools Italia S.p.a. SKU: 999074
Carbon Brushes for Angle Grinder Hitachi G23SF - G23SR
Carbon Brushes for Angle Grinder Hitachi G23SF - G23SR Genuine parts HITACHI, Carbon Brushes for Angle Grinder Hitachi G23SF - G23SR  230 mm G23SF - G23SR - Combination Hammer UVP DH50MRY - Demolition Hammer H60MC...
AVAILABLE €14.58
Details
Pushing Button for Angle Grinders Hitachi G15VA - G15YF
HiKOKI Power Tools Italia S.p.a. SKU: 306888
Pushing Button for Angle Grinders Hitachi G23
Pushing Button for Angle Grinders Hitachi G23 Original spare parts Hitachi, Pushing Button for Angle Grinders G23SS - G23SW - G23SF2 - S23UBY - G23UBY - G23SWU - G23SR - G23MR - G23SF - CM12Y - CM7MR - CM9SR - SP18VA. Part for the...
AVAILABLE €1.16
Details
Pushing Button for Angle Grinders Hitachi G23
HiKOKI Power Tools Italia S.p.a. SKU: 320219
Button Spring for Angle Grinders Hitachi G23
Button Spring for Angle Grinders Hitachi G23 Original spare parts Hitachi, Button Spring for Angle Grinders S23UBY - G23UBY - G23SWU - G23SS - G23SW - G23SR - G23MR - G23SF2 - CM7MR - CM9SR. Part for the following items: - Angle...
AVAILABLE €3.60
Details
Comments (0)
No customer reviews for the moment.
