Hitachi Spare Parts for Impact Wrench WR22SA

SKU: Hitachi WR22SA
€9.62
VAT included

Hitachi Spare Parts for Impact Wrench WR22SA

We are Hitachi-HIKOKI original spare parts Dealers at low at unbeatable prices and an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Impact Wrench WR22SA

Our Spares are Genuine Parts and Come with a Full Guarantee.
Hitachi Spare Parts for Impact Wrench WR22SA
  • Hitachi Spare Parts for Impact Wrench WR22SA
  • Hitachi Spare Parts for Impact Wrench WR22SA

Hitachi Spare Parts for Impact Wrench WR22SA

SKU: Hitachi WR22SA Condition: New
€9.62
VAT included

Hitachi Spare Parts for Impact Wrench WR22SA

We are Hitachi-HIKOKI original spare parts Dealers at low at unbeatable prices and an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Impact Wrench WR22SA

Our Spares are Genuine Parts and Come with a Full Guarantee.
settings 53 spare parts

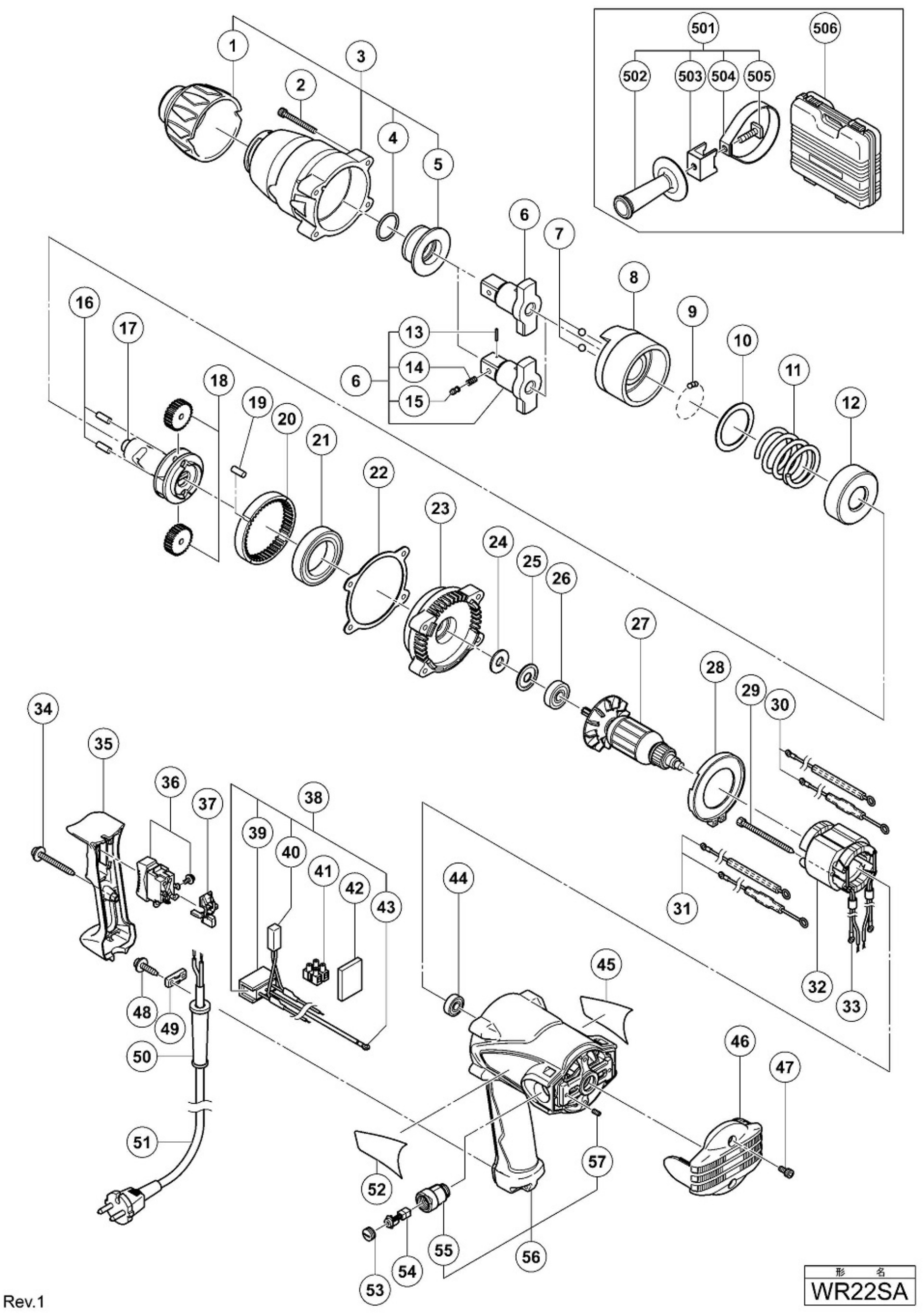

description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

41 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 324008 BUMPER €12.02
3
Assembly Carter for Impact Wrench Hitachi WR22SA 324006 Assembly Carter for Impact Wrench Hitachi WR22SA €93.54
4
photo_cameraImage coming soon 971028 O-RING (P-28) €2.65
6
photo_cameraImage coming soon 324013 ANVIL (A) €82.92
7
photo_cameraImage coming soon 959151 STEEL BALL D7.14 €1.68
8
photo_cameraImage coming soon 324005 HAMMER €75.02
9
photo_cameraImage coming soon 959155 STEEL BALL D3.97 €1.35
10
photo_cameraImage coming soon 324004 HAMMER WASHER €1.96
11
photo_cameraImage coming soon 324002 SPRING €22.42
12
photo_cameraImage coming soon 324001 SPRING SEAT €15.09
13
photo_cameraImage coming soon 949507 ROLL PIN D2X14 €2.02
16
photo_cameraImage coming soon 971016 GEAR SHAFT €4.77
17
photo_cameraImage coming soon 324003 SPINDLE €78.80
18
photo_cameraImage coming soon 318448 IDLE GEAR SET (2 PCS.) €39.78
19
photo_cameraImage coming soon 991449 NEEDLE ROLLER €1.28
20
photo_cameraImage coming soon 985303 RING GEAR €39.84
21
photo_cameraImage coming soon 6908DD BALL BEARING 6908DD €28.97
22
photo_cameraImage coming soon 323995 PACKING (B) €2.02
23
photo_cameraImage coming soon 323999 INNER COVER €20.02
24
photo_cameraImage coming soon 323996 FELT PACKING €2.02
25
photo_cameraImage coming soon 971012 PACKING WASHER €1.52
26
photo_cameraImage coming soon 6200DD BALL BEARING 6200DDCMPS2L €5.92
27
230 V Armature Cpl for Impact Wrench Hitachi WR22SA 360700E 230 V Armature Cpl for Impact Wrench Hitachi WR22SA €125.51
28
photo_cameraImage coming soon 323998 FAN GUIDE €4.03
30
photo_cameraImage coming soon 324017 INTERNAL WIRE (WHITE) €18.02
31
photo_cameraImage coming soon 324018 INTERNAL WIRE (BLACK) €18.02
32
photo_cameraImage coming soon 340620E STATOR 220V-230V €70.92
35
photo_cameraImage coming soon 324020 HANDLE COVER €10.92
36
photo_cameraImage coming soon 320528 SWITCH (2P SCREW TYPE) €29.22
36
photo_cameraImage coming soon 985103 SWITCH (2P SCREW TYPE) €33.92
37
photo_cameraImage coming soon 323768 SWITCH ADAPTER €1.96
44
photo_cameraImage coming soon 608VVM BALL BEARING 608VVC2PS2L €7.12
46
photo_cameraImage coming soon 323997 TAIL COVER €10.02
49
photo_cameraImage coming soon 937631 CORD CLIP €1.37
50
Cord Armor D.10.1 for Hitachi Power Tools 938051 Cord Armor D.10.1 for Hitachi Power Tools €1.34
50
Cord Armor D.8.8 for Hitachi Power Tools 953327 Cord Armor D.8.8 for Hitachi Power Tools €1.37
51
photo_cameraImage coming soon 500247Z CORD €17.20
53
Brushes Cap for Demolition Hammers Hitachi H45MR - H45MRY - H45FRV 935829 Brushes Cap for Demolition Hammers Hitachi H45MR - H45MRY - H45FRV €1.66
54
Carbon Brushes for Hitachi Hammer Hitachi DH38MS 999043 Carbon Brushes for Hitachi Hammer Hitachi DH38MS €9.62
55
photo_cameraImage coming soon 957774 BRUSH HOLDER €7.03
56
photo_cameraImage coming soon 324019 HOUSING ASS'Y €106.92

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Hitachi Spare Parts for Impact Wrench WR22SA

We are Hitachi-HIKOKI original spare parts Dealers at low at unbeatable prices and an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Impact Wrench WR22SA.

In the following table, look for the model of the Cutter-Bending and their spare part.
Hitachi WR22SA

Impact Wrench WR22SA
# Part Num. Description
1 324008 BUMPER
2 323994 SEAL LOCK HEX. SOCKET HD. BOLT M5X45
3 324006 HAMMER CASE ASS'Y
4 971028 O-RING (P-28)
5 324007 METAL
6 324013 ANVIL (A)
6 324021 ANVIL (B) ASS'Y
7 959151 STEEL BALL D7.14
8 324005 HAMMER
9 959155 STEEL BALL D3.97
10 324004 HAMMER WASHER
11 324002 SPRING
12 324001 SPRING SEAT
13 949507 ROLL PIN D2X14
16 971016 GEAR SHAFT
17 324003 SPINDLE
18 318448 IDLE GEAR SET (2 PCS.)
19 991449 NEEDLE ROLLER
20 985303 RING GEAR
21 6908DD BALL BEARING 6908DD
22 323995 PACKING (B)
23 323999 INNER COVER
24 323996 FELT PACKING
25 971012 PACKING WASHER
26 6200DD BALL BEARING 6200DDCMPS2L
27 360700E ARMATURE 220V-230V
28 323998 FAN GUIDE
29 961400 HEX. HD. TAPPING SCREW D5X70
30 324017 INTERNAL WIRE (WHITE)
31 324018 INTERNAL WIRE (BLACK)
32 340620E STATOR 220V-230V
33 960356 TERMINAL (A) M3.5
34 303694 TAPPING SCREW (W/FLANGE) D4X35 (BLACK)
35 324020 HANDLE COVER
36 985103 SWITCH (2P SCREW TYPE)
36 320528 SWITCH (2P SCREW TYPE)
37 323768 SWITCH ADAPTER
39 930153 SUPPORT (B)
41 958308Z PILLAR TERMINAL (A)
42 324023 SUPPORT (B)
44 608VVM BALL BEARING 608VVC2PS2L
46 323997 TAIL COVER
47 877839 SEAL LOCK HEX. SOCKET HD. BOLT M5X10
48 984750 TAPPING SCREW (W/FLANGE) D4X16
49 937631 CORD CLIP
50 953327 CORD ARMOR D8.8
50 938051 CORD ARMOR D10.1
51 500247Z CORD
53 935829 BRUSH CAP
54 999043 CARBON BRUSH (1 PAIR)
55 957774 BRUSH HOLDER
56 324019 HOUSING ASS'Y
57 938477 HEX. SOCKET SET SCREW M5X8
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Hitachi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to hitachi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
