HiKOKI Power Tools Italia S.p.a.

Hitachi Spare Parts for Cordless Impact Driver WH10DFL

SKU: Hitachi WH10DFL
€3.47
VAT included

Hitachi Spare Parts for Cordless Impact Driver WH10DFL

We are Hitachi-HIKOKI authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair problem for Cordless Impact Driver WH10DFL.
Hitachi Spare Parts for Cordless Impact Driver WH10DFL
  • Hitachi Spare Parts for Cordless Impact Driver WH10DFL
  • Hitachi Spare Parts for Cordless Impact Driver WH10DFL
HiKOKI Power Tools Italia S.p.a.

Hitachi Spare Parts for Cordless Impact Driver WH10DFL

SKU: Hitachi WH10DFL Condition: New
€3.47
VAT included

Hitachi Spare Parts for Cordless Impact Driver WH10DFL

We are Hitachi-HIKOKI authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair problem for Cordless Impact Driver WH10DFL.
settings 27 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
27 spare parts

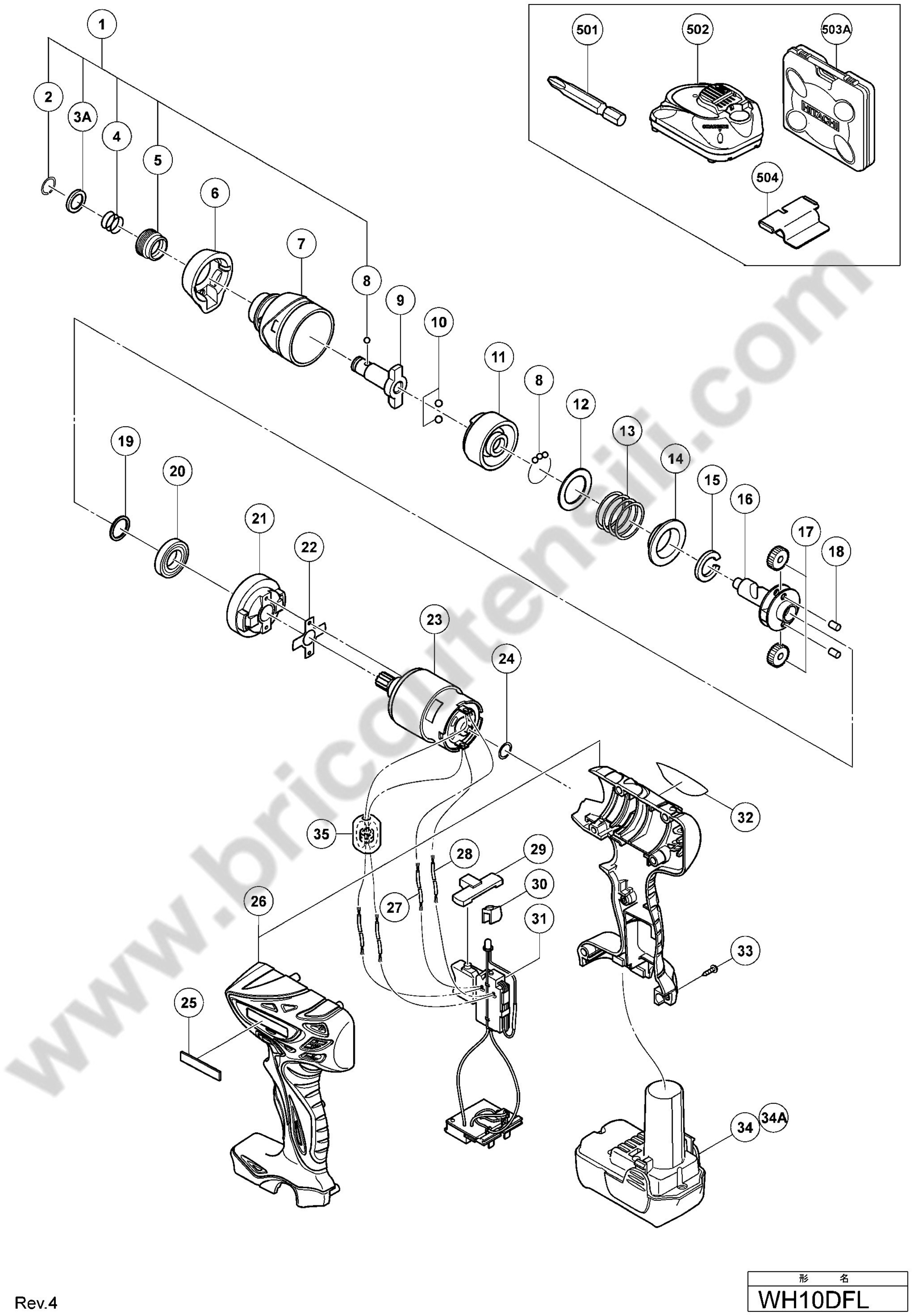

Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 329538 GUIDE SLEEVE ASS'Y €7.03
3A
 photo_cameraImage coming soon 331959 WASHER (F) €2.52
4
 photo_cameraImage coming soon 322737 GUIDE SPRING (C) €2.02
5
 photo_cameraImage coming soon 329537 GUIDE SLEEVE (C) €5.53
6
 photo_cameraImage coming soon 330966 FRONT CAP €3.04
7
 photo_cameraImage coming soon 330955 HAMMER CASE €16.92
8
 photo_cameraImage coming soon 959148 STEEL BALL D3.175 €1.35
9
 photo_cameraImage coming soon 329555 ANVIL (S) €21.94
10
 Steel Ball D5.556 for Impact Driver Hitachi WH10DFL 959154 Steel Ball D5.556 for Impact Driver Hitachi WH10DFL €1.84
11
 photo_cameraImage coming soon 330965 HAMMER €23.94
12
 photo_cameraImage coming soon 315978 WASHER (J) €2.27
13
 photo_cameraImage coming soon 322741 HAMMER SPRING (E) €5.53
14
 photo_cameraImage coming soon 316172 R502FR HOLDER €2.27
15
 photo_cameraImage coming soon 322740 STOPPER (A) €2.02
16
 photo_cameraImage coming soon 330960 SPINDLE €22.92
17
 photo_cameraImage coming soon 330958 IDLE GEAR €6.03
18
 photo_cameraImage coming soon 980258 NEEDLE (C) €45.04
20
 photo_cameraImage coming soon 330962 BALL BEARING 6803VV €7.03
21
 Ring Gear for Cordless Impact Driver Hitachi WH10DFL 331019 Ring Gear for Cordless Impact Driver Hitachi WH10DFL €4.04
22
 photo_cameraImage coming soon 331448 PACKING (A) €3.04
23
 photo_cameraImage coming soon 330956 MOTOR DC 12V €21.02
24
 photo_cameraImage coming soon 987105 O-RING (S-10) €1.24
26
 photo_cameraImage coming soon 330953 HOUSING (A).(B)SET (GREEN) €20.93
29
 photo_cameraImage coming soon 329548 PUSHING BUTTON (A) €2.02
30
 photo_cameraImage coming soon 329552 LED HOLDER €9.92
31
 photo_cameraImage coming soon 330963 SWITCH €35.03
34A
 photo_cameraImage coming soon 331067 BATTERY BCL 1015 (EUROPE,AUS,NZL) €71.92

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Hitachi Spare Parts for Cordless Impact Driver WH10DFL

We are Hitachi-HIKOKI authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair problem for Cordless Impact Driver WH10DFL.

In the following table, look for the model of the Cordless and theirs spare part.
Hitachi WH10DFL

CORDLESS IMPACT DRIVER WH10DFL
# Part Num. Description
1 329538 GUIDE SLEEVE ASS'Y
2 995933 RETAINING RING
3A 331959 WASHER (F)
4 322737 GUIDE SPRING (C)
5 329537 GUIDE SLEEVE (C)
6 330966 FRONT CAP
7 330955 HAMMER CASE
8 959148 STEEL BALL D3.175
9 329555 ANVIL (S)
10 959154 STEEL BALL D5.556
11 330965 HAMMER
12 315978 WASHER (J)
13 322741 HAMMER SPRING (E)
14 316172 WASHER (S)
15 322740 STOPPER (A)
16 330960 SPINDLE
17 330958 IDLE GEAR
18 980258 NEEDLE (C)
19 330961 WASHER (G)
20 330962 BALL BEARING 6803VV
21 331019 RING GEAR
22 331448 PACKING (A)
23 330956 MOTOR DC 12V
24 987105 O-RING (S-10)
26 330953 HOUSING (A).(B)SET (GREEN)
28 306041 INTERNAL WIRE (B) (BLACK)
29 329548 PUSHING BUTTON (A)
30 329552 LED HOLDER
31 330963 SWITCH
33 313687 TAPPING SCREW (W/FLANGE) D3X16 (BLACK)
34 331065 BATTERY BCL 1015 (USA,CAN)
34A 331067 BATTERY BCL 1015 (EUROPE,AUS,NZL)
35 334866 INTERNAL WIRE FERRITE SET
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Hitachi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to hitachi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Hitachi WH10DFL
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Diagram Hitachi WH10DFL

Diagram Hitachi WH10DFL

Download (590KB)
