HiKOKI Power Tools Italia S.p.a.

Hitachi Spare Parts for Hex Cordless Screwdriver DB10DL

SKU: Hitachi DB10DL
€54.44
VAT included

Hitachi Spare Parts for Hex Cordless Screwdriver DB10DL

We have the original Spares Hitachi HIKOKI for Hex Cordless Screwdriver DB10DL, the diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your DB10DL. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.
Hitachi Spare Parts for Hex Cordless Screwdriver DB10DL
  • Hitachi Spare Parts for Hex Cordless Screwdriver DB10DL
  • Hitachi Spare Parts for Hex Cordless Screwdriver DB10DL
HiKOKI Power Tools Italia S.p.a.

Hitachi Spare Parts for Hex Cordless Screwdriver DB10DL

SKU: Hitachi DB10DL Condition: New
€54.44
VAT included

Hitachi Spare Parts for Hex Cordless Screwdriver DB10DL

We have the original Spares Hitachi HIKOKI for Hex Cordless Screwdriver DB10DL, the diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your DB10DL. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.
settings 36 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
36 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

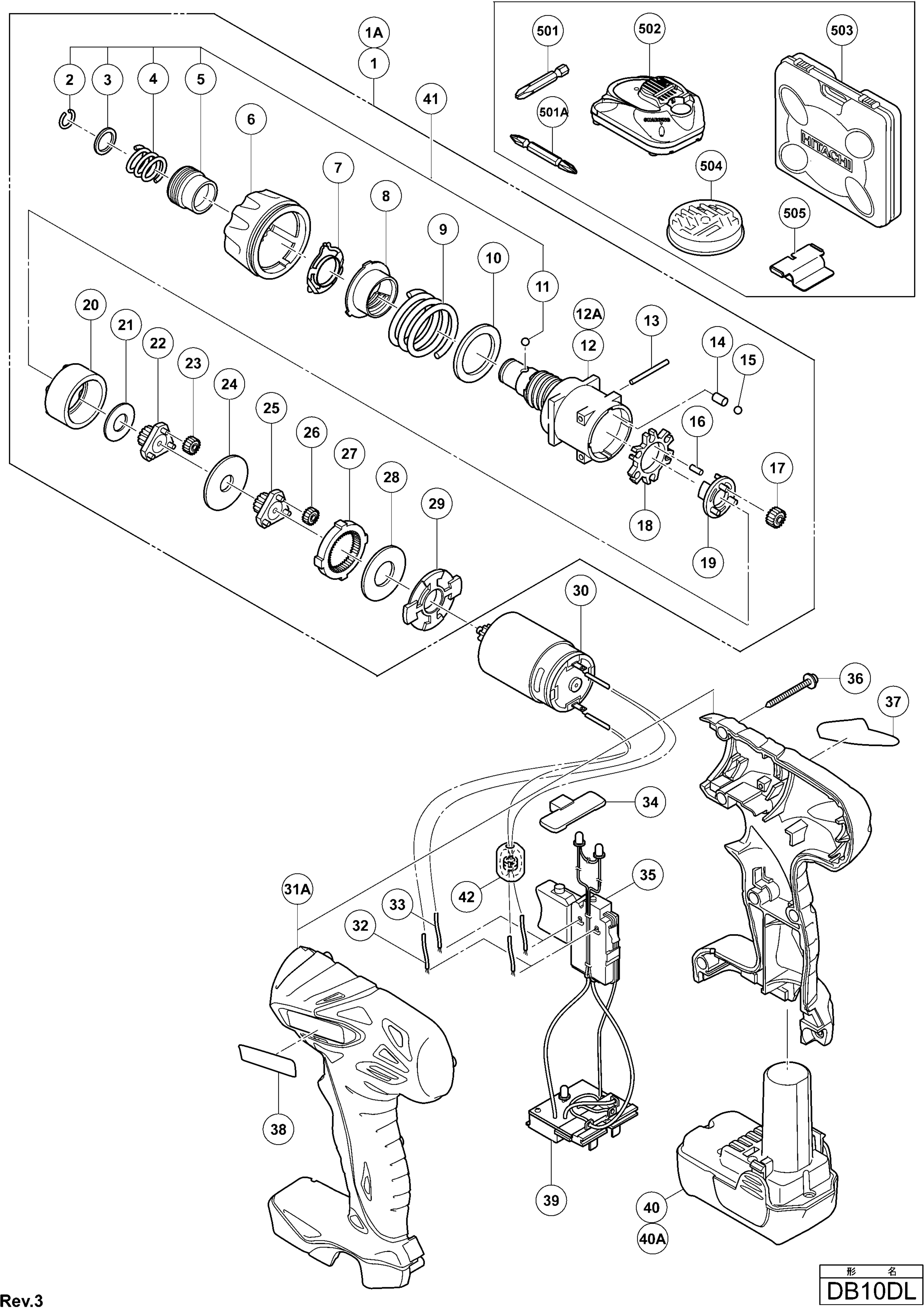

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 329557 GEAR BOX ASS'Y €70.03
2
 photo_cameraImage coming soon 315984 SEALING RING €2.55
3
 photo_cameraImage coming soon 315983 WASHER (D) €2.02
4
 photo_cameraImage coming soon 320409 SPRING GUIDE €2.02
5
 photo_cameraImage coming soon 319921 WH12DM COMPASS GUIDE €9.91
6
 photo_cameraImage coming soon 329578 CLUTCH DIAL €7.03
7
 photo_cameraImage coming soon 329579 CLICK SPRING €2.02
8
 photo_cameraImage coming soon 329577 NUT €2.02
9
 photo_cameraImage coming soon 329576 SPRING €2.02
10
 photo_cameraImage coming soon 329575 WASHER (D) €2.02
11
 photo_cameraImage coming soon 319535 BALLS D3.5 (10 PCS.) €2.55
12
 photo_cameraImage coming soon 329558 GEAR CASE €15.92
13
 photo_cameraImage coming soon 329565 NEEDLE €2.02
14
 photo_cameraImage coming soon 329574 PIN SET (6 PCS.) €4.03
15
 photo_cameraImage coming soon 321905 STEEL BALL D4 (10 PCS.) €5.53
16
 photo_cameraImage coming soon 329560 NEEDLE ROLLER SET (6PCS.) €2.02
17
 photo_cameraImage coming soon 329563 PLANET GEAR (C) SET (3 PCS.) €2.02
18
 photo_cameraImage coming soon 329559 LOCK RING €8.03
19
 photo_cameraImage coming soon 329561 CARRIER €4.03
20
 photo_cameraImage coming soon 329562 RING GEAR €2.02
21
 photo_cameraImage coming soon 329564 WASHER (C) €2.02
22
 photo_cameraImage coming soon 329566 PINION (C) €2.02
23
 photo_cameraImage coming soon 329568 PLANET GEAR (B) SET (3 PCS.) €2.02
24
 photo_cameraImage coming soon 329567 WASHER (B) €2.02
25
 photo_cameraImage coming soon 329569 PINION (B) €2.02
26
 photo_cameraImage coming soon 329571 PLANET GEAR (A) SET (3 PCS.) €2.02
27
 photo_cameraImage coming soon 329570 FIRST RING GEAR €2.02
28
 photo_cameraImage coming soon 329572 WASHER (A) €2.02
29
 photo_cameraImage coming soon 329573 MOTOR SPACER €2.02
30
 photo_cameraImage coming soon 329582 MOTOR €39.03
31A
 photo_cameraImage coming soon 329556 HOUSING (A).(B) SET €49.92
34
 photo_cameraImage coming soon 329548 PUSHING BUTTON (A) €2.02
35
 photo_cameraImage coming soon 329581 DC-SPEED CONTROL SWITCH €40.03
39
 photo_cameraImage coming soon 329580 CONTROLLER (B) €40.03
40A
 photo_cameraImage coming soon 331067 BATTERY BCL 1015 (EUROPE,AUS,NZL) €71.92
41
 photo_cameraImage coming soon 320085 COMPLETE COMPASS GUIDE €13.63

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Hitachi Spare Parts for Hex Cordless Screwdriver DB10DL

We have the original Spares Hitachi HIKOKI for Hex Cordless Screwdriver DB10DL, the diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your Hex Cordless Screwdriver DB10DL. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following table, look for the model of the Cordless and theirs spare part.Hitachi DB10DL

HEX CORDLESS DRIVER DRILL DB10DL
# Part Num. Description
1 329557 GEAR BOX ASS'Y
2 315984 RETAINING RING
3 315983 WASHER (D)
4 320409 GUIDE SPRING
5 319921 GUIDE SLEEVE (A)
6 329578 CLUTCH DIAL
7 329579 CLICK SPRING
8 329577 NUT
9 329576 SPRING
10 329575 WASHER (D)
11 319535 STEEL BALL D3.5 (10 PCS.)
12 329558 GEAR CASE
12A 329724 GEAR CASE
13 329565 NEEDLE
14 329574 PIN SET (6 PCS.)
15 321905 STEEL BALL D4 (10 PCS.)
16 329560 NEEDLE ROLLER SET (6PCS.)
17 329563 PLANET GEAR (C) SET (3 PCS.)
18 329559 LOCK RING
19 329561 CARRIER
20 329562 RING GEAR
21 329564 WASHER (C)
22 329566 PINION (C)
23 329568 PLANET GEAR (B) SET (3 PCS.)
24 329567 WASHER (B)
25 329569 PINION (B)
26 329571 PLANET GEAR (A) SET (3 PCS.)
27 329570 FIRST RING GEAR
28 329572 WASHER (A)
29 329573 MOTOR SPACER
30 329582 MOTOR
31A 329556 HOUSING (A).(B) SET
32 329584 INTERNAL WIRE (BLACK)
33 329583 INTERNAL WIRE (RED)
34 329548 PUSHING BUTTON (A)
35 329581 DC-SPEED CONTROL SWITCH
36 313687 TAPPING SCREW (W/FLANGE) D3X16 (BLACK)
39 329580 CONTROLLER (B)
40A 331067 BATTERY BCL 1015 (EUROPE,AUS,NZL)
41 320085 GUIDE SLEEVE SET
42 334854 INTERNAL WIRE FERRITE SET

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Hitachi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to hitachi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.

Hitachi DB10DL
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Diagram Hitachi DB10DL

Diagram Hitachi DB10DL

Download (98.04KB)
