HiKOKI Power Tools Italia S.p.a.

Hitachi Spare Parts for Impact Drill DV16V

SKU: Hitachi DV16V
€15.11
VAT included

Hitachi Spare Parts for Impact Drill DV16V

Hitachi Original spare parts at attractive and competitive prices on the web, we are a licensed service center with a repair service able to quickly solve the maintenance or repair any issues for Impact Drill DV16V.
Hitachi Spare Parts for Impact Drill DV16V
  • Hitachi Spare Parts for Impact Drill DV16V
  • Hitachi Spare Parts for Impact Drill DV16V
HiKOKI Power Tools Italia S.p.a.

Hitachi Spare Parts for Impact Drill DV16V

SKU: Hitachi DV16V Condition: New
€15.11
VAT included

Hitachi Spare Parts for Impact Drill DV16V

Hitachi Original spare parts at attractive and competitive prices on the web, we are a licensed service center with a repair service able to quickly solve the maintenance or repair any issues for Impact Drill DV16V.
settings 43 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
37 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

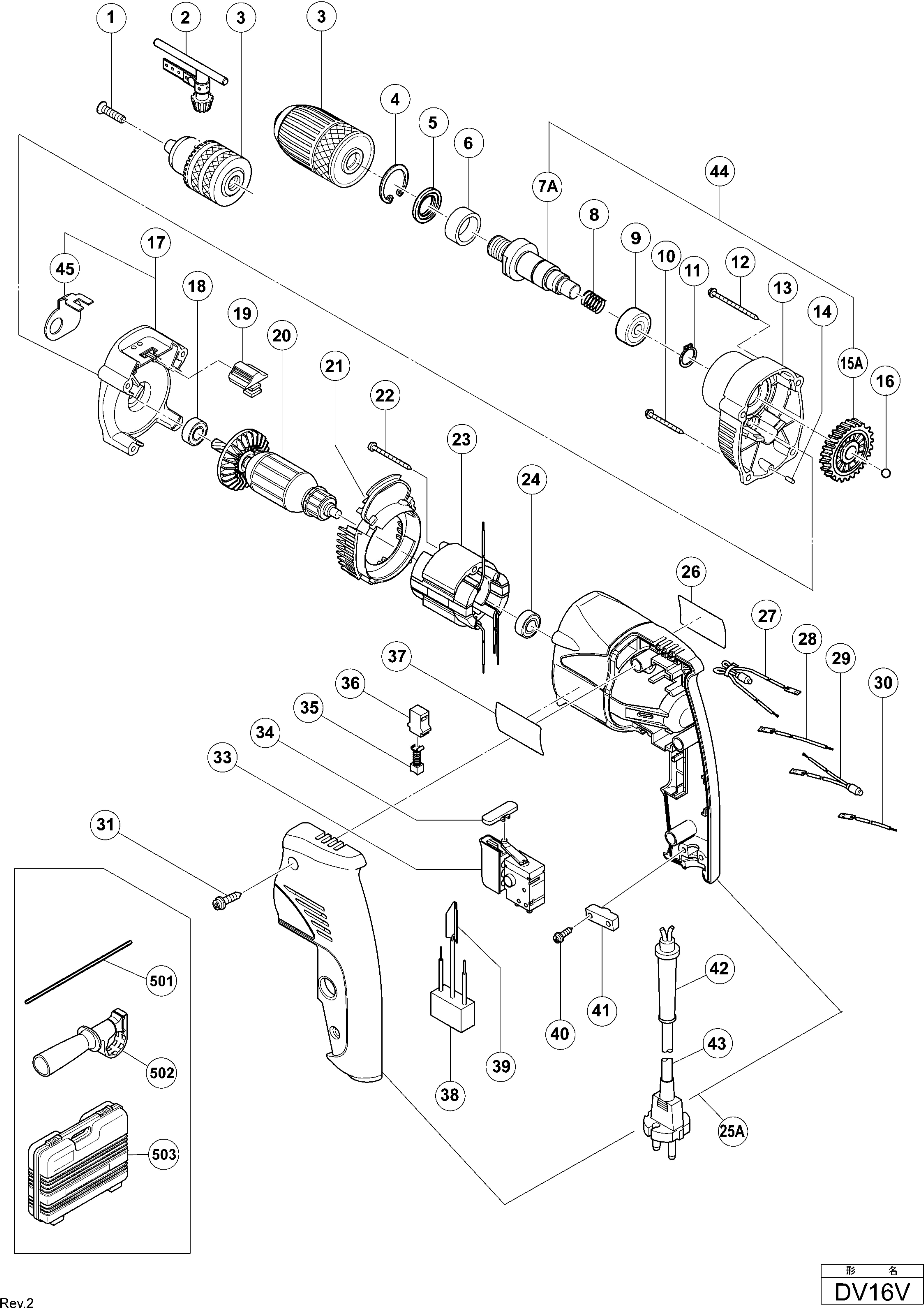

Esploso pagina 1
Pos. Item Price Buy
1
 photo_cameraImage coming soon 995344 Flat Hd. Screw (A) M6x25 €3.09
2
 photo_cameraImage coming soon 987576 Chuck Wrench For 13vlb -> HTA100106 €7.99
3
 photo_cameraImage coming soon 322357 Drill Chuck 13vlrh-N (W / O €48.50
4
 photo_cameraImage coming soon 948001 RETAINING RING FOR D32 HOLE €2.93
5
 photo_cameraImage coming soon 971654 Oil Seals €3.83
6
 photo_cameraImage coming soon 322515 bushing €6.25
7A
 Chuck Spindle for Percussion Drills Hitachi DV16V 322513 Chuck Spindle for Percussion Drills Hitachi DV16V €18.00
8
 photo_cameraImage coming soon 322514 spring €2.55
9
 photo_cameraImage coming soon 6002VV BALL BEARING 6002VVCMPS2L €9.49
11
 Retaining Ring Type C 15 mm for Drills Hitachi D13VG-DV16V 939544 Retaining Ring Type C 15 mm for Drills Hitachi D13VG-DV16V €0.55
13
 photo_cameraImage coming soon 322512 COVER HANDLE €4.61
14
 photo_cameraImage coming soon 322511 Needle (B) €1.40
15A
 Gear for Percussion Drill DV 16V 323527 Gear for Percussion Drill DV 16V €24.98
16
 Steel Ball 6,35 mm for Hammers Hitachi 959150 Steel Ball 6,35 mm for Hammers Hitachi €3.48
17
 photo_cameraImage coming soon 322509 SHELL LEFT €42.16
18
 photo_cameraImage coming soon 608DDM BALL BEARING 608DDC2PS2L €7.07
19
 photo_cameraImage coming soon 322510 Clutch Lever Dv16v €9.12
20
 photo_cameraImage coming soon 360626E Armature Dv16v 220v-240v €93.14
21
 Telwin Superior Plasma 60 HF Front Panel 322508 Telwin Superior Plasma 60 HF Front Panel €16.58
22
 photo_cameraImage coming soon 950515 Self-tapping Screw D4x50 €1.91
23
 photo_cameraImage coming soon 340573E Field Dv16v 220v-230v €42.16
24
 photo_cameraImage coming soon 608VVM BALL BEARING 608VVC2PS2L €7.12
25A
 photo_cameraImage coming soon 331661 Carc Compl. D10vc2-Dv16v €51.10
27
 photo_cameraImage coming soon 322517 Internal cable Marr. 220v-240v €14.04
31
 photo_cameraImage coming soon 301653 Tapp.Screw (W / Flange) D4x20 €5.63
33
 Switch for Impact Drills Hitachi DV 16V 321632 Switch for Impact Drills Hitachi DV 16V €41.50
34
 photo_cameraImage coming soon 321628 Button Rev. D10vc2 €2.93
35
 Carbon Brushes for Sanders Hitachi SV12-13 999041 Carbon Brushes for Sanders Hitachi SV12-13 €9.62
36
 Brush Holder for Demolition Hammer Hitachi DH28PCY 955203 Brush Holder for Demolition Hammer Hitachi DH28PCY €4.39
38
 Noise Suppressor for Angle Grinder Hitachi G12SA2 994273 Noise Suppressor for Angle Grinder Hitachi G12SA2 €9.62
41
 photo_cameraImage coming soon 937631 CORD CLIP €1.37
42
 Cord Armor D.8.8 for Hitachi Power Tools 953327 Cord Armor D.8.8 for Hitachi Power Tools €1.37
43
 photo_cameraImage coming soon 500247Z CORD €17.20
44
 photo_cameraImage coming soon 323565 Set Spindle. + Gear. Dv16v €42.16
45
 photo_cameraImage coming soon 330625 Clutch Lever Dv16v €2.55
501
 photo_cameraImage coming soon 303709 delimiter Depth €1.75
502
 photo_cameraImage coming soon 303659 Side grip €13.84

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Hitachi Spare Parts for Impact Drill DV16V

Hitachi Original spare parts at attractive and competitive prices on the web

, we are a licensed service center with a repair service able to quickly solve the maintenance or repair any issues for Impact Drill DV16V.

In the following table , look for the model of the impact drill and the respective parts of the code .
Hitachi DV16V

Impact Drill DV 16V
# Part Num. Description
1 995344 Flat Hd. Screw (A) M6x25
2 987576 Chuck Wrench For 13vlb -> HTA100106
3 322357 Drill Chuck 13vlrh-N
4 948001 Ring Type C Q.32 X Forums
5 971654 Oil Seals
6 322515 bushing
7A 322513 Spindle Tree Dv16v
8 322514 spring
9 6002VV Ball Bearing 6002vv
10 306664 Tapp.Screw (W / Flange) D4x40
11 939544 Ring Type C X D.15 Trees
12 322516 Tapp. Screw (W / Flange) D4x55
13 322512 Carter magnification. Dv16v
14 322511 Needle (B)
15A 323527 gear Dv16v
16 959150 Steel Ball D.6
17 322509 Carter Interior Dv16v
18 608DDM Ball Bearing 608ddm
19 322510 Clutch Lever Dv16v
20 360626E Armature Dv16v 220v-240v
21 322508 Guide Fan Dv16v
22 950515 Self-tapping Screw D4x50
23 340573E Field Dv16v 220v-230v
23F 340573F Field 240v
24 608VVM Ball Bearing 608vvm
25A 331661 Carc Compl. D10vc2-Dv16v
27 322517 Internal cable Marr.
31 301653 Tapp. Screw (W / Flange) D4x20
33 321632 Switch D10vc2-Dv16v
34 321628 Button Rev. D10vc2
35 999041 Carbon Brushe (1 pair)
36 955203 brush holder
38 994273 filter Dampers
39 992635 Earth Terminal
40 984750 Tapp. Screw (W / Flange) D4x16
41 937631 terminal Wire Tie
42 953327 Sleeve saver D8.8
43 500247Z Cord (Cord Armor D8.8)
44 323565 Set Spindle. + Gear. Dv16v
45 330625 Clutch Lever Dv16v
501 303709 Delimiter Depth '
502 303659 Side grip
503 321635 houses
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Hitachi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to hitachi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Hitachi DV16V
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Diagram Hitachi DV16V

Diagram Hitachi DV16V

Download (150.71KB)
