Hitachi Spare Parts for Jigsaw CJ110MV

SKU: Hitachi CJ110MV
€30.56
VAT included

Hitachi Spare Parts for Jigsaw CJ110MV

We supply original Hitachi-HIKOKI spare parts on offer at unbeatable prices, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Jigsaw CJ110MV.
Hitachi Spare Parts for Jigsaw CJ110MV
  • Hitachi Spare Parts for Jigsaw CJ110MV
  • Hitachi Spare Parts for Jigsaw CJ110MV

Hitachi Spare Parts for Jigsaw CJ110MV

SKU: Hitachi CJ110MV Condition: New
€30.56
VAT included

Hitachi Spare Parts for Jigsaw CJ110MV

We supply original Hitachi-HIKOKI spare parts on offer at unbeatable prices, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Jigsaw CJ110MV.
settings 59 spare parts

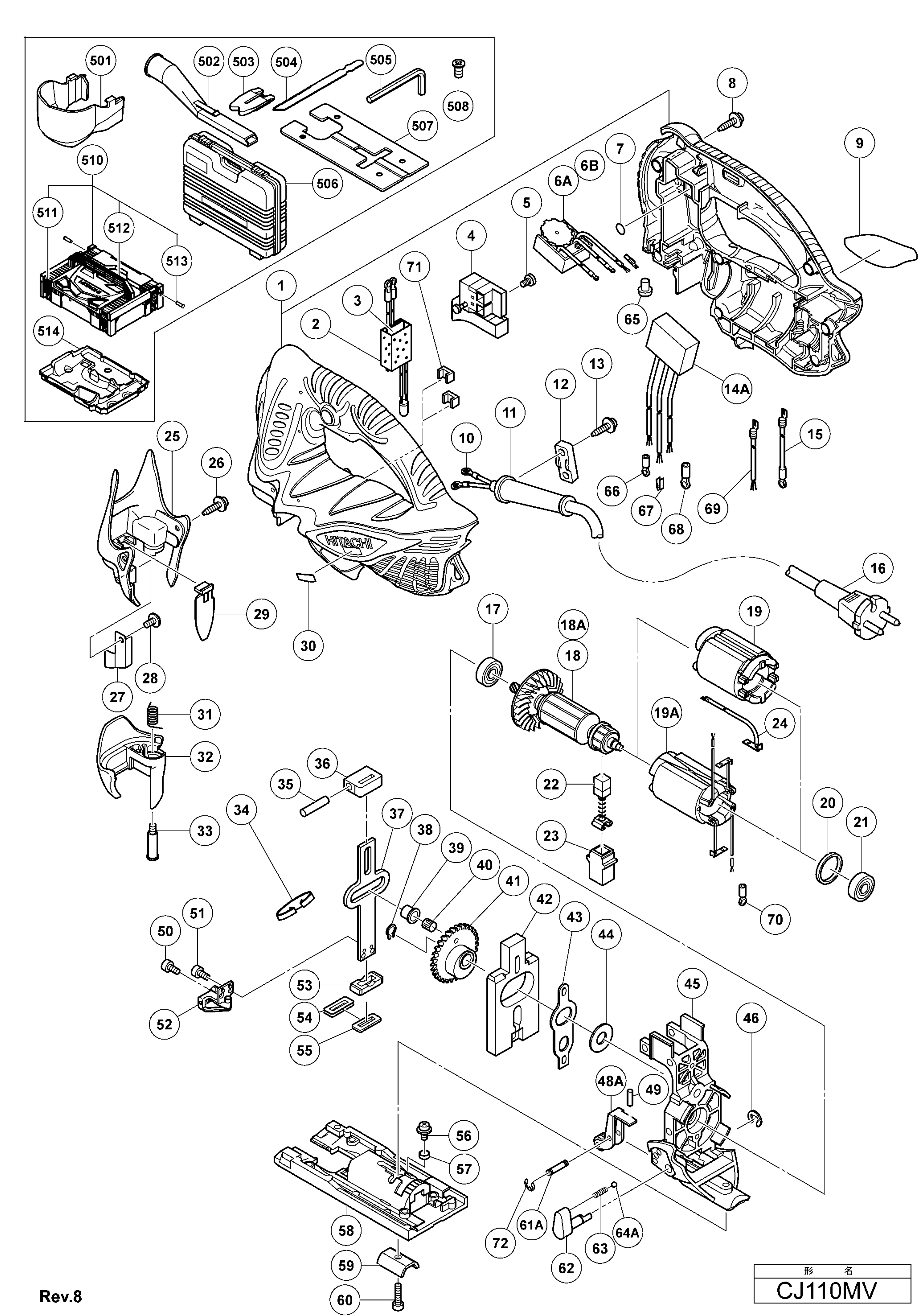

description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

47 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 325097 HOUSING (A).(B) SET €51.02
3
photo_cameraImage coming soon 325091 PRINTED CIRCUIT BOARD (LED LIGHT) €18.02
4
photo_cameraImage coming soon 325085 SWITCH (E) (1P SCREW TYPE) W/LOCK €11.02
6B
photo_cameraImage coming soon 321588 CONTROLLER CIRCUIT 220V-240V €66.36
7
photo_cameraImage coming soon 984528 O-RING (P6) €1.58
8
photo_cameraImage coming soon 301653 Tapp.Screw (W / Flange) D4x20 €5.63
11
Cord Armor D.10.1 for Hitachi Power Tools 938051 Cord Armor D.10.1 for Hitachi Power Tools €1.34
11
Cord Armor D.8.8 for Hitachi Power Tools 953327 Cord Armor D.8.8 for Hitachi Power Tools €1.37
12
photo_cameraImage coming soon 937631 CORD CLIP €1.37
14A
Noise Suppressor Hitachi 325-566 325566 Noise Suppressor Hitachi 325-566 €19.40
17
photo_cameraImage coming soon 608VVM BALL BEARING 608VVC2PS2L €7.12
18
photo_cameraImage coming soon 360741E ARMATURE 220V-230V €90.02
19A
photo_cameraImage coming soon 340666E STATOR 230V-240V €40.02
20
photo_cameraImage coming soon 323420 RUBBER RING €1.40
22
Carbon Brushes for Sanders Hitachi SV12-13 999041 Carbon Brushes for Sanders Hitachi SV12-13 €9.62
23
Brush Holder for Demolition Hammer Hitachi DH28PCY 955203 Brush Holder for Demolition Hammer Hitachi DH28PCY €4.39
25
photo_cameraImage coming soon 325078 FRONT COVER €19.02
27
photo_cameraImage coming soon 321592 FENCE €2.27
29
photo_cameraImage coming soon 325082 LIGHT BAR €2.02
31
Spring for Jigsaw Hitachi CJ14DSL 321580 Spring for Jigsaw Hitachi CJ14DSL €1.84
32
Release Lever for Hitachi Jigsaw CJ110MV-MVA 325080 Release Lever for Hitachi Jigsaw CJ110MV-MVA €9.76
33
photo_cameraImage coming soon 325081 LEVER BOLT €4.95
34
Plate Spring for Jigsaws Hitachi CJ110MV-MVA 325071 Plate Spring for Jigsaws Hitachi CJ110MV-MVA €6.97
35
photo_cameraImage coming soon 983564 PIN D6 €3.84
36
photo_cameraImage coming soon 325070 PLUNGER HOLDER (A) €8.63
37
photo_cameraImage coming soon 325072 PLUNGER €17.02
38
photo_cameraImage coming soon 994251 RETAINING RING FOR D7 SHAFT €1.65
39
photo_cameraImage coming soon 325069 CONNECTING PIECE €10.02
40
photo_cameraImage coming soon 325242 NEEDLE BEARING €6.02
41
photo_cameraImage coming soon 325068 GEAR €27.93
42
photo_cameraImage coming soon 325067 BALANCE WEIGHT €18.92
43
photo_cameraImage coming soon 325066 ORBITAL CAM €6.53
45
photo_cameraImage coming soon 325061 GEAR HOLDER €56.92
48A
photo_cameraImage coming soon 326270 ROLLER HOLDER SET €20.02
49
photo_cameraImage coming soon 325062 NEEDLE ROLLER €2.02
50
photo_cameraImage coming soon 325241 SEAL LOCK HEX. SOCKET HD. BOLT M3X8 €2.70
51
photo_cameraImage coming soon 325077 SEAL LOCK HEX. SOCKET HD. BOLT M3X6 €2.52
52
photo_cameraImage coming soon 325076 BLADE HOLDER €18.58
53
photo_cameraImage coming soon 325073 PLUNGER HOLDER (B) €5.03
54
photo_cameraImage coming soon 325075 PACKING COVER €2.02
55
photo_cameraImage coming soon 325074 PACKING €2.02
57
Rubber Bushing for Jigsaw Hitachi CJ110MVA 321576 Rubber Bushing for Jigsaw Hitachi CJ110MVA €2.46
58
Base for Jigsaw Hitachi CJ120VA 321573 Base for Jigsaw Hitachi CJ120VA €29.36
59
photo_cameraImage coming soon 321575 BASE LOCKER €2.01
61A
PIN for Jigsaw Hitachi CJ14DL 328331 PIN for Jigsaw Hitachi CJ14DL €5.43
62
photo_cameraImage coming soon 325065 CHANGE KNOB €13.02
72
photo_cameraImage coming soon 872971 RETAINING RING (E-TYPE) FOR D3 SHAFT €1.33

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Hitachi Spare Parts for Jigsaw CJ110MV

We supply original Hitachi-HIKOKI spare parts on offer at unbeatable prices, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Jigsaw CJ110MV.

In the following table, look for the model of the Jigsaw and theirs spare part.
Hitachi CJ110MV

JIGSAW CJ110MV
# Part Num. Description
1 325097 HOUSING (A).(B) SET
2 930153 SUPPORT (B)
3 325091 PRINTED CIRCUIT BOARD (LED LIGHT)
4 325085 SWITCH (E) (1P SCREW TYPE) W/LOCK
5 305499 MACHINE SCREW (W/WASHER) M3.5X6
6B 321588 CONTROLLER CIRCUIT 220V-240V
7 984528 O-RING (P-6)
8 301653 TAPPING SCREW (W/FLANGE) D4X20 (BLACK)
10 980063 TERMINAL
11 953327 CORD ARMOR D8.8
11 938051 CORD ARMOR D10.1
12 937631 CORD CLIP
13 984750 TAPPING SCREW (W/FLANGE) D4X16
14A 325566 NOISE SUPPRESSOR
17 608VVM BALL BEARING 608VVC2PS2L
18 360741E ARMATURE 220V-230V
19A 340666E STATOR 230V-240V
20 323420 RUBBER RING
21 608VVM BALL BEARING 608VVC2PS2L
22 999041 CARBON BRUSH (1 PAIR)
23 955203 BRUSH HOLDER
25 325078 FRONT COVER
26 325083 TAPPING SCREW (W/FLANGE) D4X12 (BLACK)
27 321592 FENCE
28 325079 MACHINE SCREW (W/SP. WASHER) M4X8 (BLACK
29 325082 LIGHT BAR
31 321580 LEVER SPRING
32 325080 LEVER
33 325081 LEVER BOLT
34 325071 PLATE SPRING
35 983564 PIN D6
36 325070 PLUNGER HOLDER (A)
37 325072 PLUNGER
38 994251 RETAINING RING FOR D7 SHAFT
39 325069 CONNECTING PIECE
40 325242 NEEDLE BEARING
41 325068 GEAR
42 325067 BALANCE WEIGHT
43 325066 ORBITAL CAM
44 957540 WASHER (A)
45 325061 GEAR HOLDER
46 673489 RETAINING RING (E-TYPE) FOR D5 SHAFT
48A 326270 ROLLER HOLDER SET
49 325062 NEEDLE ROLLER
50 325241 SEAL LOCK HEX. SOCKET HD. BOLT M3X8
51 325077 SEAL LOCK HEX. SOCKET HD. BOLT M3X6
52 325076 BLADE HOLDER
53 325073 PLUNGER HOLDER (B)
54 325075 PACKING COVER
55 325074 PACKING
56 315500 MACHINE SCREW (W/WASHER) M4X8 (BLACK)
57 321576 RUBBER BUSHING
58 321573 BASE
59 321575 BASE LOCKER
60 949665 HEX. SOCKET HD. BOLT M5X14
61A 328331 PIN
62 325065 CHANGE KNOB
63 982454 SPRING (C)
64A 335297 STEEL BALL 5/32 (10 PCS.)
72 872971 RETAINING RING (E-TYPE) FOR D3 SHAFT
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Hitachi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to hitachi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
