HiKOKI Power Tools Italia S.p.a.

Hitachi Spare Parts for Cordless Driver Drill DS14DBL

SKU: Hitachi DS14DBL
€8.78
VAT included

Hitachi Spare Parts for Cordless Driver Drill DS14DBL

Hitachi-HIKOKI Tanaka authorized service center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Cordless with 14.4 V with Lithium Batteries DS14DBL

Hitachi Spare Parts for Cordless Driver Drill DS14DBL
  • Hitachi Spare Parts for Cordless Driver Drill DS14DBL
  • Hitachi Spare Parts for Cordless Driver Drill DS14DBL
HiKOKI Power Tools Italia S.p.a.

Hitachi Spare Parts for Cordless Driver Drill DS14DBL

SKU: Hitachi DS14DBL Condition: New
€8.78
VAT included

Hitachi Spare Parts for Cordless Driver Drill DS14DBL

Hitachi-HIKOKI Tanaka authorized service center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Cordless with 14.4 V with Lithium Batteries DS14DBL

settings 42 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
42 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

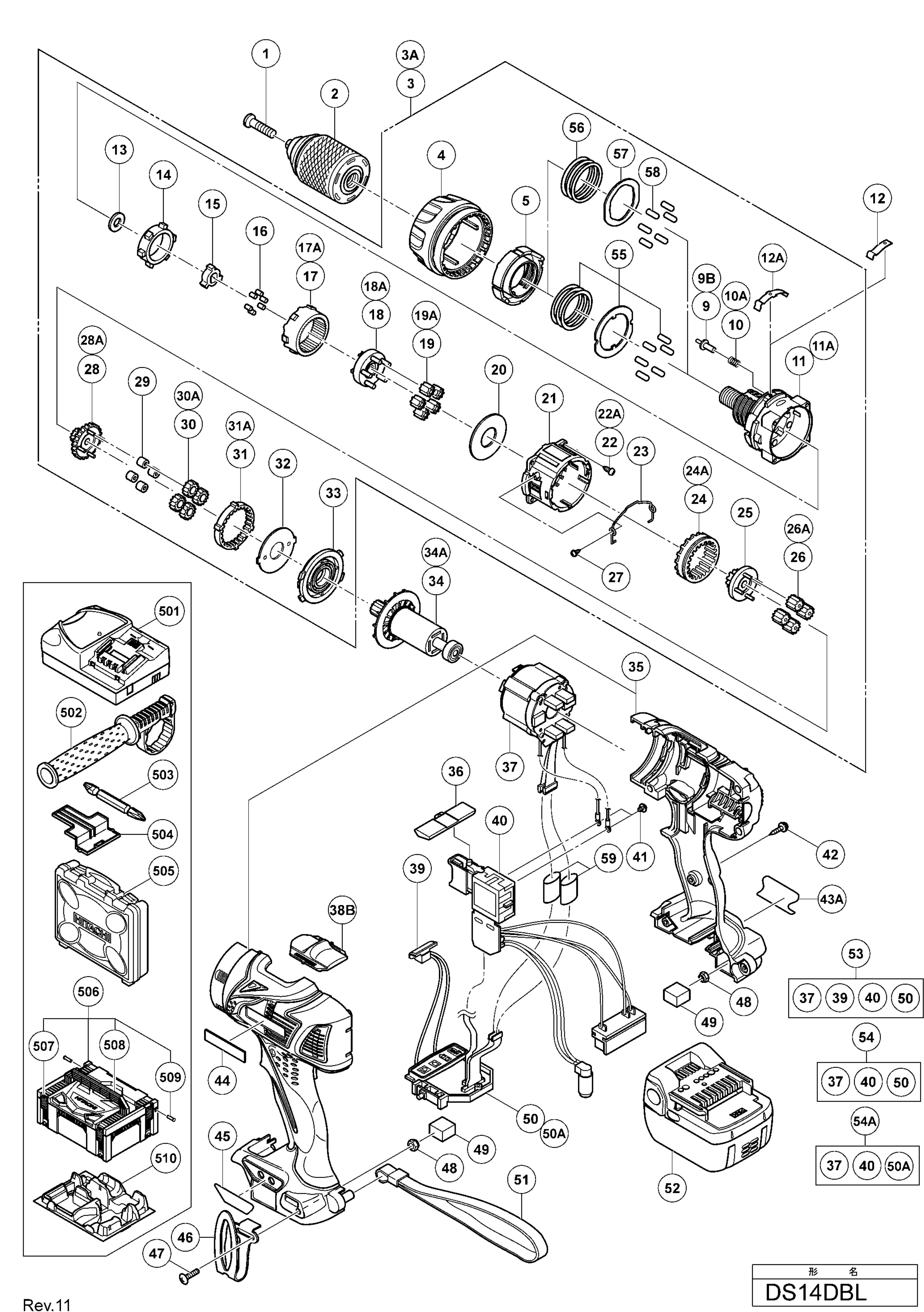

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
*52
 photo_cameraImage coming soon 329083 BATTERY BSL 1430 (EUROPE.AUS.NZL) €155.02
*50
 photo_cameraImage coming soon 331722 CONTROLLER €152.93
1
 photo_cameraImage coming soon 311959 Sp.Screw (Left Hand) M6x23 €2.10
3
 photo_cameraImage coming soon 331709 GEAR BOX ASS'Y till 06.2012 €115.94
4
 photo_cameraImage coming soon 331880 FRONT CAP €20.02
5
 photo_cameraImage coming soon 331881 NUT €2.02
9
 photo_cameraImage coming soon 331885 STOPPER €7.03
10
 photo_cameraImage coming soon 331886 STOPPER SPRING €2.39
11
 photo_cameraImage coming soon 331887 FRONT CASE €26.02
12
 photo_cameraImage coming soon 331905 CLICK SPRING €2.02
13
 photo_cameraImage coming soon 331909 WASHER (A) €3.38
14
 photo_cameraImage coming soon 331903 LOCK RING (A) €13.40
15
 photo_cameraImage coming soon 331904 LOCK CAM €3.38
16
 photo_cameraImage coming soon 331888 NEEDLE ROLLER SET (6PCS.) €3.38
17
 photo_cameraImage coming soon 331889 RING GEAR €8.03
18
 photo_cameraImage coming soon 331890 CARRIER €8.03
19
 photo_cameraImage coming soon 331891 PLANET GEAR (C) SET (5 PCS.) €4.03
20
 photo_cameraImage coming soon 331892 WASHER (A) €3.37
21
 photo_cameraImage coming soon 331893 REAR CASE €6.09
23
 photo_cameraImage coming soon 331894 SHIFT ARM €3.38
24
 photo_cameraImage coming soon 331896 SLIDE RING GEAR €7.03
25
 photo_cameraImage coming soon 331897 PINION (C) €10.84
26
 photo_cameraImage coming soon 331898 PLANET GEAR (B) SET (4 PCS.) €4.03
27
 photo_cameraImage coming soon 330579 SCREW SET D2X3.5 (2 PCS.) €4.07
28
 photo_cameraImage coming soon 331899 PINION (B) €7.03
29
 photo_cameraImage coming soon 331926 NEEDLE BEARING SET (4 PCS.) €13.40
30
 photo_cameraImage coming soon 331900 PLANET GEAR (A) SET (4 PCS.) €17.02
31
 photo_cameraImage coming soon 331901 FIRST RING GEAR €4.03
32
 photo_cameraImage coming soon 322988 WASHER (B) €2.02
33
 photo_cameraImage coming soon 331902 MOTOR SPACER €3.38
34
 photo_cameraImage coming soon 331710 ROTOR PINION SET €62.93
35
 photo_cameraImage coming soon 331718 HOUSING (A).(B) SET (GREEN) €39.03
36
 photo_cameraImage coming soon 331907 PUSHING BUTTON €3.38
37
 photo_cameraImage coming soon 340766 STATOR FET PCB €204.02
38B
 photo_cameraImage coming soon 334267 SPEED LEVER (EX 333527) €13.40
40
 DC-Speed Control Switch for Cordless Drill Driver Hitachi DV14DBL 331715 DC-Speed Control Switch for Cordless Drill Driver Hitachi DV14DBL €58.49
45
 photo_cameraImage coming soon 330662 PANEL SHEET (B) €2.52
46
 photo_cameraImage coming soon 332824 DUST HOOD HOLDING HOOK €6.47
49
 photo_cameraImage coming soon 330854 PACKING €12.63
50A
 photo_cameraImage coming soon 333690 620265-4 €132.02
51
 photo_cameraImage coming soon 306952 STRAP (BLACK) €8.78
55
 photo_cameraImage coming soon 332546 CLUTCH PARTS SET TILL 6.2012 €14.02

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Hitachi Spare Parts for Cordless Driver Drill DS14DBL

Hitachi-HIKOKI Tanaka authorized service center

 and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Cordless with 14.4 V with Lithium Batteries DS14DBL.
Reversible drills and impact cordless drills with batteries from 1.5 Ah to 4, with torque clutch.

- DS14DBL

In the following table, look for the model of the Cordless driver drill and theirs spare part.
Hitachi DS14DBL

CORDLESS DRIVER DRILL DS14DBL
# Part Num. Description
1 311959 SPECIAL SCREW (LEFT HAND) M6X23
2 331914 DRILL CHUCK 13VLRR-N (W/O CHUCK WRENCH)
3 331709 GEAR BOX ASS'Y
4 331880 FRONT CAP
5 331881 NUT
9 331885 STOPPER
10 331886 STOPPER SPRING
11 331887 FRONT CASE
12 331905 CLICK SPRING
13 331909 WASHER (A)
14 331903 LOCK RING (A)
15 331904 LOCK CAM
16 331888 NEEDLE ROLLER SET (6PCS.)
17 331889 RING GEAR
18 331890 CARRIER
19 331891 PLANET GEAR (C) SET (5 PCS.)
20 331892 WASHER (A)
21 331893 REAR CASE
22 315817 SCREW SET D3X12 (6 PCS.)
23 331894 SHIFT ARM
24 331896 SLIDE RING GEAR
25 331897 PINION (C)
26 331898 PLANET GEAR (B) SET (4 PCS.)
27 330579 SCREW SET D2X3.5 (2 PCS.)
28 331899 PINION (B)
29 331926 NEEDLE BEARING SET (4 PCS.)
30 331900 PLANET GEAR (A) SET (4 PCS.)
31 331901 FIRST RING GEAR
32 322988 WASHER (B)
33 331902 MOTOR SPACER
34 331710 ROTOR PINION SET
35 331718 HOUSING (A).(B) SET (GREEN)
36 331907 PUSHING BUTTON
37 340766 STATOR FET PCB
38B 334267 SHIFT KNOB
40 331715 DC-SPEED CONTROL SWITCH
41 994532 MACHINE SCREW (W/SP. WASHER) M3X5
42 313687 TAPPING SCREW (W/FLANGE) D3X16 (BLACK)
44 329648 HITACHI PLATE
45 330662 PANEL SHEET (B)
46 332824 HOOK
47 327001 TRUSS HD. SCREW M4 (BLACK)
48 327002 LOCK NUT M4 (BLACK)
49 330854 PACKING
*50 331722 CONTROLLER
50A 333690 CONTROLLER
51 306952 STRAP (BLACK)
*52 329083 BATTERY BSL 1430 (EUROPE,AUS,NZL)
55 332546 CLUTCH PARTS SET

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Hitachi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to hitachi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
