HiKOKI Power Tools Italia S.p.a.

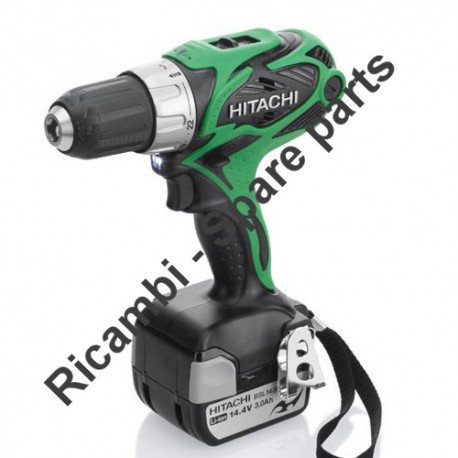

Hitachi Spare Parts for Cordless Driver Drill DS14DSAL

SKU: Hitachi DS14DSAL
€8.78
VAT included

Hitachi Spare Parts for Cordless Driver Drill DS14DSAL

Hitachi-HIKOKI original spare parts, at discounted prices, we are a licensed service center with after-sales service able to quickly solve the maintenance and repair any issues for Cordless with 14.4 V with Lithium Batteries DS14DSAL.

Reversible drills and impact cordless drills with batteries from 1.5 Ah to 4, with torque clutch.

- DS14DSAL
Hitachi Spare Parts for Cordless Driver Drill DS14DSAL
  • On sale!
  • Hitachi Spare Parts for Cordless Driver Drill DS14DSAL
  • Hitachi Spare Parts for Cordless Driver Drill DS14DSAL
HiKOKI Power Tools Italia S.p.a.

Hitachi Spare Parts for Cordless Driver Drill DS14DSAL

SKU: Hitachi DS14DSAL Condition: New
€8.78
VAT included

Hitachi Spare Parts for Cordless Driver Drill DS14DSAL

Hitachi-HIKOKI original spare parts, at discounted prices, we are a licensed service center with after-sales service able to quickly solve the maintenance and repair any issues for Cordless with 14.4 V with Lithium Batteries DS14DSAL.

Reversible drills and impact cordless drills with batteries from 1.5 Ah to 4, with torque clutch.

- DS14DSAL
settings 41 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
41 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

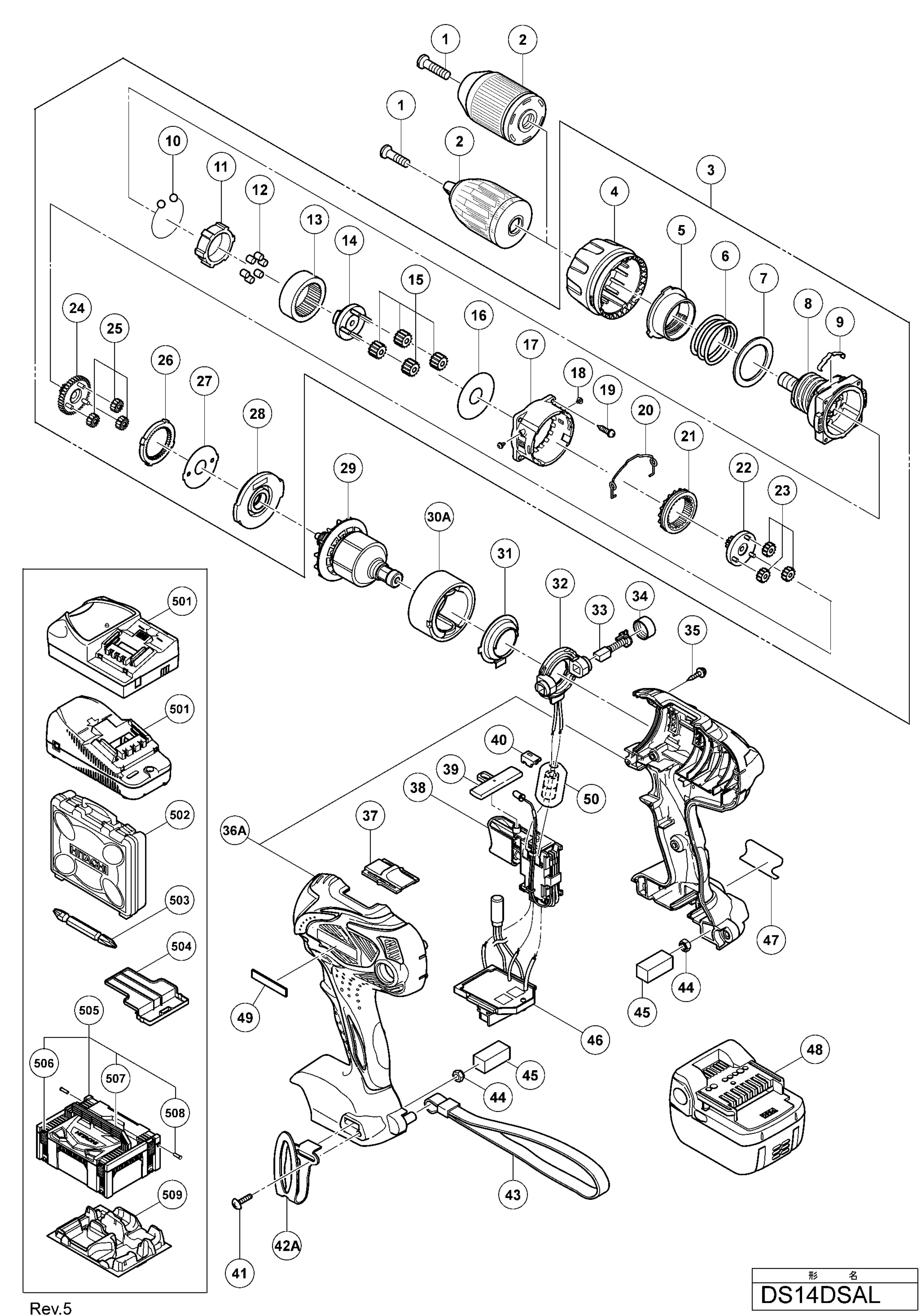

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
*48
 photo_cameraImage coming soon 329083 BATTERY BSL 1430 (EUROPE.AUS.NZL) €155.02
3
 photo_cameraImage coming soon 331087 GEAR BOX ASS'Y €54.92
4
 photo_cameraImage coming soon 330582 CLUTCH DIAL €6.39
5
 photo_cameraImage coming soon 330563 NUT €3.04
6
 photo_cameraImage coming soon 330562 SPRING €3.04
7
 photo_cameraImage coming soon 330561 THRUST PLATE €3.04
8
 photo_cameraImage coming soon 331090 SCREW X LRP 1503 VRA €16.11
9
 photo_cameraImage coming soon 331089 CLICK SPRING €3.04
10
 photo_cameraImage coming soon 306936 STEEL BALL D5 €1.40
11
 photo_cameraImage coming soon 331088 LOCK RING (A) €15.07
12
 photo_cameraImage coming soon 330565 NEEDLE ROLLER SET (6 PCS.) €3.04
13
 photo_cameraImage coming soon 330567 RING GEAR €8.70
14
 photo_cameraImage coming soon 330566 CARRIER €11.48
15
 photo_cameraImage coming soon 330568 PLANET GEAR (C) SET (4 PCS.) €3.04
16
 photo_cameraImage coming soon 330569 PLATE (B) €3.04
17
 photo_cameraImage coming soon 330570 REAR CASE €3.04
18
 photo_cameraImage coming soon 330579 SCREW SET D2X3.5 (2 PCS.) €4.07
20
 photo_cameraImage coming soon 330580 SHIFT ARM €3.04
21
 photo_cameraImage coming soon 330572 SLIDE RING GEAR €6.39
22
 photo_cameraImage coming soon 330571 PINION (C) €6.39
23
 photo_cameraImage coming soon 330573 PLANET GEAR (B) SET (3 PCS.) €3.04
24
 photo_cameraImage coming soon 330574 PINION (B) €6.39
25
 photo_cameraImage coming soon 330576 PLANET GEAR (A) SET (3 PCS.) €3.04
26
 photo_cameraImage coming soon 330575 FIRST RING GEAR €6.39
27
 photo_cameraImage coming soon 330577 PLATE (A) €3.04
28
 photo_cameraImage coming soon 330578 MOTOR SPACER €3.04
29
 photo_cameraImage coming soon 360865 ARMATURE AND PINION SET €39.03
30A
 photo_cameraImage coming soon 334902 MAGNET (H) €83.03
31
 photo_cameraImage coming soon 322521 DUST GUARD €2.33
32
 photo_cameraImage coming soon 322993 BRUSH BLOCK €26.66
33
 Carbon Brushes for Cordless Drill and Grinders Hitachi 999054 Carbon Brushes for Cordless Drill and Grinders Hitachi €9.76
34
 Brushes Cap for Cordless Driver Drill Hitachi DS14DSAL/DS18DSAL 319918 Brushes Cap for Cordless Driver Drill Hitachi DS14DSAL/DS18DSAL €4.32
36A
 photo_cameraImage coming soon 330585 CARCASSA COMPL.DS14DSAL €19.02
37
 photo_cameraImage coming soon 330583 SHIFT KNOB €1.61
38
 photo_cameraImage coming soon 330590 DC-SPEED CONTROL SWITCH €19.02
39
 photo_cameraImage coming soon 329454 PUSHING BUTTON (A) €1.40
40
 photo_cameraImage coming soon 330584 LED HOLDER €1.40
43
 photo_cameraImage coming soon 306952 STRAP (BLACK) €8.78
45
 photo_cameraImage coming soon 327004 PACKING €2.33
46
 photo_cameraImage coming soon 330591 CONTROLLER TERMINAL SET €28.02
59
 Gears Box for Angle Grinder Flex L 3709 336475 Gears Box for Angle Grinder Flex L 3709 €24.49 Not available for order

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Hitachi Spare Parts for Cordless Driver Drill DS14DSAL

Hitachi-HIKOKI original spare parts

, at discounted prices, we are a licensed service center with after-sales service able to quickly solve the maintenance and repair any issues for Cordless with 14.4 V with Lithium Batteries DS14DSAL.

Reversible drills and impact cordless drills with batteries from 1.5 Ah to 4, with torque clutch.

- DS14DSAL

In the following table, look for the model of the Cordless driver drill and theirs spare part.
Hitachi DS14DSAL

CORDLESS DRIVER DRILL DS 14DSAL
*1 311959 SPECIAL SCREW (LEFT HAND) M6X23
*2 330586 DRILL CHUCK 13VLRQ-N (W/O CHUCK WRENCH)
3 331087 GEAR BOX ASS'Y
4 330582 CLUTCH DIAL
5 330563 NUT
6 330562 SPRING
7 330561 THRUST PLATE
8 331090 FRONT CASE
9 331089 CLICK SPRING
10 306936 STEEL BALL D5
11 331088 LOCK RING (A)
12 330565 NEEDLE ROLLER SET (6 PCS.)
13 330567 RING GEAR
14 330566 CARRIER
15 330568 PLANET GEAR (C) SET (4 PCS.)
16 330569 PLATE (B)
17 330570 REAR CASE
18 330579 SCREW SET D2X3.5 (2 PCS.)
19 312712 SCREW SET D3X12 (4 PCS.)
20 330580 SHIFT ARM
21 330572 SLIDE RING GEAR
22 330571 PINION (C)
23 330573 PLANET GEAR (B) SET (3 PCS.)
24 330574 PINION (B)
25 330576 PLANET GEAR (A) SET (3 PCS.)
26 330575 FIRST RING GEAR
27 330577 PLATE (A)
28 330578 MOTOR SPACER
29 360865 ARMATURE AND PINION SET
30A 334902 MAGNET (H)
31 322521 DUST GUARD
32 322993 BRUSH BLOCK
33 999054 CARBON BRUSH 5X6X11.5 (1 PAIR)
34 319918 BRUSH CAP
35 313687 TAPPING SCREW (W/FLANGE) D3X16 (BLACK)
36A 330585 HOUSING (A).(B) SET
37 330583 SHIFT KNOB
38 330590 DC-SPEED CONTROL SWITCH
39 329454 PUSHING BUTTON (A)
40 330584 LED HOLDER
41 327001 TRUSS HD. SCREW M4 (BLACK)
42A 331277 HOOK (A)
43 306952 STRAP (BLACK)
44 327002 LOCK NUT M4 (BLACK)
45 327004 PACKING
46 330591 CONTROLLER TERMINAL SET
*48 329083 BATTERY BSL 1430 (EUROPE,AUS,NZL)
*48 330558 BATTERY BSL 1415X (EUROPE)
50 334868 FERRITE SUPPORT SET
59 336475 INNER TRAY

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Hitachi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to hitachi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.

Hitachi DS14DSAL
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Diagram Hitachi DS14DSAL

Diagram Hitachi DS14DSAL

Download (108.26KB)
