Hitachi Spare Parts for Circular Saw C7U2

SKU: Hitachi C7U2
€4.74
VAT included

Hitachi Spare Parts for Circular Saw C7U2

We supply original Hitachi-HIKOKI spare parts on offer at unbeatable prices, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Circular Saw C7U2.
Hitachi Spare Parts for Circular Saw C7U2
  • Hitachi Spare Parts for Circular Saw C7U2
  • Hitachi Spare Parts for Circular Saw C7U2
HiKOKI Power Tools Italia S.p.a.

Hitachi Spare Parts for Circular Saw C7U2

SKU: Hitachi C7U2 Condition: New
€4.74
VAT included

Hitachi Spare Parts for Circular Saw C7U2

We supply original Hitachi-HIKOKI spare parts on offer at unbeatable prices, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Circular Saw C7U2.
settings 72 Spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 7/10 Business Days Approx

SHIPPING IN: Usually Ships in 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
Machine Type: Circular Saw
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal PayPal Pay in 3 Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
72 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in 7/10 BUSINESS DAYS

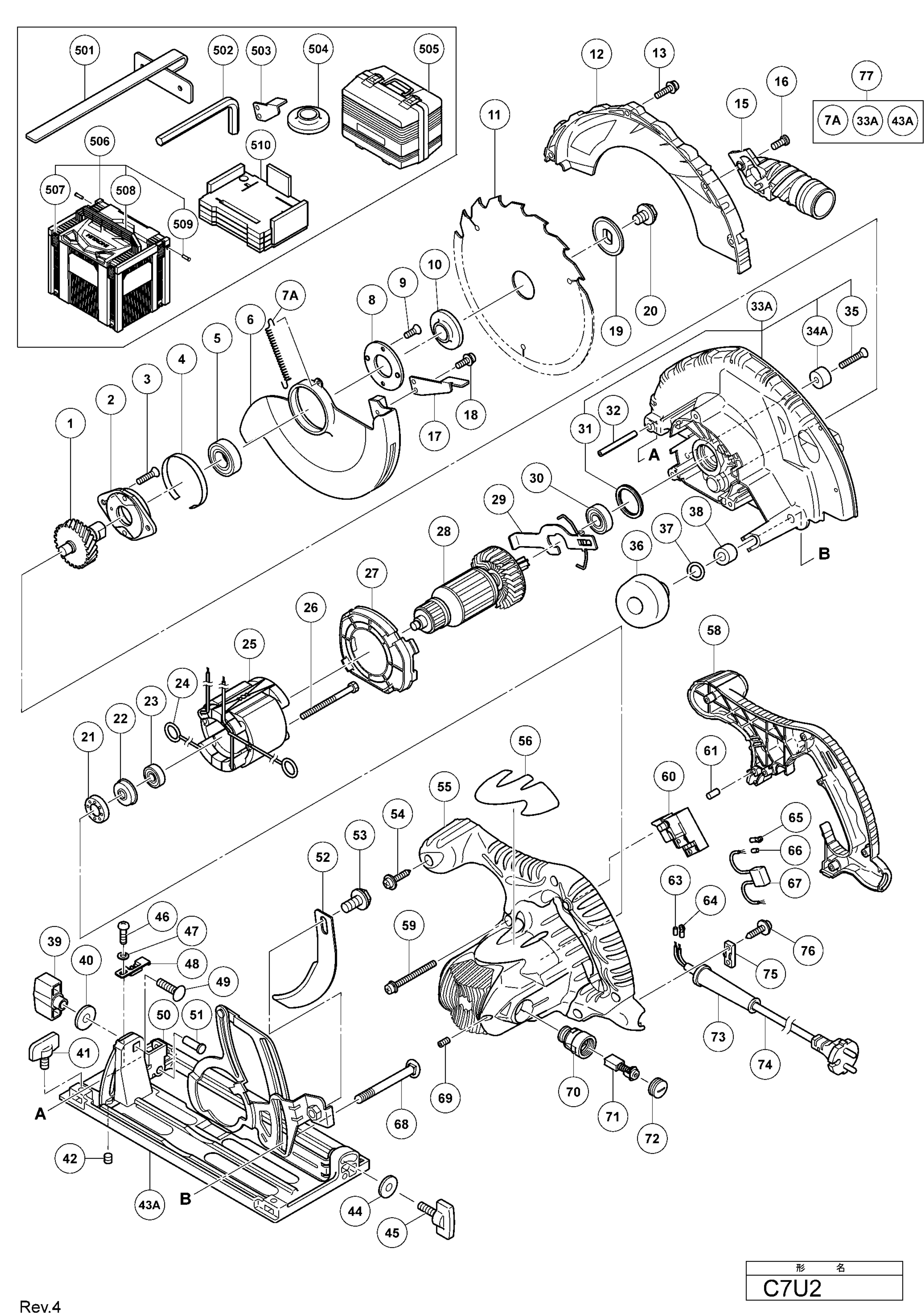

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 302988 SPINDLE AND GEAR SET €24.34
2
 photo_cameraImage coming soon 302433 BEARING HOLDER €4.82
3
 photo_cameraImage coming soon 992013 Seal Lock Flat Hd. Screw M5x14. €0.00 Not available for order
4
 photo_cameraImage coming soon 961807 BUSHING €3.60
5
 photo_cameraImage coming soon 6003VV BALL BEARING 6003VVCMPS2L €8.48
6
 photo_cameraImage coming soon 324661 SAFETY COVER €17.02
7A
 photo_cameraImage coming soon 337101 RETURN SPRING €0.00 Not available for order
8
 photo_cameraImage coming soon 302435 BEARING COVER €2.38
9
 photo_cameraImage coming soon 990430 SEAL LOCK FLAT HD.M4X10 €4.82
10
 WASHER (A) 302476 WASHER (A) €4.95
11
 photo_cameraImage coming soon 324668 TCT SAW BLADE 190MM-D30 HOLE-NT18 €0.00 Not available for order
12
 photo_cameraImage coming soon 324654 SAW COVER €0.00 Not available for order
13
 photo_cameraImage coming soon 305691 MACHINE SCREW (W/WASHERS) M4X14 (BLACK) €0.00 Not available for order
15
 photo_cameraImage coming soon 324669 DUST COLLECTOR €3.60
16
 photo_cameraImage coming soon 324139 SPECIAL BOLT €2.38
17
 photo_cameraImage coming soon 302464 KNOB €3.60
18
 photo_cameraImage coming soon 304043 MACHINE SCREW M4X10 (BLACK) €1.16
19
 photo_cameraImage coming soon 302423 WASHER (B) €3.60
20
 photo_cameraImage coming soon 324662 HEX. SOCKET HD. BOLT M8X15.5 €2.38
21
 photo_cameraImage coming soon 325060 RUBBER BUSHING €1.16
22
 photo_cameraImage coming soon 322089 BEARING BUSHING €6.04
23
 BALL BEARING 608VVC2PS2L 608VVM BALL BEARING 608VVC2PS2L €7.26
24
 photo_cameraImage coming soon 930703 BRUSH TERMINAL €3.60
25
 photo_cameraImage coming soon 340640E STATOR ASS'Y 230V €35.32
26
 photo_cameraImage coming soon 953174 Hex. Hd. Tapping Screw D5x55 €0.00 Not available for order
27
 photo_cameraImage coming soon 324656 FAN GUIDE €3.60
28
 photo_cameraImage coming soon 360727E ARMATURE 230V €62.16
29
 photo_cameraImage coming soon 324655 LOCK LEVER €3.60
30
 BALL BEARING 6001VVCMPS2L 6001VV BALL BEARING 6001VVCMPS2L €8.48
31
 photo_cameraImage coming soon 958130 RUBBER RING €2.38
32
 photo_cameraImage coming soon 949686 ROLL PIN D6X40 (10 PCS.) €8.48
33A
 photo_cameraImage coming soon 337095 GEAR COVER ASS'Y €29.22
34A
 photo_cameraImage coming soon 337097 CUSHION €1.16
35
 photo_cameraImage coming soon 949794 FLAT HD. SCREW M6X20 €0.00 Not available for order
36
 photo_cameraImage coming soon 324660 KNOB €8.48
37
 photo_cameraImage coming soon 676531 O-RING (P-7) €1.16
38
 photo_cameraImage coming soon 303801 SLEEVE €6.04
39
 photo_cameraImage coming soon 324658 WING NUT M8 €6.04
40
 photo_cameraImage coming soon 949433 BOLT WASHER M8 €0.00 Not available for order
41
 Wing Nut M6X15 for Sliding Compound Miter Saw C8FSE 301806 Wing Nut M6X15 for Sliding Compound Miter Saw C8FSE €1.16
42
 photo_cameraImage coming soon 302469 SLOTTED HD. SET SCREW (SEAL LOCK) M6X6 €1.16
43A
 Base Ass'y for Circular Saw Hitachi C7U2 337098 Base Ass'y for Circular Saw Hitachi C7U2 €62.16
44
 photo_cameraImage coming soon 949425 WASHER M6 (10 PCS.) €0.00 Not available for order
45
 photo_cameraImage coming soon 302459 WING BOLT M6X17 €0.00 Not available for order
46
 photo_cameraImage coming soon 949214 MACHINE SCREW M4X6 €0.00 Not available for order
47
 photo_cameraImage coming soon 949453 SPRING WASHER M4 €0.00 Not available for order
48
 photo_cameraImage coming soon 324659 GUIDE PIECE €3.60
49
 photo_cameraImage coming soon 302457 BOLT (SQUARE) M8X30 €0.00 Not available for order
50
 photo_cameraImage coming soon 308479 Bevel Plate €0.00 Not available for order
51
 photo_cameraImage coming soon 308480 Rivet D6x17 €0.00 Not available for order
52
 photo_cameraImage coming soon 324663 RIVING KNIFE €7.26
53
 photo_cameraImage coming soon 324664 HEX. SOCKET HD. BOLT M8X10 €0.00 Not available for order
54
 photo_cameraImage coming soon 301653 Tapp.Screw (W / Flange) D4x20 €6.04
55
 Housing Ass'y for Circular Saws Hitachi C6U2 - C7U2 324665 Housing Ass'y for Circular Saws Hitachi C6U2 - C7U2 €34.10
58
 Handle Cover for Circular Saws Hitachi C6U2 - C7U2 324667 Handle Cover for Circular Saws Hitachi C6U2 - C7U2 €10.92
59
 photo_cameraImage coming soon 302434 MACHINE SCREW (W/WASHERS) M5X45 (BLACK) €0.00 Not available for order
60
 photo_cameraImage coming soon 302470 SWITCH (C) (1P SCREW TYPE) W/O LOCK €9.70
60
 Switch for Circular Saws Hitachi C6U2 - C7MFA - C7U2 963756Z Switch for Circular Saws Hitachi C6U2 - C7MFA - C7U2 €28.00
61
 photo_cameraImage coming soon 946362 BEARING LOCK €1.16
63
 photo_cameraImage coming soon 981373 TUBE (D) €1.16
64
 photo_cameraImage coming soon 980063 TERMINAL FOR KUW,SIN,SAF,NZL.GBR €0.00 Not available for order
66
 photo_cameraImage coming soon 981373 TUBE (D) €1.16
67
 Noise Suppressor Hitachi GP 10 930039 Noise Suppressor Hitachi GP 10 €3.60
68
 photo_cameraImage coming soon 316444 DIAGONAL BOLT M8X105 €6.04
69
 photo_cameraImage coming soon 938477 HEX. SOCKET SET SCREW MSX8 €0.00 Not available for order
70
 photo_cameraImage coming soon 958900 BRUSH HOLDER €7.26
71
 Carbon Brushes for Hitachi Hammer Hitachi DH38MS 999043 Carbon Brushes for Hitachi Hammer Hitachi DH38MS €6.04
72
 Brush Holder Cap for Angle Grinders Hitachi G23SS-G23SW-G23SWU 945161 Brush Holder Cap for Angle Grinders Hitachi G23SS-G23SW-G23SWU €2.38
73
 Cord Armor D.8.8 for Hitachi Power Tools 953327 Cord Armor D.8.8 for Hitachi Power Tools €1.16
74
 photo_cameraImage coming soon 500234Z Cord €0.00 Not available for order
75
 photo_cameraImage coming soon 937631 CORD CLIP €1.16
76
 photo_cameraImage coming soon 984750 Tapp. Screw (W / Flange) D4x16 €0.00 Not available for order
77
 photo_cameraImage coming soon 337103 GEAR COVER SET €0.00 Not available for order

Shipping and delivery information will be available shortly.

Hitachi Spare Parts for Circular Saw C7U2

We supply original Hitachi-HIKOKI spare parts on offer at unbeatable prices, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Circular Saw C7U2.

In the following table, look for the model of the Circular Saw and theirs spare part.
Hitachi C7U2

Circular Saw C7U2
# Part Num. Description
1 302988 SPINDLE AND GEAR SET
2 302433 BEARING HOLDER
3 992013 SEAL LOCK FLAT HD. SCREW M5X14
4 961807 BUSHING
5 6003VV BALL BEARING 6003VVCMPS2L
6 324661 SAFETY COVER
7A 337101 RETURN SPRING
8 302435 BEARING COVER
9 990430 SEAL LOCK FLAT HD. SCREW M4X10
10 302476 WASHER (A)
11 324668 TCT SAW BLADE 190MM-D30 HOLE-NT18
12 324654 SAW COVER
13 305691 MACHINE SCREW (W/WASHERS) M4X14 (BLACK)
15 324669 DUST COLLECTOR
16 324139 SPECIAL BOLT
17 302464 KNOB
18 304043 MACHINE SCREW (W/WASHERS) M4X10 (BLACK)
19 302423 WASHER (B)
20 324662 HEX. SOCKET HD. BOLT M8X15.5
21 325060 RUBBER BUSHING
22 322089 BEARING BUSHING
23 608VVM BALL BEARING 608VVC2PS2L
24 930703 BRUSH TERMINAL
25 340640E STATOR ASS'Y 230V
26 953174 HEX. HD. TAPPING SCREW D5X55
27 324656 FAN GUIDE
28 360727E ARMATURE 230V
29 324655 LOCK LEVER
30 6001VV BALL BEARING 6001VVCMPS2L
31 958130 RUBBER RING
32 949686 ROLL PIN D6X40
33A 337095 GEAR COVER ASS'Y
34A 337097 CUSHION
35 949794 FLAT HD. SCREW M6X20
36 324660 KNOB
37 676531 O-RING (P-7)
38 303801 SLEEVE
39 324658 WING NUT M8
40 949433 BOLT WASHER M8
41 301806 WING BOLT M6X15
42 302469 SLOTTED HD. SET SCREW (SEAL LOCK) M6X6
43A 337098 BASE ASS'Y
44 949425 WASHER M6
45 302459 WING BOLT M6X17
46 949214 MACHINE SCREW M4X6
47 949453 SPRING WASHER M4
48 324659 GUIDE PIECE
49 302457 BOLT (SQUARE) M8X30
50 308479 BEVEL PLATE
51 308480 RIVET D6X17
52 324663 RIVING KNIFE
53 324664 HEX. SOCKET HD. BOLT M8X10
54 301653 TAPPING SCREW (W/FLANGE) D4X20 (BLACK)
55 324665 HOUSING ASS'Y
58 324667 HANDLE COVER
59 302434 MACHINE SCREW (W/WASHERS) M5X45 (BLACK)
60 963756Z SWITCH (2P PILLAR TYPE) W/SAFETY LOCK
60 302470 SWITCH (C) (1P SCREW TYPE) W/O LOCK
61 946362 BEARING LOCK
63 981373 TUBE (D)
64 980063 TERMINAL
66 981373 TUBE (D)
67 930039 NOISE SUPPRESSOR
68 316444 DIAGONAL BOLT M8X105
69 938477 HEX. SOCKET SET SCREW M5X8
70 958900 BRUSH HOLDER
71 999043 CARBON BRUSH (1 PAIR)
72 945161 BRUSH CAP
73 953327 CORD ARMOR D8.8
74 500234Z CORD
75 937631 CORD CLIP
76 984750 TAPPING SCREW (W/FLANGE) D4X16
77 337103 GEAR COVER SET
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Hitachi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to hitachi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Hitachi C7U2
12 Items

Data sheet

SHIPPING IN
Usually Ships in 7/10 BUSINESS DAYS
Machine Type
Circular Saw
MORE INFO:
[email protected]

Specific References

New

Download

Diagram Hitachi C7U2

Diagram Hitachi C7U2

Download (119.25KB)

You might also like

Carbon Brushes for Angle Grinders Hitachi G 23SS - G 23SW
HiKOKI Power Tools Italia S.p.a. SKU: 999038
Carbon Brushes for Angle Grinders Hitachi G 23SS - G 23SW
Carbon Brushes for Angle Grinders Hitachi G 23SS -  G 23SW Genuine parts Hitachi, carbon Brushesfor Angle Grinders 230 mm G 23SS -  G 23SW - G 23SWU - Router M12VE , Circolar Saw C9U2 - Radial Miter Saw C 10FCH2 - C 12LCH. Part for...
AVAILABLE €7.26
Details
Carbon Brushes for Hitachi Hammer Hitachi DH38MS
HiKOKI Power Tools Italia S.p.a. SKU: 999043
Carbon Brushes for Hitachi Hammer Hitachi DH38MS
Carbon Brushes for Hitachi Hammer Hitachi DH38MS Genuine spare part Hitachi-HIKOKI, Carbon Brushe Set for Combined Hammer DH38MS - Demolition Hammer H41MB Part for the following products: -  Combined Hammer 9 Joule - 6.4Kg DH38MS -...
AVAILABLE €6.04
Details
Brushes Cap for Demolition Hammers Hitachi H45MR - H45MRY - H45FRV
HiKOKI Power Tools Italia S.p.a. SKU: 935829
Brushes Cap for Demolition Hammers Hitachi H45MR - H45MRY - H45FRV
Brushes Cap for Demolition Hammers Hitachi H45MR - H45MRY - H45FRV - H45SR Genuine Spare Part Hitachi, Brushes Cap for Demolition Hammers Hitachi H45MR - H45MRY - H45FRV - H45SR - PR-38E - DH - 28 PD DH40MRY - IMPACT WRENCH WR22SA -...
Usually Ships in: 7/10 Business Days Approx. €1.16
Details
Armature for Circula Saw Hitachi C6U2 Sale
HiKOKI Power Tools Italia S.p.a. SKU: 360729E
Armature for Circula Saw Hitachi C6U2
Armature for Circular Saw Hitachi C6U2 Original replacement part Hitachi HIKOKI, 230 V Armature for Circular Saw C6U2. Part for the following products . - Circular Saw Hitachi C6U2 - Code: 360729E
AVAILABLE €80.46
Details
Switch for Circular Saws Hitachi C6U2 - C7MFA - C7U2
HiKOKI Power Tools Italia S.p.a. SKU: 963756Z
Switch for Circular Saws Hitachi C6U2 - C7MFA - C7U2
Switch for Circular Saws Hitachi C6U2 - C7MFA - C7U2 Genuine parts Hitachi, Switch with Security Lock for Circular Saws C6U2 - C7MFA - C7U2 - Planer P20SA2. Parts for the following products: - Circular Saw Hitachi C6U2 - Circular...
on 7/10 Business Days Approx €28.00
Details
Brushe Cap for Mixers Hitachi D13 - D13SA
HiKOKI Power Tools Italia S.p.a. SKU: 961781
Brushe Cap for Mixers Hitachi D13 - D13SA
Brushe Cap for Mixers Hitachi D13 - D13SA Genuine part Hitachi, Brushe Cap for Mixers D13 - D13SA - Circular Saws C9U - C0U2 - C9U3 - Core-Drill DC12V - Rotary Hammers DH50SA1 - DH50SB - Demolition Hammer H55SA Part for the following...
AVAILABLE €3.60
Details
Wing Nut M6X15 for Sliding Compound Miter Saw C8FSE
HiKOKI Power Tools Italia S.p.a. SKU: 301806
Wing Nut M6X15 for Sliding Compound Miter Saw C8FSE
Wing Nut M6X15 for Sliding Compound Miter Saw C8FSE Genuine part Hitachi, Wing Nut M6X15 for Sliding Compound Miter Saws C8FSE - C12LCH - Routers M8SA2 - M12VE - M12V2 - Circular...
AVAILABLE €1.16
Details
Base Ass'y for Circular Saw Hitachi C7U2
HiKOKI Power Tools Italia S.p.a. SKU: 337098
Base Ass'y for Circular Saw Hitachi C7U2
Base Ass'y for Circular Saw Hitachi C7U2 Genuine parts Hitachi, Base Ass'y for Circular Saw C7U2. Parts for the following products: -  Circular Saw Hitachi C7U2 - Code: 337098
on 7/10 Business Days Approx €62.16
Details
Housing Ass'y for Circular Saws Hitachi C6U2 - C7U2
HiKOKI Power Tools Italia S.p.a. SKU: 324665
Housing Ass'y for Circular Saws Hitachi C6U2 - C7U2
Housing Ass'y for Circular Saws Hitachi C6U2 - C7U2 Genuine part Hitachi - HIKOKI, Housing Ass'y for Circular Saws C6U2 - C7U2. Part for the following products: -  Circular Saw Hitachi C6U2 -  Circular Saw Hitachi C7U2 - Code: 324665
on 7/10 Business Days Approx €34.10
Details
Handle Cover for Circular Saws Hitachi C6U2 - C7U2
HiKOKI Power Tools Italia S.p.a. SKU: 324667
Handle Cover for Circular Saws Hitachi C6U2 - C7U2
Handle Cover for Circular Saws Hitachi C6U2 - C7U2 Genuine part Hitachi - HIKOKI, Handle Cover for Circular Saws C6U2 - C7U2. Part for the following products: -  Circular Saw Hitachi C6U2 -  Circular Saw Hitachi C7U2 - Code: 324667
on 7/10 Business Days Approx €10.92
Details
Comments (0)
No customer reviews for the moment.
