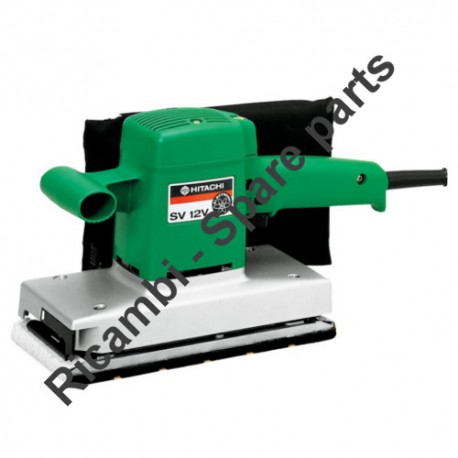

Hitachi Parts for Orbital Sanders SV12V

SKU: Hitachi SV12V
€19.38
VAT included

Hitachi Parts for Orbital Sanders SV12V

Hitachi-HIKOKI Tanaka authorized service center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Orbital Sander SV12V.
Hitachi Parts for Orbital Sanders SV12V
  • Hitachi Parts for Orbital Sanders SV12V
  • Hitachi Spare Parts for Sanders

Hitachi Parts for Orbital Sanders SV12V

SKU: Hitachi SV12V Condition: New
€19.38
VAT included

Hitachi Parts for Orbital Sanders SV12V

Hitachi-HIKOKI Tanaka authorized service center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Orbital Sander SV12V.
settings 57 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
AVAILABLE

verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

37 spare parts
Pos. Item Price Buy
1
photo_cameraImage coming soon 6001DD BALL BEARING 6001DDCMPS2L €8.46
2
photo_cameraImage coming soon 300158 SLEEVE €5.26
4
photo_cameraImage coming soon 300172 FRAME €40.13
5
photo_cameraImage coming soon 300317 RUBBER LEG €9.21
6
Paper Holder Lever for Orbital Sander Hitachi SV12V 300161 Paper Holder Lever for Orbital Sander Hitachi SV12V €5.43
9
photo_cameraImage coming soon 300159 FAN €10.38
10
photo_cameraImage coming soon 300160 DUST FAN GUIDE €3.28
13
photo_cameraImage coming soon 300164 DUST GUIDE €3.96
14
Paper Holder for Orbital Sander Hitachi SV12V 300162 Paper Holder for Orbital Sander Hitachi SV12V €4.04
16
photo_cameraImage coming soon 872971 RETAINING RING (E-TYPE) FOR D3 SHAFT €1.33
17A
photo_cameraImage coming soon 316549 HOLDER BAR €5.12
18
photo_cameraImage coming soon 300173 BOTTOM PLATE €40.79
20
photo_cameraImage coming soon 6203DD BALL BEARING 6203DDCMPS2L €8.89
21
photo_cameraImage coming soon 300167 BALANCE WEIGHT €27.63
22A
photo_cameraImage coming soon 300318 COVER €5.12
24
Sanding Pad for Orbital Sanders Hitachi SV12V - SV12SD 300090 Sanding Pad for Orbital Sanders Hitachi SV12V - SV12SD €19.40
28
photo_cameraImage coming soon 300157 HANDLE COVER €7.23
29
photo_cameraImage coming soon 940811 PUSHING HOLDER €1.49
30
Unipolar Switch for Orbital Sander Hitachi SV12V 957747 Unipolar Switch for Orbital Sander Hitachi SV12V €20.93
30
Single Phase Switch for Orbital Sander Hitachi SV12V 971667Z Single Phase Switch for Orbital Sander Hitachi SV12V €25.82
31
photo_cameraImage coming soon 981373 TUBE (D) €1.37
35
Noise Suppressor for Angle Grinder Hitachi G12SA2 994273 Noise Suppressor for Angle Grinder Hitachi G12SA2 €9.62
38
photo_cameraImage coming soon 300183 TOP COVER €7.92
40
Carbon Brushes for Sanders Hitachi SV12-13 999041 Carbon Brushes for Sanders Hitachi SV12-13 €9.62
41
Brushe Holder for Orbital Sanders Hitachi SV12SD-SG-SH 930483 Brushe Holder for Orbital Sanders Hitachi SV12SD-SG-SH €2.78
42
photo_cameraImage coming soon 300154 HOUSING €26.18
46A
photo_cameraImage coming soon 340719U STATOR 230V-240V €73.52
47
photo_cameraImage coming soon 608VVM BALL BEARING 608VVC2PS2L €7.12
49
photo_cameraImage coming soon 300155 FAN GUIDE €3.28
50
photo_cameraImage coming soon 360124E ARMATURE 220V-230V €97.83
51
photo_cameraImage coming soon 946362 BEARING LOCK €1.30
52
photo_cameraImage coming soon 300186 CONTROLLER CIRCUIT 220V-240V €53.28
52A
photo_cameraImage coming soon 300187 CONTROLLER CIRCUIT 220V-240V €61.52
56
photo_cameraImage coming soon 981373 TUBE (D) €1.37
59
photo_cameraImage coming soon 937631 CORD CLIP €1.37
60
Cord Armor D.10.1 for Hitachi Power Tools 938051 Cord Armor D.10.1 for Hitachi Power Tools €1.34
60
Cord Armor D.8.8 for Hitachi Power Tools 953327 Cord Armor D.8.8 for Hitachi Power Tools €1.37

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Hitachi Parts for Orbital Sanders SV12V

Hitachi-HIKOKI Tanaka authorized service center and original spare parts

 Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Orbital Sander SV12V.

In the following table, look for the model of the Sander and their spare part.
Hitachi SV12V

ORBITAL SANDER SV12V
# Part Num. Description
1 6001DD BALL BEARING 6001DDCMPS2L
2 300158 SLEEVE
3 992013 SEAL LOCK FLAT HD. SCREW M5X14
4 300172 FRAME
5 300317 RUBBER LEG
6 300161 LEVER
7 953066 DISTANCE PIECE
8 993539 MACHINE SCREW (W/WASHERS) M4X16
9 300159 FAN
10 300160 DUST FAN GUIDE
11 949216 MACHINE SCREW M4X10
12 300165 FELT (A)
13 300164 DUST GUIDE
14 300162 PAPER HOLDER
15 953320 SPRING
16 872971 RETAINING RING (E-TYPE) FOR D3 SHAFT
17A 316549 HOLDER BAR
18 300173 BOTTOM PLATE
19 300166 FELT
20 6203DD BALL BEARING 6203DDCMPS2L
21 300167 BALANCE WEIGHT
22A 300318 COVER
24 300090 SANDING PAD (PERFORATED)
25 949454 SPRING WASHER M5
26 949238 MACHINE SCREW M5X14
27 982095 TAPPING SCREW (W/WASHER) D4X20
28 300157 HANDLE COVER
29 940811 PUSHING HOLDER
30 957747 SWITCH (A) (1P SCREW TYPE) W/LOCK
30 971667Z SWITCH (2P PILLAR TYPE) W/LOCK
31 981373 TUBE (D)
32 980063 TERMINAL
33 992635 EARTH TERMINAL
35 994273 NOISE SUPPRESSOR
36 930153 SUPPORT (B)
37A 300185 INTERNAL WIRE
38 300183 TOP COVER
39 300319 MACHINE SCREW (+-HD.) M5X60
40 999041 CARBON BRUSH (1 PAIR)
41 930483 BRUSH HOLDER
42 300154 HOUSING
46A 340719U STATOR 230V-240V
47 608VVM BALL BEARING 608VVC2PS2L
48 953174 HEX. HD. TAPPING SCREW D5X55
49 300155 FAN GUIDE
50 360124E ARMATURE 220V-230V
51 946362 BEARING LOCK
52 300186 CONTROLLER CIRCUIT 220V-240V
52A 300187 CONTROLLER CIRCUIT 220V-240V
56 981373 TUBE (D)
57 980063 TERMINAL
58 984750 TAPPING SCREW (W/FLANGE) D4X16
59 937631 CORD CLIP
60 953327 CORD ARMOR D8.8
60 938051 CORD ARMOR D10.1
61 331949 CR
62 331950 INTERNAL WIRE
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Hitachi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to hitachi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Hitachi SV12V
8 Items

Specific References

New

Download

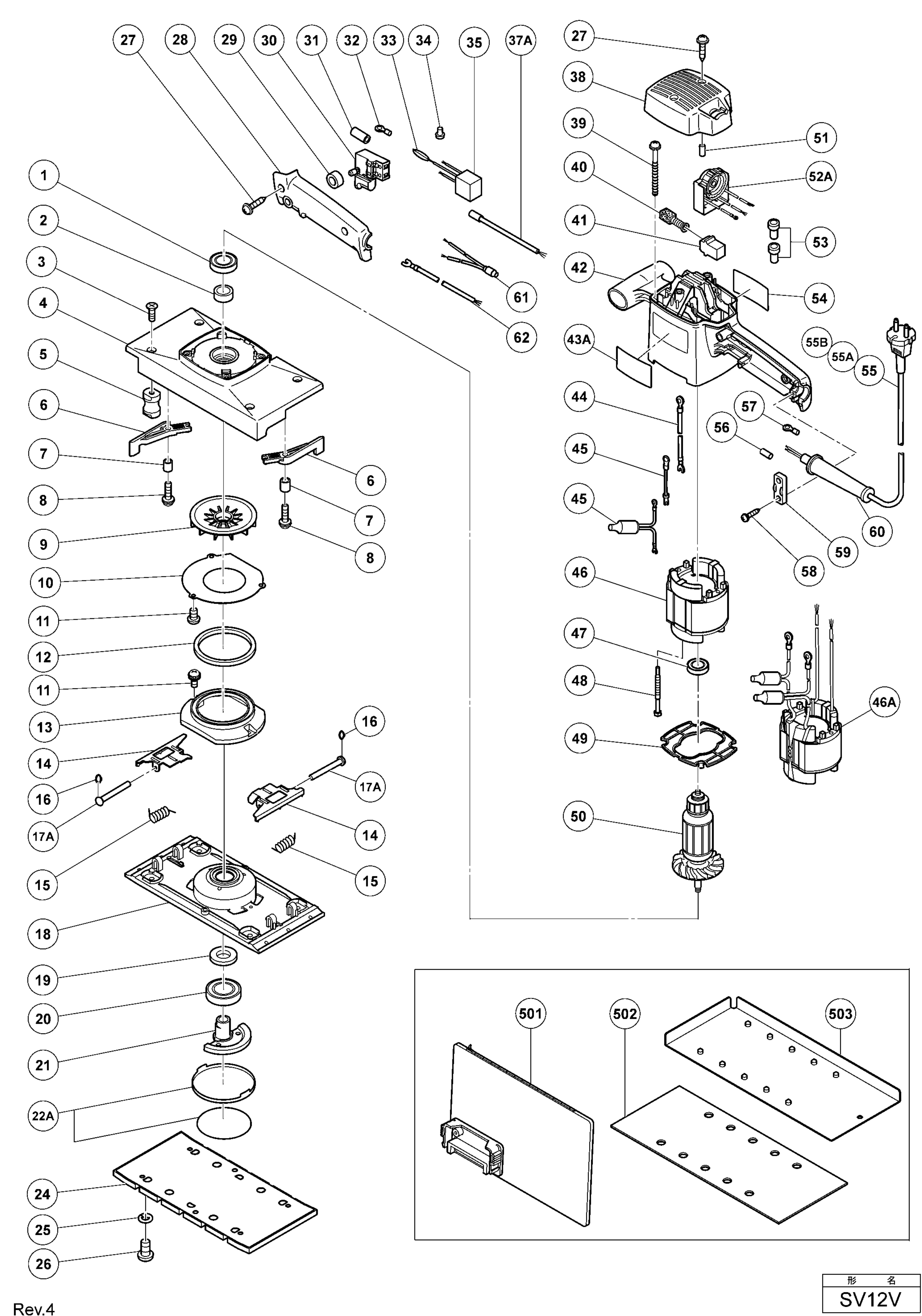

Diagram Hitachi SV12V

Diagram Hitachi SV12V

Download (89.85KB)
