Hitachi Parts for Rotorbital Sander SV13YB
€19.38
VAT included
Hitachi Parts for Random Orbital Sander SV13YB
We supply original Hitachi-HIKOKI spare parts on offer at unbeatable prices, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Random Orbital Sander SV13YB.
Hitachi Parts for Rotorbital Sander SV13YB
€19.38
VAT included
Hitachi Parts for Random Orbital Sander SV13YB
We supply original Hitachi-HIKOKI spare parts on offer at unbeatable prices, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Random Orbital Sander SV13YB.
settings
31 spare parts
description
1 exploded view
verified_user
Original Product
Manufacturer warranty included
support_agent
Technical Support
Our team helps you choose
Secure and guaranteed payments
31 spare parts
Page 1

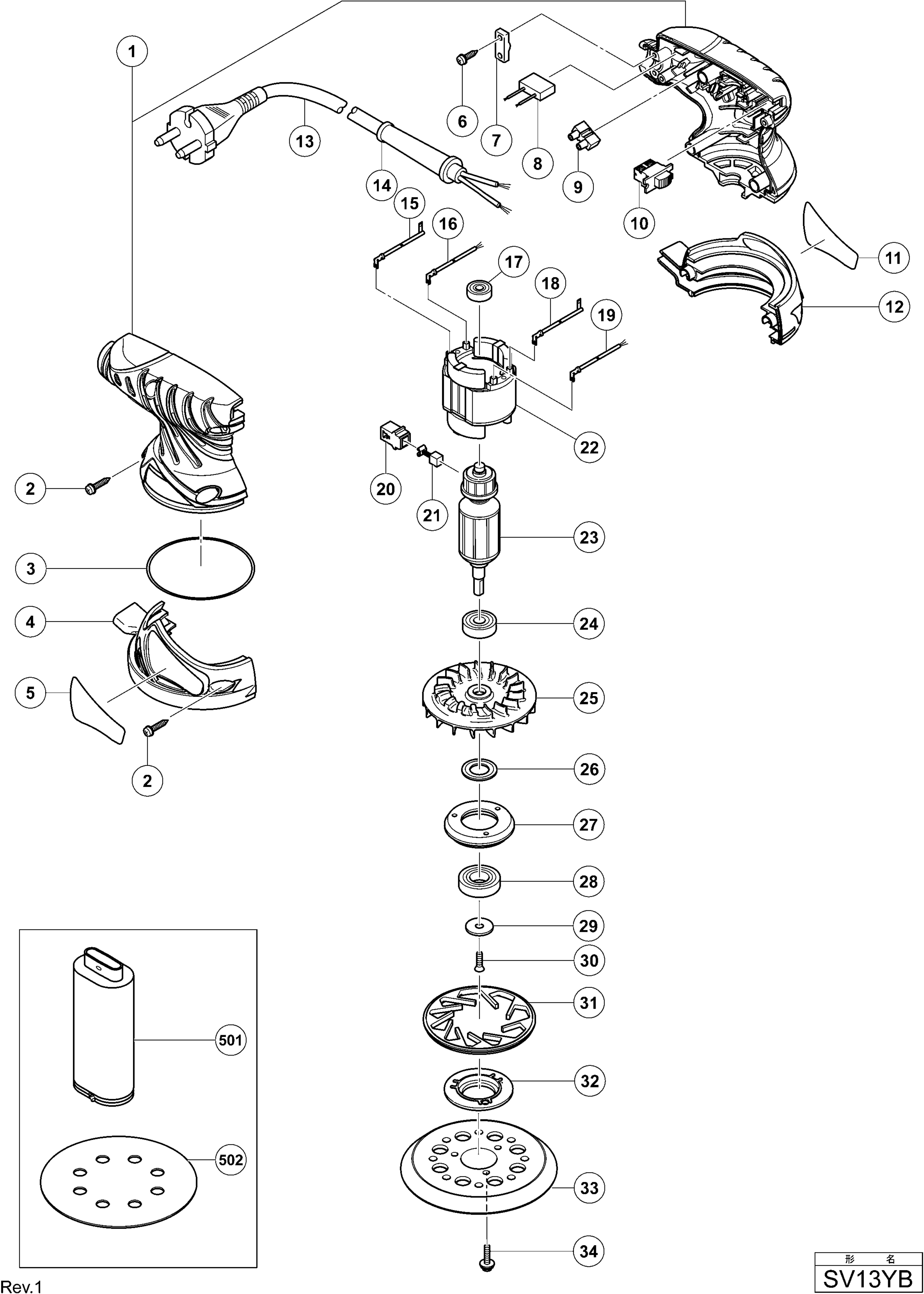

zoom_in View exploded
local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Informazioni sulle spedizioni e consegne saranno disponibili a breve.
Hitachi Parts for Random Orbital Sander SV13YB
We supply original Hitachi-HIKOKI spare parts on offer at unbeatable prices, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Random Orbital Sander SV13YB.
In the following table, look for the model of the Sander and their spare part.
| RANDOM ORBITAL SANDER SV13YB | ||
| # | Part Num. | Description |
| 1 | 324214 | HOUSING (A).(B) SET |
| 2 | 301653 | TAPPING SCREW (W/FLANGE) D4X20 (BLACK) |
| 3 | 993195 | O-RING |
| 4 | 324207 | LOWER COVER (B) |
| 6 | 984750 | TAPPING SCREW (W/FLANGE) D4X16 |
| 7 | 937631 | CORD CLIP |
| 8 | 930039 | NOISE SUPPRESSOR |
| 9 | 938307 | PILLAR TERMINAL |
| 10 | 311948 | SLIDE SWITCH (1P SCREW TYPE) |
| 12 | 324206 | LOWER COVER (A) |
| 14 | 953327 | CORD ARMOR D8.8 |
| 15 | 322764 | INTERNAL WIRE (BROWN) |
| 16 | 322761 | TAB TERMINAL (BLUE) |
| 17 | 626VVM | BALL BEARING 626VVC2PS2L |
| 18 | 322763 | INTERNAL WIRE (BLUE) |
| 19 | 322762 | TAB TERMINAL (BROWN) |
| 20 | 930483 | BRUSH HOLDER |
| 21 | 999041 | CARBON BRUSH (1 PAIR) |
| 22 | 340618E | STATOR 220V-230V |
| 23 | 360698E | ARMATURE 220V-230V |
| 24 | 629VVM | BALL BEARING 629VVC2PS2L |
| 25 | 324521 | BALANCE FAN |
| 26 | 324208 | DUST WASHER |
| 27 | 324212 | BEARING HOLDER |
| 28 | 6002DW | BALL BEARING 6002DDWCMPS2L |
| 29 | 309422 | WASHER |
| 30 | 993244 | SEAL LOCK FLAT HD. SCREW M4X12 |
| 31 | 324210 | BRAKE |
| 32 | 324211 | BEARING COVER |
| 33 | 324209 | PAD (PRESSURE SENSITIVE TYPE) |
| 34 | 307109 | SEAL LOCK SCREW (W/WASHERS) M4X16 (BLACK |
| 501 | 310339 | DUST BAG |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Hitachi websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to hitachi brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
